Road Stream Crossing Site ST163
Sturgeon River Watershed, Club Stream
Old US 27
Corwith Twp,
Otsego County
Information collected by:
Site Location
GPS Coordinates: 45.134933
, -84.663067
T32N
R03W
Sec 27
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.1745 tons/year
Severity: Moderate
Year Inventoried: 2015
Site ID

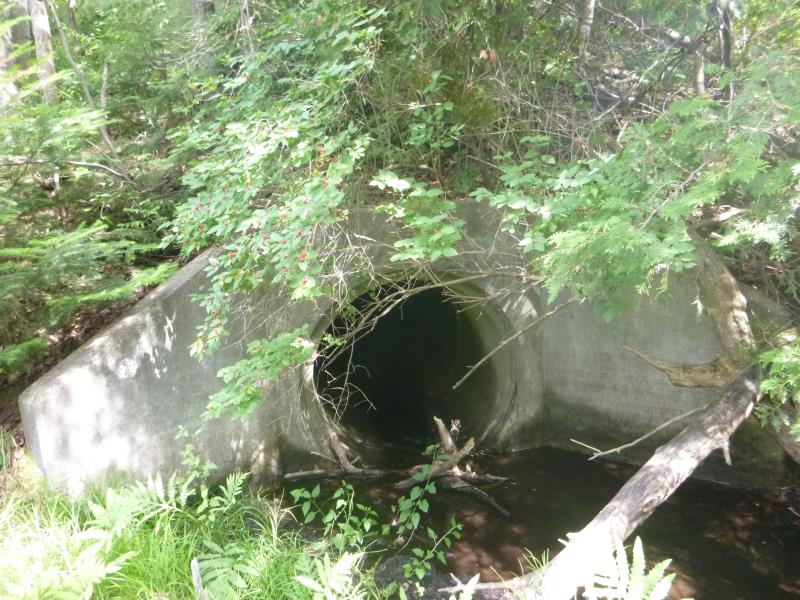

Inlet

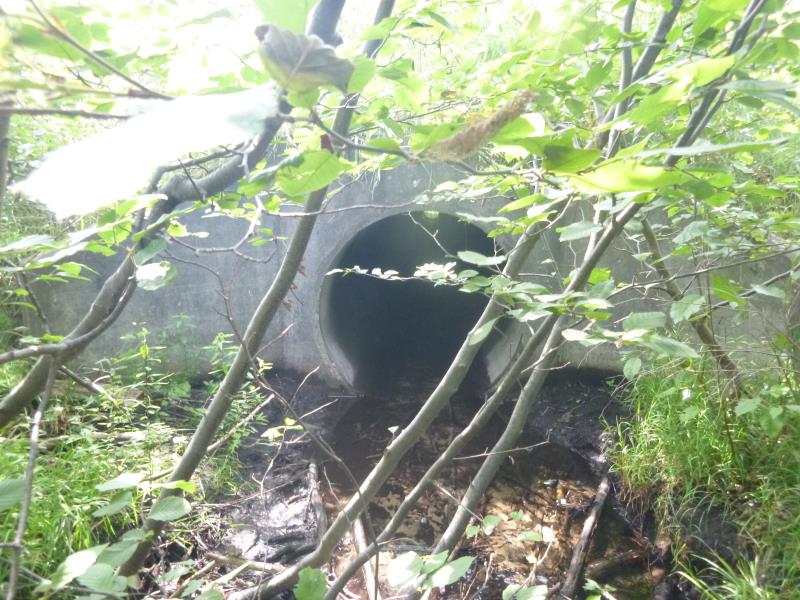

Outlet

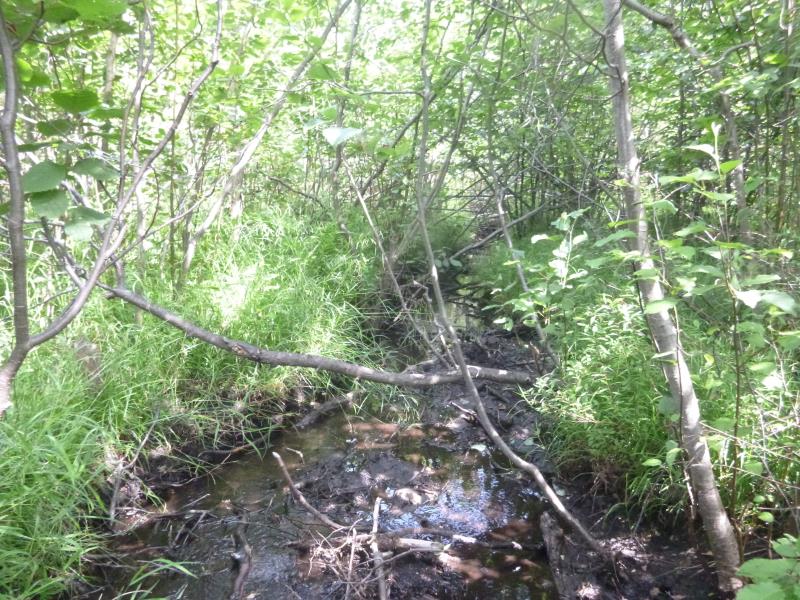

Downstream Conditions

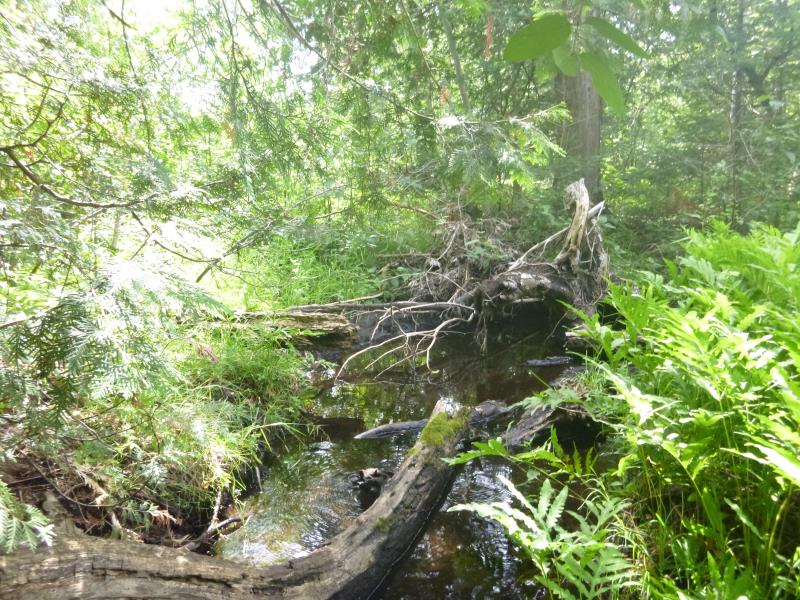

Upstream Conditions

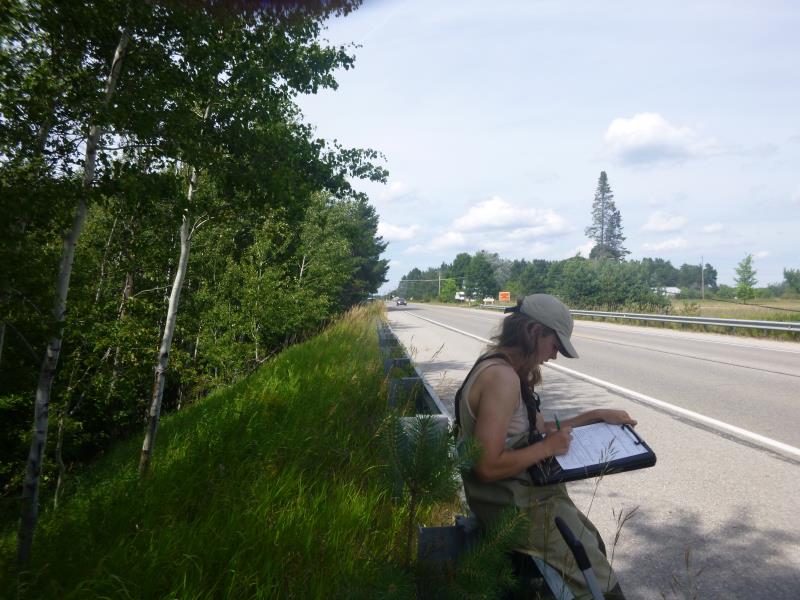

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Mitered
Outlet Type: Outlet Apron
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 90 ft.
, Width 3.9 ft.
, Height 3.9 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.05 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 4.4 ft.
Wetted Width: 2.1 ft.
Water Velocity: 0.1 ft./sec.
(Measured with Meter)
Dominant Substrate: Silt
Road Information
Paved
State Road
Road Condition: Good
Road Width at Culvert: 44 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 30 ft.
Slope: 1:1.5
Downstream
Fill Depth: 30 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.06
Erosion: 0.0873 tons/year
Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.06
Erosion: 0.0873 tons/year
Erosion Information
Total Erosion at Crossing: 0.1745 tons/year
Summary Information
Fish Passability 0.5
