Road Stream Crossing Site ST170

Sturgeon River Watershed, Club Stream tributary
Badgley Rd
Corwith Twp, Otsego County
Information collected by:
Tip of the Mitt Watershed Council
Site Location
GPS Coordinates: 45.127483 , -84.636483
T32N R03W Sec 26
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 3.7686 tons/year
Severity: Severe
Year Inventoried: 2015
Site ID
Inlet
Outlet

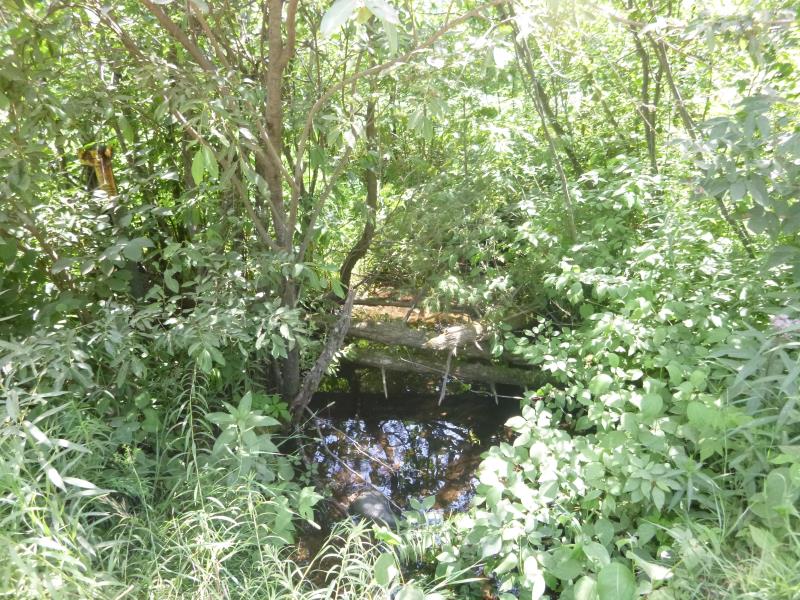

Upstream Conditions

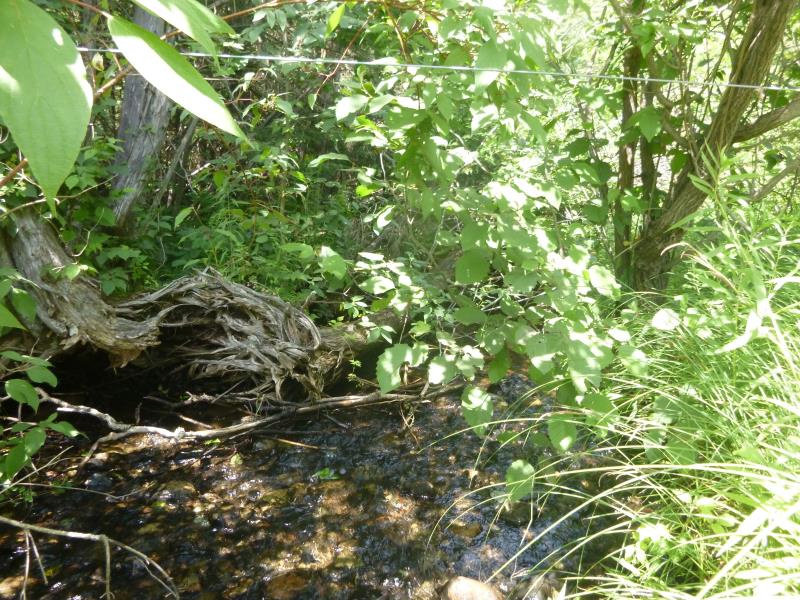

Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Mitered
Outlet Type: Outlet Apron
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 24 ft. , Width 3.2 ft. , Height 2.8 ft.
Structure is NOT Perched

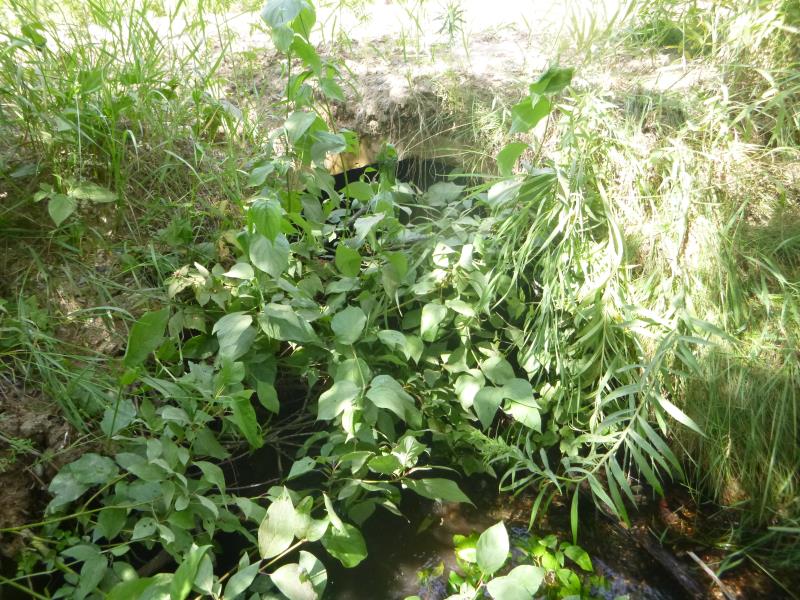

Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.53 ft./sec.

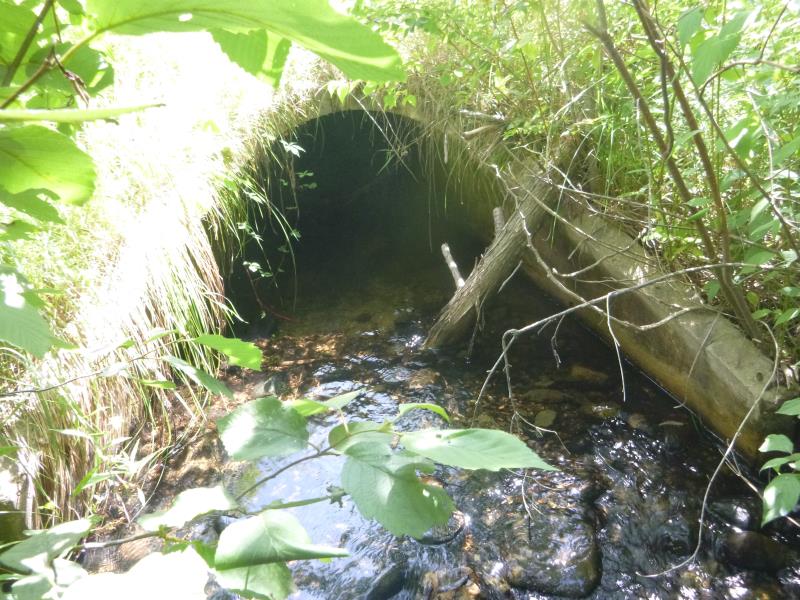

Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0.53 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 8.2 ft.
Wetted Width: 3.7 ft.
Water Velocity: 0.2 ft./sec. (Measured with Float Test)
Dominant Substrate: Silt
Road Information
Gravel State Road
Road Condition: Good
Road Width at Culvert: 12 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.7 ft.
Slope: 1:1.5
Downstream
Fill Depth: 0.7 ft.
Slope: 1:2
Approaches

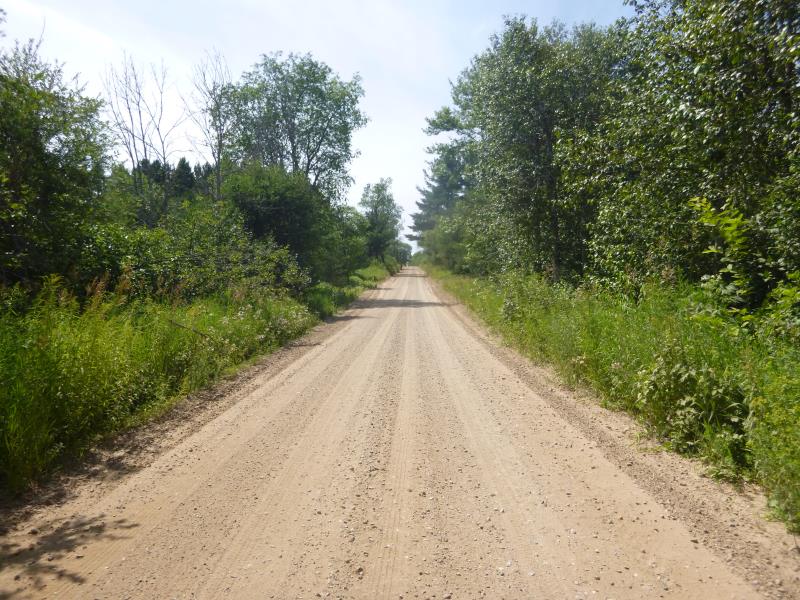

Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 1.8843 tons/year

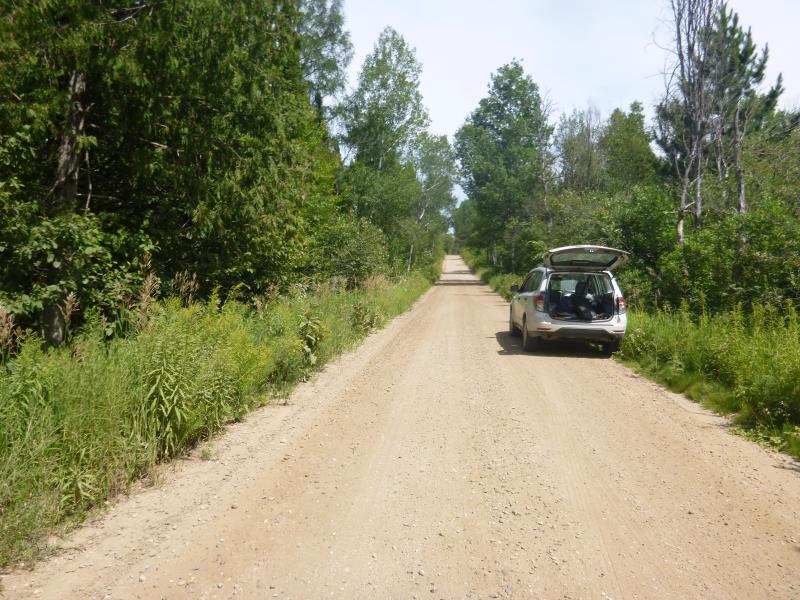

Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 1.8843 tons/year
Erosion Information
Total Erosion at Crossing: 3.7686 tons/year
Summary Information
Fish Passability 0.9
Erosion is an area of concern for this site.
A future visit to this site is recommended. Size of culvert
These non-native species were observerd at this site: Spotted knapweed
