Road Stream Crossing Site ST201

Sturgeon River Watershed, Sturgeon River tributary
Gosglow Rd
Livingston Twp, Otsego County
Information collected by:
Tip of the Mitt Watershed Council
Site Location
GPS Coordinates: 45.046383 , -84.6233
T31N R03W Sec 25
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 1.7772 tons/year
Severity: Moderate
Year Inventoried: 2015
Inlet

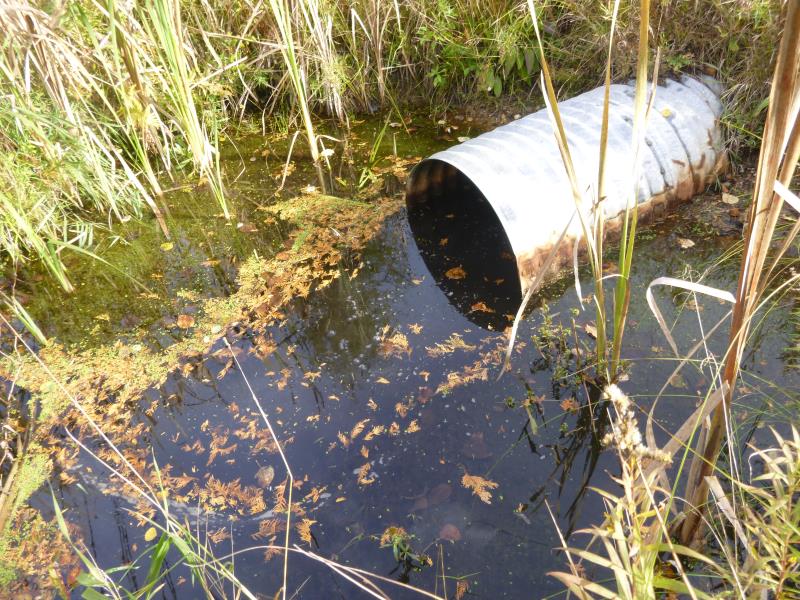

Outlet
Downstream Conditions

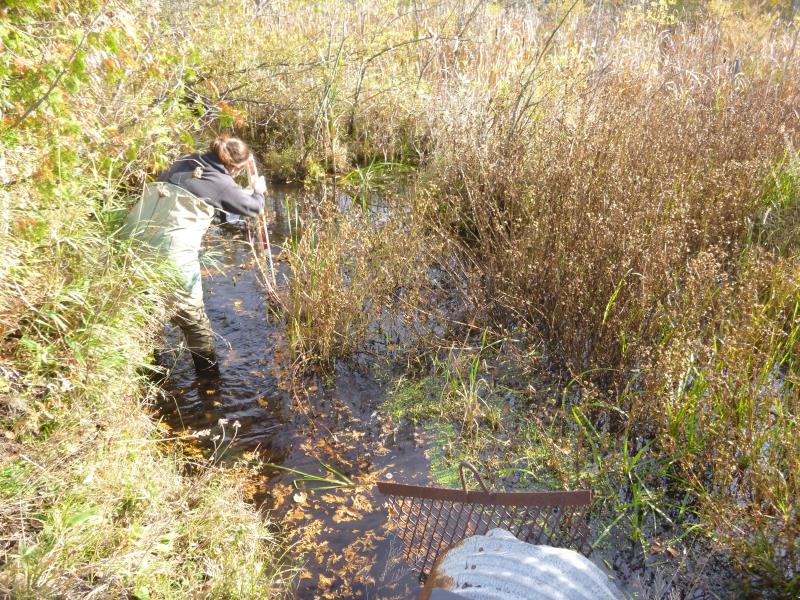

Upstream Conditions

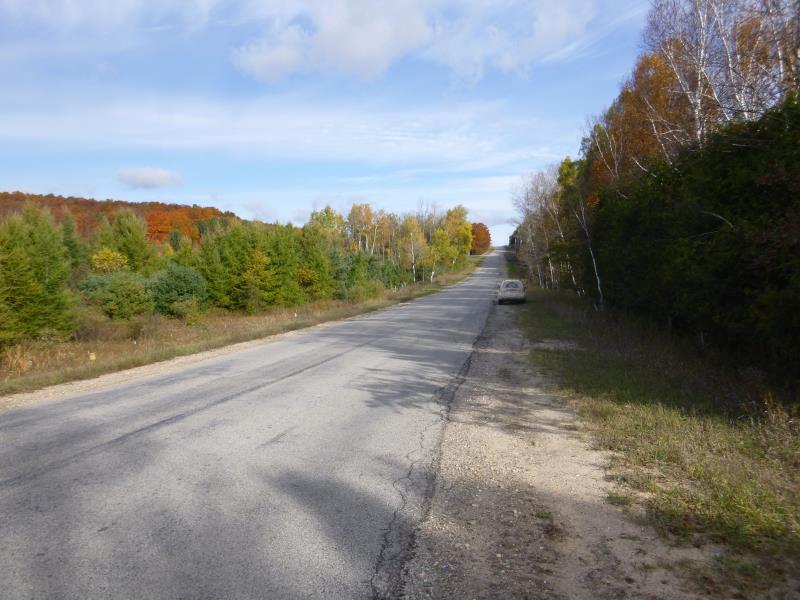

Road Approach - Left
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Trash Rack
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Poor
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 94.5 ft. , Width 2.1 ft. , Height 2.1 ft.
Percentage Crushed: Inlet: 1% to 25% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.3 ft./sec.
Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 21 ft. , Width 16.7 ft. , Depth 2.1 ft.
Riffle Information
Water Depth: 0.8 ft.
Bankfull Width: 3.1 ft.
Wetted Width: 2.5 ft.
Water Velocity: 0.1 ft./sec. (Measured with Meter)
Dominant Substrate: Organics
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 33.6 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 4.1 ft.
Slope: 1:2
Downstream
Fill Depth: 5.5 ft.
Slope: 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.8
Erosion: 0.8886 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.8
Erosion: 0.8886 tons/year
Erosion Information
Total Erosion at Crossing: 1.7772 tons/year
Summary Information
Fish Passability 0.5
A future visit to this site is recommended. Undersized; trashrack
