Road Stream Crossing Site UBR_CC03

Upper Black River Watershed, Van Helen Creek
Roth Rd
Briley Twp, Montmorency County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.10602 , -84.21983
T31N R2E Sec 5
Owned by State
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.7611 tons/year
Severity: Moderate
Year Inventoried: 2014
Site ID

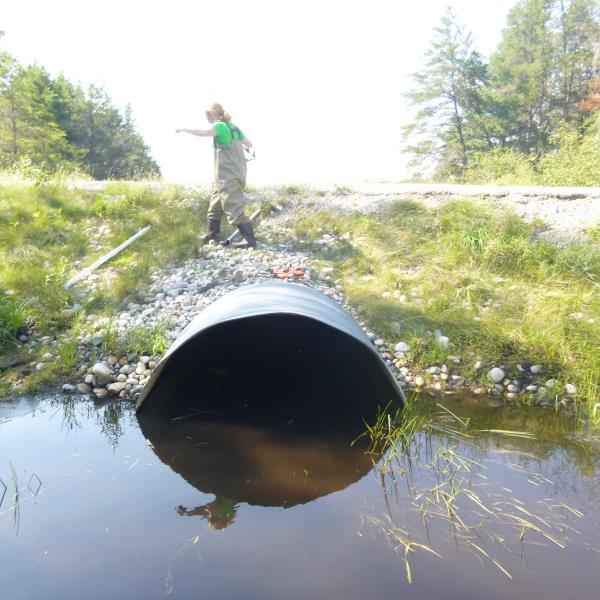

Inlet

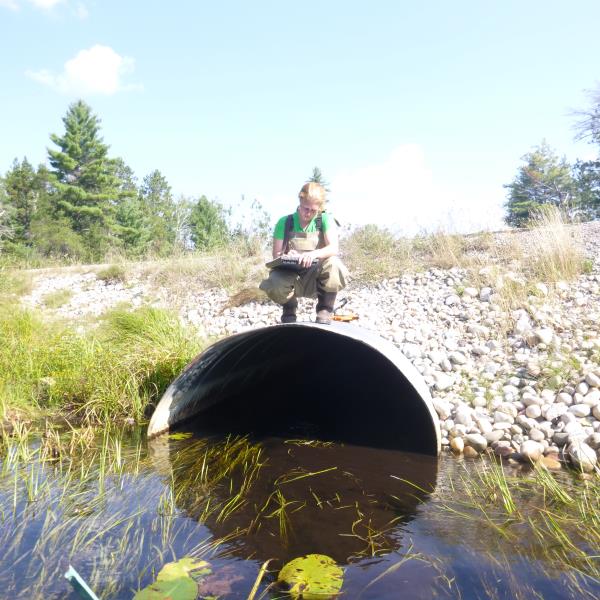

Outlet

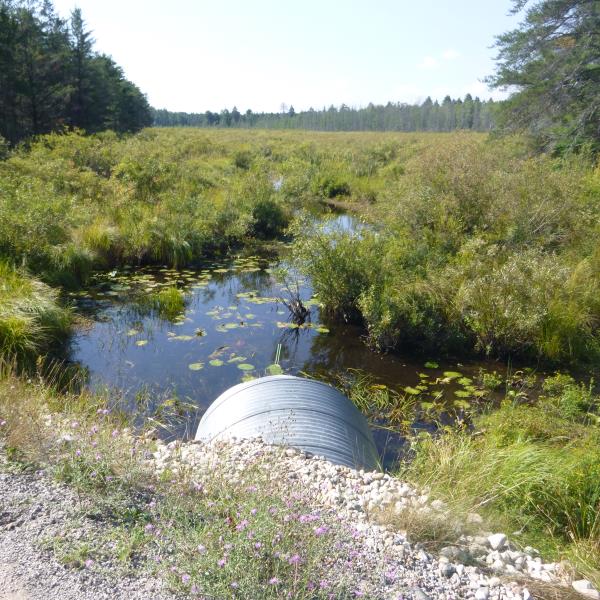

Upstream Conditions

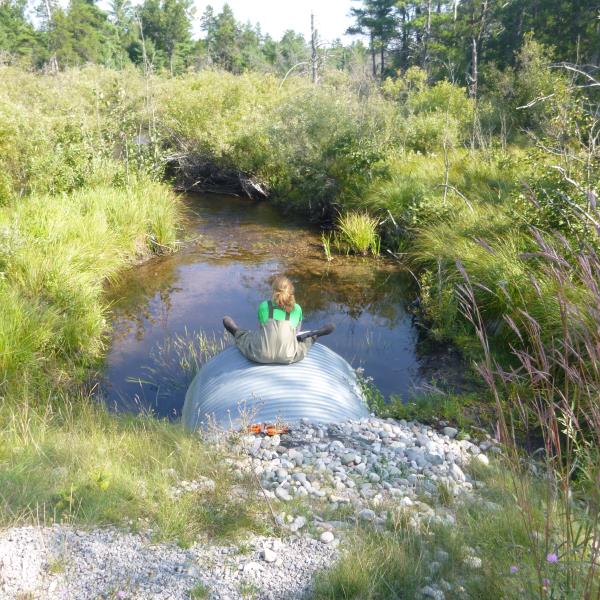

Downstream Conditions

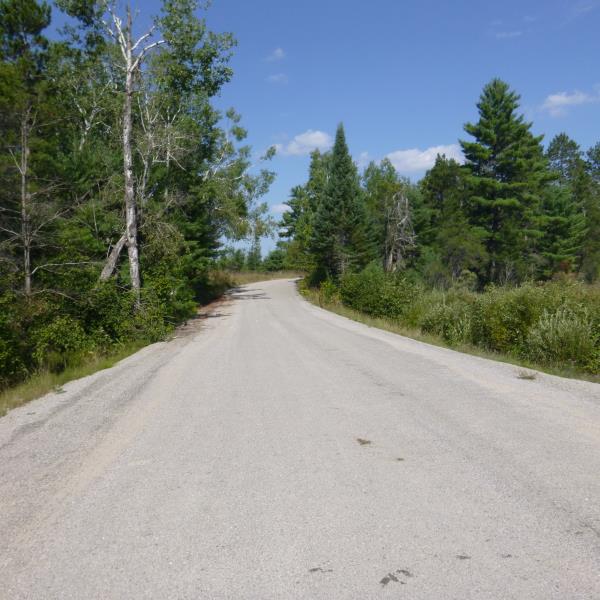

Road Approach - Right

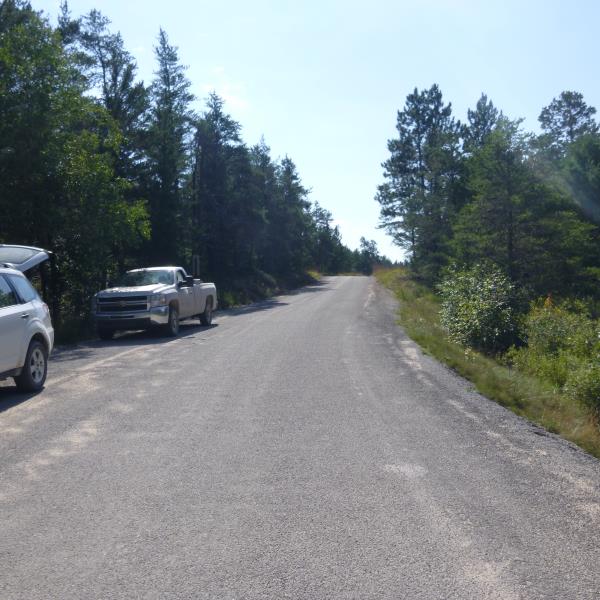

Road Approach - Left
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 59.6 ft. , Width 5.7 ft. , Height 4.2 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.4 ft./sec.
Structure Outlet
Water Depth: 2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.3 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 1 ft.
Bankfull Width: 14.7 ft.
Wetted Width: 8.5 ft.
Water Velocity: 0.6 ft./sec. (Measured with Meter)
Dominant Substrate: Organics
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 25.5 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.7 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.8 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.4805 tons/year
Right Approach
Length: 634 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.525
Erosion: 0.2806 tons/year
Erosion Information
Total Erosion at Crossing: 0.7611 tons/year
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Spotted Knapweed
