Road Stream Crossing Site UBR_KC04

Upper Black River Watershed, Cold Creek
N Allis Hwy
North Allis Twp, Presque Isle County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.408201 , -84.122047
T35N R2E Sec 15
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.0696 tons/year
Severity: Moderate
Year Inventoried: 2014

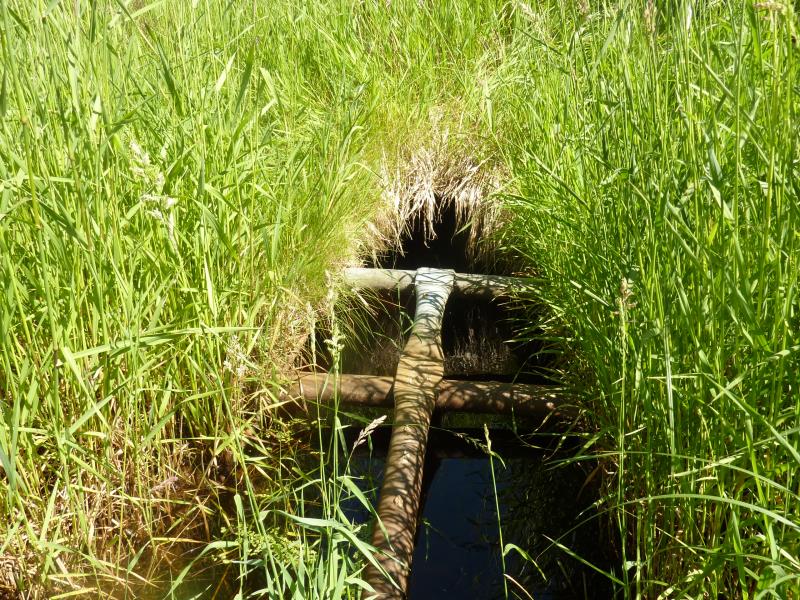

Inlet

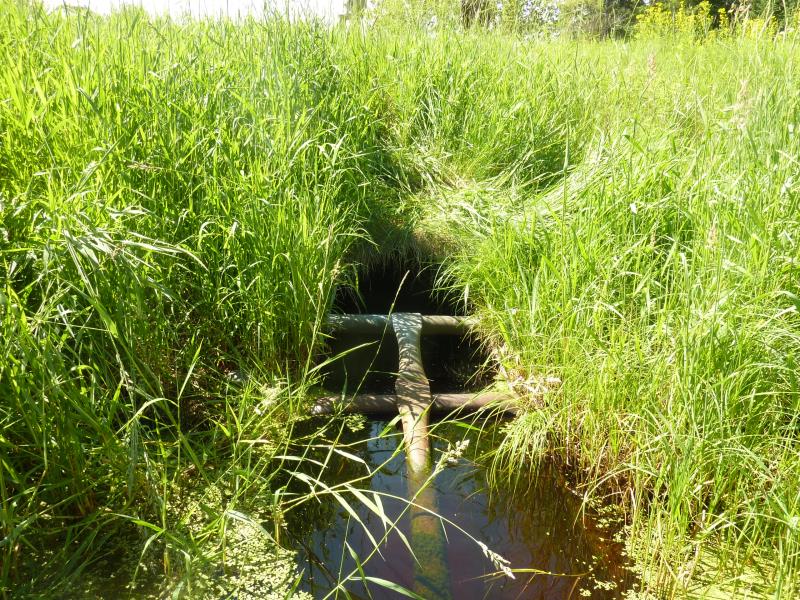

Outlet

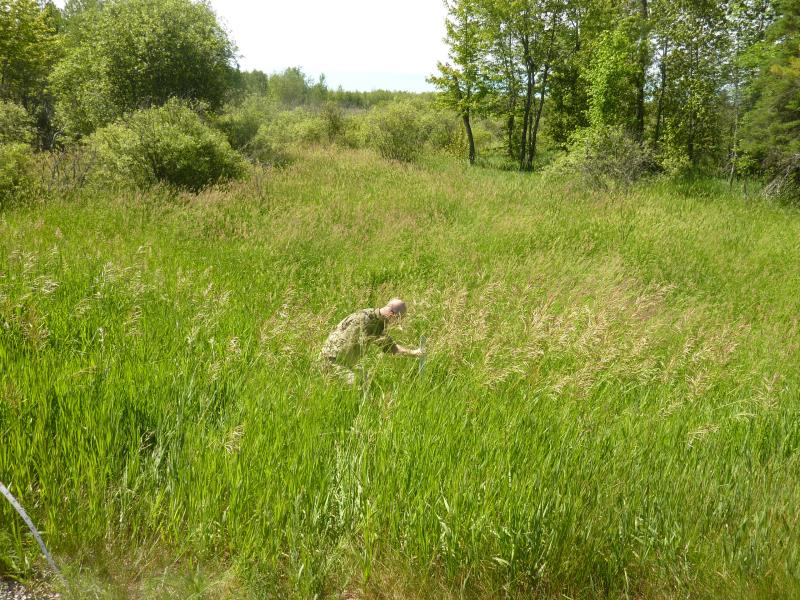

Upstream Conditions

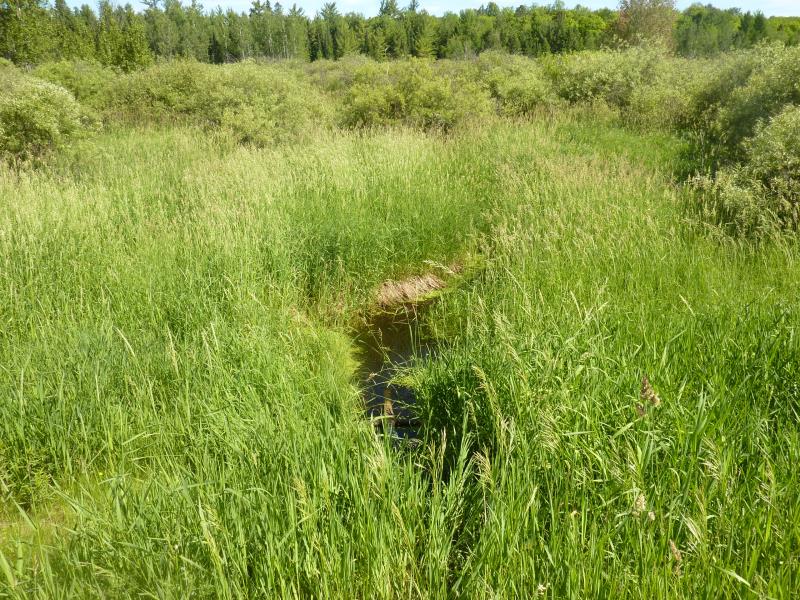

Downstream Conditions

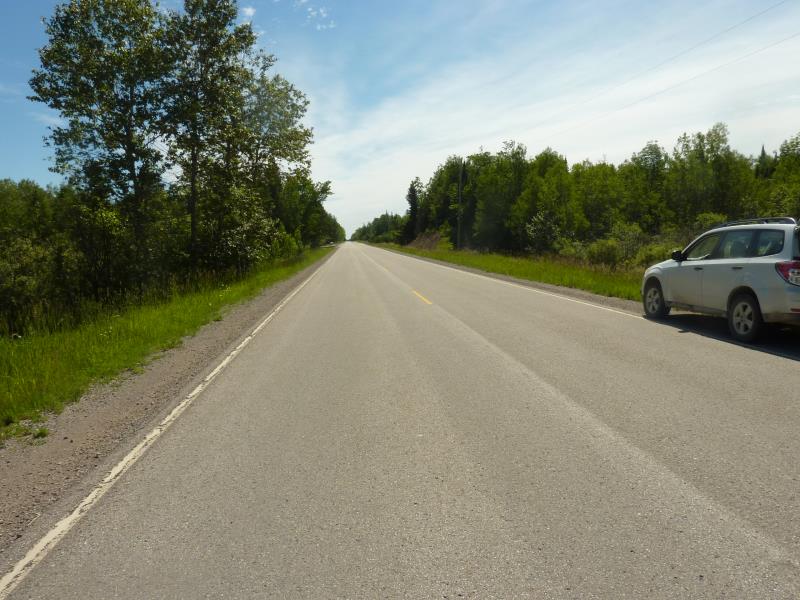

Road Approach - Right

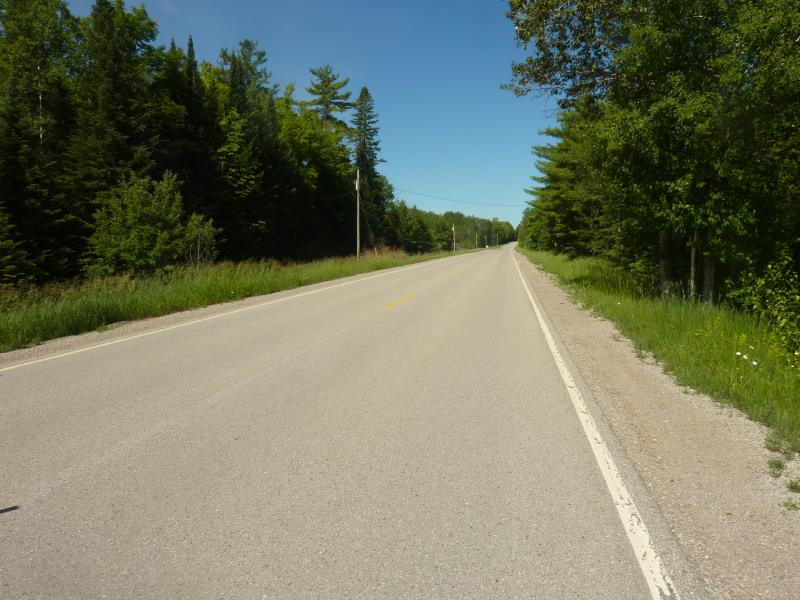

Road Approach - Left
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Apron
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Gravel
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 61 ft. , Width 2.6 ft. , Height 2.94 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.4 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 1.48 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 1 ft. below Surface (with Meter)
Additional Comments
Standing water with duckweed
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Paved State Road
Road Condition: Good
Road Width at Culvert: 32 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 4.3 ft.
Slope: 1:2
Downstream
Fill Depth: 4.3 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 315 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0167 tons/year
Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0529 tons/year
Erosion Information
Total Erosion at Crossing: 0.0696 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0.9
These non-native species were observerd at this site: Leafy Spurge
