Road Stream Crossing Site UBR_MB20

Upper Black River Watershed, Bowen Creek
County Line Rd
Forest Twp, Cheboygan County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.26269 , -84.24728
T34N R1E Sec 1
Owned by Private
Structure is NOT Perched
Year Inventoried: 2014
Site ID
Inlet
Outlet
Upstream Conditions
Downstream Conditions

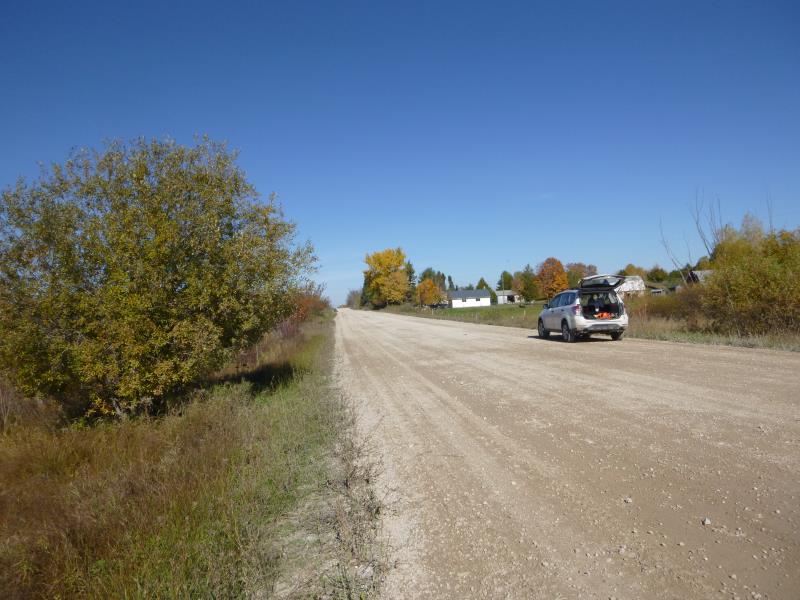

Road Approach - Left
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Gravel
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 53 ft. , Width 5 ft. , Height 5 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 2.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
*Water Velocities were measured 1 ft. below Surface (with Meter)
Additional Comments
Did not do a riffle, blocked by barbed wire
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Road Information
Erosion Information
Summary Information
