Road Stream Crossing Site UBR_RR08
Upper Black River Watershed, Rainy River
Rainy Lake Rd
Case Twp,
Presque Isle County
Information collected by:
Site Location
GPS Coordinates: 45.26593
, -84.08414
T33N
R3E
Sec 8, 9
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.7833 tons/year
Severity: Minor
Year Inventoried: 2014
Site ID

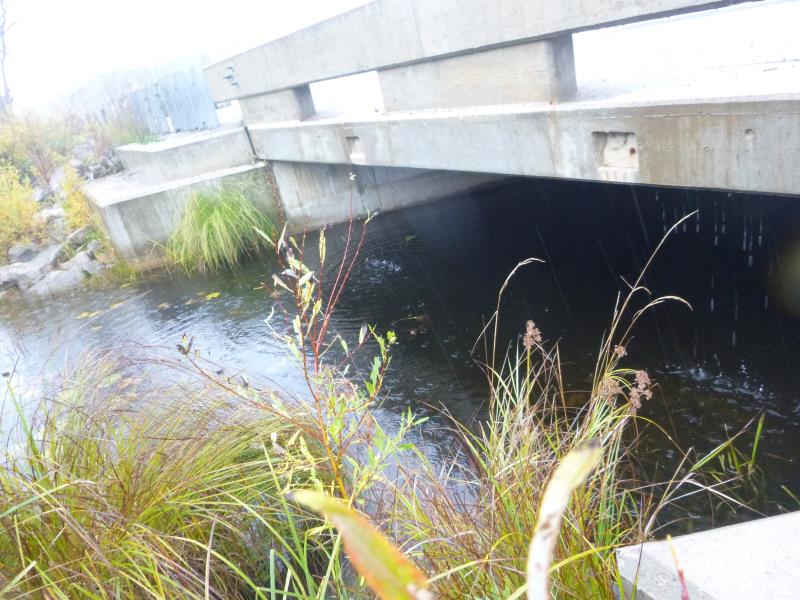

Inlet

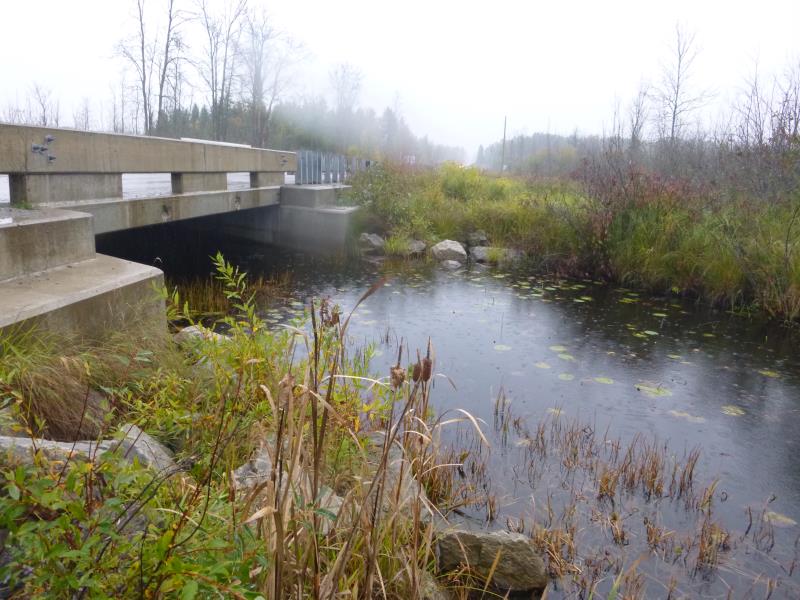

Outlet

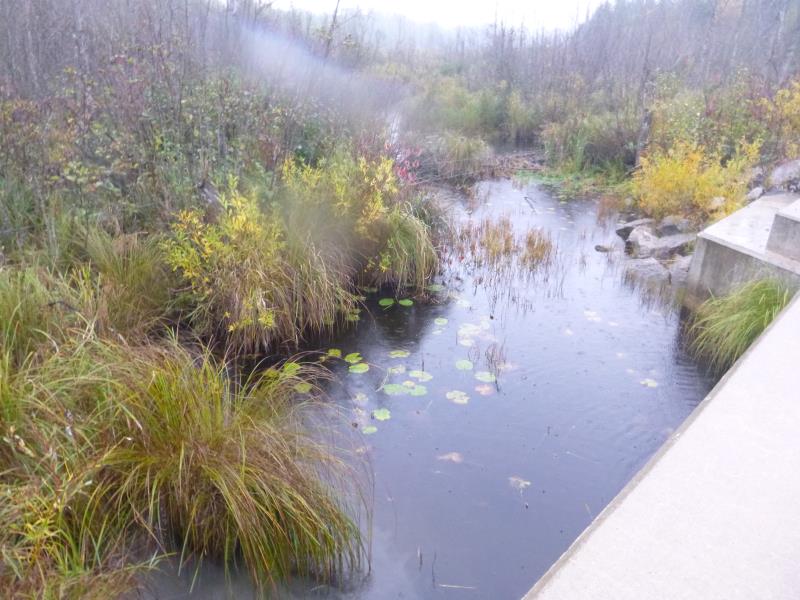

Upstream Conditions

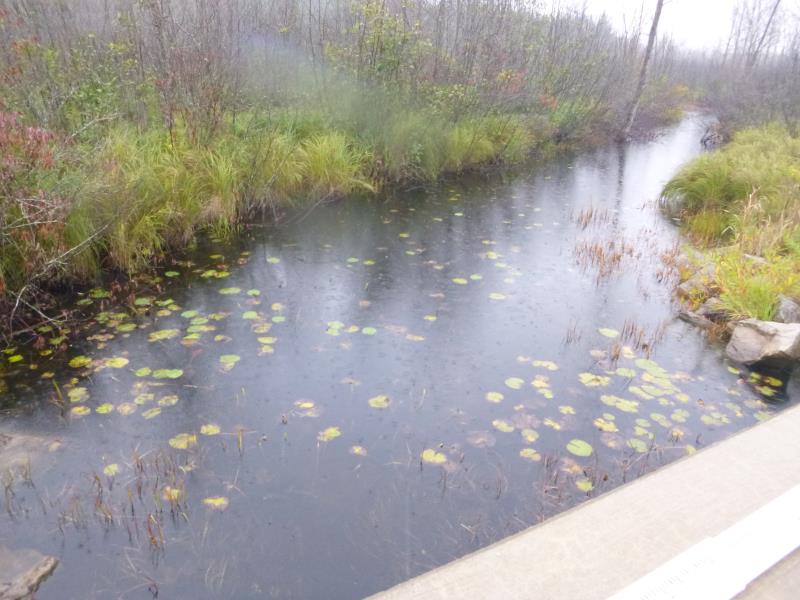

Downstream Conditions

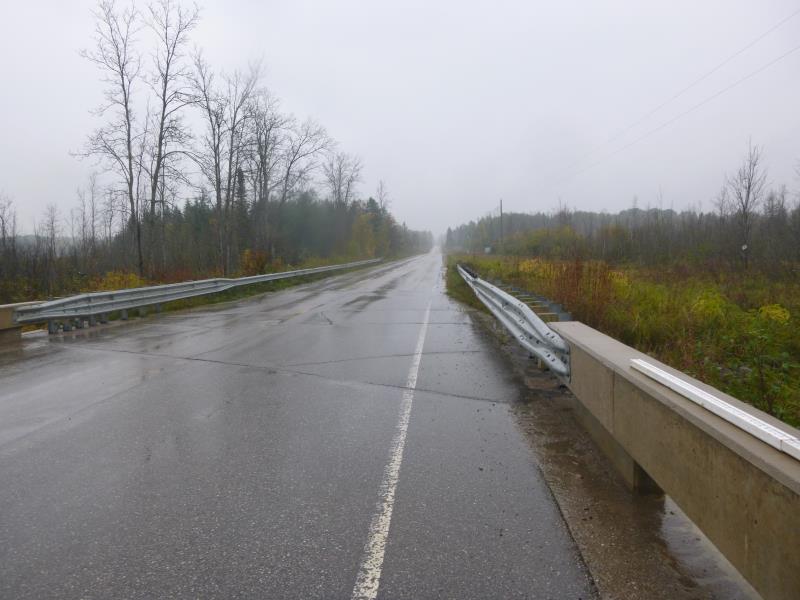

Road Approach - Right

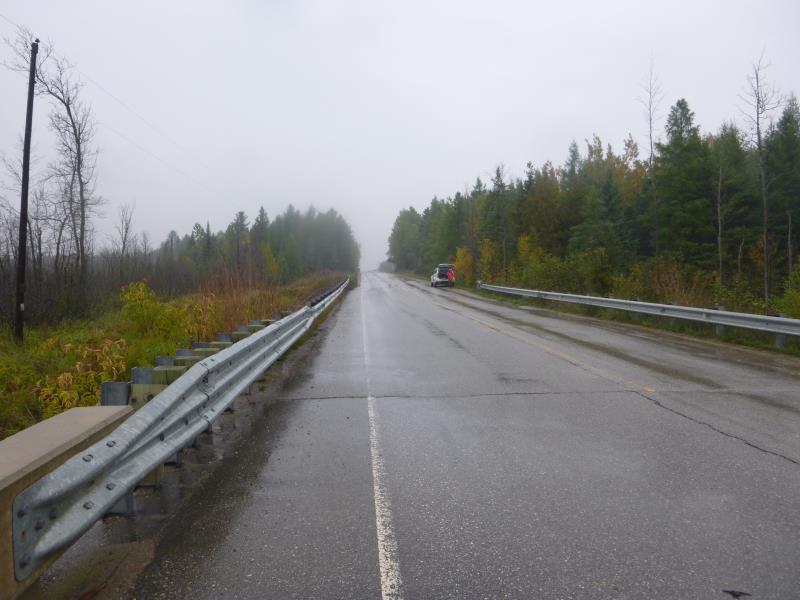

Road Approach - Left
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 10-30 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 22.4 ft.
, Width 36.3 ft.
, Height 5.4 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 2.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 2.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.4 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 2 ft.
Bankfull Width: 27 ft.
Wetted Width: 22 ft.
Water Velocity: 0.1 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 26.7 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Fill Depth: 0 ft.
Fill Depth: 0 ft.
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.5031 tons/year
Right Approach
Length: 609 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.521
Erosion: 0.2802 tons/year
Erosion Information
Total Erosion at Crossing: 0.7833 tons/year
Summary Information
Fish Passability 1
These non-native species were observerd at this site: Spotted Knapweed
