Road Stream Crossing Site UBR_RR11

Upper Black River Watershed, Healy Creek
W Shore Dr
Case Twp, Presque Isle County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.24346 , -84.06701
T33N R3E Sec 16
Owned by Private
Fish Passability 0
Perch Height: 0.1 ft.
Total Erosion: 2.084 tons/year
Severity: Severe
Year Inventoried: 2015
Site ID

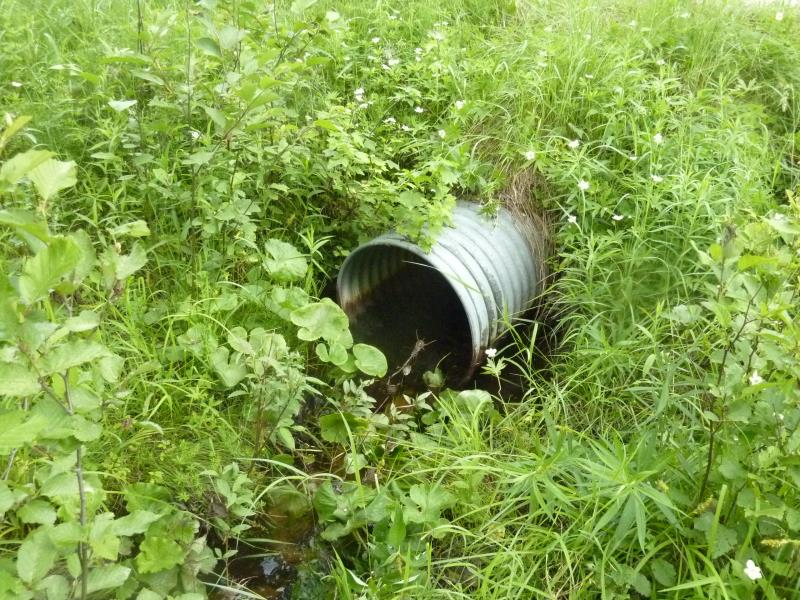

Inlet

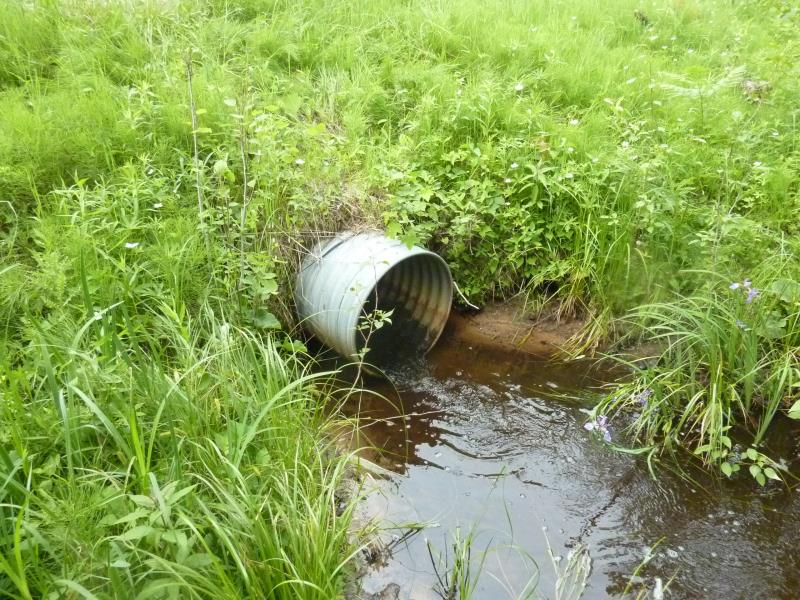

Outlet

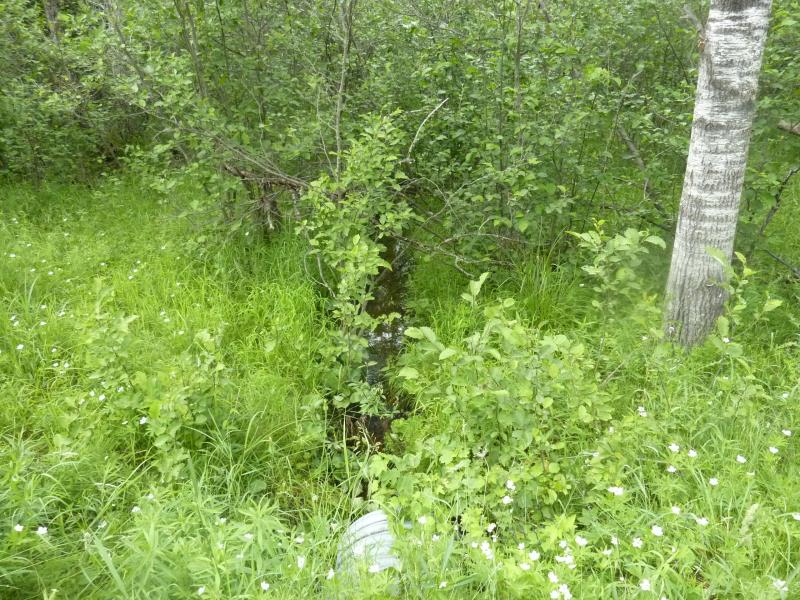

Upstream Conditions

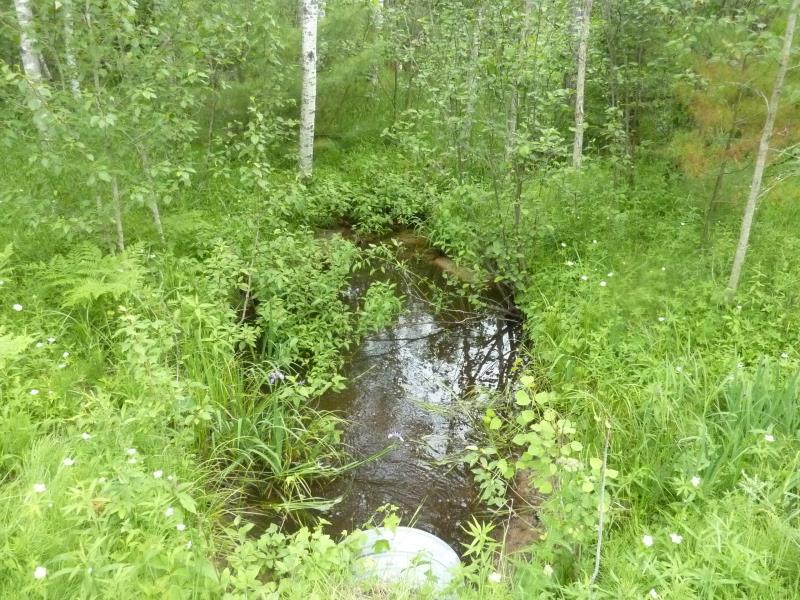

Downstream Conditions

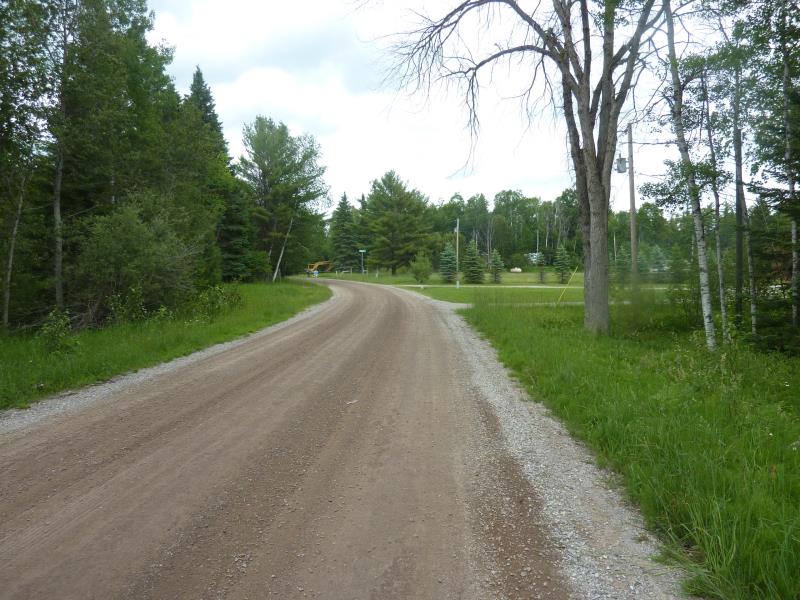

Road Approach - Right

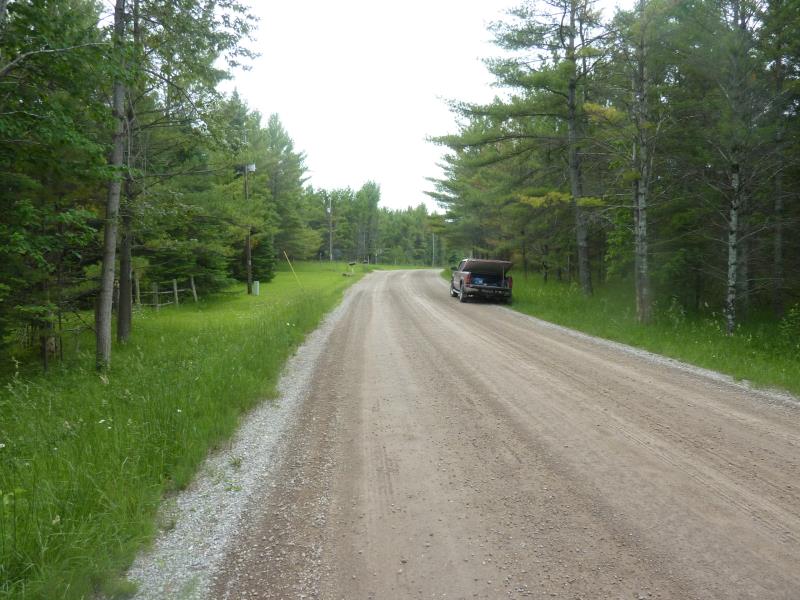

Road Approach - Left
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 41.2 ft. , Width 2.2 ft. , Height 2.2 ft.
Perch Height: 0.1 ft.
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.5 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.8 ft./sec.
*Water Velocities were measured 0.2 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 19.2 ft. , Width 8.8 ft. , Depth 1.4 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 2.8 ft.
Wetted Width: 2.5 ft.
Water Velocity: 0.8 ft./sec. (Measured with Meter)
Dominant Substrate: Silt
Road Information
Gravel Private Road
Road Condition: Good
Road Width at Culvert: 23 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2 ft.
Slope: 1:2
Downstream
Fill Depth: 2.3 ft.
Slope: 1:2
Approaches
Left Approach
Length: 402.7 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.481
Erosion: 1.2261 tons/year
Right Approach
Length: 295.5 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.458
Erosion: 0.8579 tons/year
Erosion Information
Total Erosion at Crossing: 2.084 tons/year
Extent of Erosion: Severe
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site. higher flows probably allow better fish passage; the culvert is only slightly perched and fish can still pass but if it becomes more perched it will become a fish passage barrier
A future visit to this site is recommended. Fish passage
These non-native species were observerd at this site: Thistle
