Road Stream Crossing Site CLHW_BC-008

Big Creek Watershed, Unnamed tributary to Big Creek
Main Street Rd
Mason Twp, Arenac County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.11277 , -83.8818
T20N R5E Sec 21
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.3094 tons/year
Severity: Moderate
Year Inventoried: 2016
Site ID

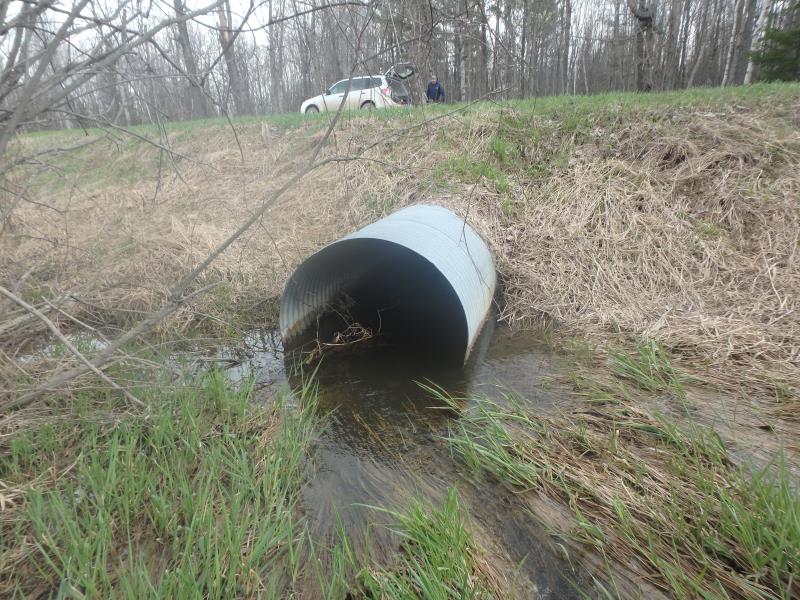

Inlet

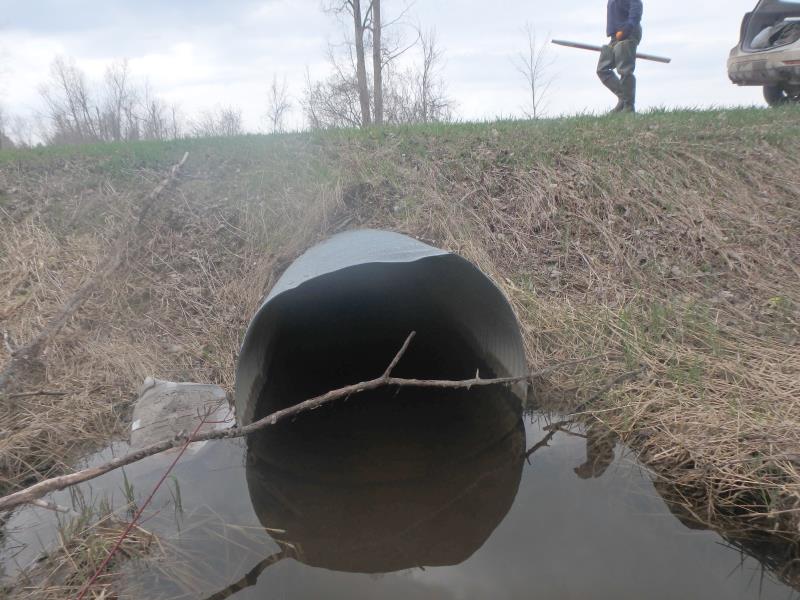

Outlet

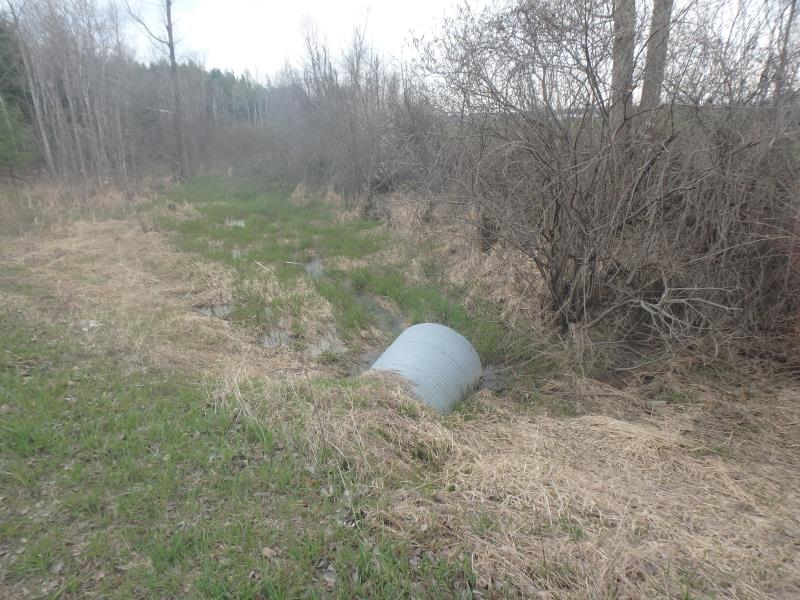

Upstream Conditions

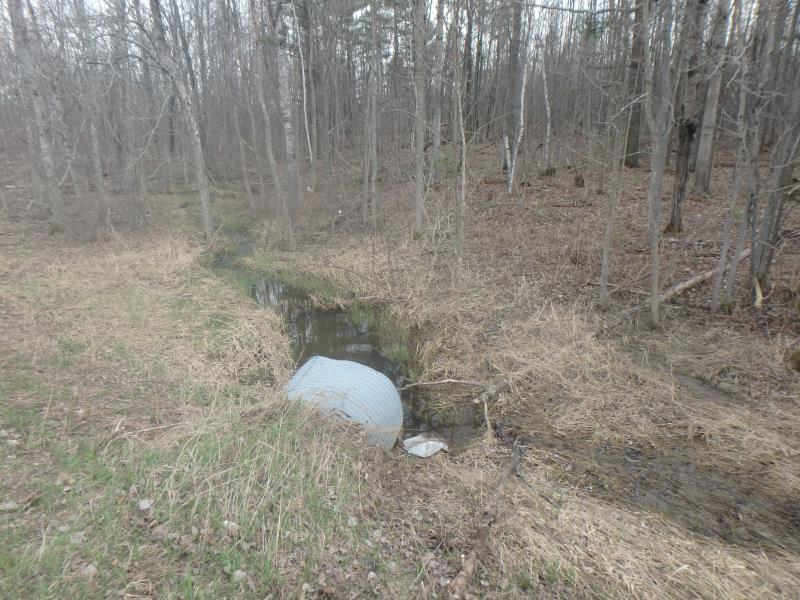

Downstream Conditions

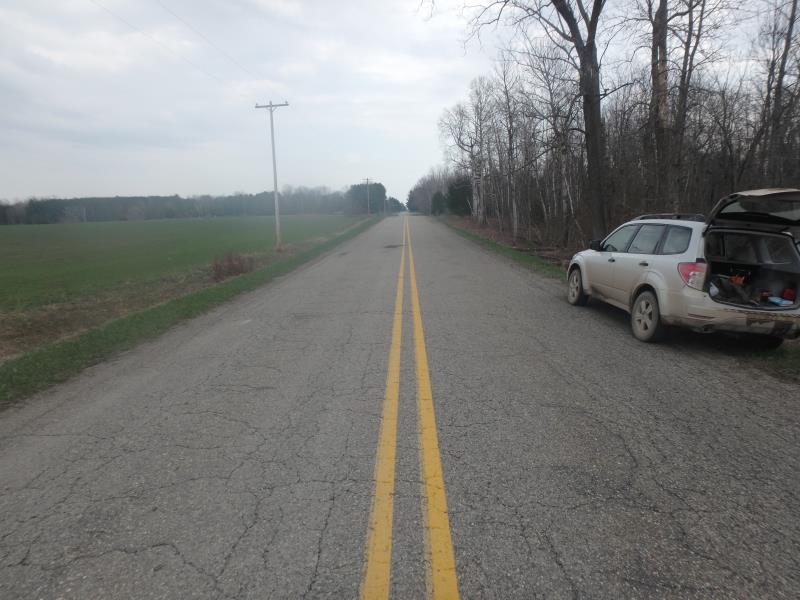

Road Approach - Left

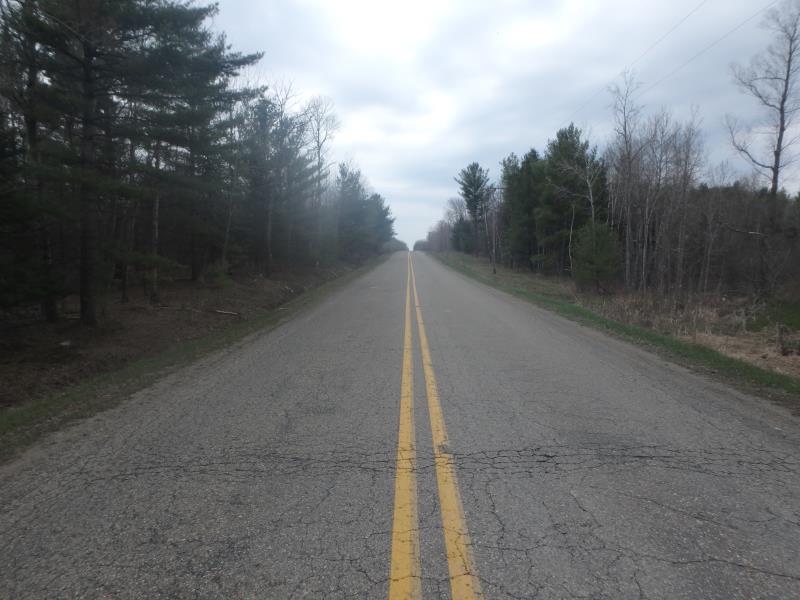

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 60 ft. , Width 4 ft. , Height 4 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 1.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 12 ft. , Width 6 ft. , Depth 2 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.9 ft.
Bankfull Width: 3.3 ft.
Wetted Width: 2.9 ft.
Water Velocity: 0.7 ft./sec. (Measured with Float Test)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Fair
Road Width at Culvert: 23 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.4 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.26
Erosion: 0 tons/year
Right Approach
Length: 750 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.543
Erosion: 0.3094 tons/year
Erosion Information
Total Erosion at Crossing: 0.3094 tons/year
Summary Information
Fish Passability 0.5
