Road Stream Crossing Site CLHW_BC-015

Big Creek Watershed, Unnamed Drain to Big Creek
Black Rd
Mason Twp, Arenac County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.12734 , -83.87773
T20N R5E Sec 16
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.4711 tons/year
Severity: Minor
Year Inventoried: 2016
Site ID
Inlet
Outlet

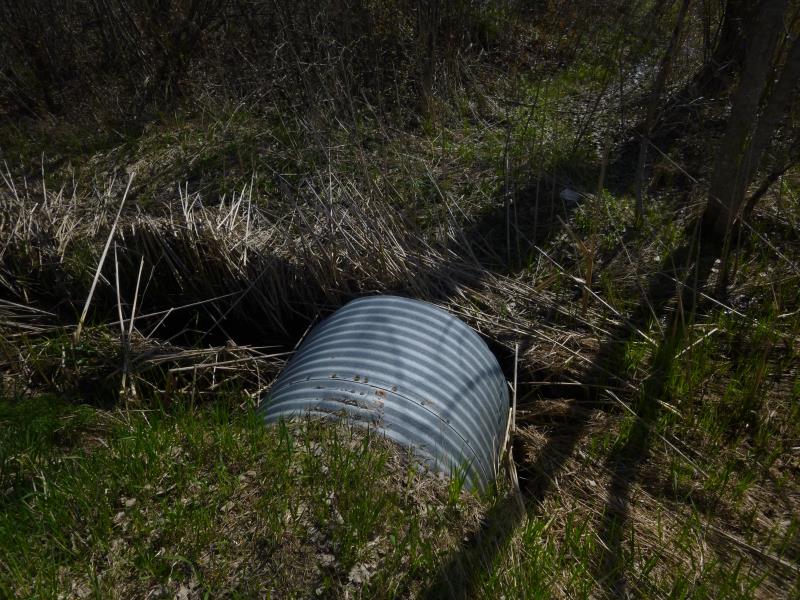

Upstream Conditions

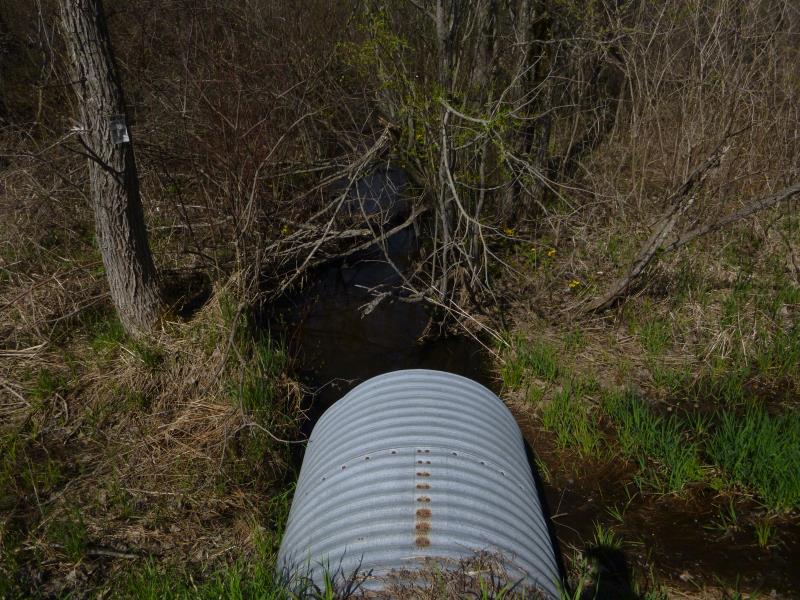

Downstream Conditions

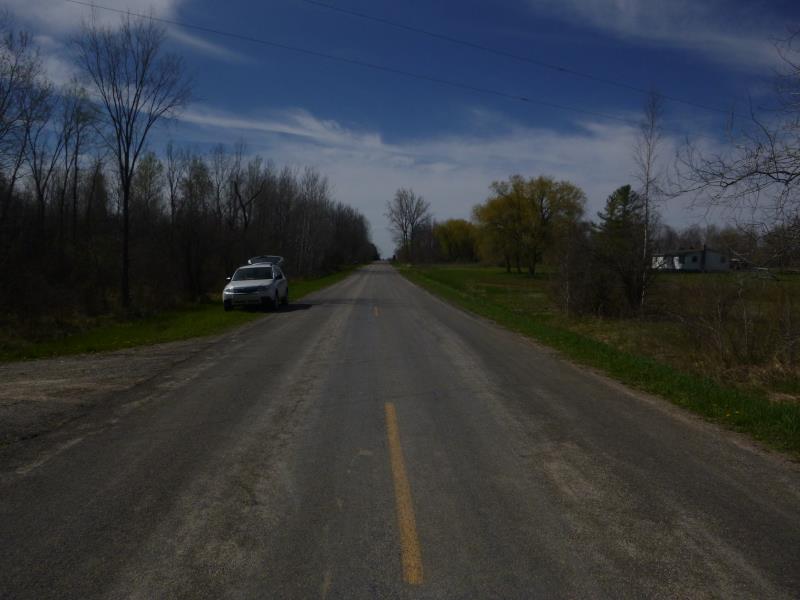

Road Approach - Left

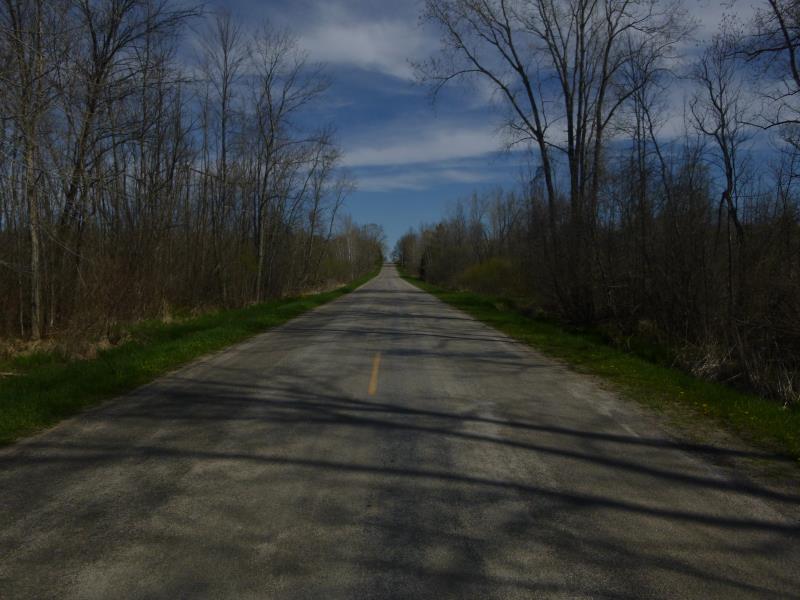

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Poor
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 51 ft. , Width 3.9 ft. , Height 4.1 ft.
Percentage Crushed: Inlet: 0% Outlet: 0% In Pipe: 1% to 25%
Structure is NOT Perched

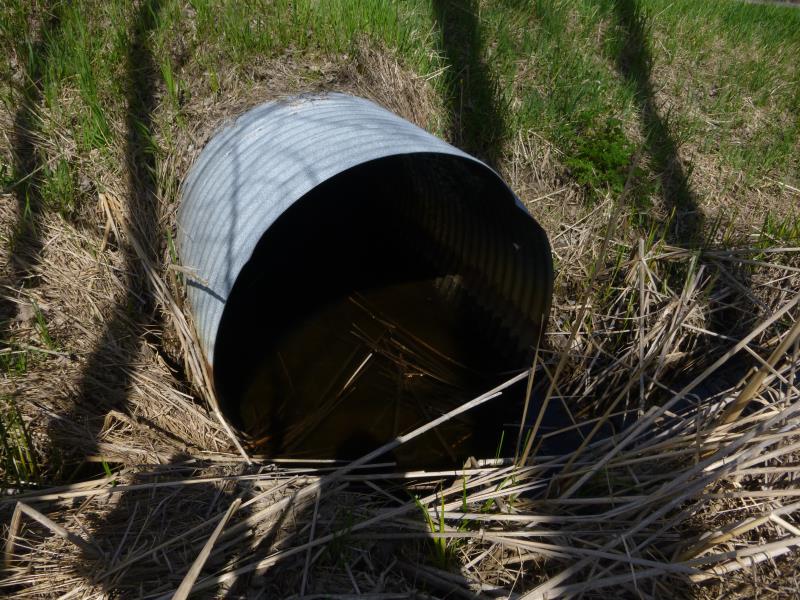

Structure Inlet
Water Depth: 1.1 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.2 ft./sec.

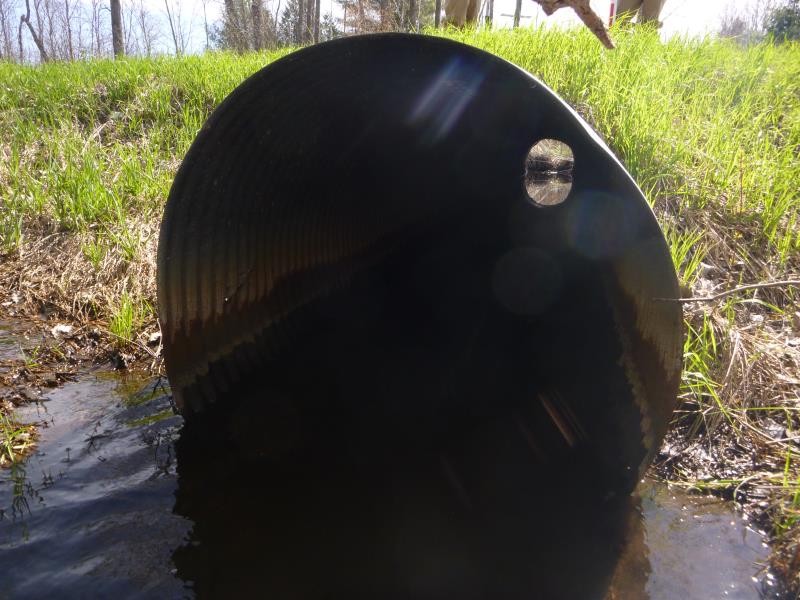

Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 0.2 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 6.6 ft.
Wetted Width: 5 ft.
Water Velocity: 1.9 ft./sec. (Measured with Float Test)
Dominant Substrate: Gravel
Road Information
Paved County Road
Road Condition: Fair
Road Width at Culvert: 12.5 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.8 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.2355 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.2355 tons/year
Erosion Information
Total Erosion at Crossing: 0.4711 tons/year
Summary Information
Fish Passability 1
