Road Stream Crossing Site CLHW_DR-006
Devils River Watershed, Devils River
Ossineke Rd
Sanborn Twp,
Alpena County
Information collected by:
Site Location
GPS Coordinates: 44.91756
, -83.43313
T29N
R8E
Sec 11
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.1653 tons/year
Severity: Minor
Year Inventoried: 2016
Site ID
Inlet
Outlet
Upstream Conditions
Downstream Conditions
Road Approach - Left

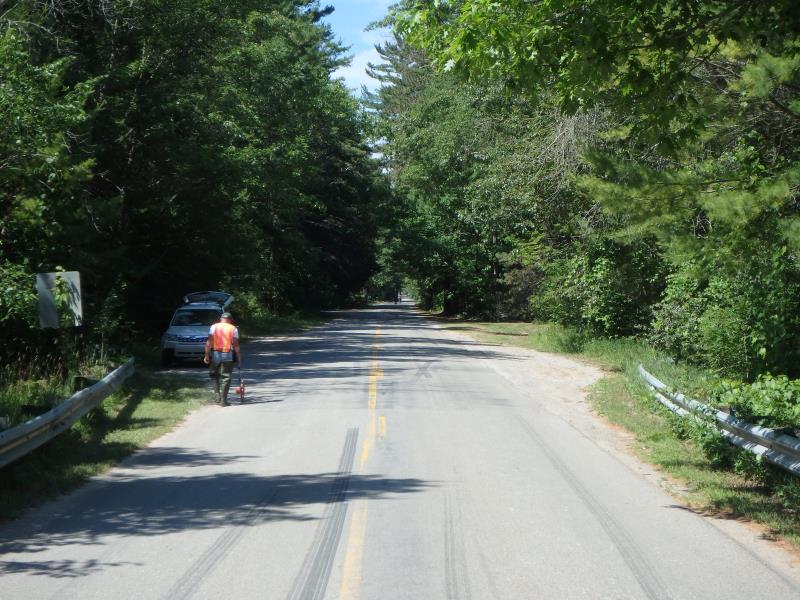

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Rock
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 22 ft.
, Width 28 ft.
, Height 9 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.6 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.6 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 1 ft.
Bankfull Width: 33 ft.
Wetted Width: 25 ft.
Water Velocity: 0.4 ft./sec.
(Measured with Float Test)
Dominant Substrate: Gravel
Road Information
Paved
Town Road
Road Condition: Fair
Road Width at Culvert: 20 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Fill Depth: 0 ft.
Approaches
Left Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.1653 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.1653 tons/year
Summary Information
Fish Passability 1
