Road Stream Crossing Site CLHW_LLM-012

Long Lake-Monaghan Creek Watershed, Long Lake Creek
US-23
Alpena, Alpena County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.15661 , -83.42889
T32N R8E Sec 23
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.5653 tons/year
Severity: Minor
Year Inventoried: 2016
Site ID

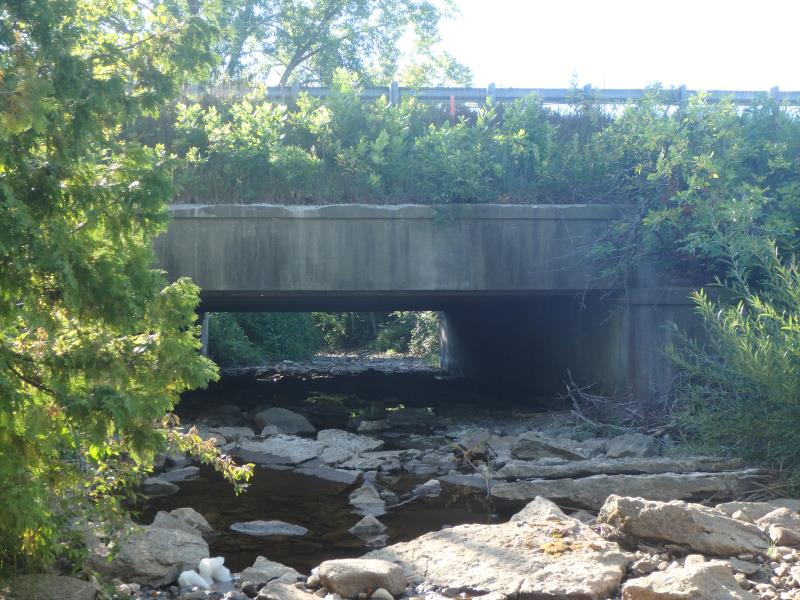

Inlet

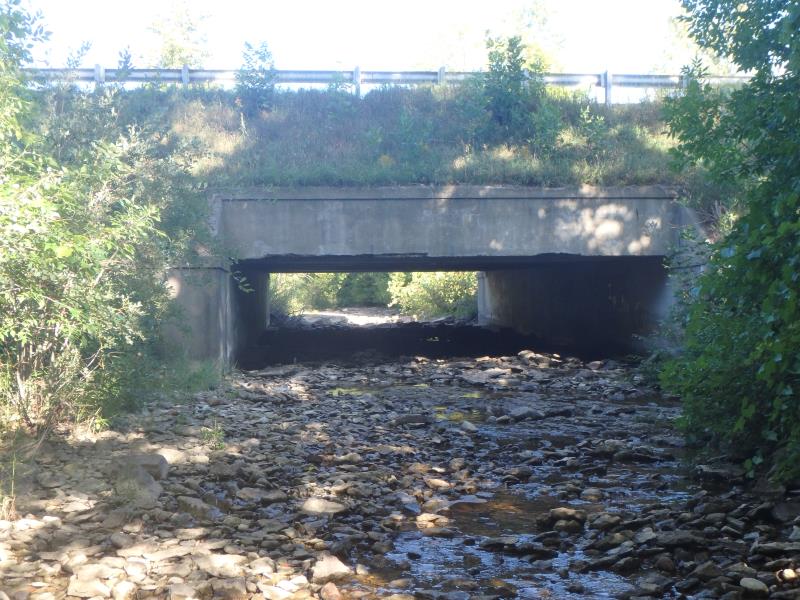

Outlet

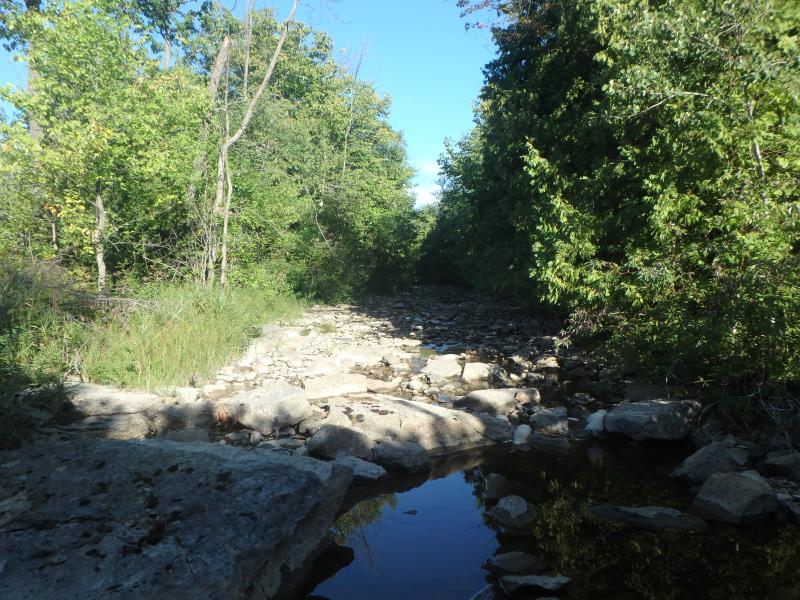

Upstream Conditions

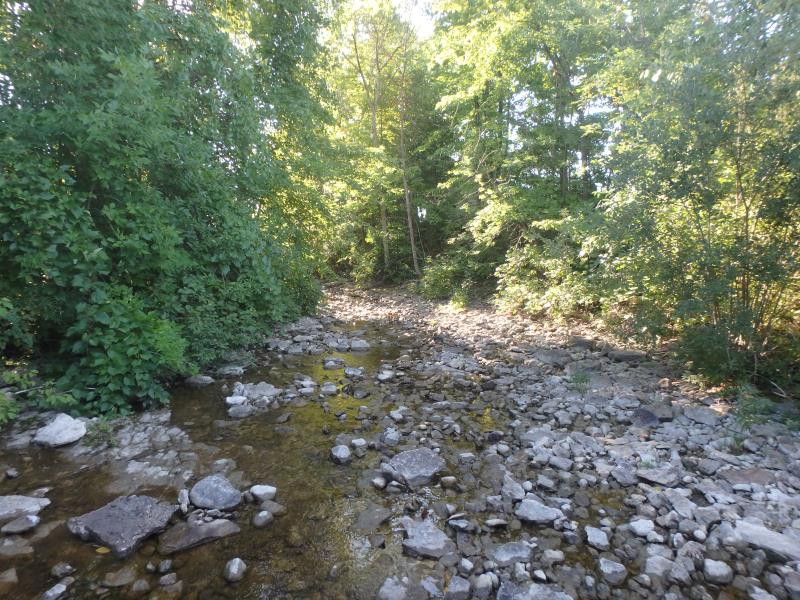

Downstream Conditions

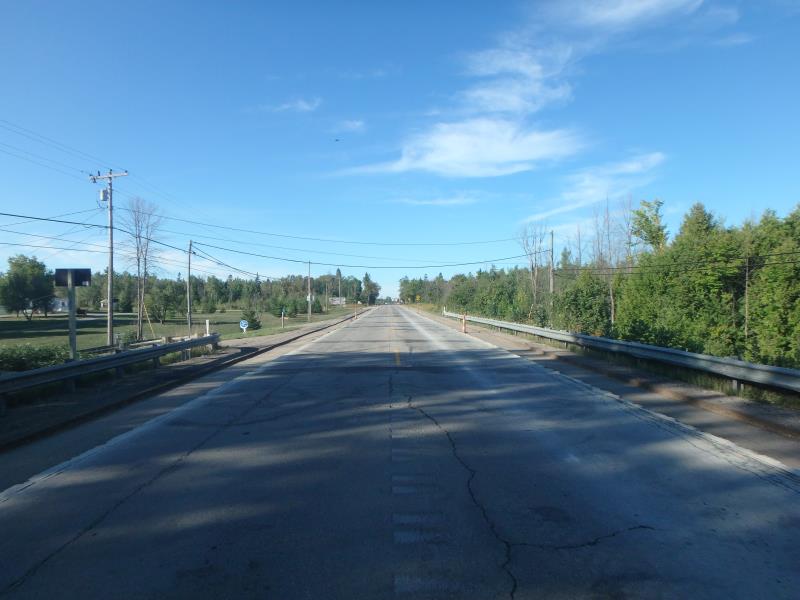

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Rock
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 82 ft. , Width 28 ft. , Height 8.3 ft.
Percentage Crushed: Inlet: 0% Outlet: 1% to 25% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.3 ft./sec.
Structure Outlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.3 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 24 ft.
Wetted Width: 9 ft.
Water Velocity: 0.5 ft./sec. (Measured with Float Test)
Dominant Substrate: Cobble
Road Information
Paved Federal Road
Road Condition: Good
Road Width at Culvert: 30 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 7 ft.
Slope: 1:2
Downstream
Fill Depth: 7.5 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.5653 tons/year
Erosion Information
Total Erosion at Crossing: 0.5653 tons/year
Summary Information
Fish Passability 1
