Road Stream Crossing Site CLHW_MC-004
Mill Creek Watershed, Unnamed
US-23
Beaugrand Twp,
Cheboygan County
Information collected by:
Site Location
GPS Coordinates: 45.6745
, -84.51929
T38N
R2W
Sec 23
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.0446 tons/year
Severity: Minor
Year Inventoried: 2016

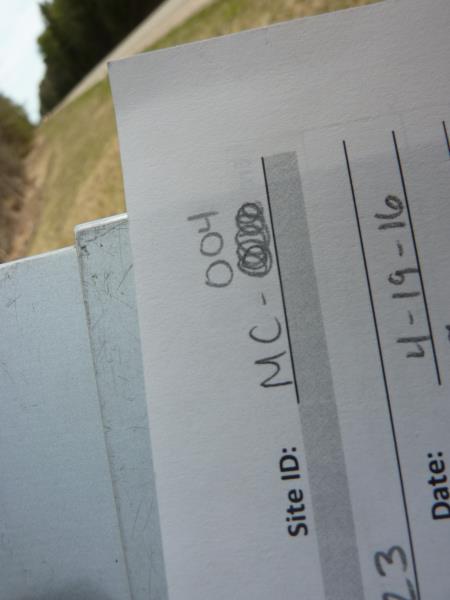

Site ID
Inlet
Outlet

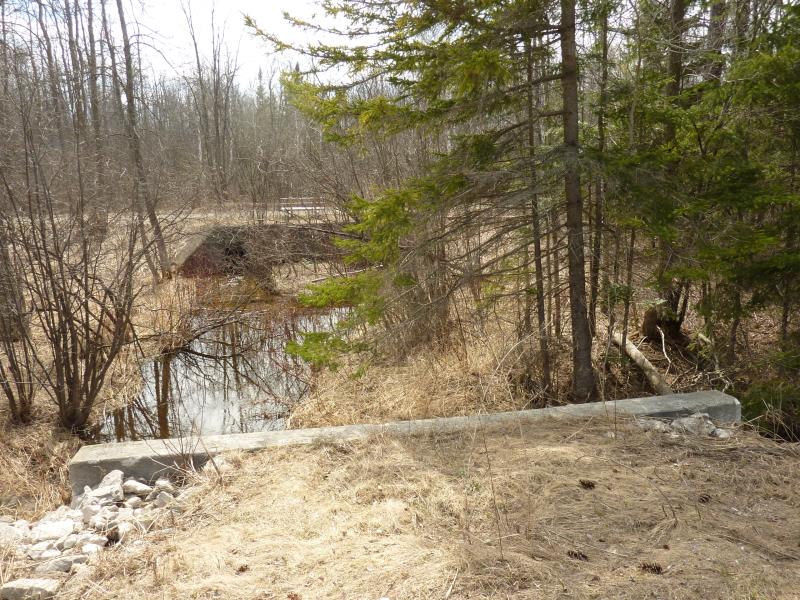

Upstream Conditions

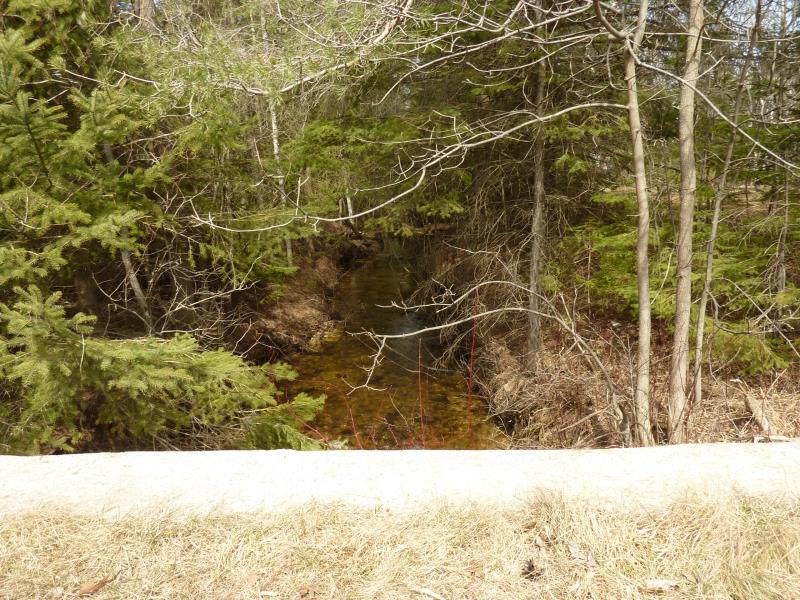

Downstream Conditions

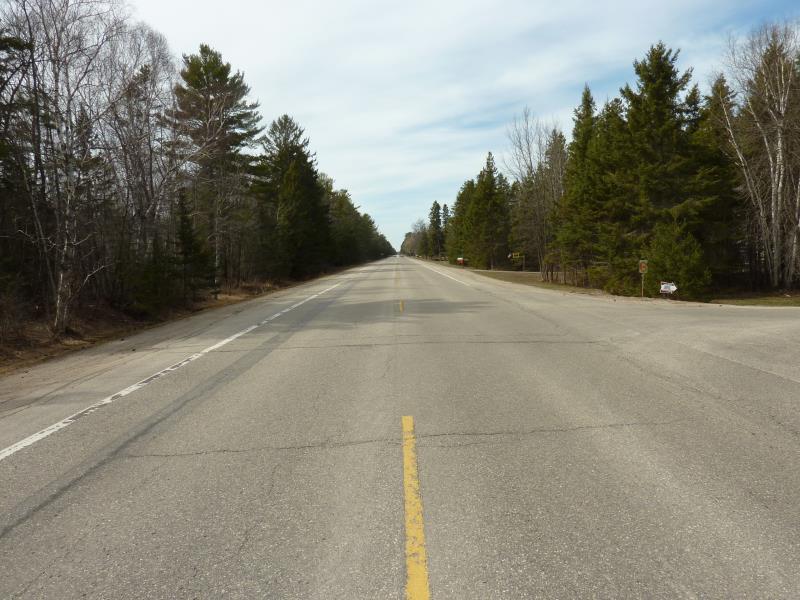

Road Approach - Left

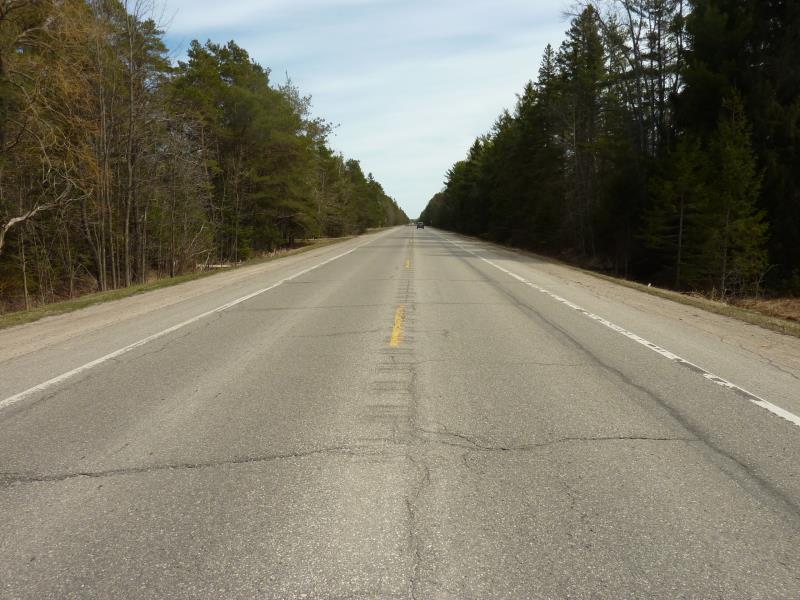

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Gravel
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 85 ft.
, Width 9.3 ft.
, Height 4.5 ft.
Structure is NOT Perched

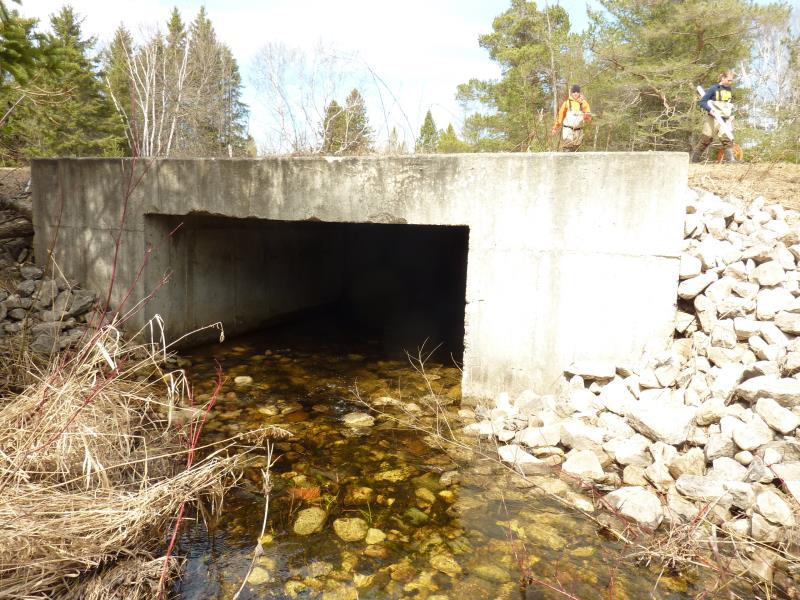

Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.9 ft./sec.

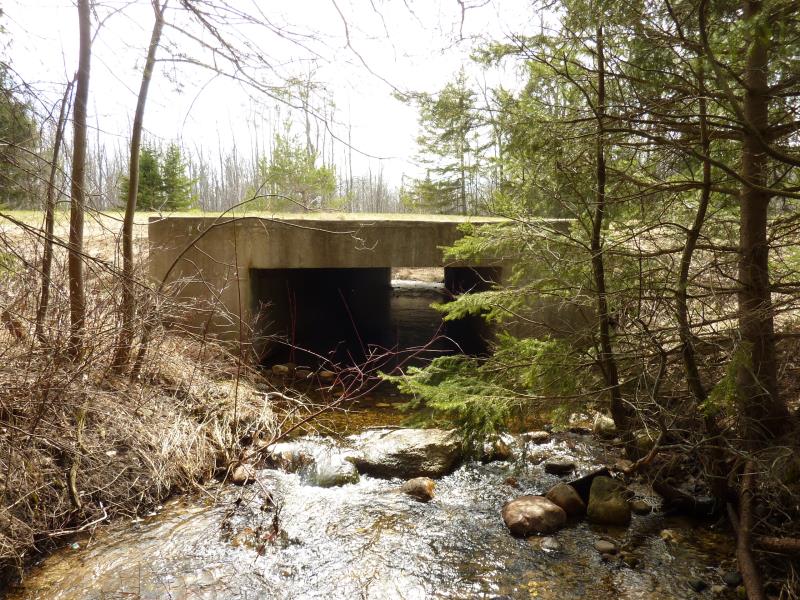

Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.9 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Additional Comments
Holiday Subdivision/ Douglas Hayward II
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.8 ft.
Bankfull Width: 11.5 ft.
Wetted Width: 8.4 ft.
Water Velocity: 0.7 ft./sec.
(Measured with Float Test)
Dominant Substrate: Gravel
Road Information
Paved
Federal Road
Road Condition: Good
Road Width at Culvert: 27 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0446 tons/year
Erosion Information
Total Erosion at Crossing: 0.0446 tons/year
Summary Information
Fish Passability 1
