Road Stream Crossing Site CLHW_MC-014

Mill Creek Watershed, Unnamed
Edgewater Beach Trail
Mackinaw Twp, Cheboygan County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.74287 , -84.65572
T39N R3W Sec 27
Owned by Private
Fish Passability 0
Structure is NOT Perched
Total Erosion: 0 tons/year
Severity: Severe
Year Inventoried: 2016

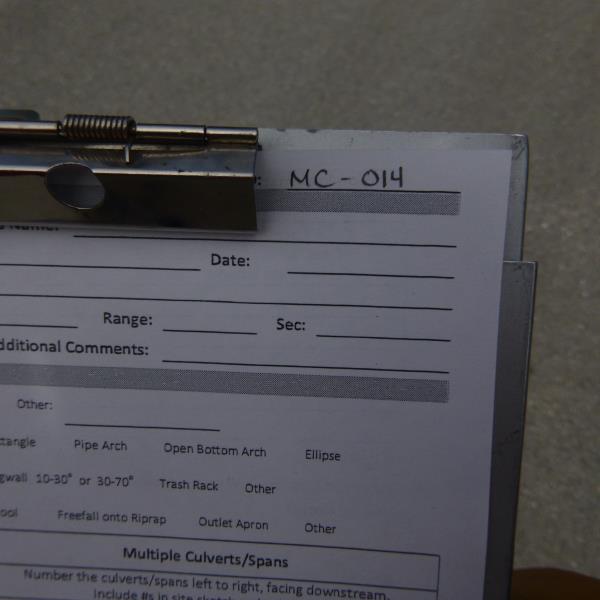

Site ID

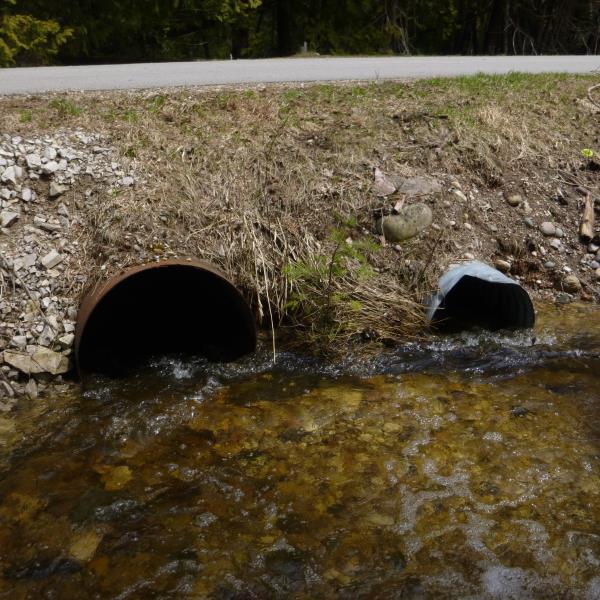

Inlet

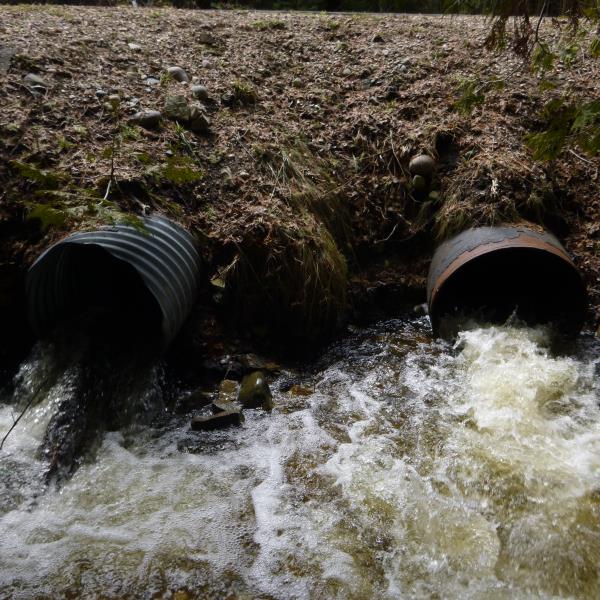

Outlet

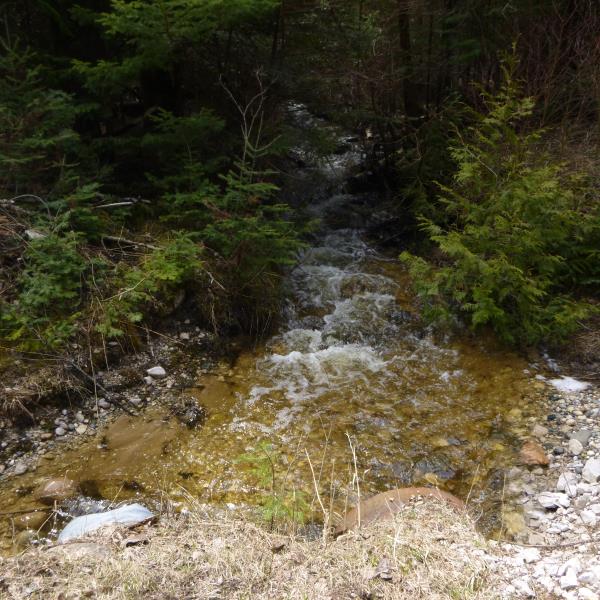

Upstream Conditions

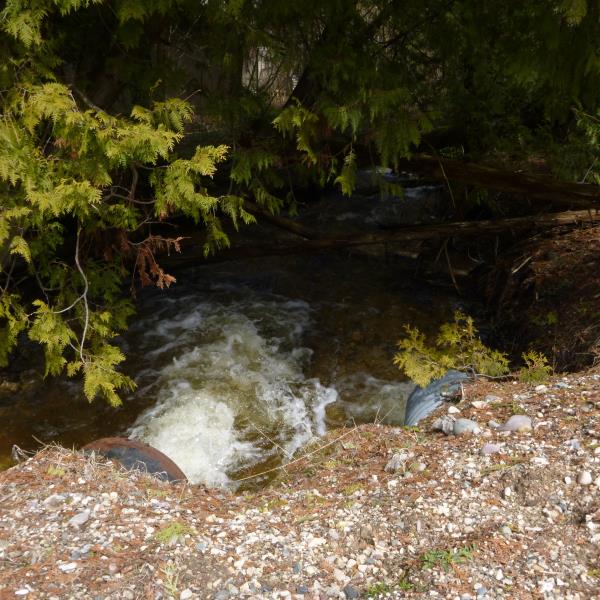

Downstream Conditions

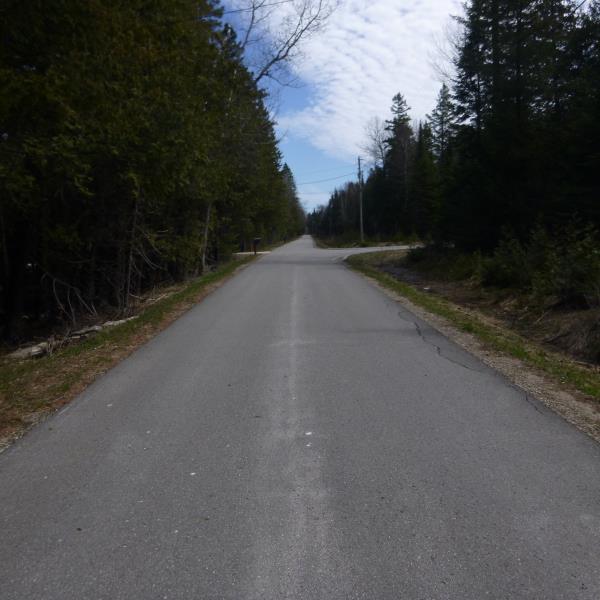

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Multiple Culverts/Spans
Culvert/Span
Width
Length
Height
Material
1
2.4 ft.
32 ft.
2.4 ft.
Metal
2
2 ft.
35 ft.
2 ft.
Metal
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 32 ft. , Width 2.4 ft. , Height 0 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 5.8 ft./sec.
Structure Outlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 5.8 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.8 ft.
Bankfull Width: 12 ft.
Wetted Width: 8 ft.
Water Velocity: 2.9 ft./sec. (Measured with Float Test)
Dominant Substrate: Gravel
Road Information
Paved Private Road
Road Condition: Good
Road Width at Culvert: 14 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0 tons/year
Summary Information
Fish Passability 0
