Road Stream Crossing Site CLHW_MC-022

Mill Creek Watershed, Unnamed
North Central State Trail
Mackinaw Twp, Cheboygan County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.72824 , -84.62579
T39N R3W Sec 36
Owned by Private
Fish Passability 0
Perch Height: 1.8 ft.
Total Erosion: 0 tons/year
Severity: Severe
Year Inventoried: 2016
Site ID
Inlet
Outlet

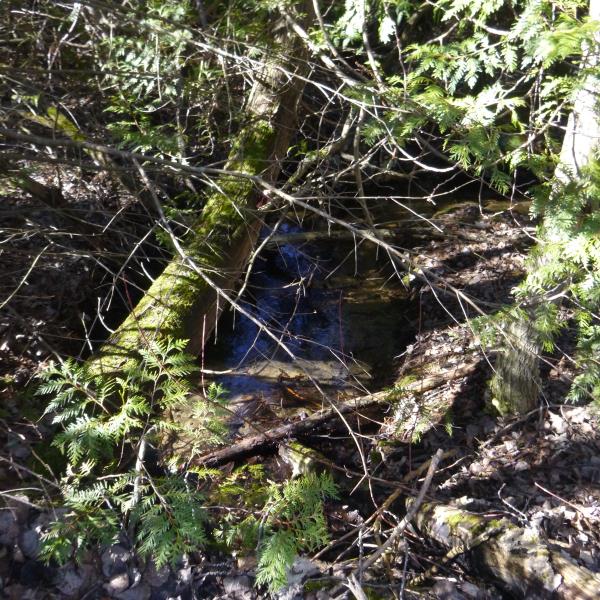

Upstream Conditions

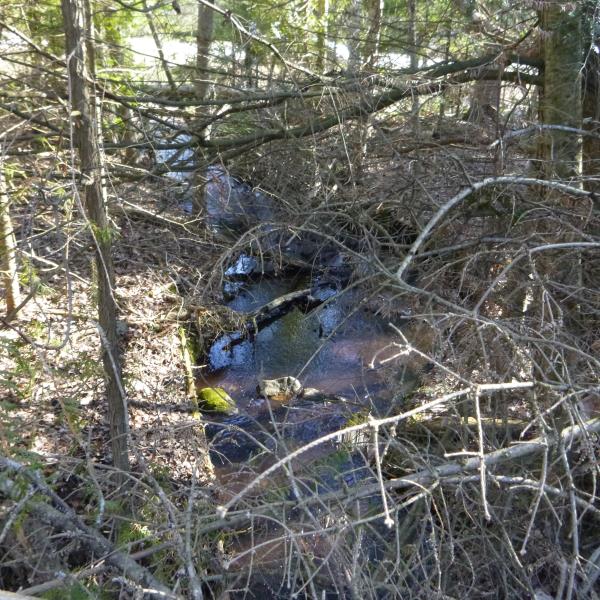

Downstream Conditions

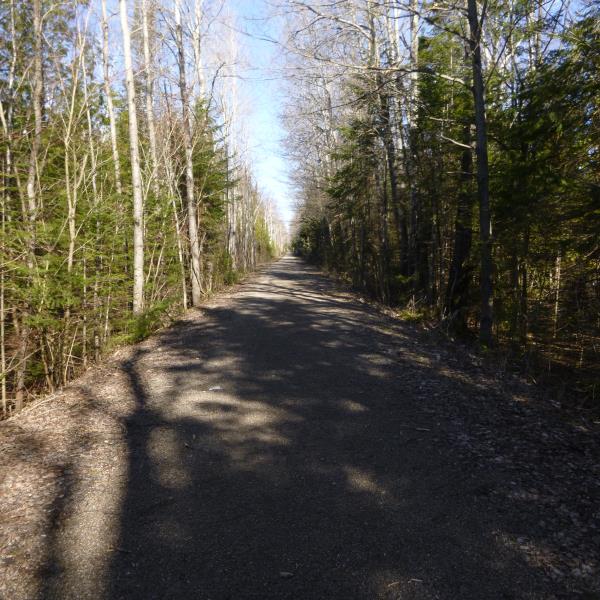

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Headwall
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Poor
Structure Interior: smooth
Dimensions of Structure: Length 25 ft. , Width 3 ft. , Height 3 ft.
Percentage Plugged: Inlet: 1% to 25% Outlet: 0% In Pipe: 0%
Perch Height: 1.8 ft.

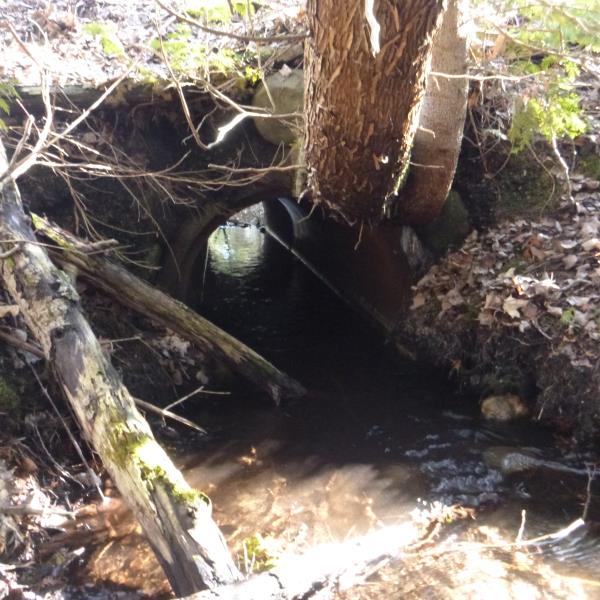

Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.6 ft./sec.

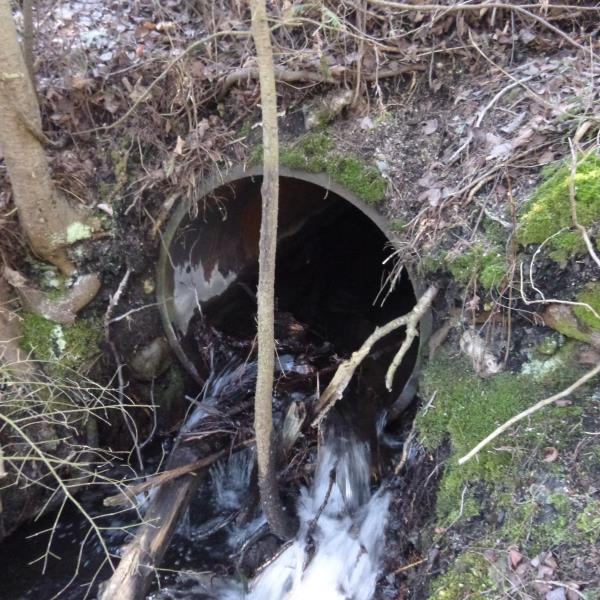

Structure Outlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.6 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Additional Comments
Walking/Biking Trail
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 5 ft.
Wetted Width: 3.5 ft.
Water Velocity: 1.1 ft./sec. (Measured with Float Test)
Dominant Substrate: Sand
Road Information
Gravel Other Road (Seasonal)
Road Condition: Good
Road Width at Culvert: 12 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.8 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.4 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0 tons/year
Summary Information
Fish Passability 0
