Road Stream Crossing Site CLHW_MC-026

Mill Creek Watershed, Unnamed
North Central State Trail
Beaugrand Twp, Cheboygan County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.71824 , -84.59946
T38N R2W Sec 5
Owned by Private
Fish Passability 0
Perch Height: 1.2 ft.
Total Erosion: 0 tons/year
Severity: Severe
Year Inventoried: 2016
Site ID

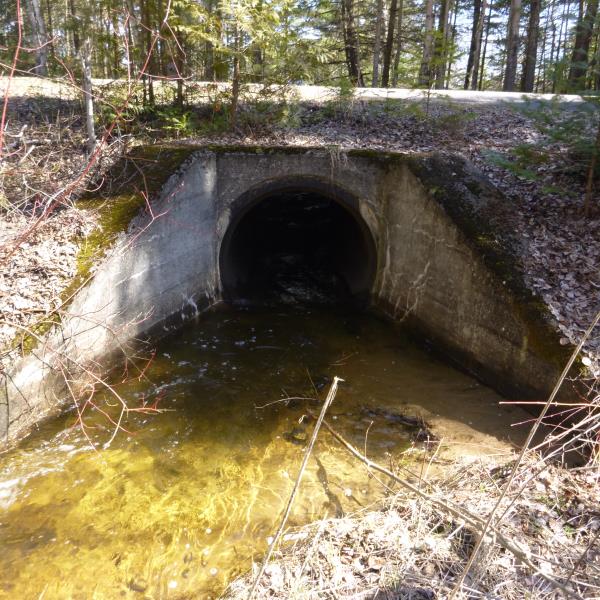

Inlet

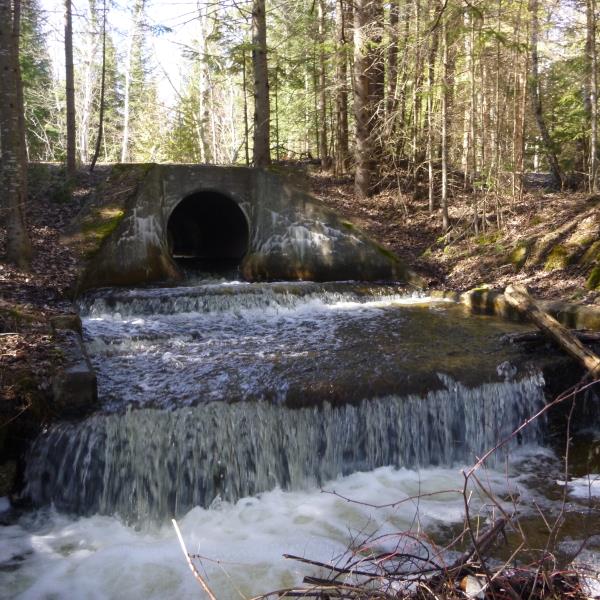

Outlet

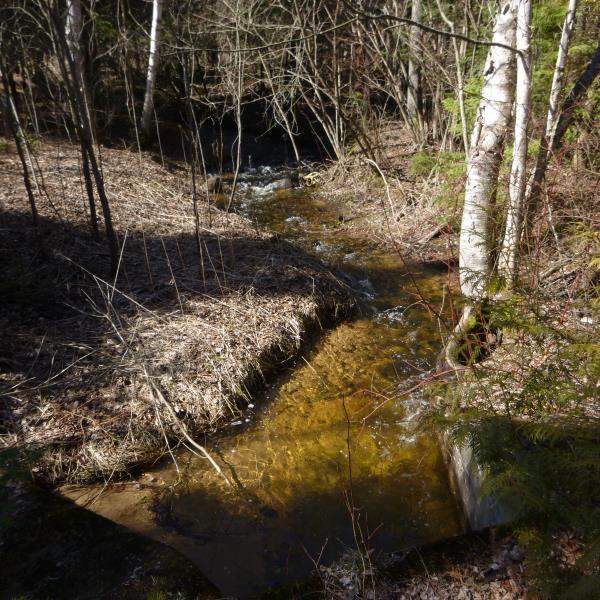

Upstream Conditions

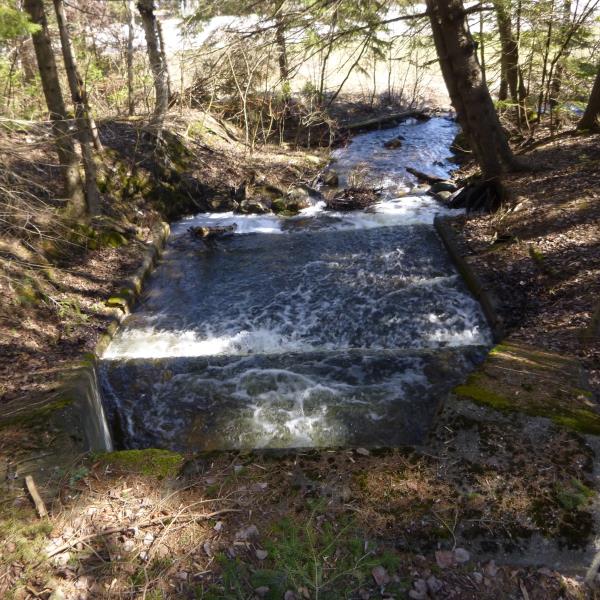

Downstream Conditions

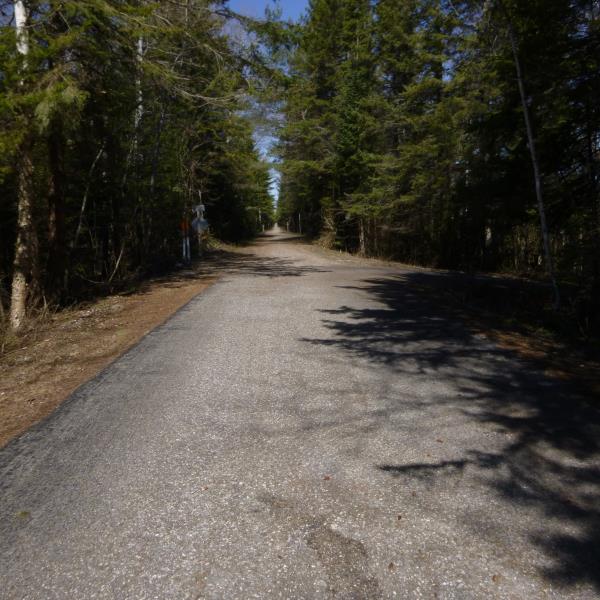

Road Approach - Left

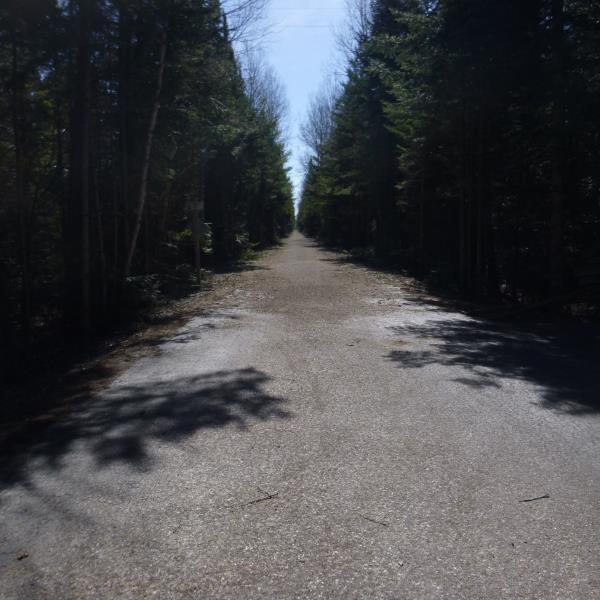

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Wingwall 10-30 Degree
Outlet Type: Outlet Apron
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 38 ft. , Width 4 ft. , Height 4 ft.
Perch Height: 1.2 ft.
Structure Inlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 4.75 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 4.75 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Additional Comments
Walking/Biking Trail
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 11 ft.
Wetted Width: 8 ft.
Water Velocity: 1.7 ft./sec. (Measured with Float Test)
Dominant Substrate: Cobble
Road Information
Paved Other Road (Seasonal)
Road Condition: Fair
Road Width at Culvert: 16 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.8 ft.
Slope: More than 1:2
Downstream
Fill Depth: 0.4 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0 tons/year
Summary Information
Fish Passability 0
