Road Stream Crossing Site CLHW_MC-029
Mill Creek Watershed, Unnamed
Mackinaw Ave (US-23)
Benton Twp,
Cheboygan County
Information collected by:
Site Location
GPS Coordinates: 45.65105
, -84.48216
T38N
R1W
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Severity: Minor
Year Inventoried: 2016
Site ID

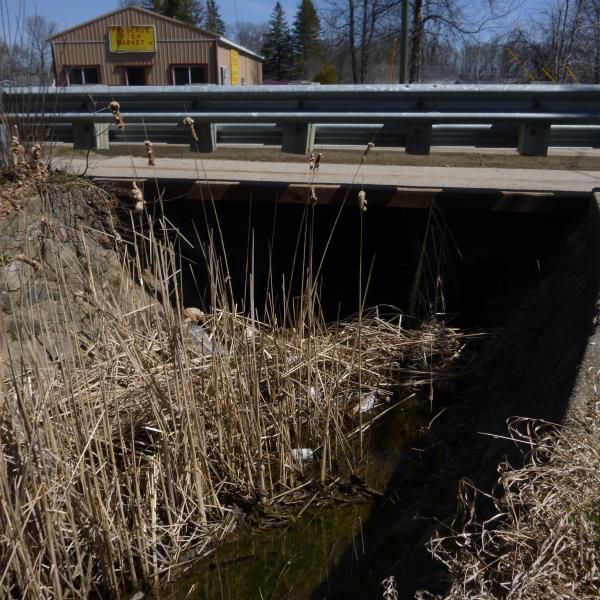

Inlet

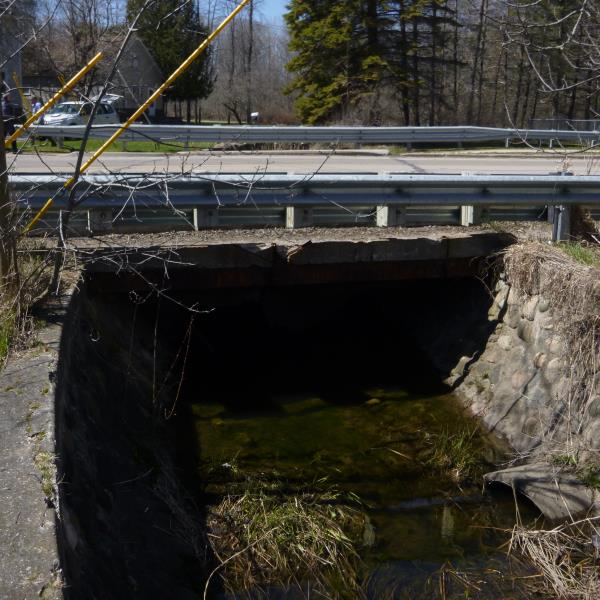

Outlet

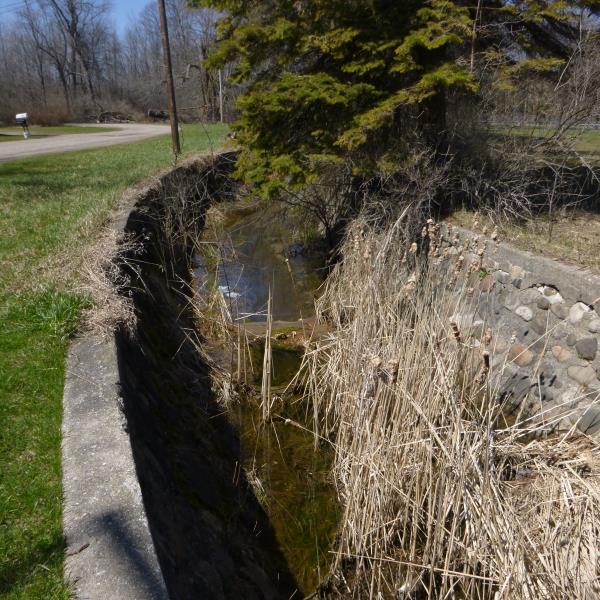

Upstream Conditions

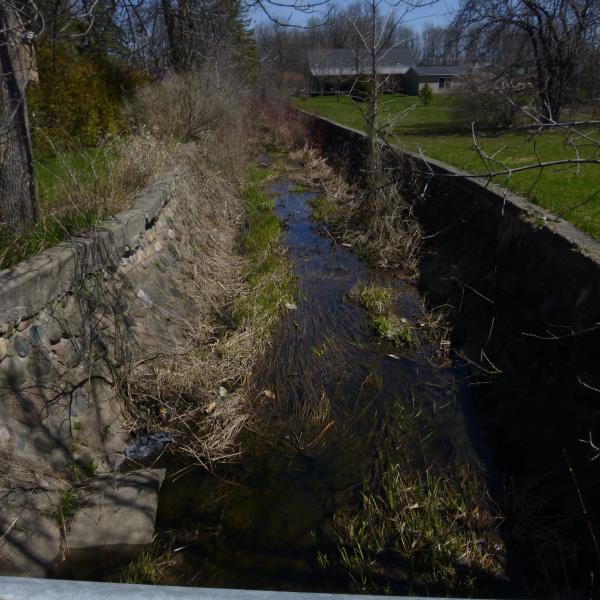

Downstream Conditions

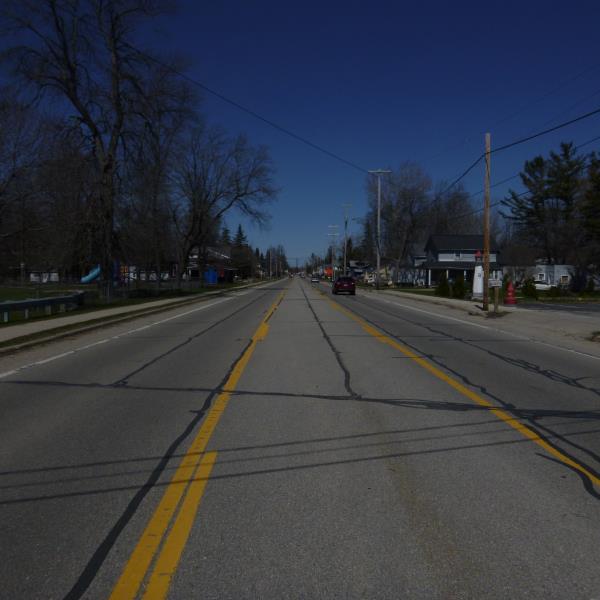

Road Approach - Left

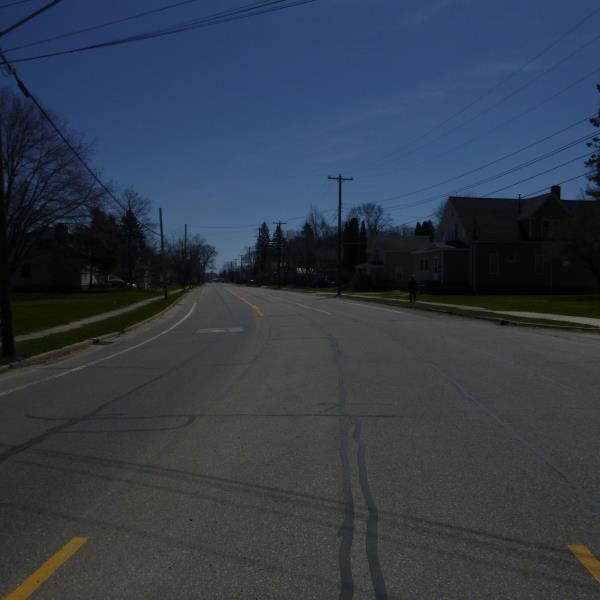

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Square/Rectangle
Inlet Type: Other
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Poor
Structure Interior: smooth
Structure is Rusted through
Dimensions of Structure: Length 60 ft.
, Width 15 ft.
, Height 46 ft.
Percentage Plugged:
Inlet: 26% to 50%
Outlet: 26% to 50%
In Pipe: 26% to 50%
Percentage Crushed:
Inlet: 1% to 25%
Outlet: 1% to 25%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 1.2 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Additional Comments
Within Cheboygan City Limits
Stream Information
Stream Flow: None
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Paved
Federal Road
Road Condition: Good
Road Width at Culvert: 44 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Fill Depth: 0 ft.
Length: 0 ft.
Vegetation: Partial
Length: 0 ft.
Vegetation: Partial
Erosion Information
Summary Information
Fish Passability 0.9
