Road Stream Crossing Site CLHW_OR-041

Ocqueoc River Watershed, Silver Creek
Beach Grove Hwy
Moltke Twp, Presque Isle County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.42618 , -83.98869
T35N R4E Sec 8
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 5.7945 tons/year
Severity: Severe
Year Inventoried: 2016
Site ID

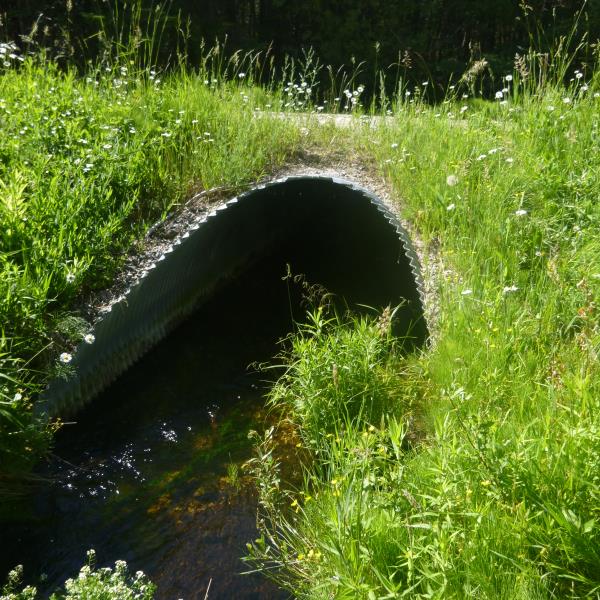

Inlet

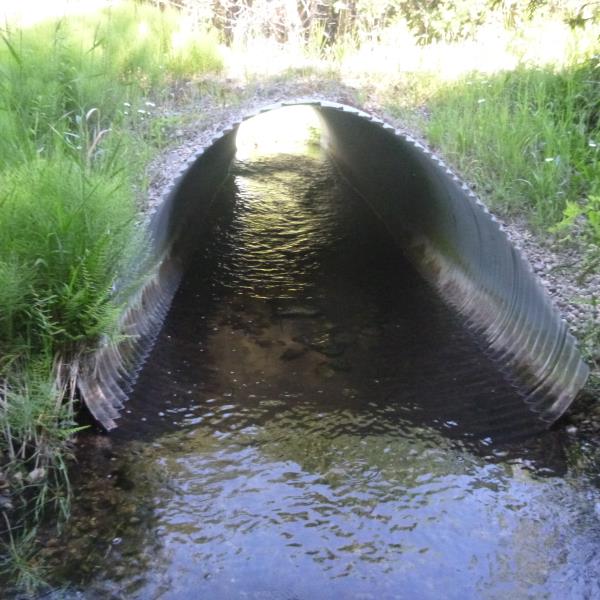

Outlet

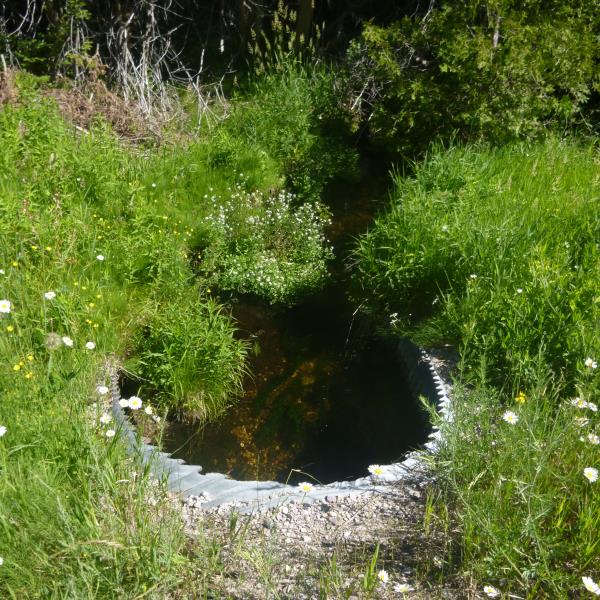

Upstream Conditions

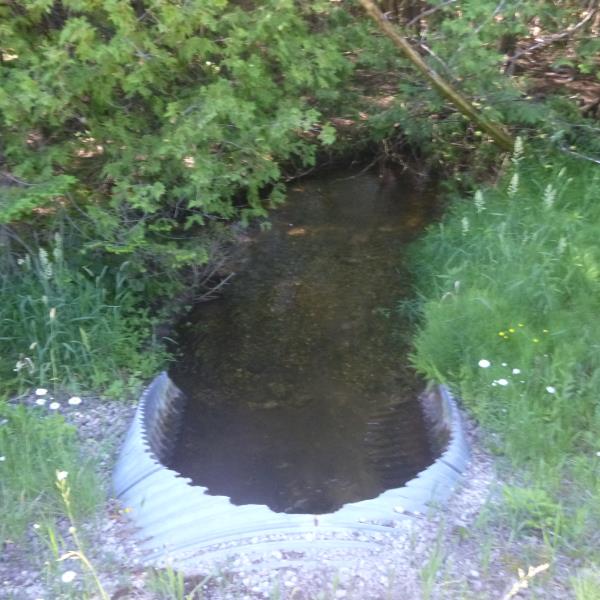

Downstream Conditions

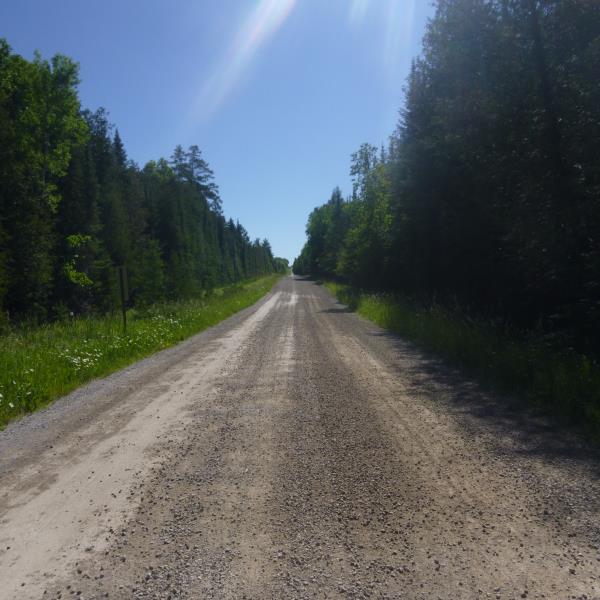

Road Approach - Left

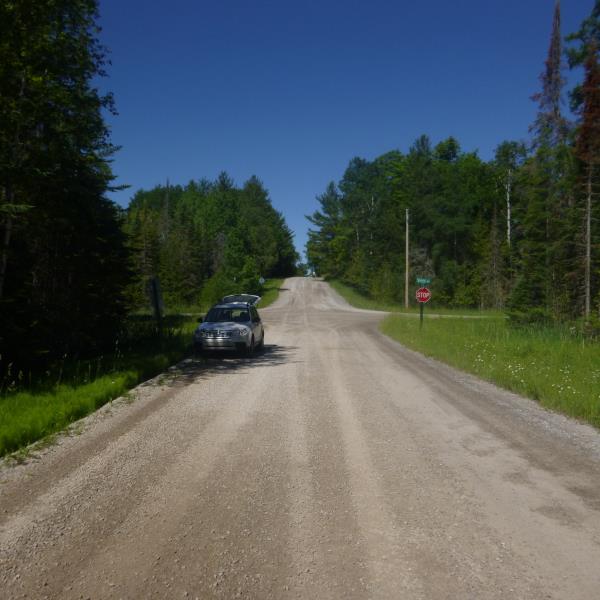

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Gravel
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 30 ft. , Width 6 ft. , Height 4.1 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 1 ft./sec.
Structure Outlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 13 ft.
Wetted Width: 9 ft.
Water Velocity: 0.7 ft./sec. (Measured with Float Test)
Dominant Substrate: Cobble
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 21 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.8 ft.
Slope: More than 1:2
Downstream
Fill Depth: 0.8 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 461 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.492
Erosion: 1.3127 tons/year
Right Approach
Length: 480 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.614
Erosion: 4.4819 tons/year
Erosion Information
Total Erosion at Crossing: 5.7945 tons/year
Summary Information
Fish Passability 0.9
