Road Stream Crossing Site CLHW_OR-048

Ocqueoc River Watershed, Unnamed stream
Spens Rd
Moltke Twp, Presque Isle County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.4461 , -83.98951
T35N R4E Sec 6
Owned by Private
Structure is NOT Perched
Total Erosion: 6.9091 tons/year
Severity: Severe
Year Inventoried: 2016
Site ID

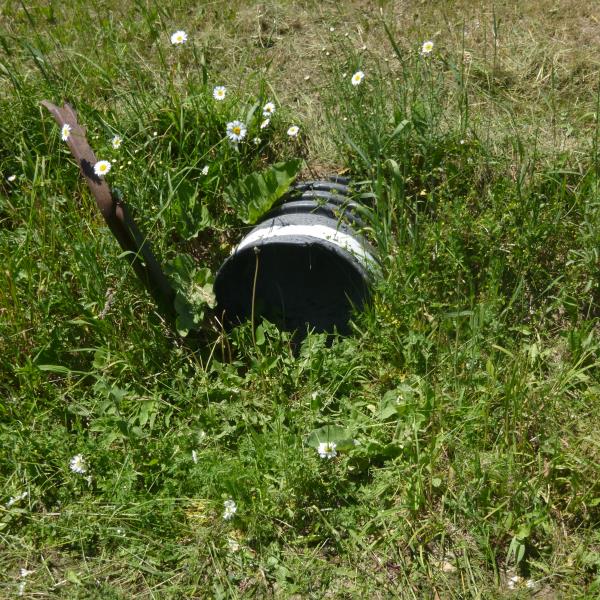

Inlet

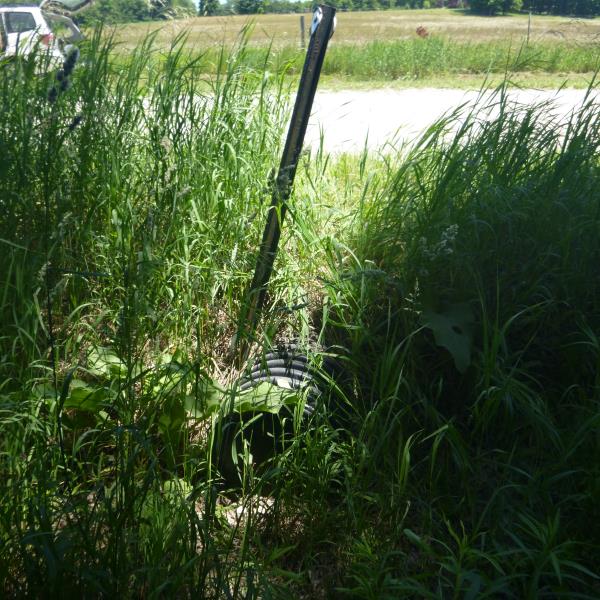

Outlet

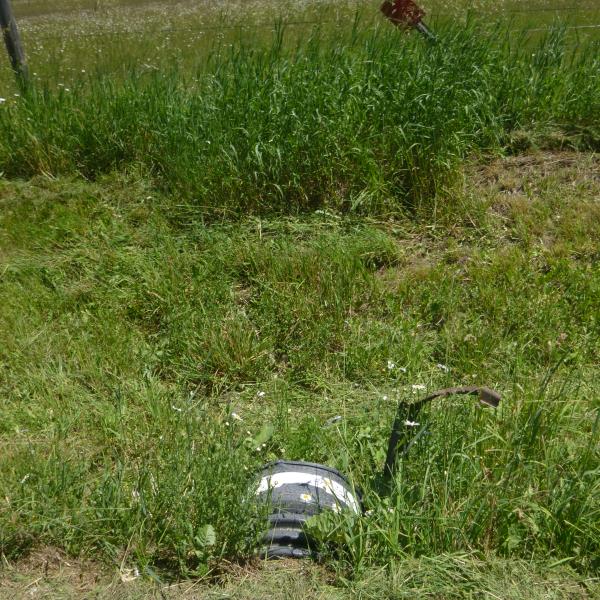

Upstream Conditions

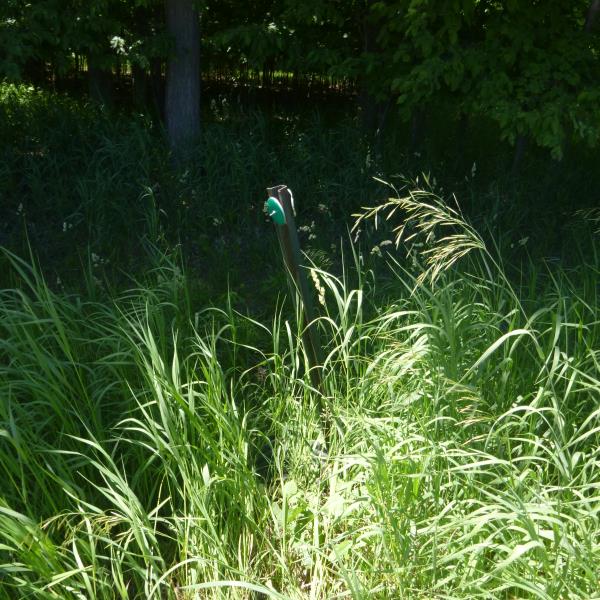

Downstream Conditions

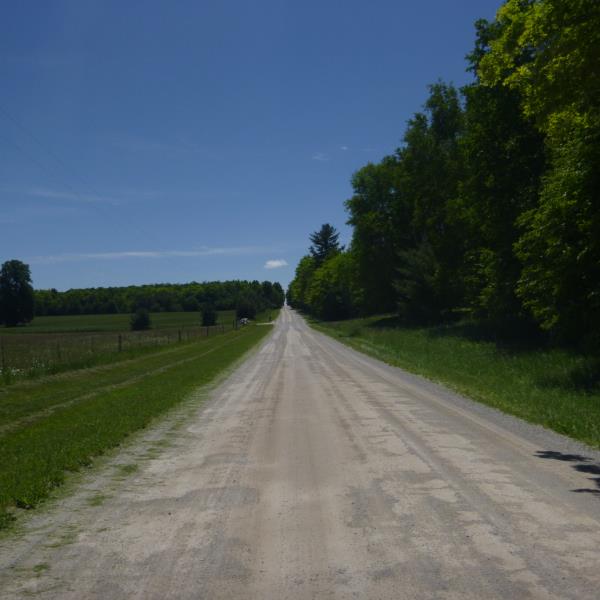

Road Approach - Left

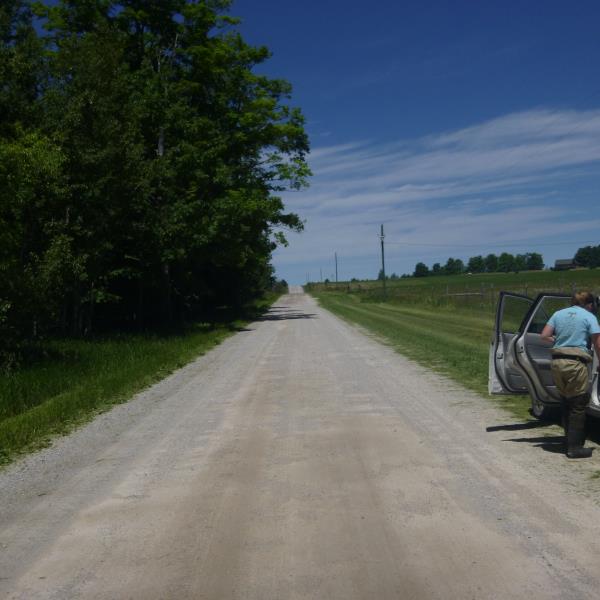

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Plastic
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 42 ft. , Width 1.5 ft. , Height 1.5 ft.
Structure is NOT Perched
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Additional Comments
No flow-just a drain ditch
Stream Information
Stream Flow: None
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 0.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 3.4545 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 3.4545 tons/year
Erosion Information
Total Erosion at Crossing: 6.9091 tons/year
Summary Information
