Road Stream Crossing Site CLHW_OR-057

Ocqueoc River Watershed, Unnamed stream
Balch Rd
Bearinger Twp, Presque Isle County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.49281 , -84.14671
T36N R2E Sec 23
Owned by Private
Structure is NOT Perched
Total Erosion: 1.6502 tons/year
Severity: Moderate
Year Inventoried: 2016
Site ID
Inlet

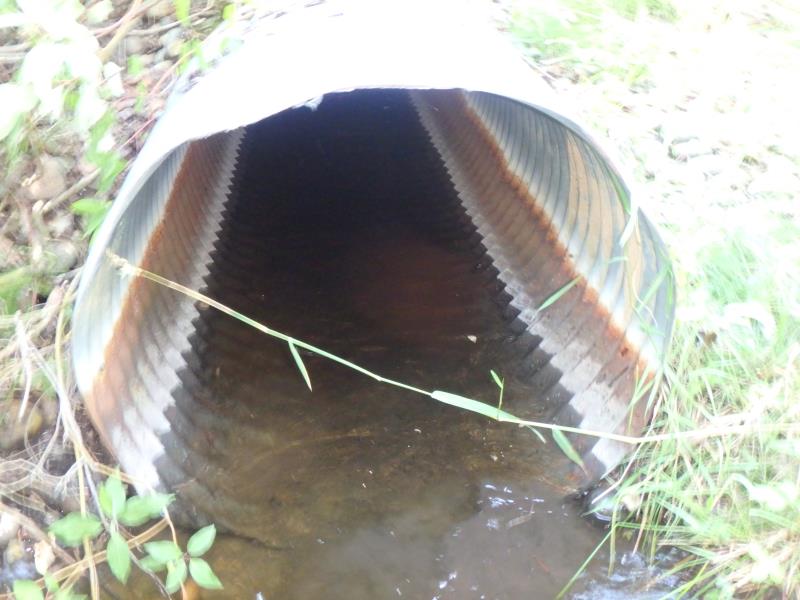

Outlet

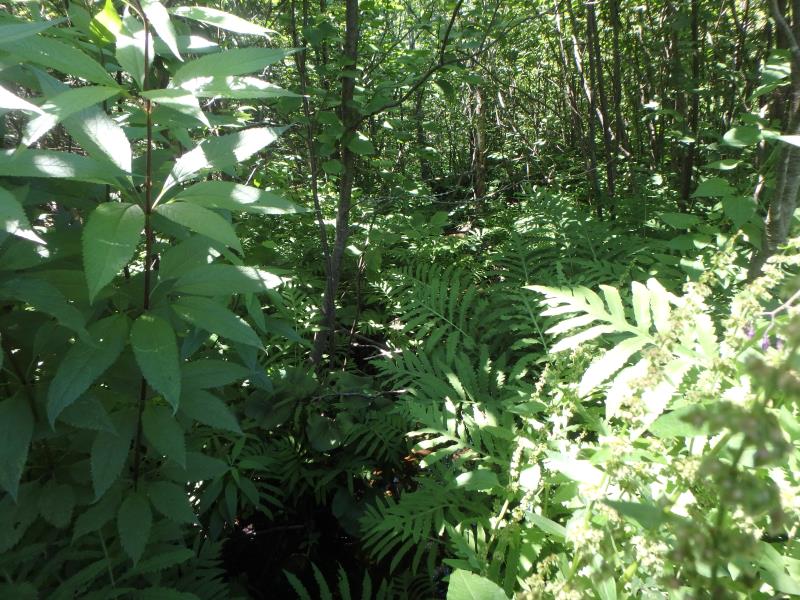

Upstream Conditions

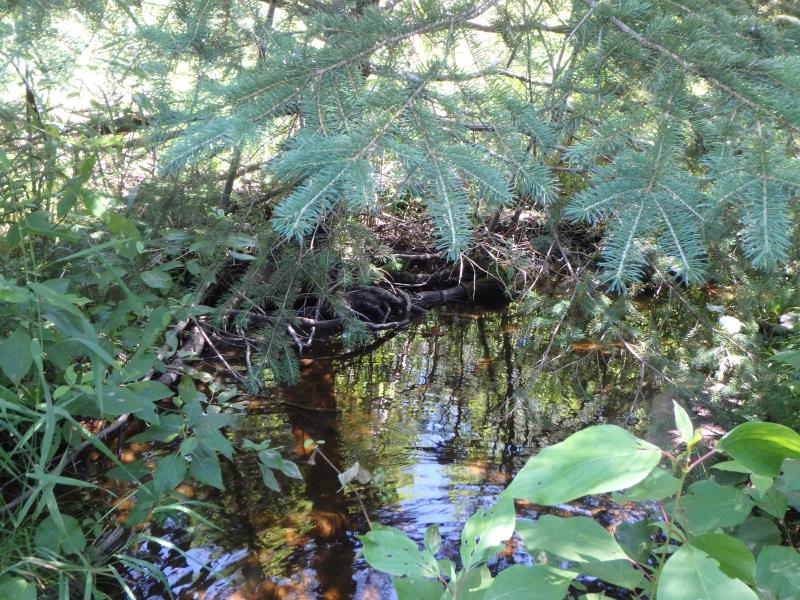

Downstream Conditions

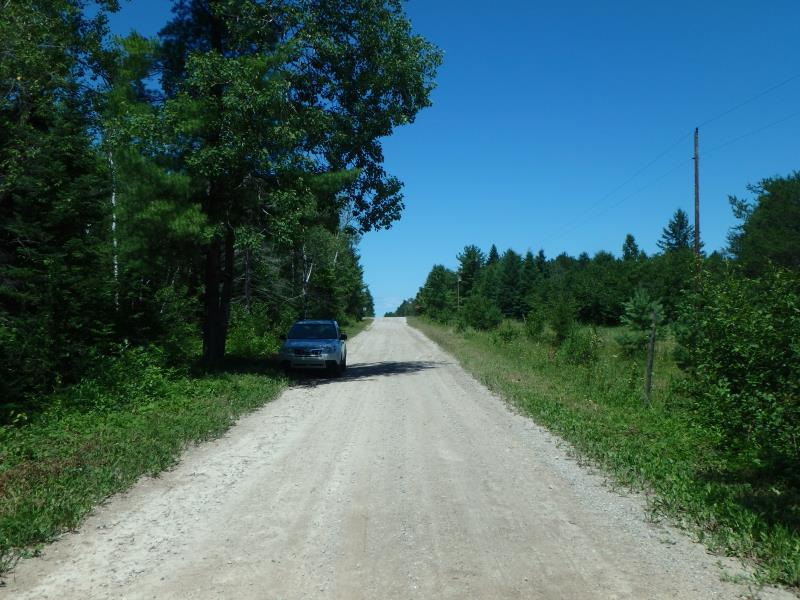

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 38 ft. , Width 3 ft. , Height 3 ft.
Percentage Plugged: Inlet: 1% to 25% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Additional Comments
stream is dried up, no riffle available
Stream Information
Stream Flow: None
Road Information
Gravel County Road
Road Condition: Fair
Road Width at Culvert: 16 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 542 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.508
Erosion: 1.2146 tons/year
Right Approach
Length: 227 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.435
Erosion: 0.4356 tons/year
Erosion Information
Total Erosion at Crossing: 1.6502 tons/year
Summary Information
