Road Stream Crossing Site CLHW_SC-004

Schmidt Creek Watershed, Schmidt Creek
US-23
Rogers Twp, Presque Isle County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.48658 , -83.9289
T36N R4E Sec 23
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 1.098 tons/year
Severity: Minor
Year Inventoried: 2016
Site ID

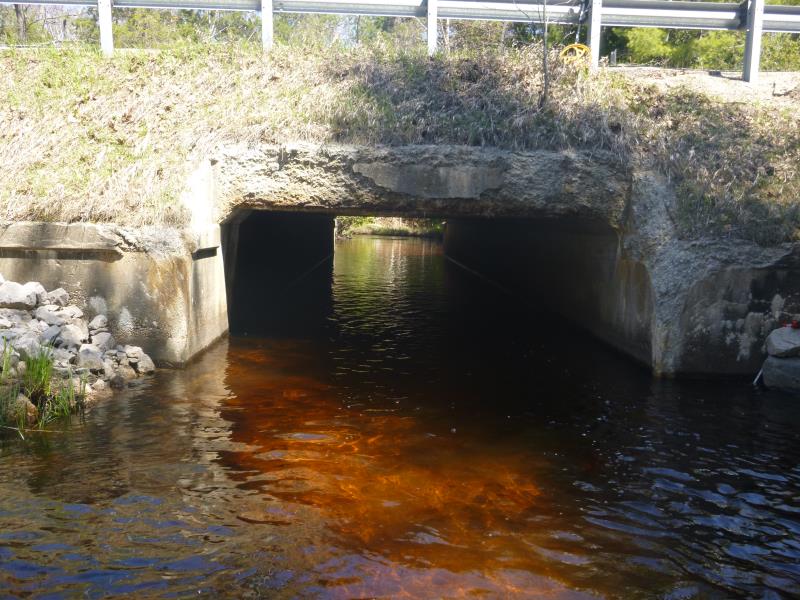

Inlet
Outlet
Upstream Conditions
Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 60 ft. , Width 12 ft. , Height 6.5 ft.
Percentage Crushed: Inlet: 26% to 50% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 2.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.7 ft./sec.
Structure Outlet
Water Depth: 2.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.7 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 1 ft.
Bankfull Width: 19 ft.
Wetted Width: 16 ft.
Water Velocity: 1.6 ft./sec. (Measured with Float Test)
Dominant Substrate: Sand
Road Information
Paved Federal Road
Road Condition: Fair
Road Width at Culvert: 34 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 4.5 ft.
Downstream
Fill Depth: 4.8 ft.
Approaches
Left Approach
Length: 750 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.543
Erosion: 0.4573 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.6407 tons/year
Erosion Information
Total Erosion at Crossing: 1.098 tons/year
Notes: Banks outside of crossing are eroding
Summary Information
Fish Passability 1
