Road Stream Crossing Site CLHW_TR-021

Trout/Swan/Little Trout Watershed, Swan River
US-23
Pulawski Twp, Presque Isle County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.34806 , -83.73897
T34N R6E Sec 17
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.8291 tons/year
Severity: Minor
Year Inventoried: 2016
Site ID
Inlet
Outlet
Upstream Conditions

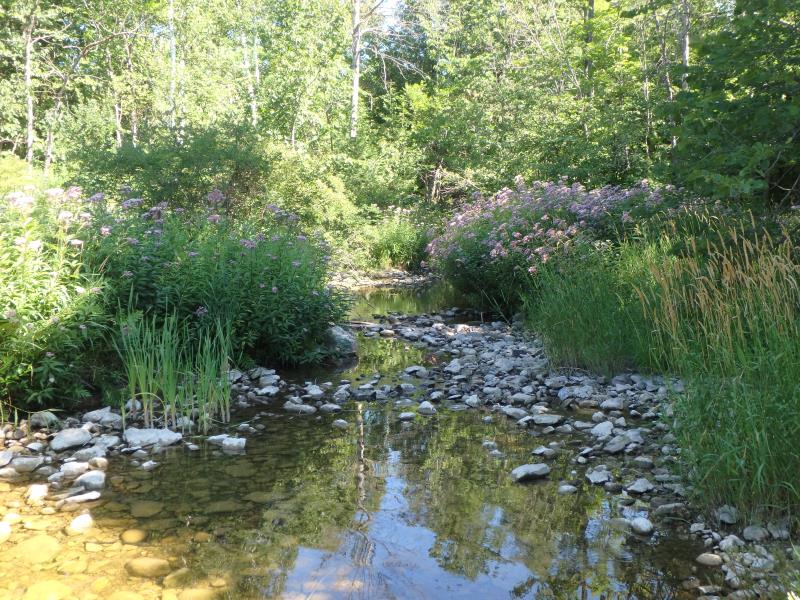

Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Rock
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 63 ft. , Width 41 ft. , Height 17.5 ft.
Percentage Plugged: Inlet: 26% to 50% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 1.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 18 ft.
Wetted Width: 14 ft.
Water Velocity: 0.1 ft./sec. (Measured with Float Test)
Dominant Substrate: Cobble
Road Information
Paved Federal Road
Road Condition: Good
Road Width at Culvert: 44 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Fill Depth: 0 ft.
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.8291 tons/year
Erosion Information
Total Erosion at Crossing: 0.8291 tons/year
Summary Information
Fish Passability 1
