Road Stream Crossing Site TBW_TBAP133

Thunder Bay River Watershed, Butterfield Creek
Elevere Road
Ossineke Twp, Alpena County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.94236 , -83.74921
T29N R6E Sec 05
Owned by Private
Fish Passability 0
Perch Height: 0.7 ft.
Total Erosion: 1.0215 tons/year
Severity: Severe
Year Inventoried: 2017
Site ID

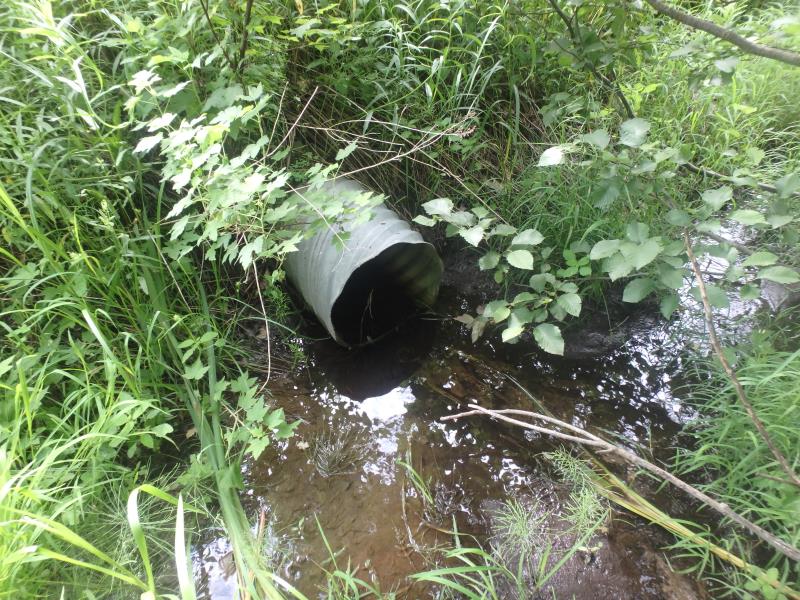

Inlet

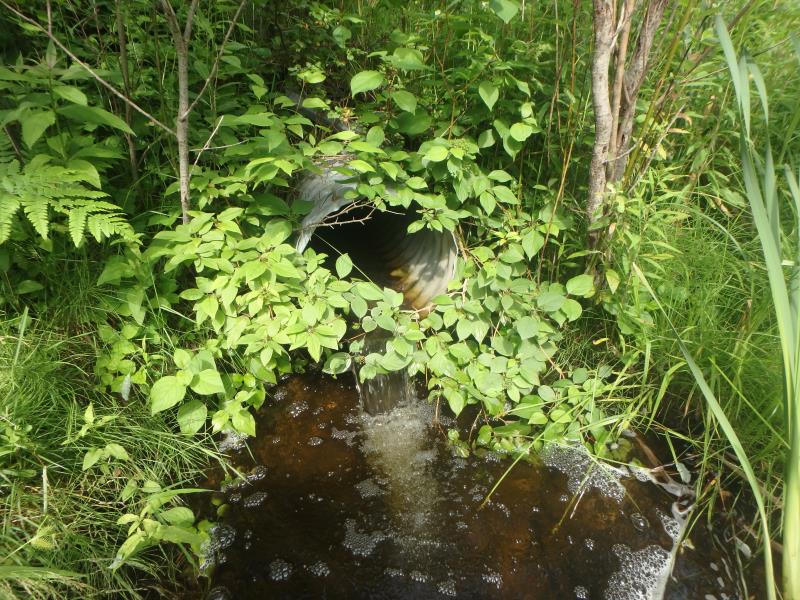

Outlet

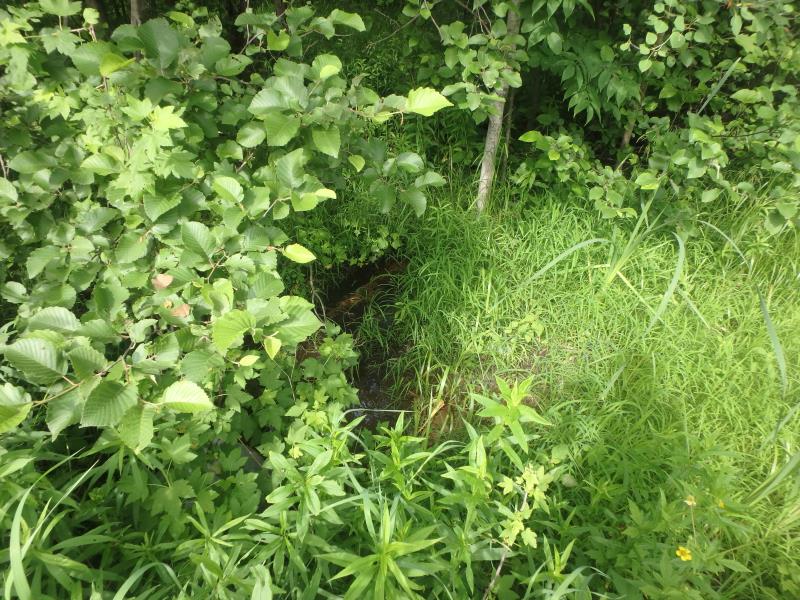

Upstream Conditions

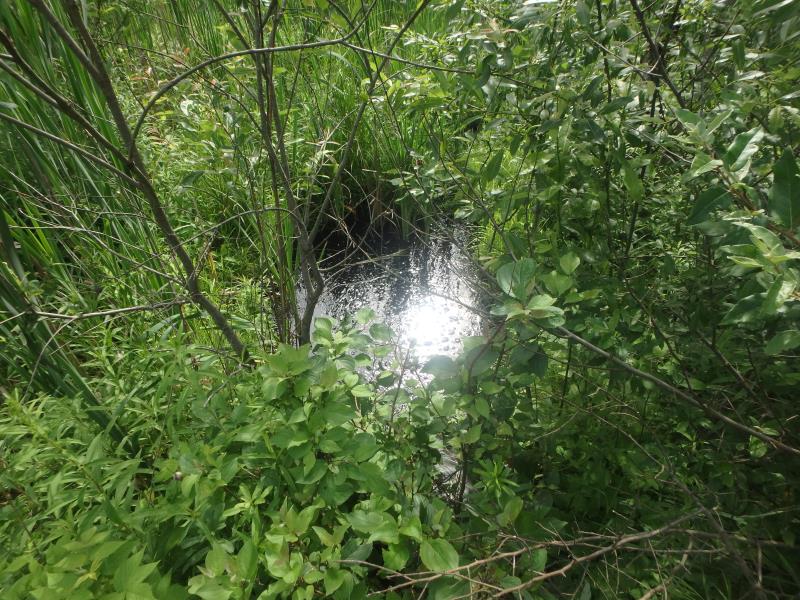

Downstream Conditions

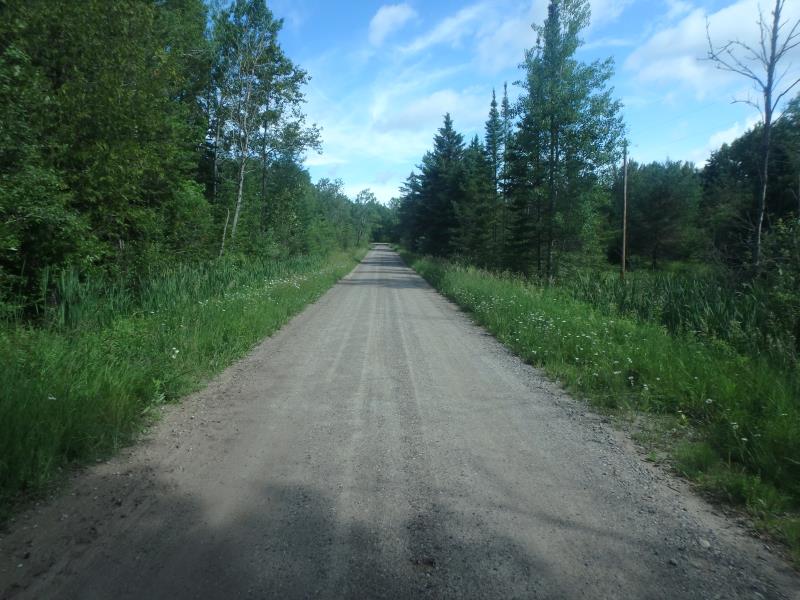

Road Approach - Left

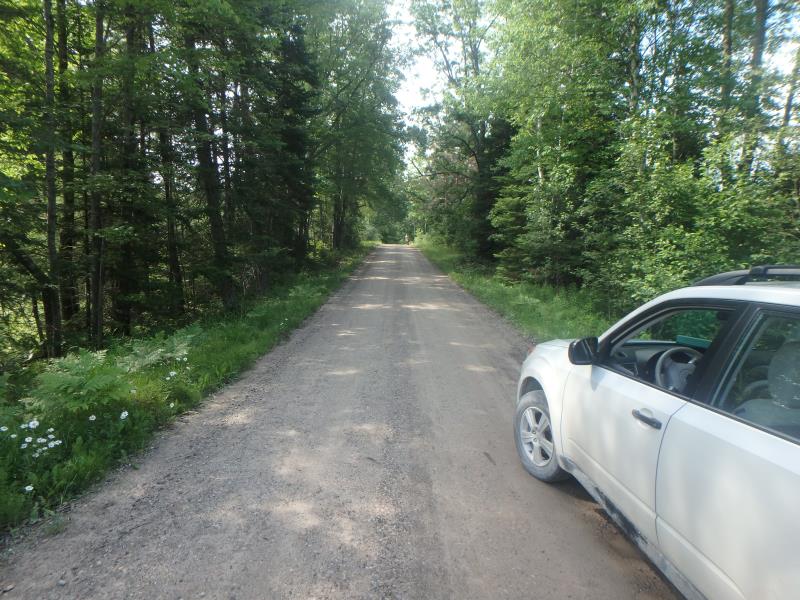

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 34 ft. , Width 1.6 ft. , Height 1.6 ft.
Perch Height: 0.7 ft.
Structure Inlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.5 ft./sec.
Structure Outlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.5 ft./sec.
*Water Velocities were measured at the Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 9.5 ft. , Width 6 ft. , Depth 1.6 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 2.3 ft.
Wetted Width: 1.5 ft.
Water Velocity: 0.7 ft./sec. (Measured with Meter)
Road Information
Sand County Road
Road Condition: Fair
Road Width at Culvert: 14 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.1 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 330 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.466
Erosion: 0.5931 tons/year
Right Approach
Length: 252 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.441
Erosion: 0.4284 tons/year
Erosion Information
Total Erosion at Crossing: 1.0215 tons/year
Extent of Erosion: Minor
Erosion is occurring and corrective actions can be installed to address the problem.
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site. COMPLETE PASSAGE BARRIER BUT WOULD NOT RECONNECT MUCH UPSTREAM
A future visit to this site is recommended. MAXIMUM UPSTREAM HABITAT WOULD BE 1.5 MILES, BUT I DON'T KNOW IF THE MAJORITY DRIES UP. THE NEXT UPSTREAM CROSSING APPEARED TO BE DRY
These non-native species were observerd at this site: Spotted Knapweed
