Road Stream Crossing Site TBW_TBMO03
Thunder Bay River Watershed, Thunder Bay River
Hossler Road
Briley Twp,
Montmorency County
Information collected by:
Site Location
GPS Coordinates: 44.97216
, -84.21803
T30N
R2E
Sec 20
Owned by Private
Fish Passability 0
Structure is NOT Perched
Total Erosion: 3.646 tons/year
Severity: Severe
Year Inventoried: 2017

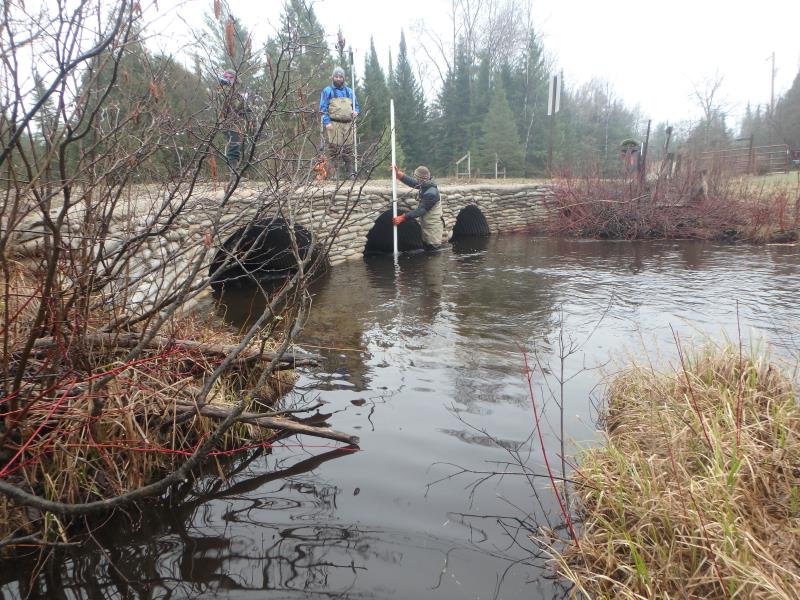

Inlet

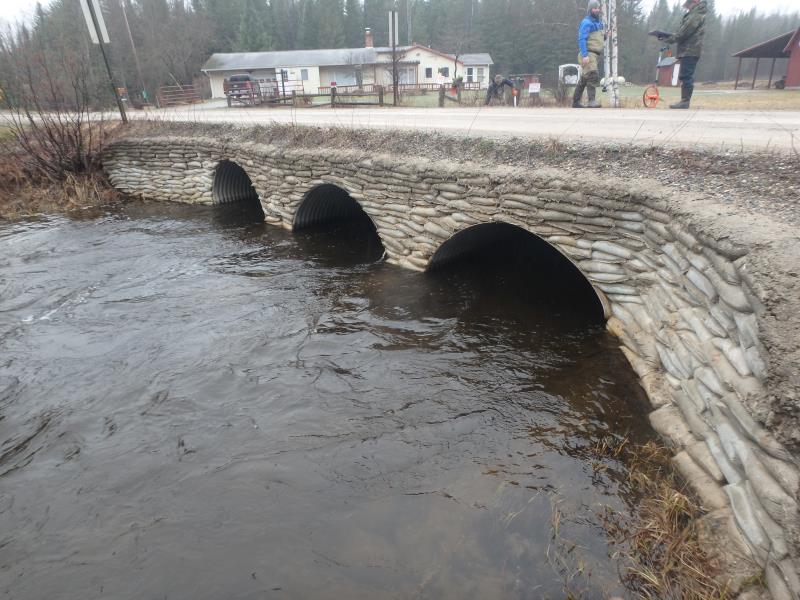

Outlet

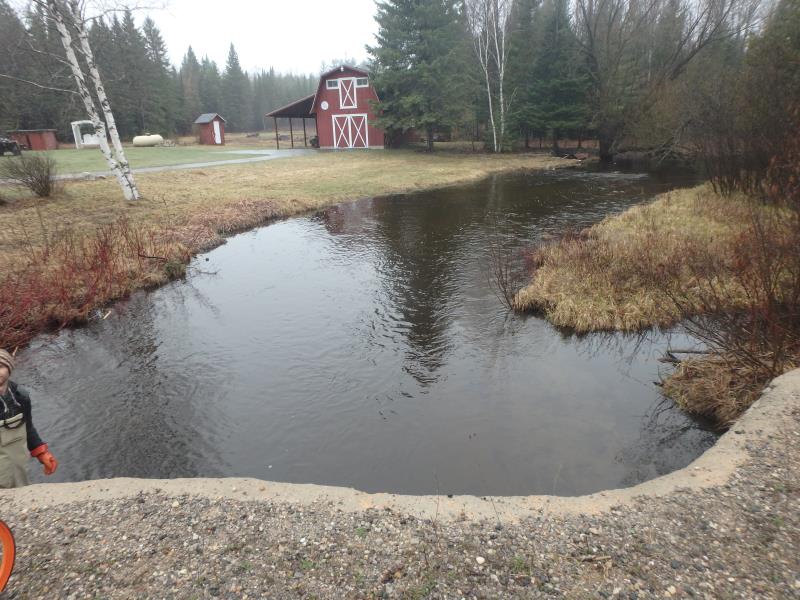

Upstream Conditions

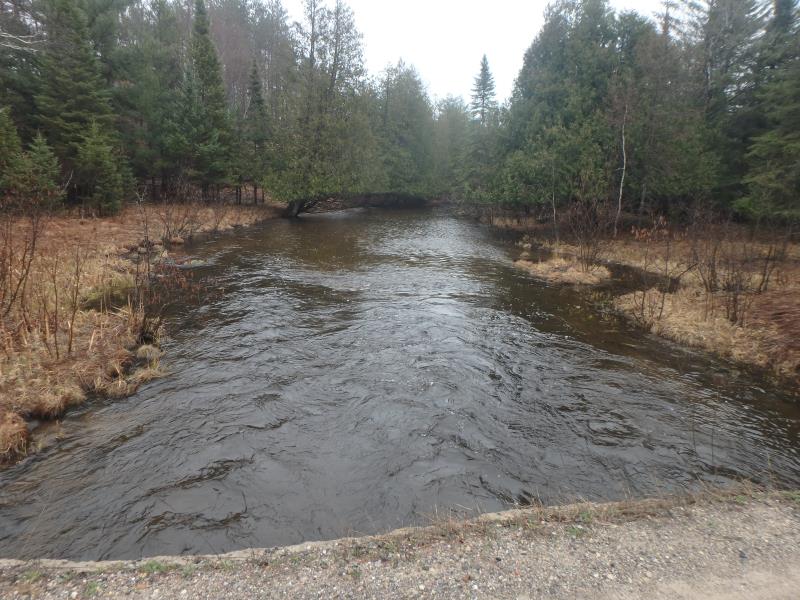

Downstream Conditions

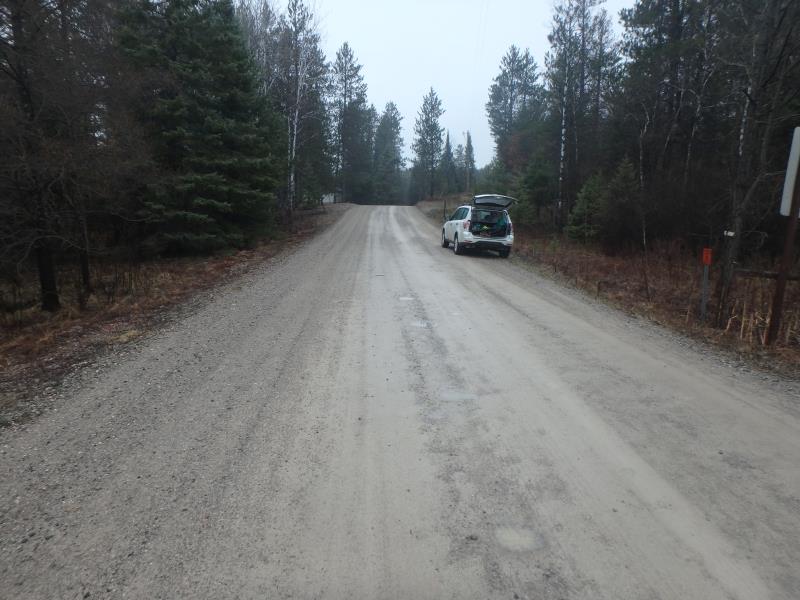

Road Approach - Left

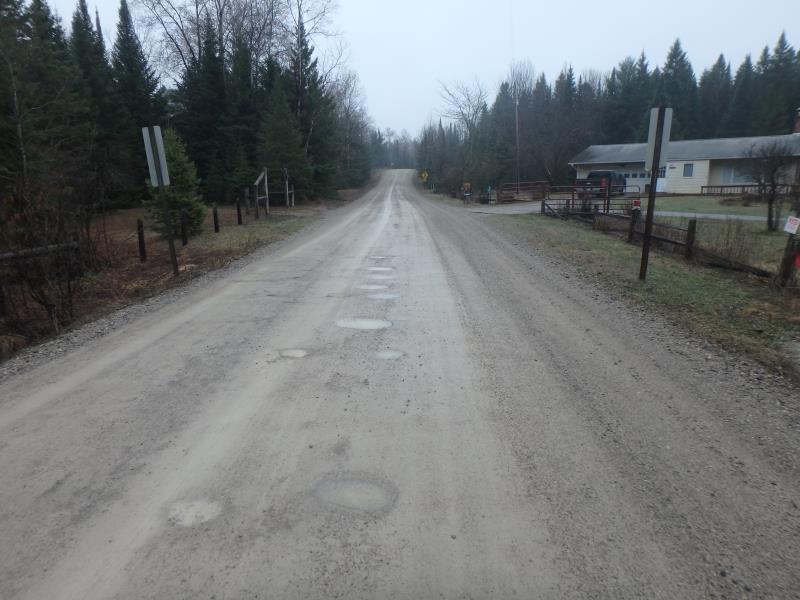

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 3
Structure Shape: Ellipse
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
6 ft. |
24 ft. |
3.6 ft. |
Metal |
2 |
6 ft. |
24 ft. |
3.6 ft. |
Metal |
3 |
6 ft. |
24 ft. |
3.6 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 24 ft.
, Width 6 ft.
, Height 3.6 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 4.6 ft./sec.
Structure Outlet
Water Depth: 1.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 4 ft./sec.
*Water Velocities were measured 1 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Bankfull
Scour Pool: Length 30 ft.
, Width 30 ft.
, Depth 3 ft.
Riffle Information
Water Depth: 1 ft.
Bankfull Width: 33 ft.
Wetted Width: 31 ft.
Water Velocity: 3.5 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Sand
County Road
Road Condition: Fair
Road Width at Culvert: 24 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 0.6 ft.
Slope: Vertical
Downstream
Fill Depth: 0.8 ft.
Slope: Vertical
Approaches
Left Approach
Length: 197 ft.
Slope: 1% to 5%
Vegetation: None
LS Factor: 0.566
Erosion: 0.7369 tons/year
Right Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: None
LS Factor: 0.88
Erosion: 2.9091 tons/year
Erosion Information
Total Erosion at Crossing: 3.646 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 0
