Road Stream Crossing Site TBW_TBMO214

Thunder Bay River Watershed, Anchor Creek
Carrier Road
Hillman Twp, Montmorency County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.07355 , -83.89662
T31N R4E Sec 13
Owned by Local Government
Fish Passability 1
Structure is NOT Perched
Total Erosion: 2.1001 tons/year
Severity: Moderate
Year Inventoried: 2017
Site ID

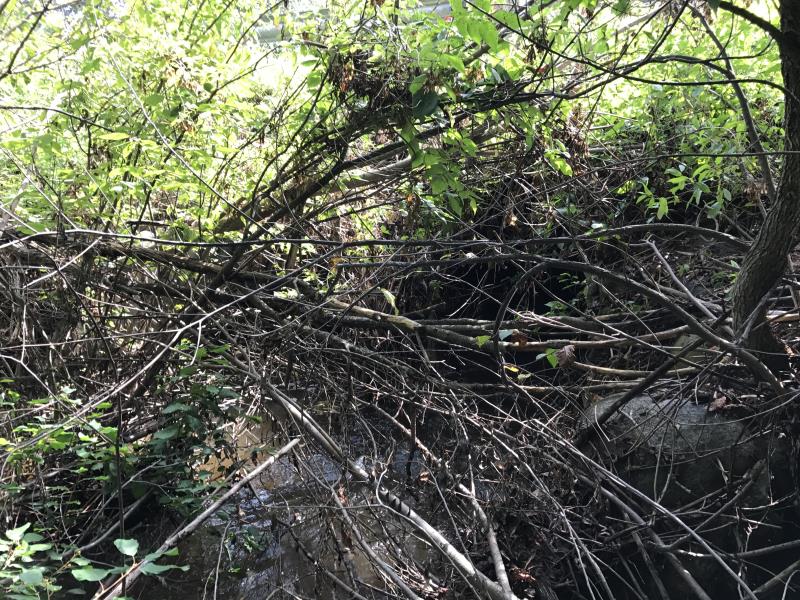

Inlet
Outlet

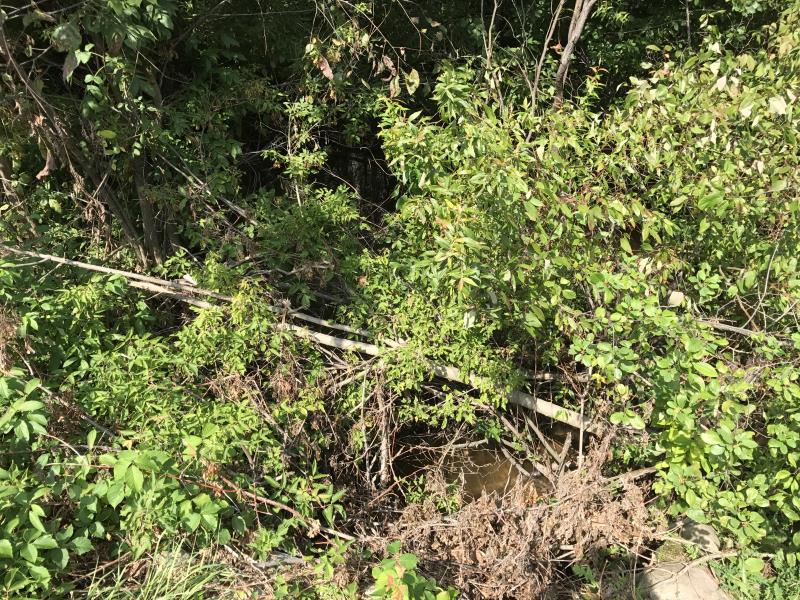

Upstream Conditions

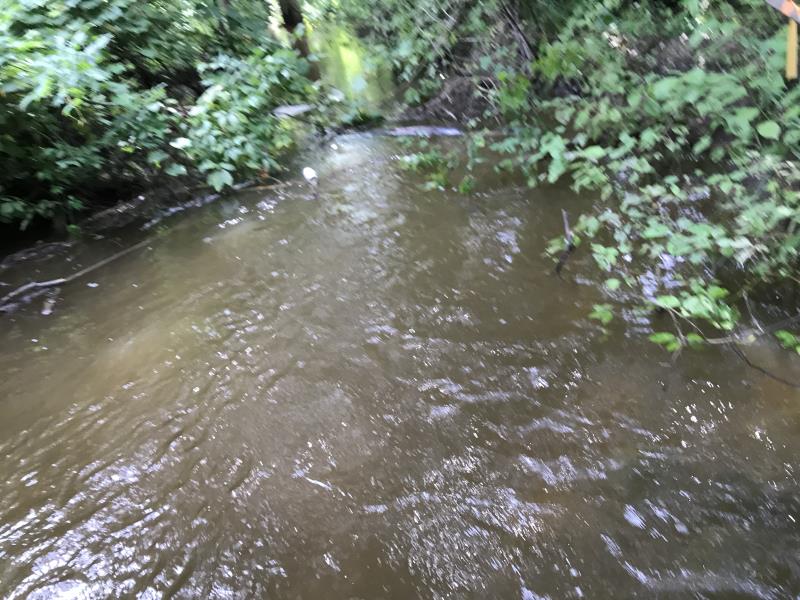

Downstream Conditions

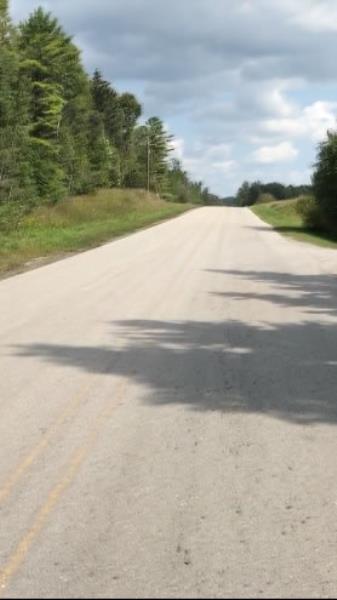

Road Approach - Left

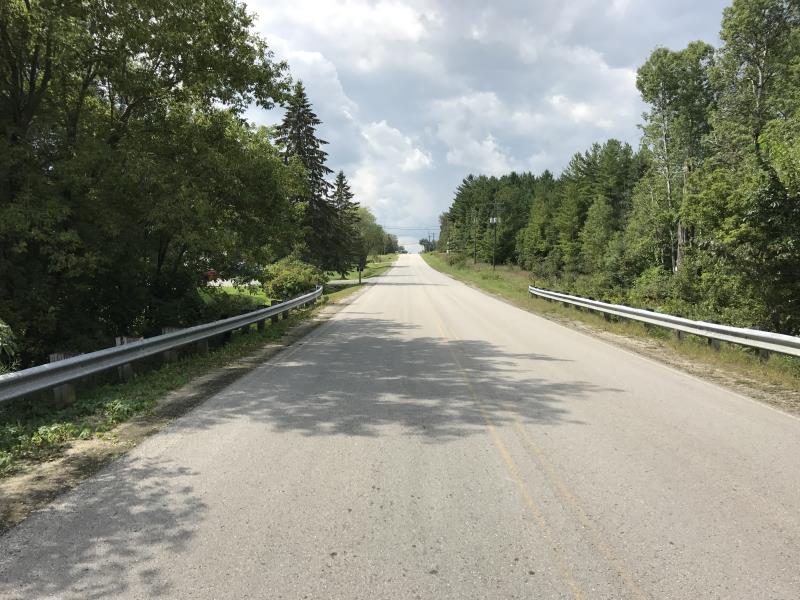

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 47 ft. , Width 11 ft. , Height 7 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.6 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 1 ft./sec.
Structure Outlet
Water Depth: 1.6 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 1 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 1.5 ft.
Bankfull Width: 11 ft.
Wetted Width: 9 ft.
Water Velocity: 1.5 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Fair
Road Width at Culvert: 23 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2 ft.
Slope: 1:2
Downstream
Fill Depth: 2 ft.
Slope: 1:2
Approaches
Left Approach
Length: 450 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.583
Erosion: 0.5415 tons/year
Right Approach
Length: 1000 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 2.05
Erosion: 1.5587 tons/year
Erosion Information
Total Erosion at Crossing: 2.1001 tons/year
Summary Information
Fish Passability 1
These non-native species were observerd at this site: Spotted Knapweed and Queen Anne's Lace
