Road Stream Crossing Site TBW_TBMO38
Thunder Bay River Watershed, Haymeadow Creek
Decheau Road
Briley Twp,
Montmorency County
Information collected by:
Site Location
GPS Coordinates: 45.03082
, -84.18345
T31N
R2E
Sec 34
Owned by State
Fish Passability 0
Perch Height: 0.7 ft.
Total Erosion: 0.0031 tons/year
Severity: Severe
Year Inventoried: 2017

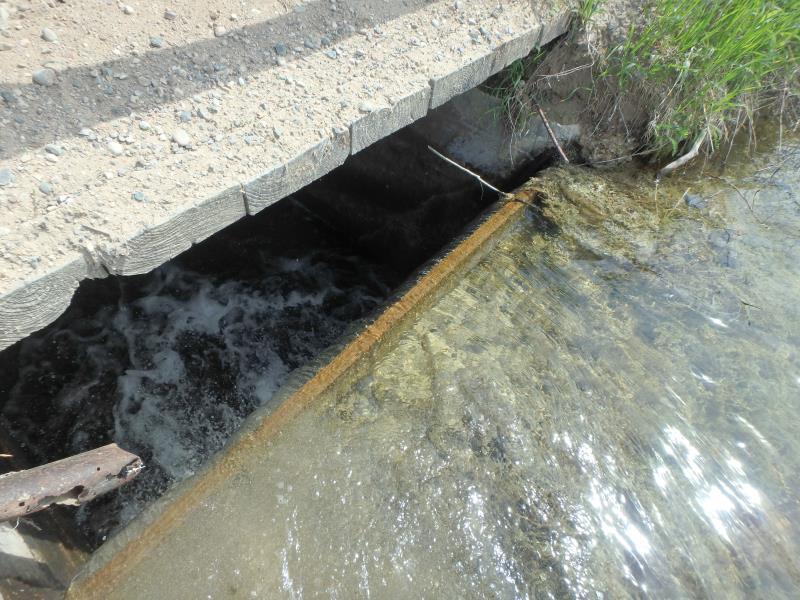

Inlet

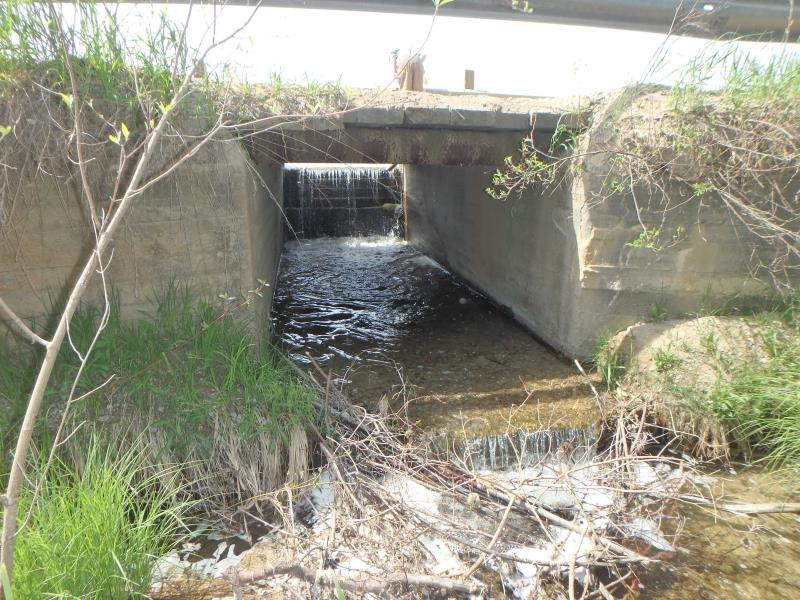

Outlet

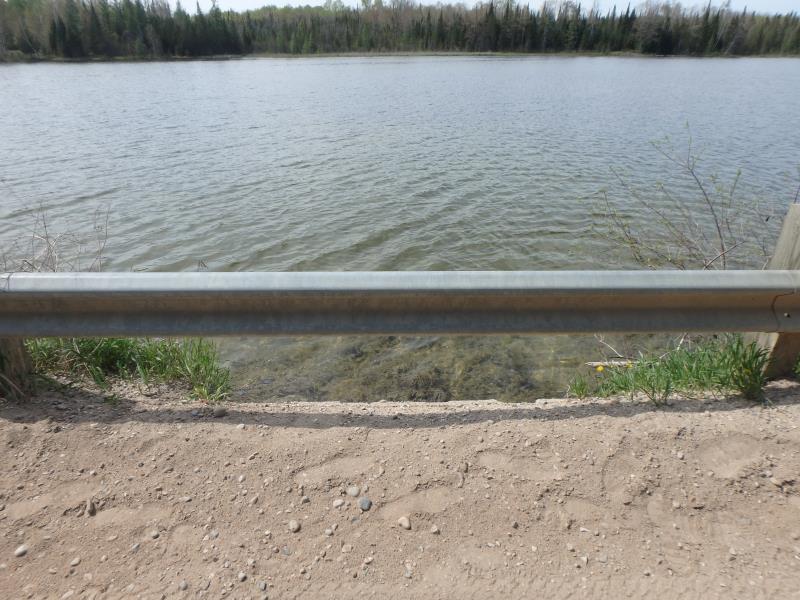

Upstream Conditions

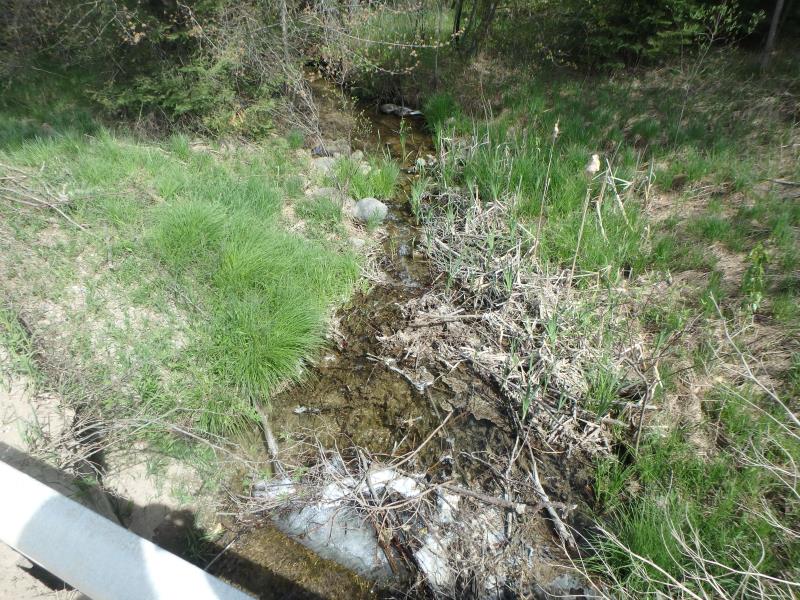

Downstream Conditions

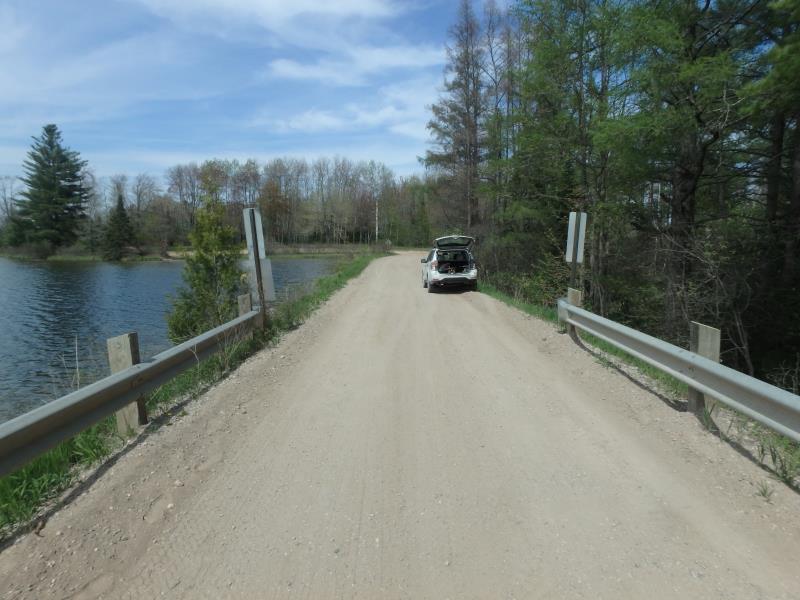

Road Approach - Left

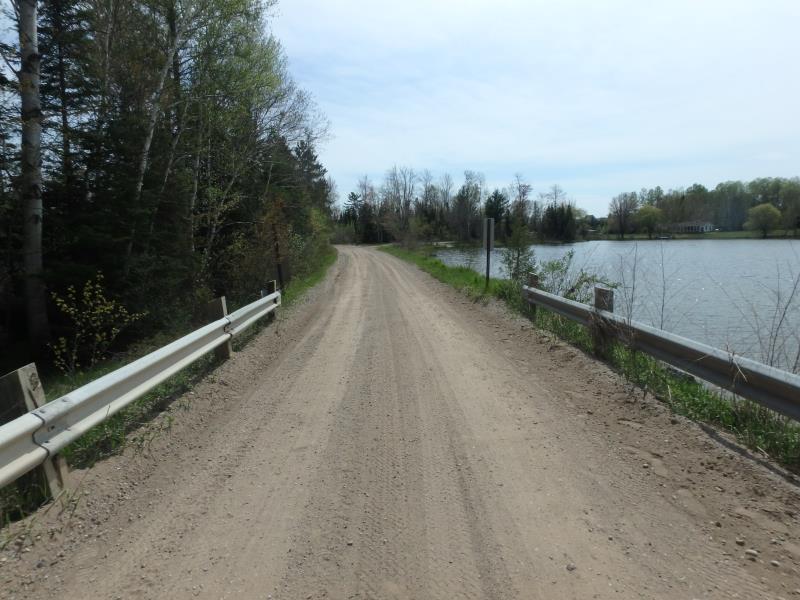

Road Approach - Right
Crossing Information
Type of Crossing: Dam
Structure Shape: Square/Rectangle
Inlet Type: Headwall
Outlet Type: Outlet Apron
Structure Material: Concrete
Structure Substrate: Gravel
General Conditions: Poor
Structure Interior: smooth
Dimensions of Structure: Length 16 ft.
, Width 6 ft.
, Height 4.8 ft.
Perch Height: 0.7 ft.
Structure Inlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0.05 ft.
Water Velocity*: 3.5 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.6 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.9 ft.
Bankfull Width: 6.2 ft.
Wetted Width: 4 ft.
Water Velocity: 0.7 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 13 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.0031 tons/year
Extent of Erosion: Minor
Notes: Dam is eroding
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Total Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | |
Left Downstream Embankment |
2 ft. |
1.4 ft. |
1.4 ft. |
yes |
Sand |
0.0031 |
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site.
DAM
These non-native species were observerd at this site: Spotted Knapweed
