Road Stream Crossing Site TBW_TBMO65

Thunder Bay River Watershed, Miller Creek
M 32
Avery Twp, Montmorency County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 45.0081 , -84.0525
T30N R3E Sec 11
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.6218 tons/year
Severity: Moderate
Year Inventoried: 2017
Inlet
Outlet
Upstream Conditions
Downstream Conditions

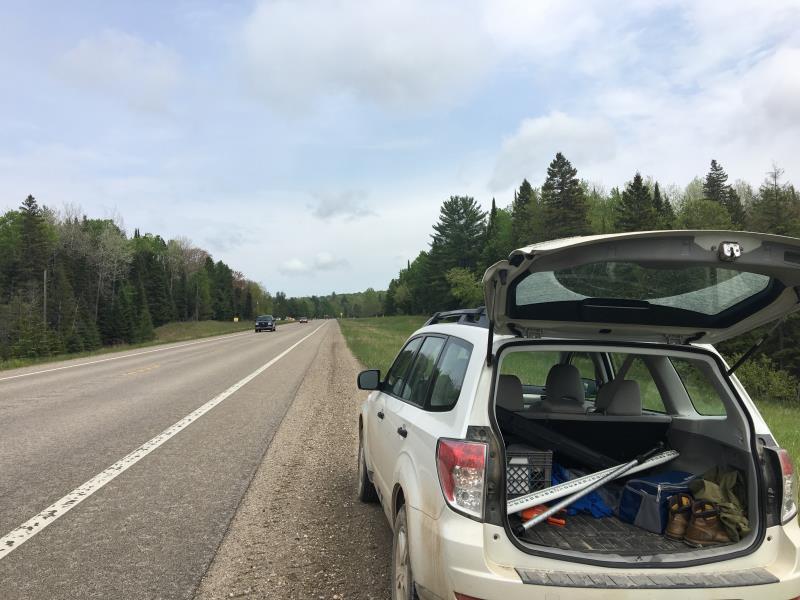

Road Approach - Left

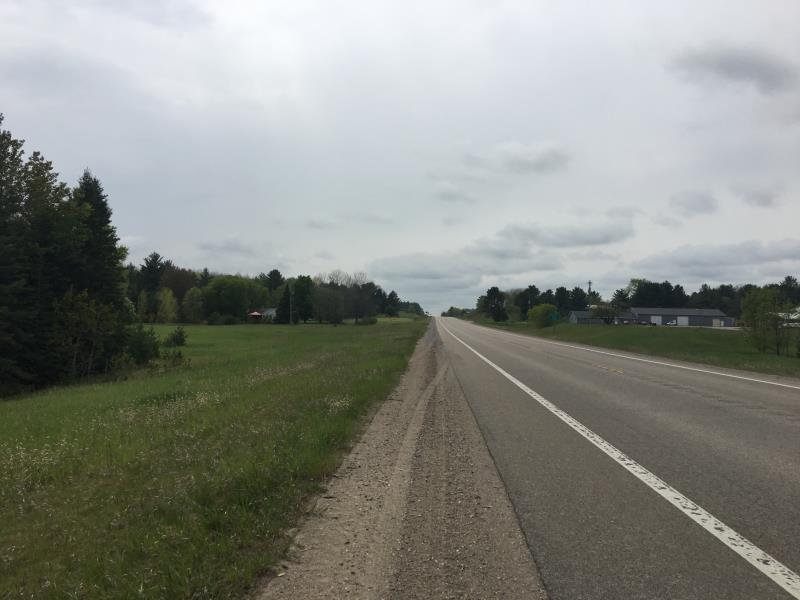

Road Approach - Left
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Mitered
Outlet Type: Outlet Apron
Structure Material: Concrete
Structure Substrate: Gravel
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 163 ft. , Width 5.3 ft. , Height 5.3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 1.1 ft./sec.
Structure Outlet
Water Depth: 0.45 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.6 ft./sec.
*Water Velocities were measured 0.2 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 7 ft.
Wetted Width: 4.7 ft.
Water Velocity: 0.4 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved State Road
Road Condition: Good
Road Width at Culvert: 33 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 11.4 ft.
Slope: More than 1:2
Downstream
Fill Depth: 13 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.6218 tons/year
Erosion Information
Total Erosion at Crossing: 0.6218 tons/year
Extent of Erosion: Minor
Summary Information
Fish Passability 1
