Road Stream Crossing Site TBW_TBOS77

Thunder Bay River Watershed, Unnamed tributary of Marsh Creek
Perch Lake Road
Clinton Twp, Oscoda County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.797476 , -84.008743
T28N R4E Sec 19
Fish Passability 1
Structure is NOT Perched
Total Erosion: 2.2993 tons/year
Severity: Moderate
Year Inventoried: 2017

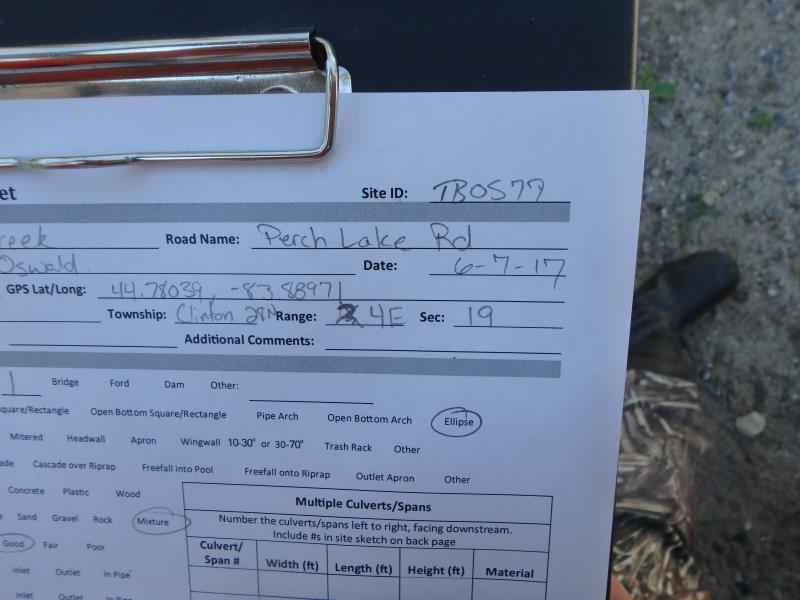

Site ID
Inlet
Outlet

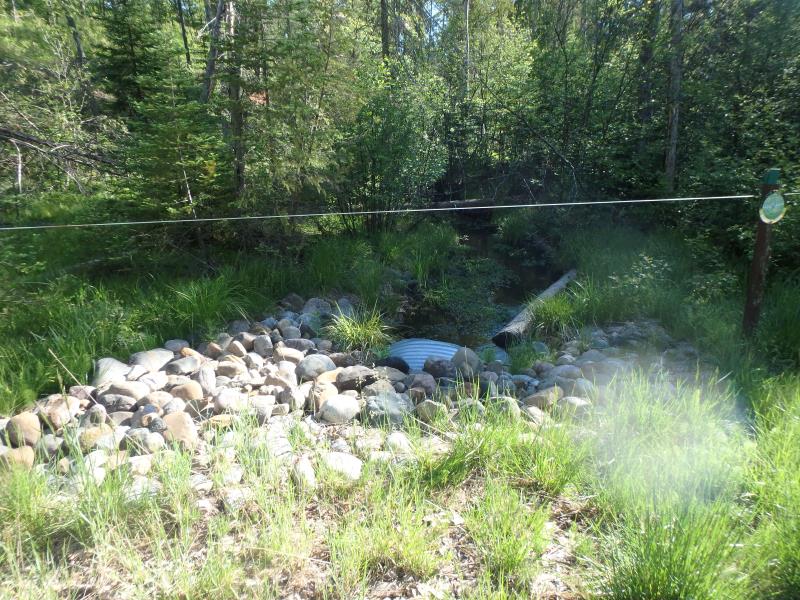

Upstream Conditions

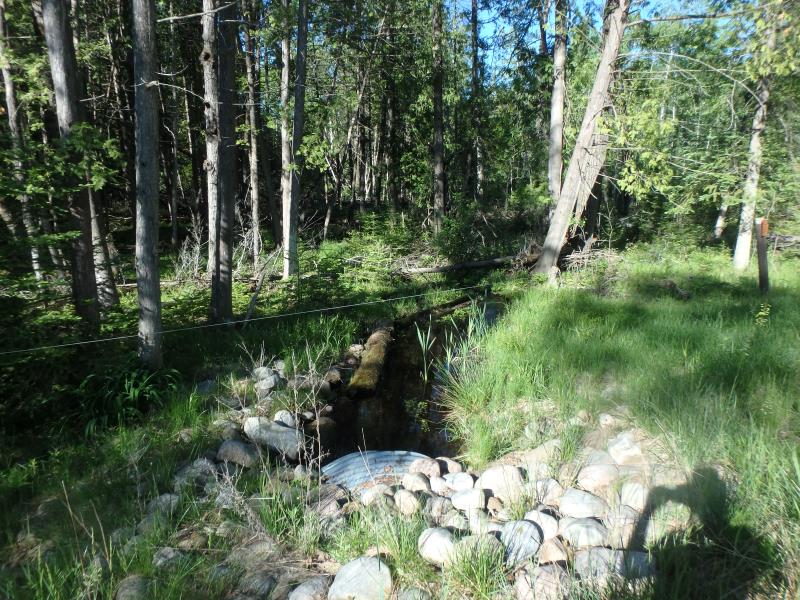

Downstream Conditions

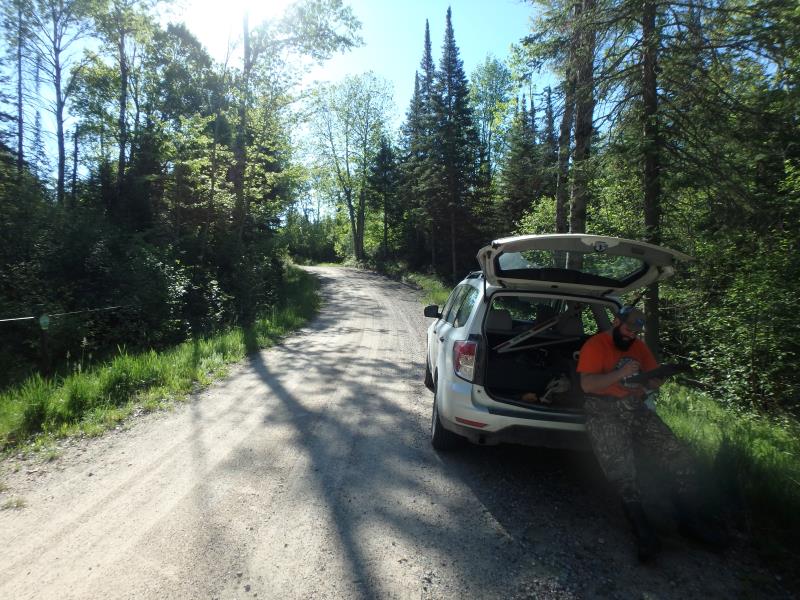

Road Approach - Left

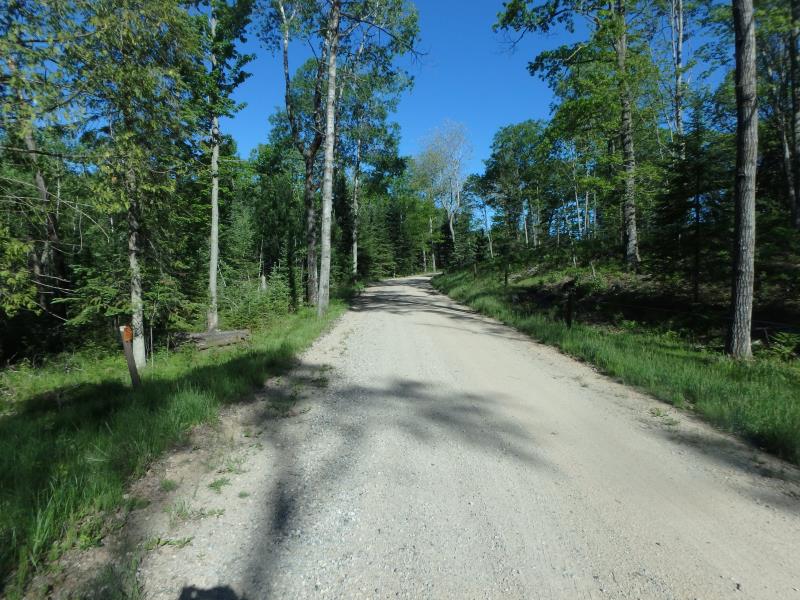

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Ellipse
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 48 ft. , Width 4.6 ft. , Height 3.3 ft.
Structure is NOT Perched

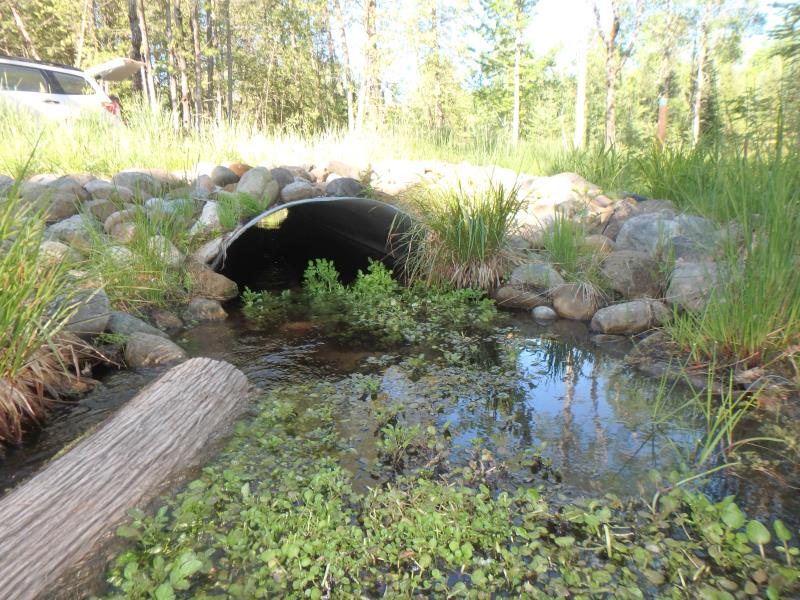

Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 1.2 ft.
Water Velocity*: 1.6 ft./sec.

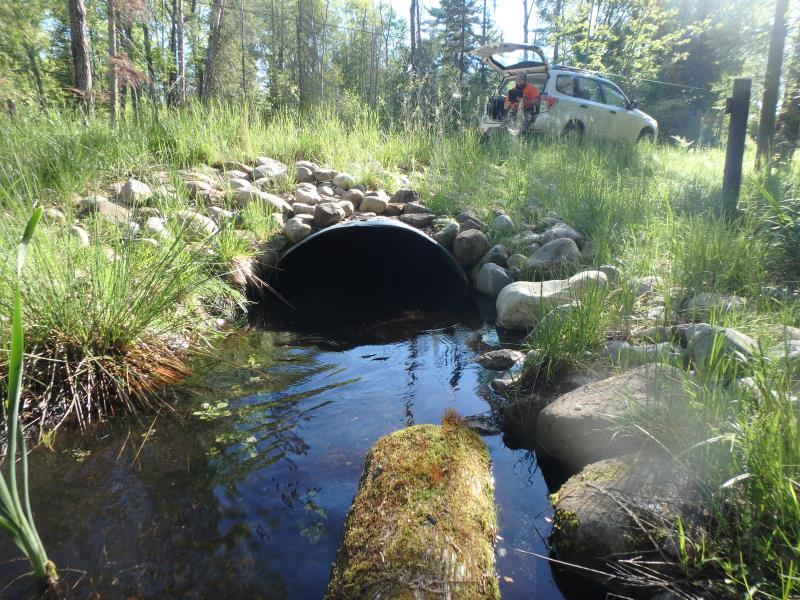

Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 1.3 ft.
Water Velocity*: 0.3 ft./sec.
*Water Velocities were measured 0.1 ft. below Surface (with Meter)
Stream Information
Stream Flow: Bankfull
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 6 ft.
Wetted Width: 4.6 ft.
Water Velocity: 0.2 ft./sec. (Measured with Meter)
Dominant Substrate: Silt
Road Information
Sand County Road
Road Condition: Fair
Road Width at Culvert: 15 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 1.6 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 577 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.515
Erosion: 1.2289 tons/year
Right Approach
Length: 515 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.503
Erosion: 1.0704 tons/year
Erosion Information
Total Erosion at Crossing: 2.2993 tons/year
Extent of Erosion: Minor
Erosion is occurring and corrective actions can be installed to address the problem.
Summary Information
Fish Passability 1
