Road Stream Crossing Site CRW_105

Cedar River Watershed, Bendle Creek (drain)
Oberlin Rd
Sage Twp, Gladwin County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.00605 , -84.50515
T19N R2W Sec 25
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.0545 tons/year
Severity: Minor
Year Inventoried: 2018

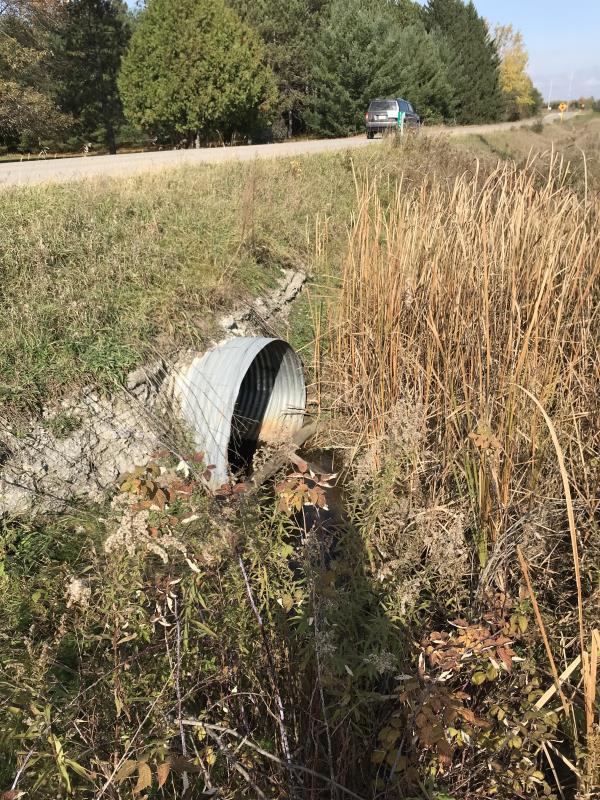

Inlet

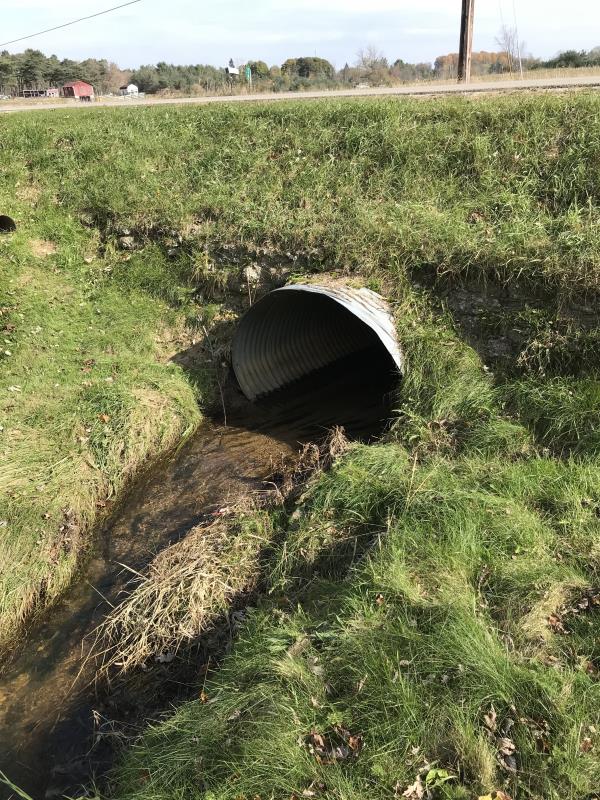

Outlet

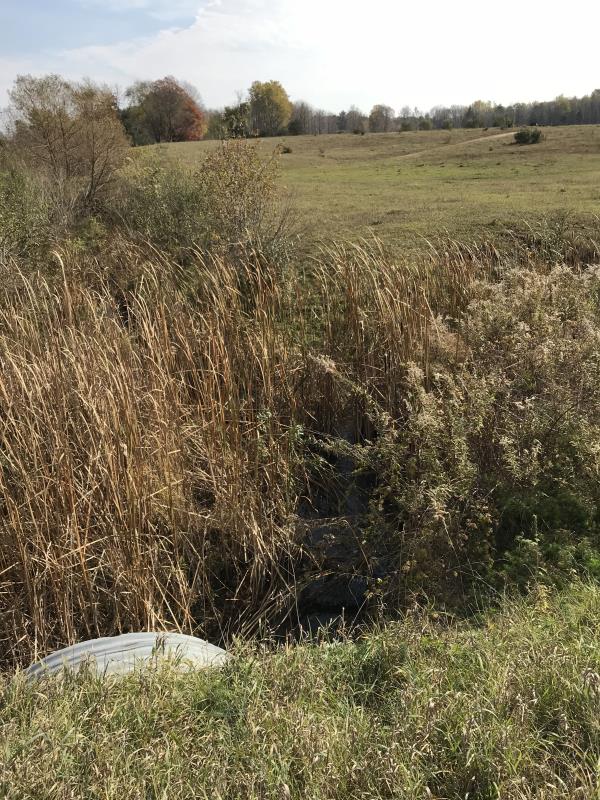

Upstream Conditions

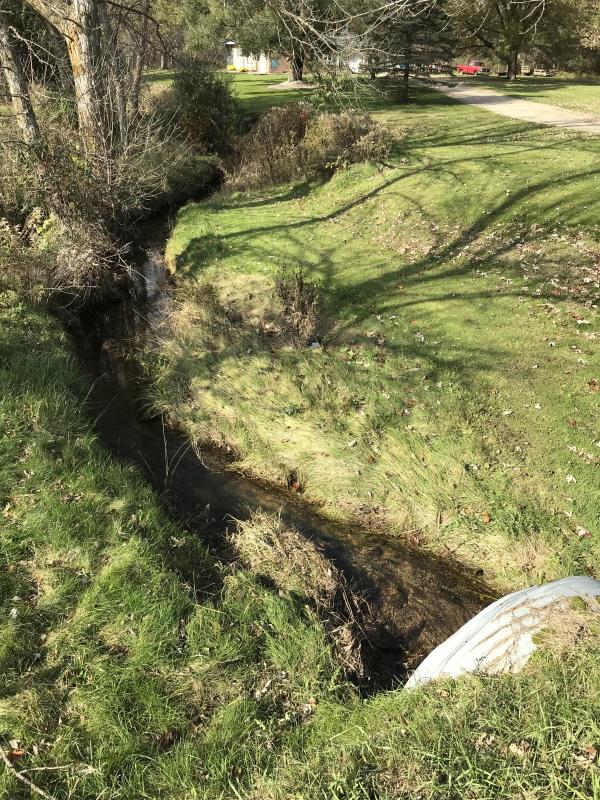

Downstream Conditions

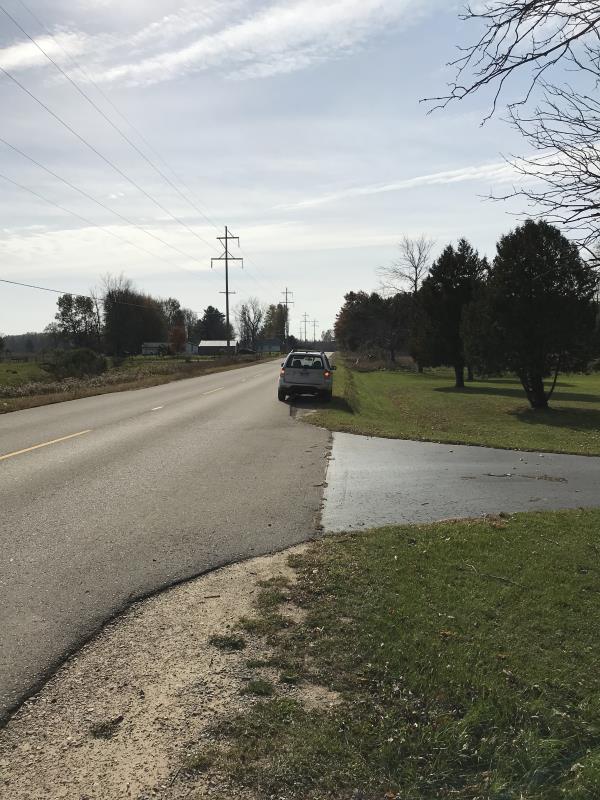

Road Approach - Left

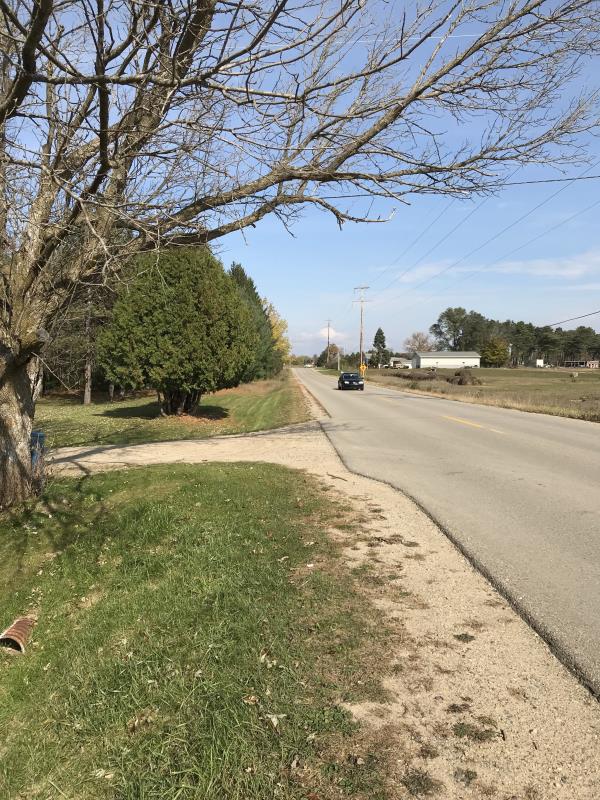

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 50 ft. , Width 4.7 ft. , Height 3.25 ft.
Percentage Plugged: Inlet: 0% Outlet: 0% In Pipe: 0%
Percentage Crushed: Inlet: 0% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.5 ft./sec.
Structure Outlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0.25 ft.
Water Velocity*: 0.6 ft./sec.
*Water Velocities were measured at the Surface (with Meter)
Additional Comments
Lat: 44-00.363'; Long: 84-30.309'
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 6 ft.
Wetted Width: 2 ft.
Water Velocity: 1.2 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 33 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.75 ft.
Slope: 1:2
Downstream
Fill Depth: 3.8 ft.
Slope: 1:2
Approaches
Left Approach
Length: 500 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0273 tons/year
Right Approach
Length: 500 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0273 tons/year
Erosion Information
Total Erosion at Crossing: 0.0545 tons/year
Extent of Erosion: Minor
Notes: No erosion noted
Summary Information
Fish Passability 1
