Road Stream Crossing Site CHAR_EV20

Lake Charlevoix Watershed, Unknown
Phelps Rd
Eveline Twp, Charlevoix County
Information collected by:
Site Location
GPS Coordinates: 45.22036 , -85.16912
T33N R07W Sec 28
Owned by Private
Perch Height: 0.6 ft.
Total Erosion: 0.0935 tons/year
Severity: Minor
Year Inventoried: 2011

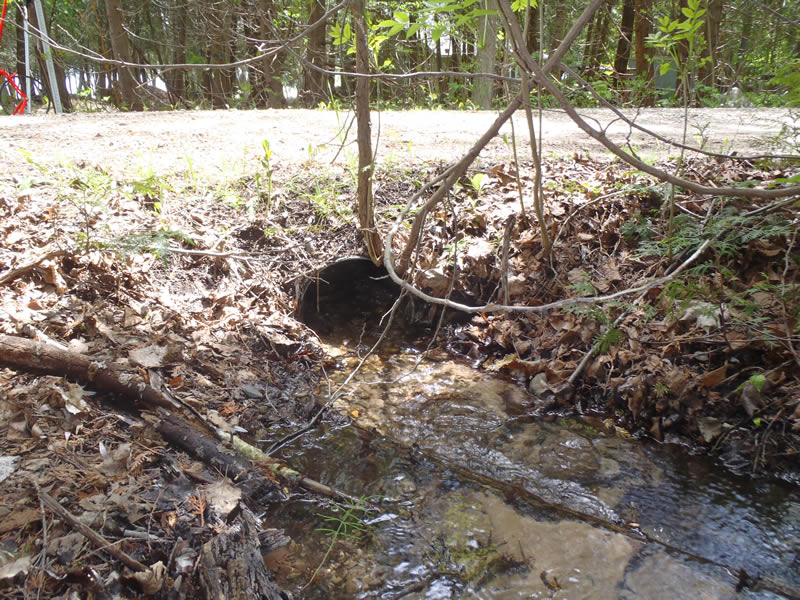

Inlet

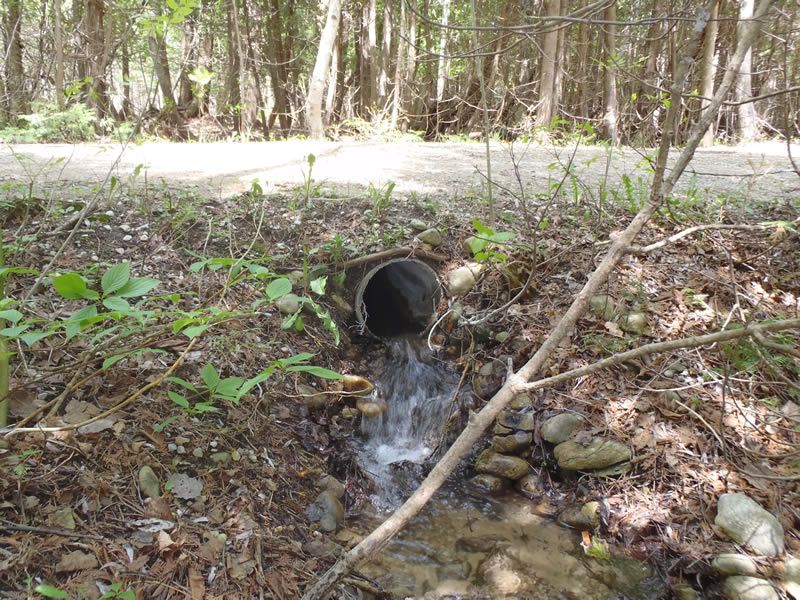

Outlet

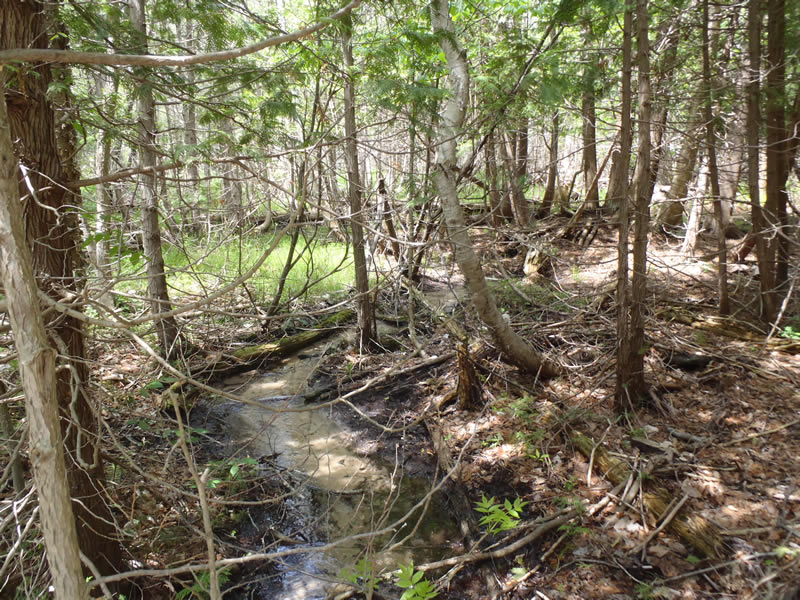

Upstream Conditions

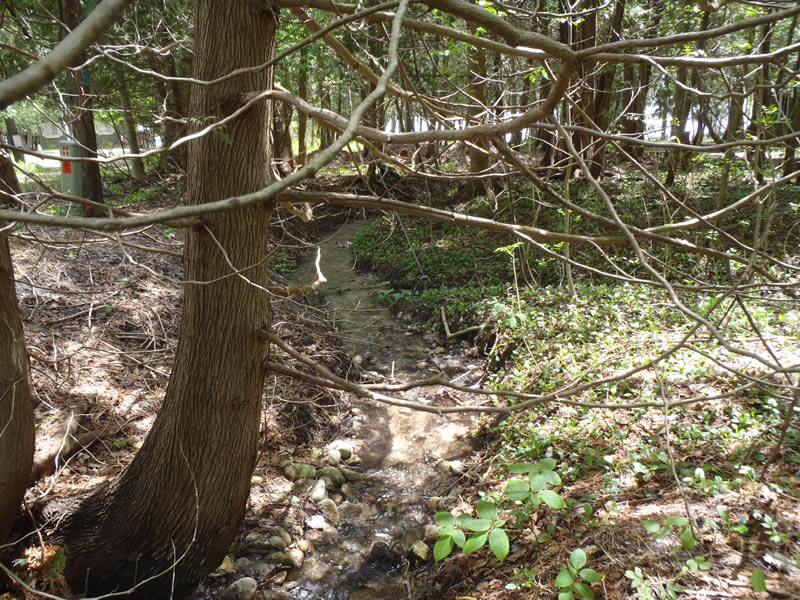

Downstream Conditions

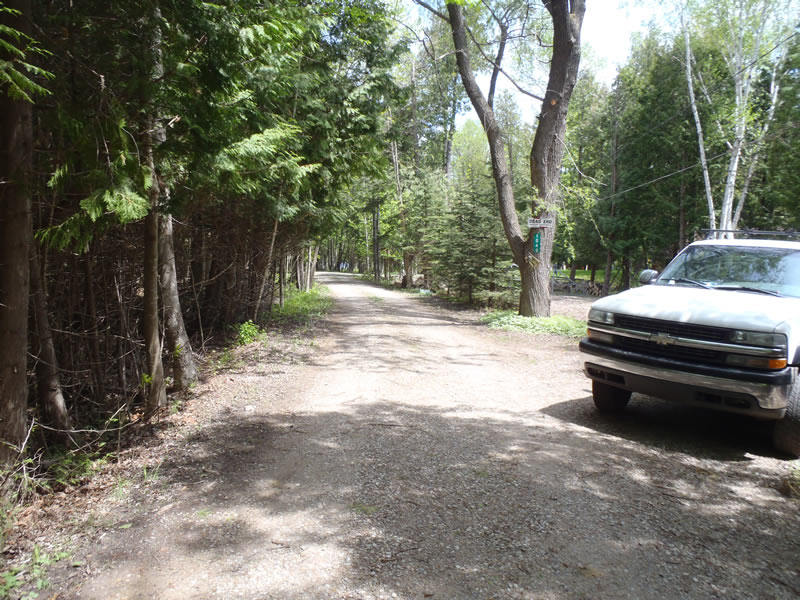

Road Approach - Left

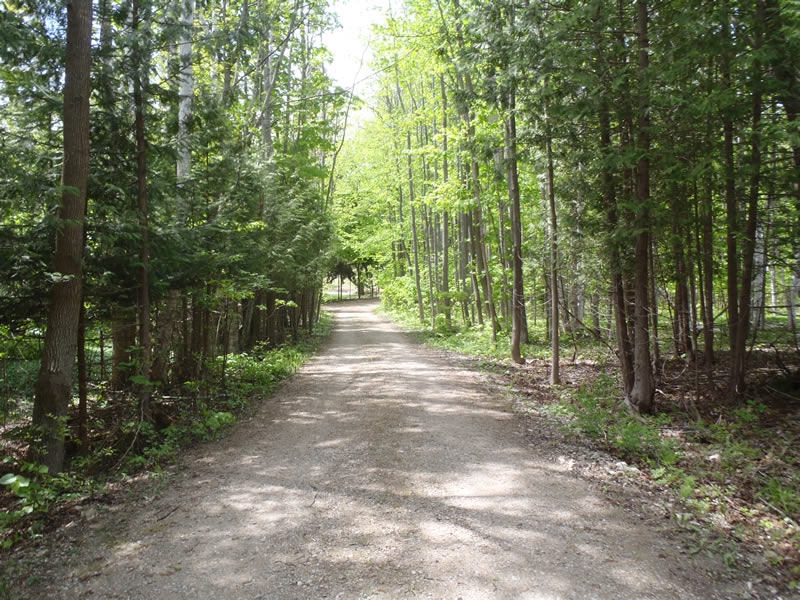

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Cascade over Riprap
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 15 ft. , Width 1 ft. , Height 1 ft.
Perch Height: 0.6 ft.
Structure Inlet
Water Depth: 0.11 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 1.2 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.5 ft./sec.
*Water Velocities were measured at the Surface (with Meter)
Additional Comments

Less than 500 ft to Lake Charlevoix.

Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.14 ft.
Bankfull Width: 4 ft.
Wetted Width: 2.5 ft.
Water Velocity: 0.7 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel Other Road (Seasonal)
Road Condition: Good
Road Width at Culvert: 12 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.5 ft.
Slope: Vertical
Downstream
Fill Depth: 1.3 ft.
Slope: Vertical
Approaches
Left Approach
Length: 256.5 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.0424 tons/year
Right Approach
Length: 309 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0511 tons/year
Erosion Information
Total Erosion at Crossing: 0.0935 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
