Road Stream Crossing Site LM038
Manistee River Watershed, Wide Waters Outlet
E 2 Pond Road
Newkirk Twp,
Lake County
Information collected by:
Site Location
GPS Coordinates: 44.036575
, -85.777018
T19N
R12W
Sec 17
Owned by State
Fish Passability 0
Total Erosion: 0.6634 tons/year
Severity: Severe
Year Inventoried: 2019

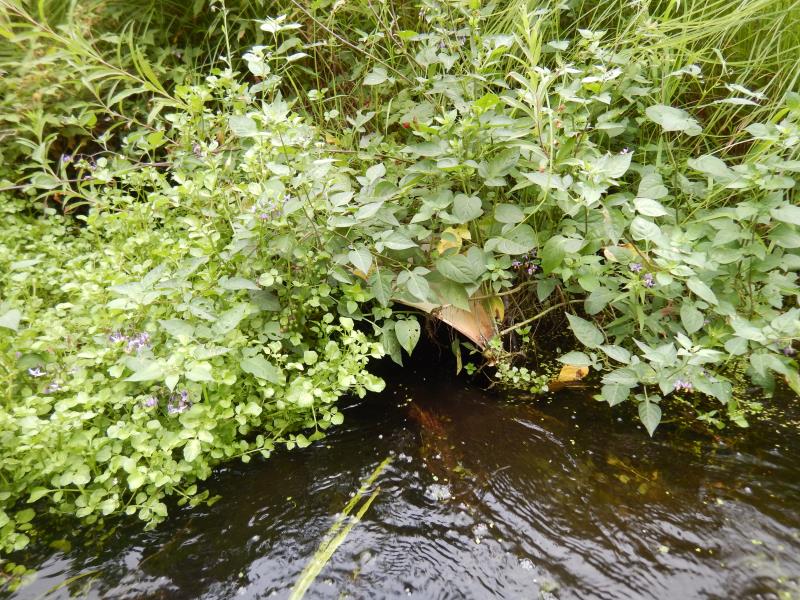

Inlet

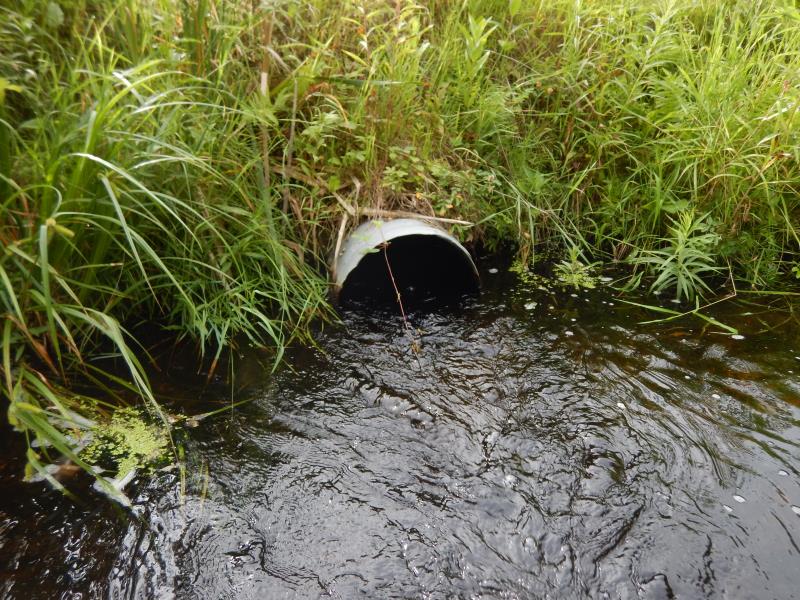

Outlet

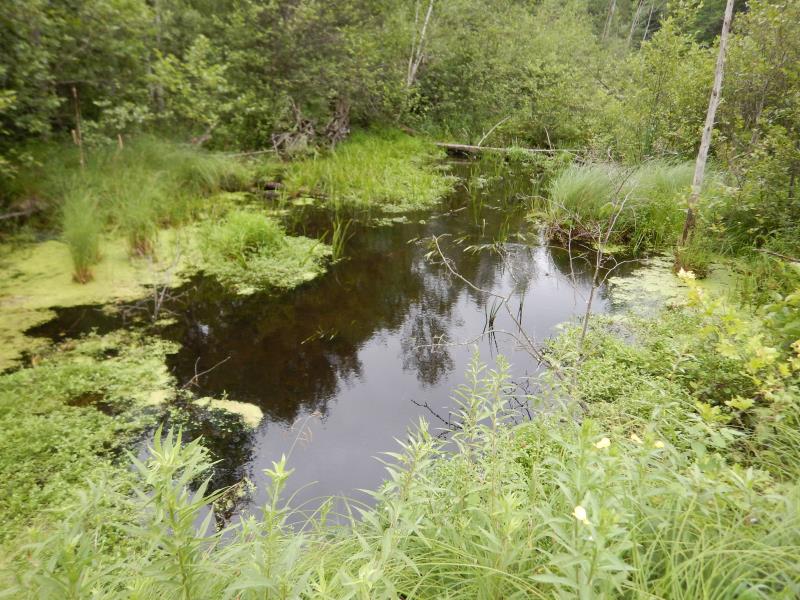

Upstream Conditions

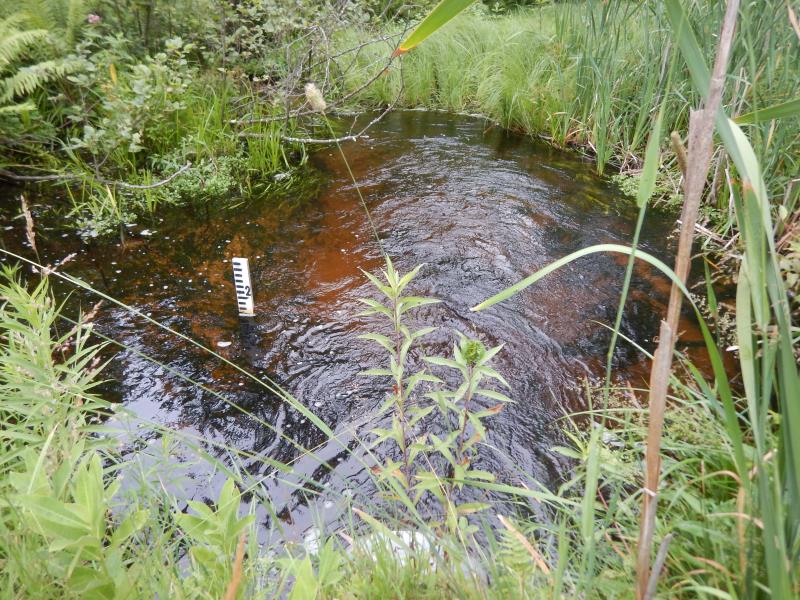

Downstream Conditions

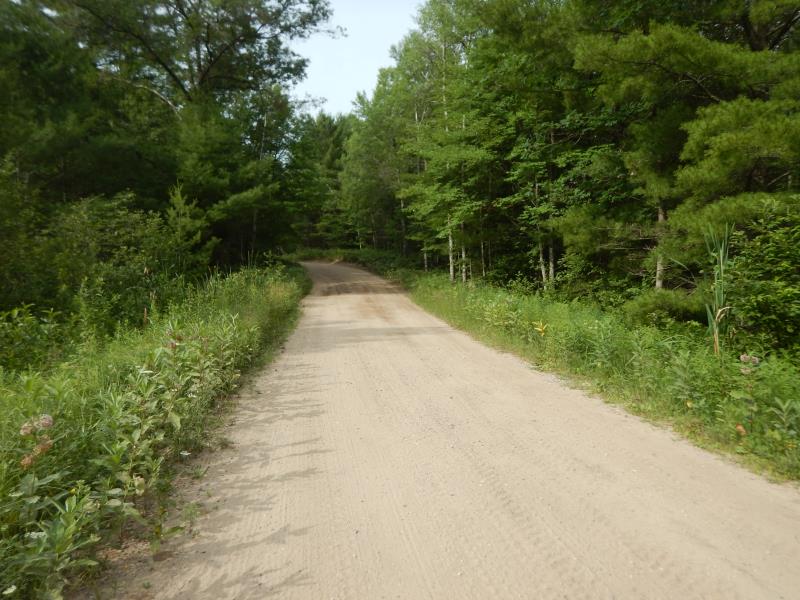

Road Approach - Left

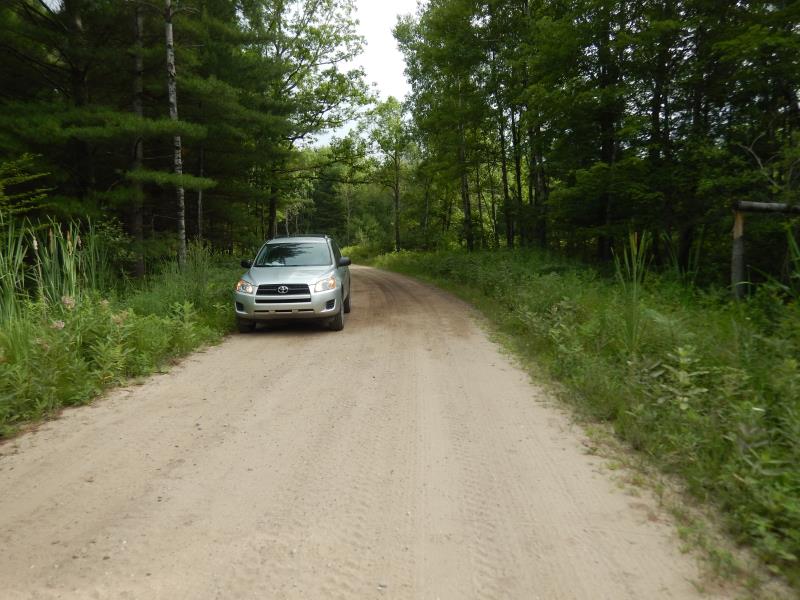

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 30 ft.
, Width 1.5 ft.
, Height 1.5 ft.
Structure Inlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.5 ft./sec.
Structure Outlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.8 ft./sec.
*Water Velocities were measured 1 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 21 ft.
, Width 21 ft.
, Depth 2.4 ft.
Upstream Pond: Length 30 ft.
, Width 35 ft.
, Depth 2.5 ft.
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 22 ft.
Wetted Width: 20 ft.
Water Velocity: 0.7 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Sand
County Road
Road Condition: Fair
Road Width at Culvert: 14 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.7 ft.
Slope: 1:1.5
Downstream
Fill Depth: 3 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.3317 tons/year
Right Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.3317 tons/year
Erosion Information
Total Erosion at Crossing: 0.6634 tons/year
Summary Information
Fish Passability 0
