Road Stream Crossing Site LM062

Manistee River Watershed, Stronach Creek
11 1/2 Mile Rd
Elk Twp, Lake County
Information collected by:
Site Location
GPS Coordinates: 44.155167 , -85.972049
T20N R14W Sec 3
Owned by Private
Fish Passability 0
Structure is NOT Perched
Total Erosion: 0.9846 tons/year
Severity: Severe
Year Inventoried: 2019

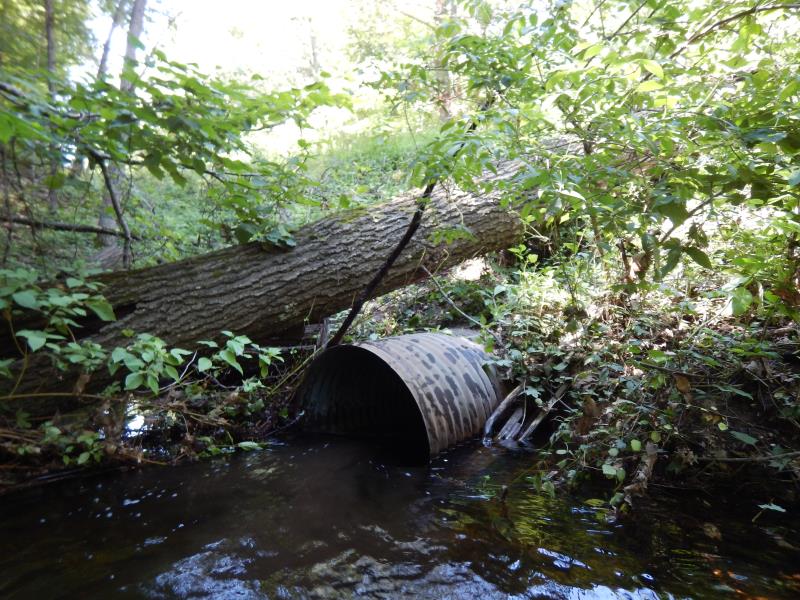

Inlet

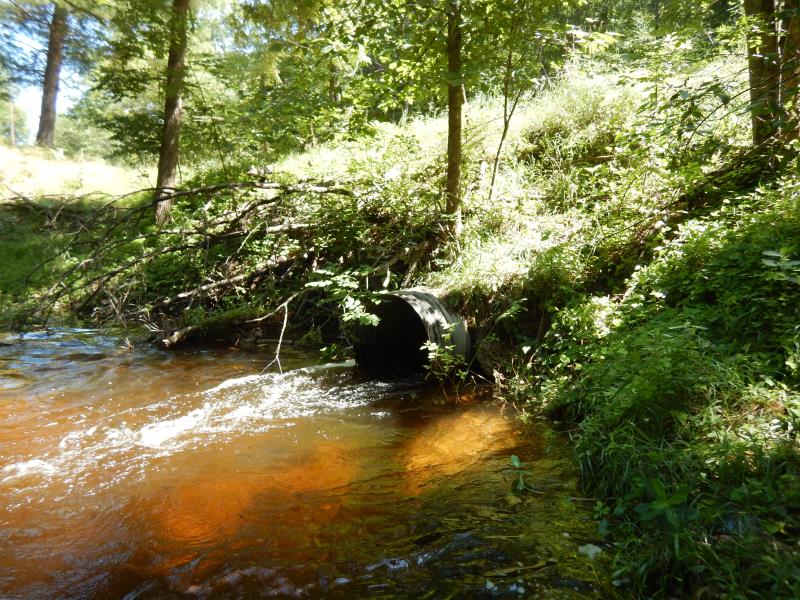

Outlet

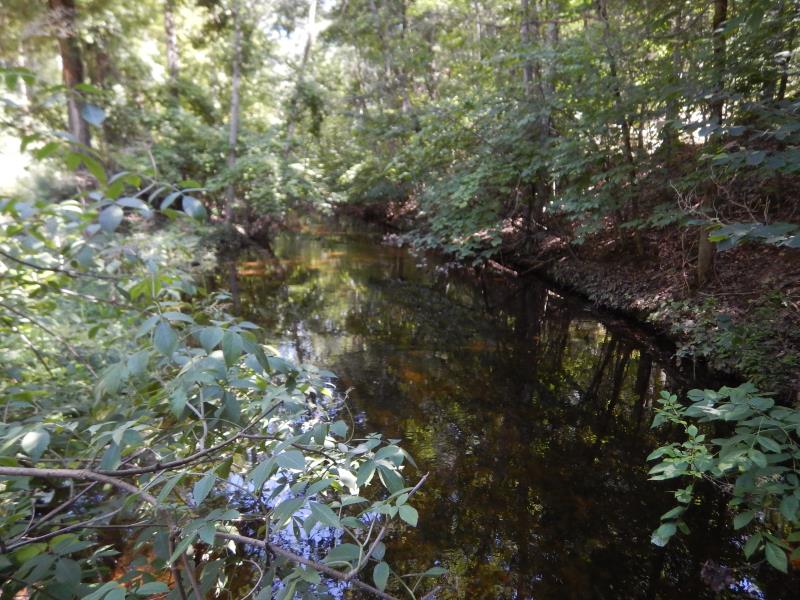

Upstream Conditions

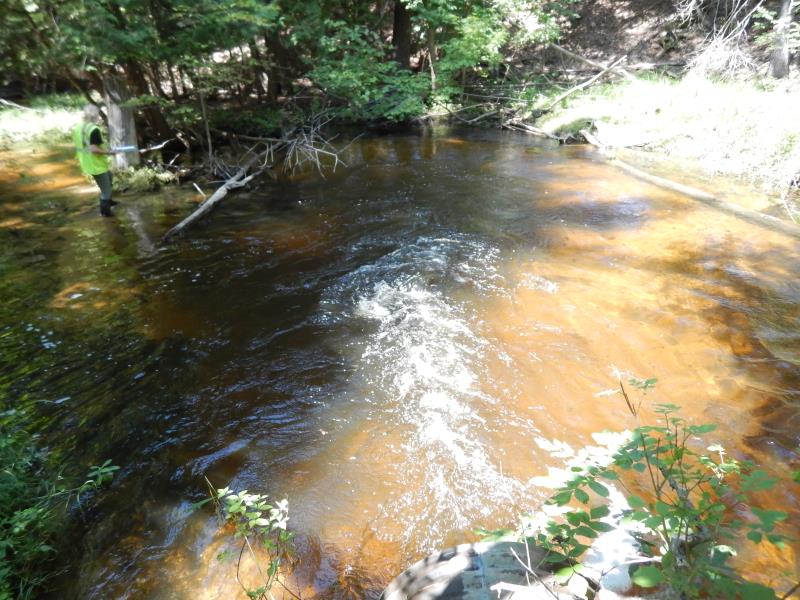

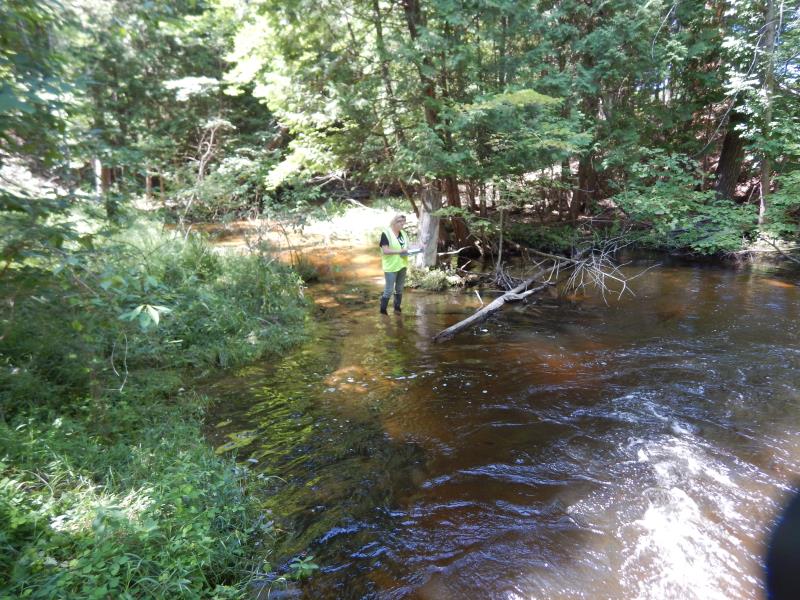

Downstream Conditions
Downstream Conditions

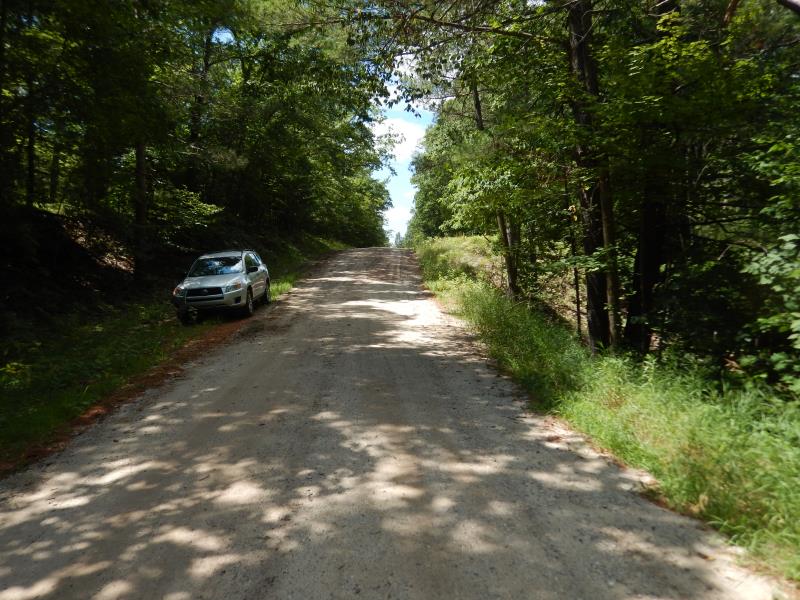

Road Approach - Left

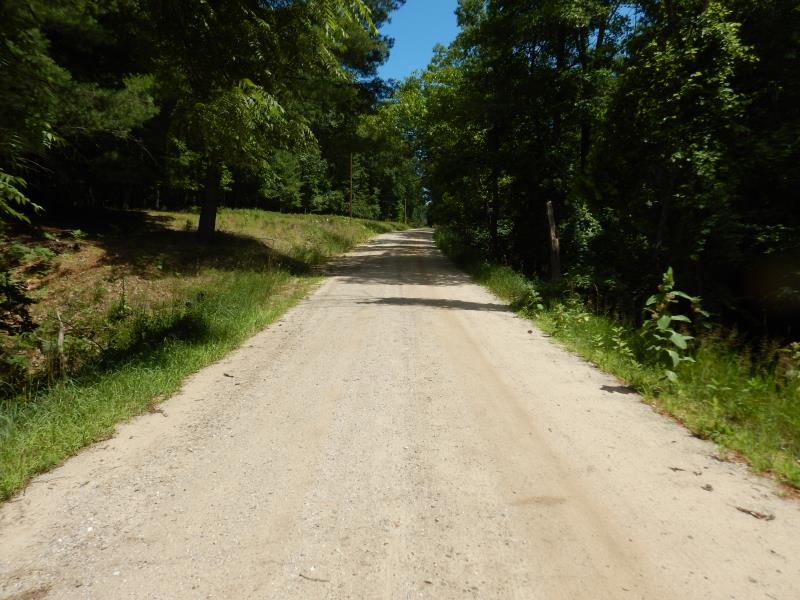

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Other
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 45 ft. , Width 3 ft. , Height 3 ft.
Percentage Plugged: Inlet: 1% to 25%
Structure is NOT Perched
Structure Inlet
Water Depth: 1.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 5.5 ft./sec.
Structure Outlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 8.7 ft./sec.
*Water Velocities were measured 1 ft. below Surface (with Meter)
Additional Comments
Additional notes due to extreme flooding; woody debries blocking inlet; outlet tilted up-cascade?
Stream Information
Stream Flow: Bankfull
Scour Pool: Length 40 ft. , Width 40 ft. , Depth 5 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 11.7 ft.
Wetted Width: 11.7 ft.
Water Velocity: 1.5 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Sand County Road
Road Condition: Good
Road Width at Culvert: 15 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 6.5 ft.
Slope: 1:1.5
Downstream
Fill Depth: 7 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 230 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.436
Erosion: 0.4144 tons/year
Right Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.5702 tons/year
Erosion Information
Total Erosion at Crossing: 0.9846 tons/year
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site. extremely high velocity
These non-native species were observerd at this site: Bull Thistle, Black Locust, Autumn Olive
