Road Stream Crossing Site LM083
Manistee River Watershed, Little Manistee River Tributary
N Queen's Highway
Newkirk Twp,
Lake County
Information collected by:
Site Location
GPS Coordinates: 44.062156
, -85.702616
T19N
R12W
Sec 1
Owned by Private
Fish Passability 0.9
Total Erosion: 0.0024 tons/year
Severity: Minor
Year Inventoried: 2019

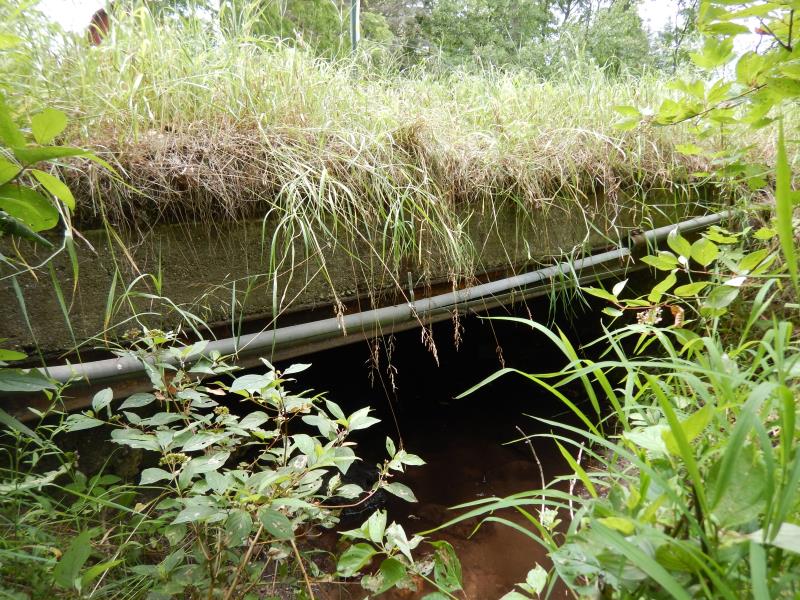

Inlet

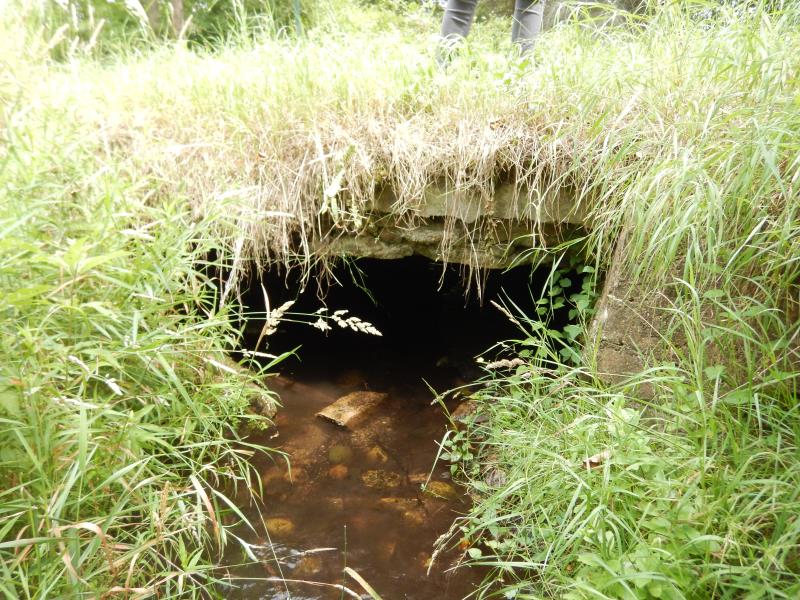

Outlet

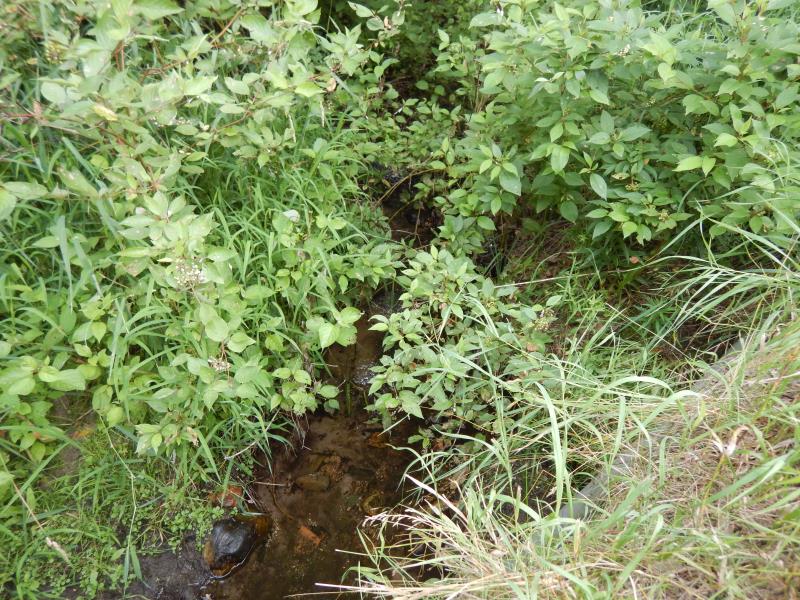

Upstream Conditions

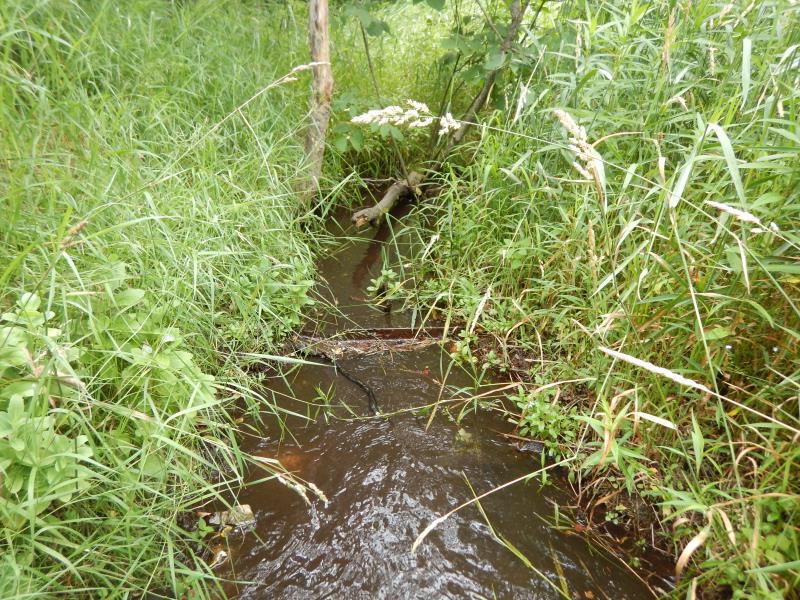

Downstream Conditions

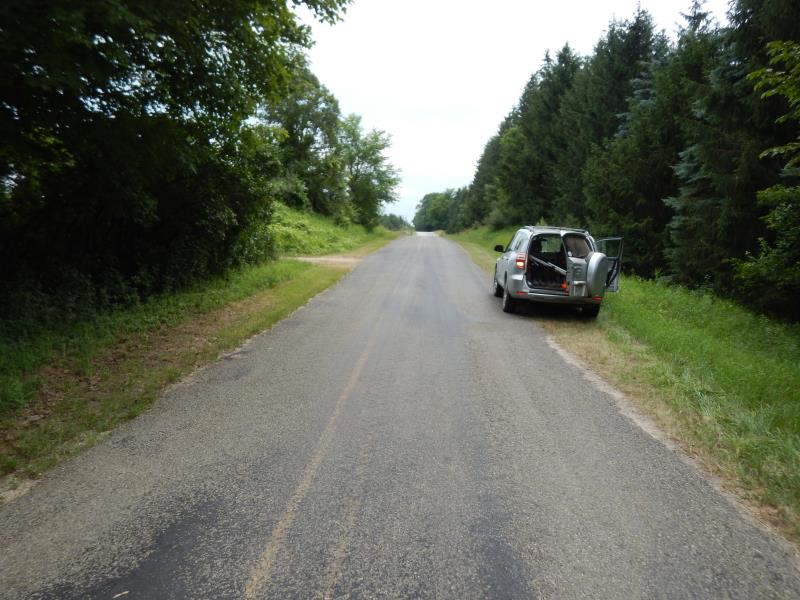

Road Approach - Left

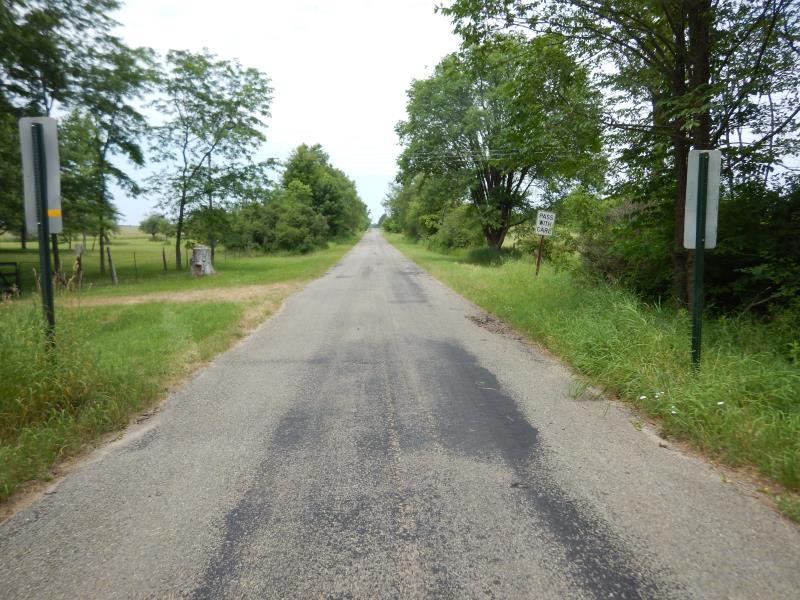

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 10-30 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Mixture
General Conditions: Poor
Structure Interior: smooth
Dimensions of Structure: Length 19.5 ft.
, Width 8 ft.
, Height 2.8 ft.
Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.7 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.3 ft./sec.
*Water Velocities were measured 0.1 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 4.5 ft.
Wetted Width: 2.5 ft.
Water Velocity: 0.3 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Fair
Road Width at Culvert: 14.5 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.8 ft.
Slope: 1:1.5
Downstream
Fill Depth: 0.8 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0012 tons/year
Right Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0012 tons/year
Erosion Information
Total Erosion at Crossing: 0.0024 tons/year
Summary Information
Fish Passability 0.9
Fish Passage is an area of concern for this site.
Upstream impoundment creating fish passage issue.
