Road Stream Crossing Site LIN_CRA003

Lincoln River Watershed, North Branch Lincoln River Tributary
N Custer Rd
Freesoil Twp, Mason County
Information collected by:
Site Location
GPS Coordinates: 44.082898 , -86.220729
T20N R16W Sec 33
Owned by Private
Fish Passability 0.5
Total Erosion: 0.0036 tons/year
Severity: Moderate
Year Inventoried: 2019

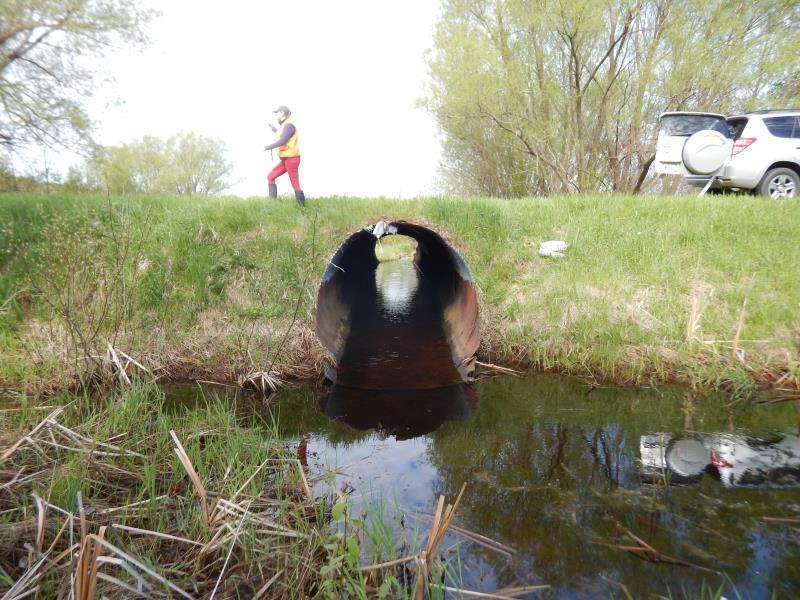

Inlet

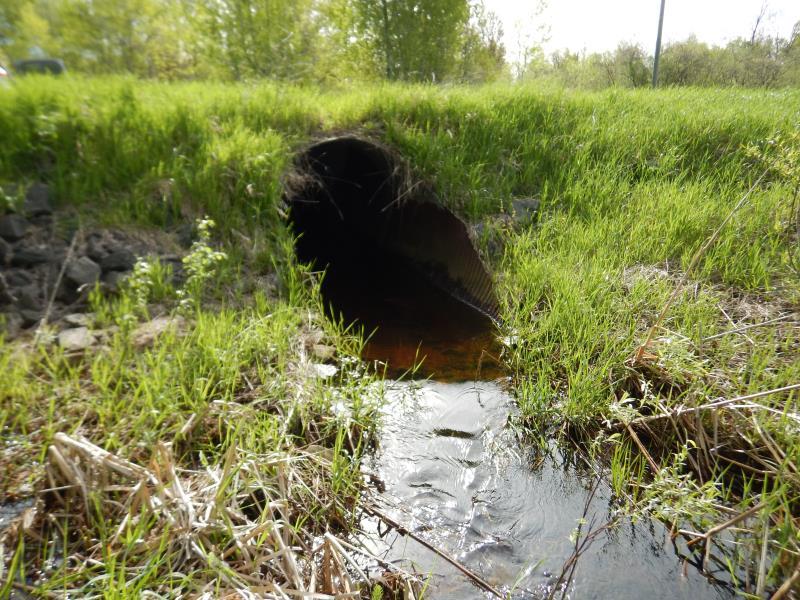

Outlet

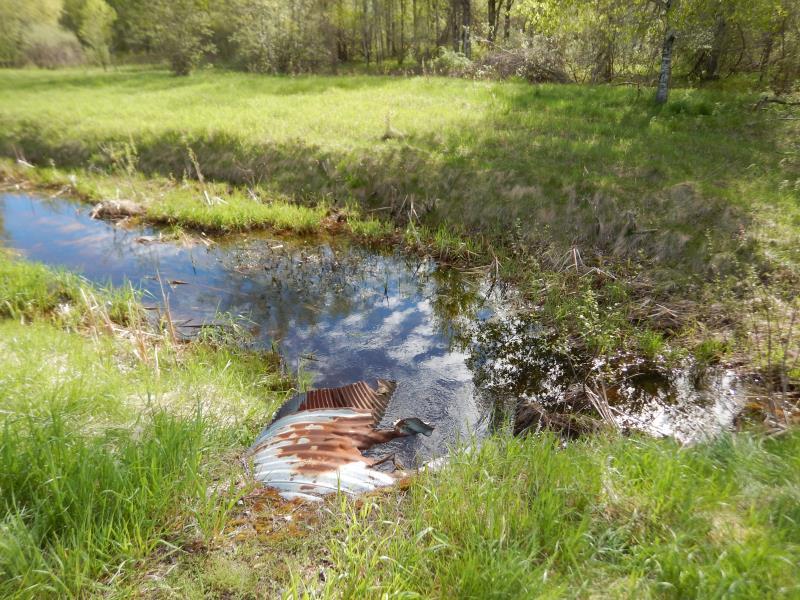

Upstream Conditions

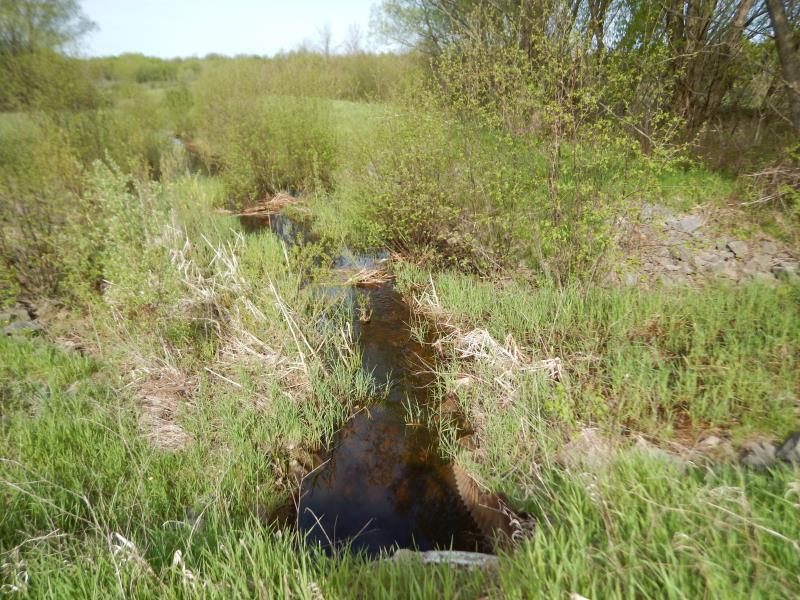

Downstream Conditions

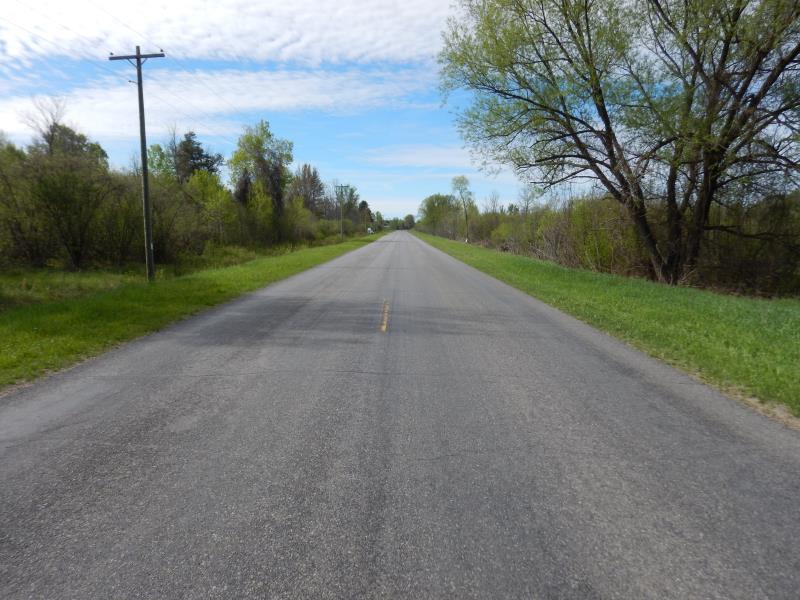

Road Approach - Left

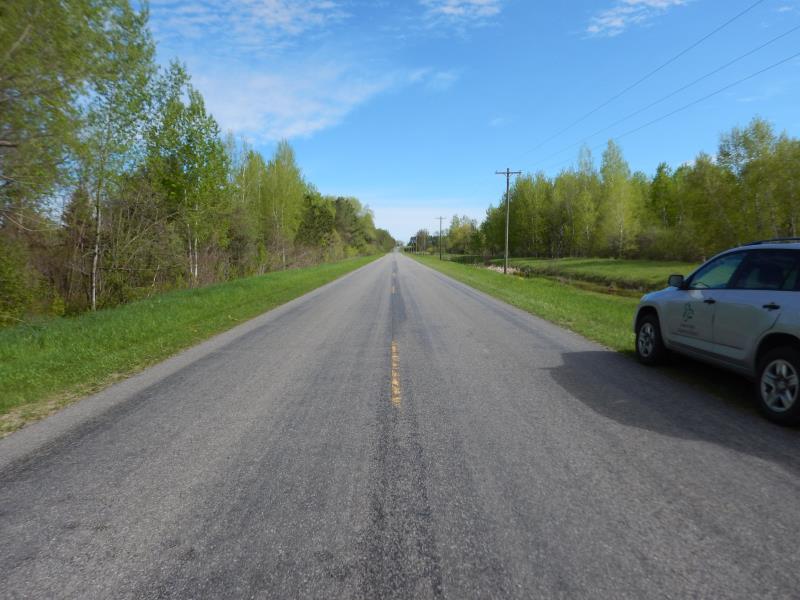

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 55 ft. , Width 5.8 ft. , Height 5.8 ft.
Structure Inlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.4 ft./sec.
Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Additional Comments
Large tear n culvert inlet 1.5x1.5
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.9 ft.
Bankfull Width: 11 ft.
Wetted Width: 5 ft.
Water Velocity: 0.2 ft./sec. (Measured with Meter)
Dominant Substrate: Organics
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1 ft.
Slope: 1:2
Downstream
Fill Depth: 1 ft.
Slope: 1:1
Approaches
Left Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.0018 tons/year
Right Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0018 tons/year
Erosion Information
Total Erosion at Crossing: 0.0036 tons/year
Extent of Erosion: Stabilized
Location of Erosion
Erosion Dimensions
Eroded Material
Material Eroded
Total Erosion
facing downstream
Length
Width
Depth
Reaching Stream?
(tons/year)
Right Upstream Embankment
3 ft.
3 ft.
0.5 ft.
no
Gravel
0
Summary Information
Fish Passability 0.5
Fish Passage is an area of concern for this site. Obstructon from reeds and debries creating a filter effect, possibly preventing larger fish to pass
