Road Stream Crossing Site LIN_CRA018

Lincoln River Watershed, North Branch Lincoln River Tributary
N Schoenherr Rd
Sheridan Twp, Mason County
Information collected by:
Site Location
GPS Coordinates: 44.020892 , -86.160029
T19N R15W Sec 19
Owned by Private
Fish Passability 0.9
Total Erosion: 0.2893 tons/year
Severity: Minor
Year Inventoried: 2019

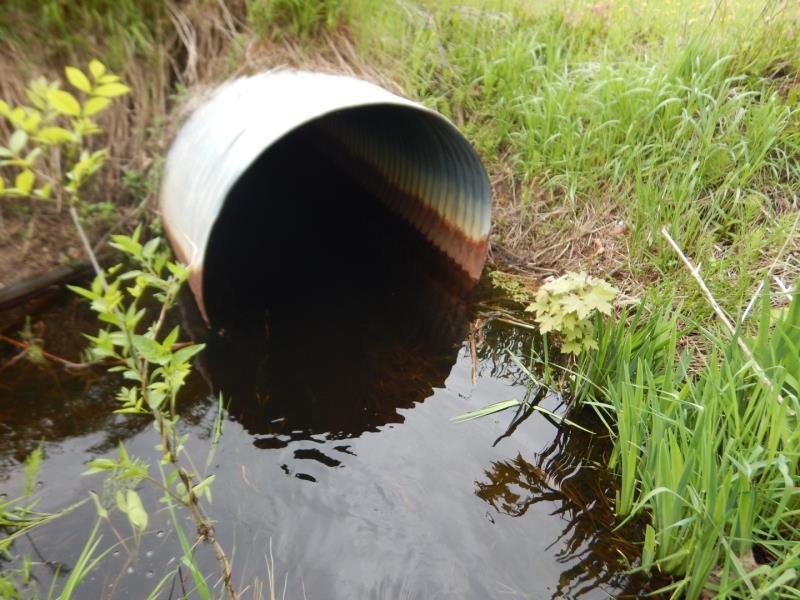

Inlet

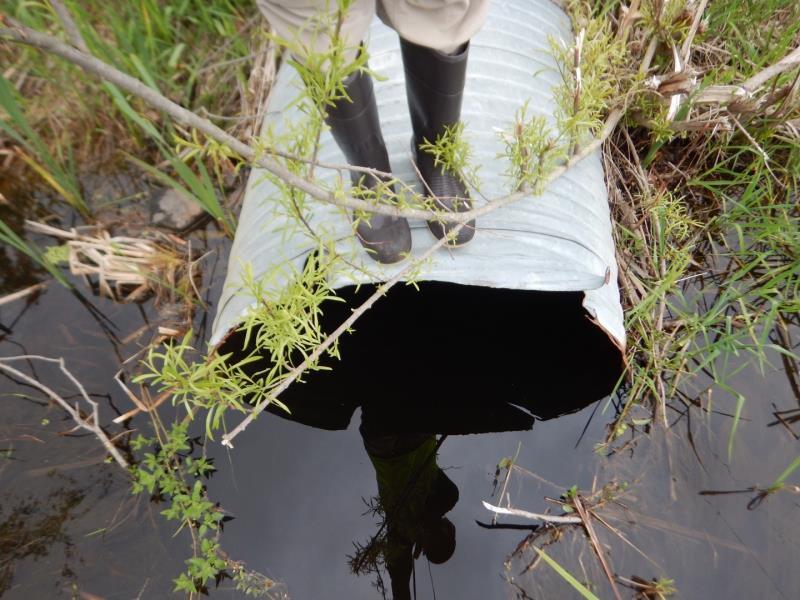

Outlet

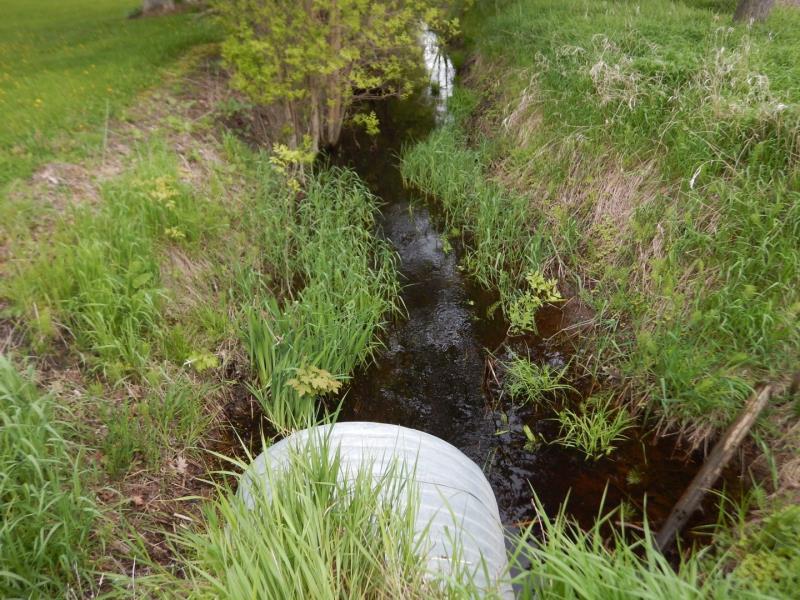

Upstream Conditions

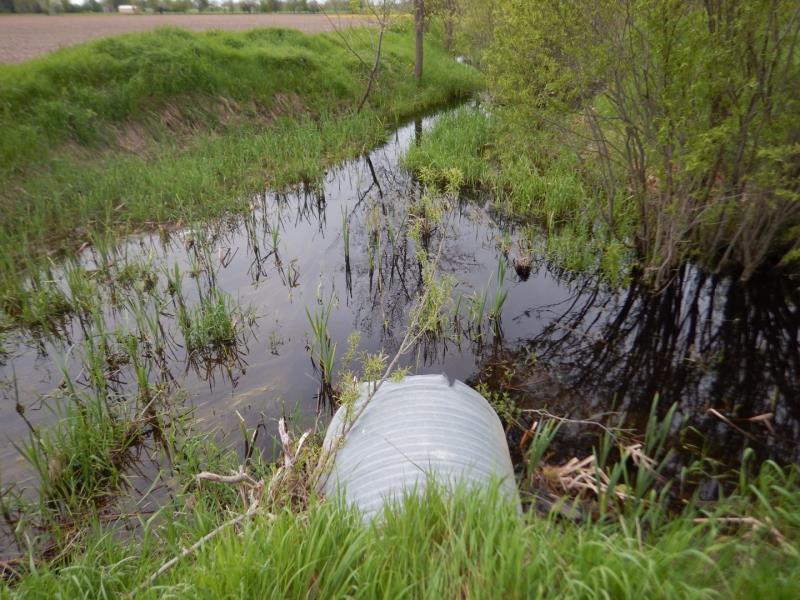

Downstream Conditions

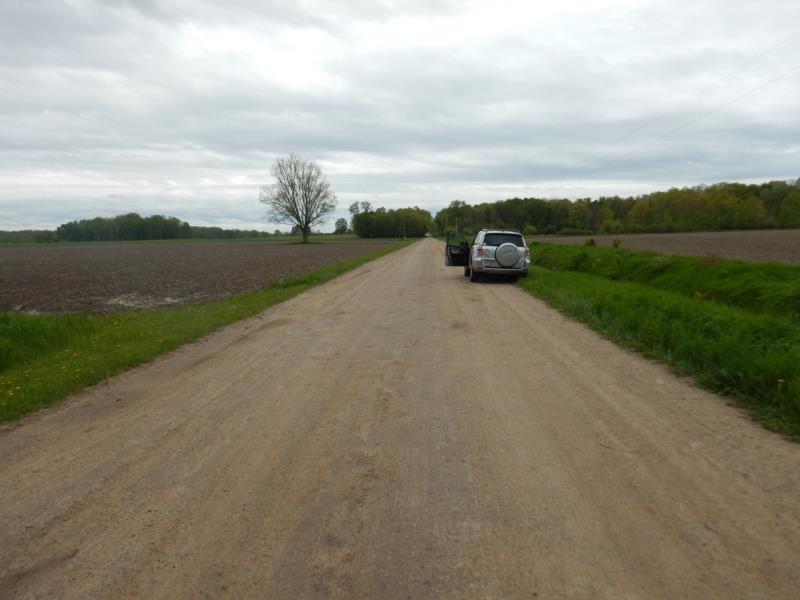

Road Approach - Left

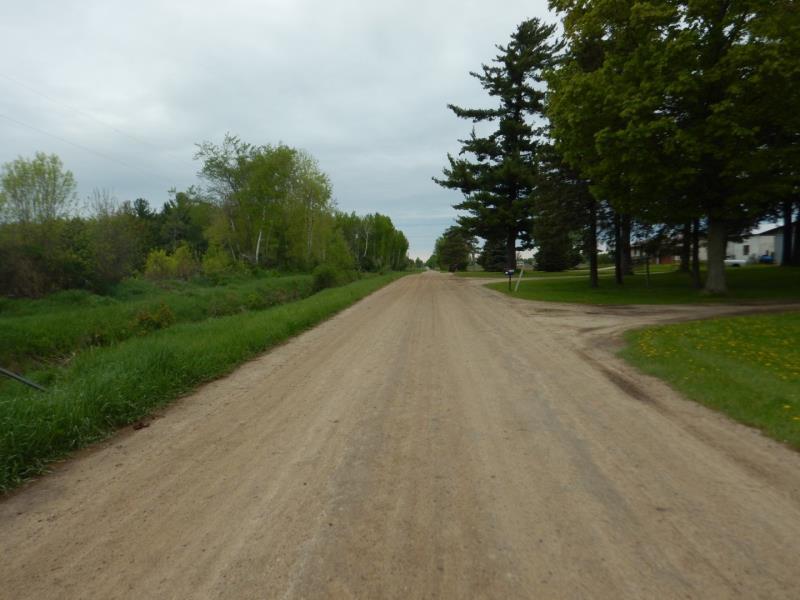

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 50 ft. , Width 4 ft. , Height 4 ft.
Structure Inlet
Water Depth: 1.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.8 ft./sec.
Structure Outlet
Water Depth: 1.8 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 1 ft. below Surface (with Meter)
Stream Information
Stream Flow: Bankfull
Riffle Information
Water Depth: 1.4 ft.
Bankfull Width: 15 ft.
Wetted Width: 15 ft.
Water Velocity: 0.9 ft./sec. (Measured with Meter)
Dominant Substrate: Organics
Road Information
Sand County Road
Road Condition: Good
Road Width at Culvert: 21 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3 ft.
Slope: 1:1
Downstream
Fill Depth: 2 ft.
Slope: 1:1
Approaches
Left Approach
Length: 500 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.1446 tons/year
Right Approach
Length: 500 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.1446 tons/year
Erosion Information
Total Erosion at Crossing: 0.2893 tons/year
Extent of Erosion: Stabilized
Summary Information
Fish Passability 0.9
