Road Stream Crossing Site LIN_CRA038
Lincoln River Watershed, North Branch Lincoln River
N Victory Corners Rd
Victory Twp,
Mason County
Information collected by:
Site Location
GPS Coordinates: 44.020126
, -86.360055
T19N
R17W
Sec 29
Owned by Private
Fish Passability 0.9
Total Erosion: 0.4383 tons/year
Severity: Minor
Year Inventoried: 2019

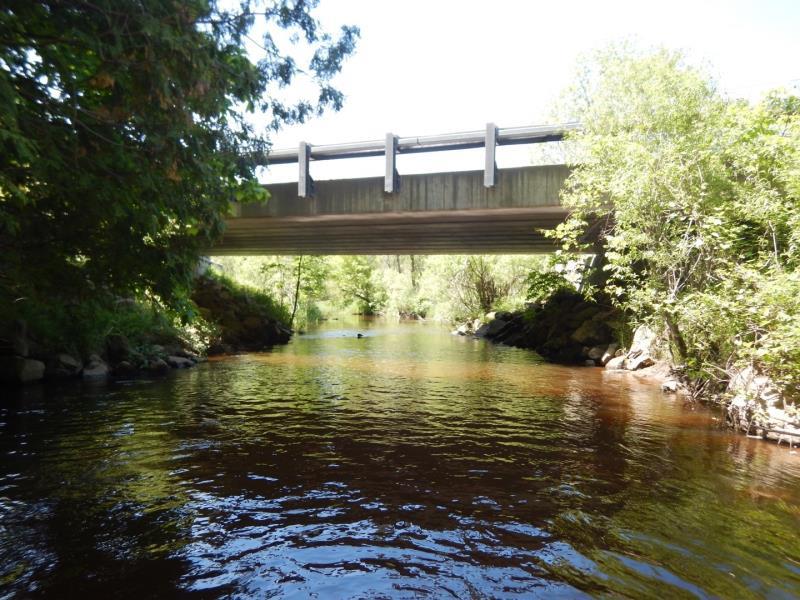

Inlet

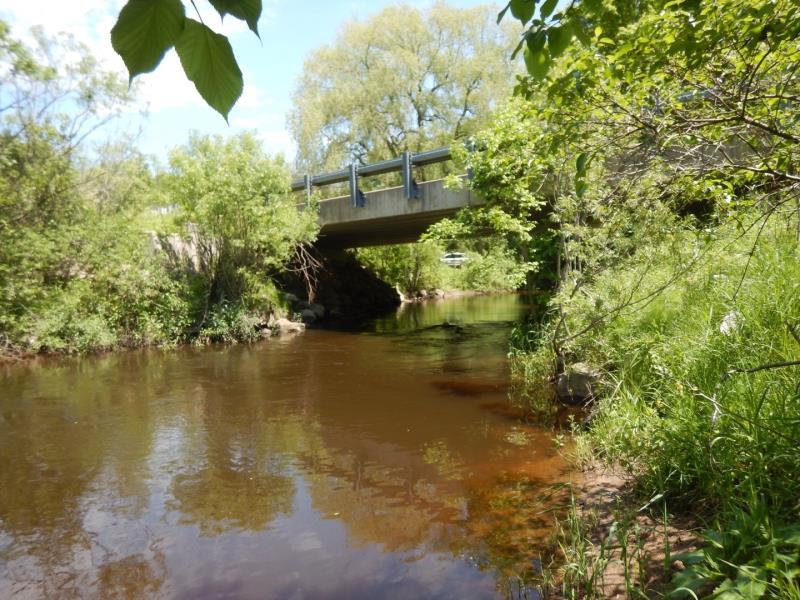

Outlet

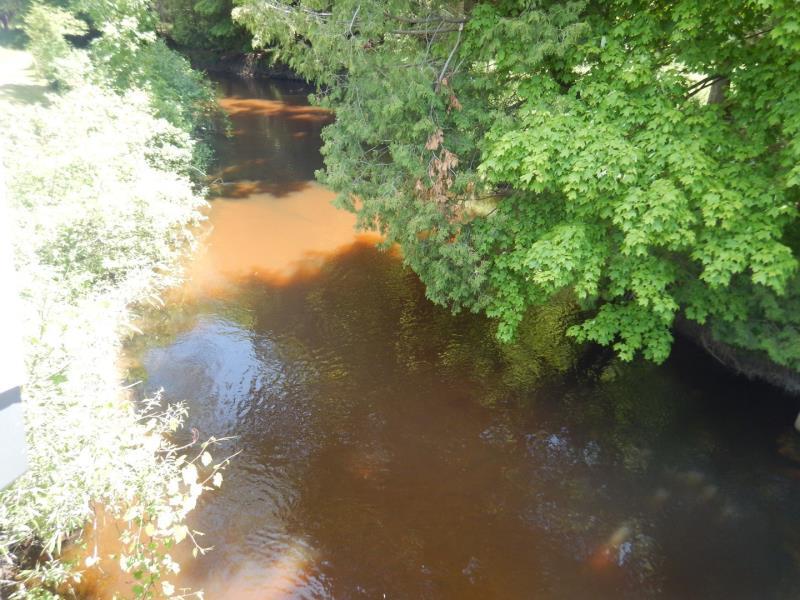

Upstream Conditions

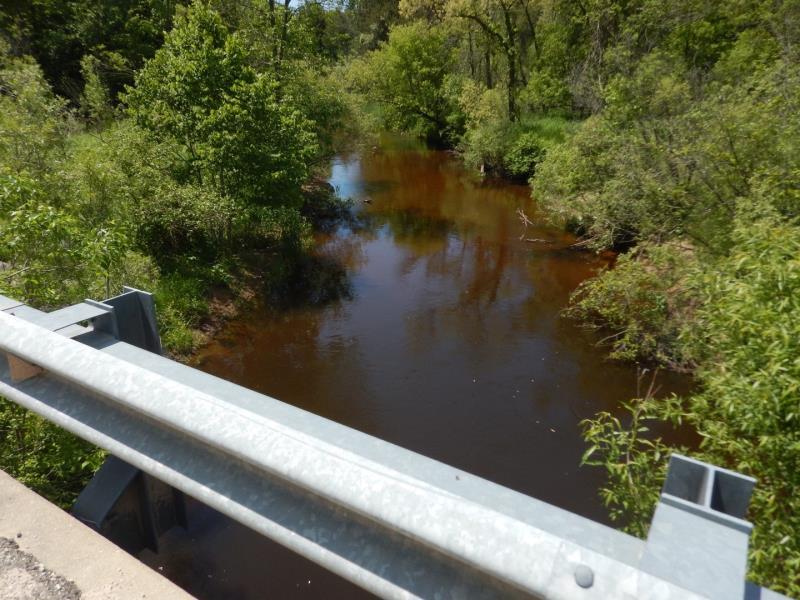

Downstream Conditions

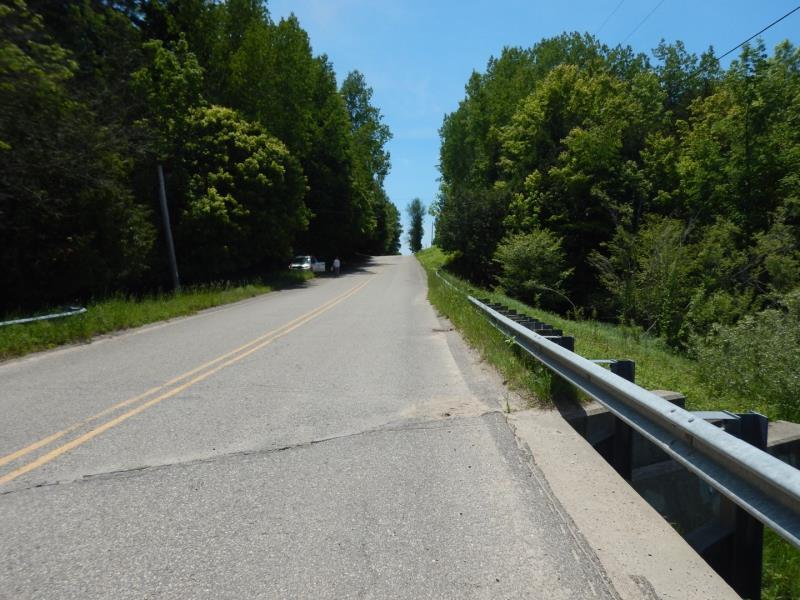

Road Approach - Left

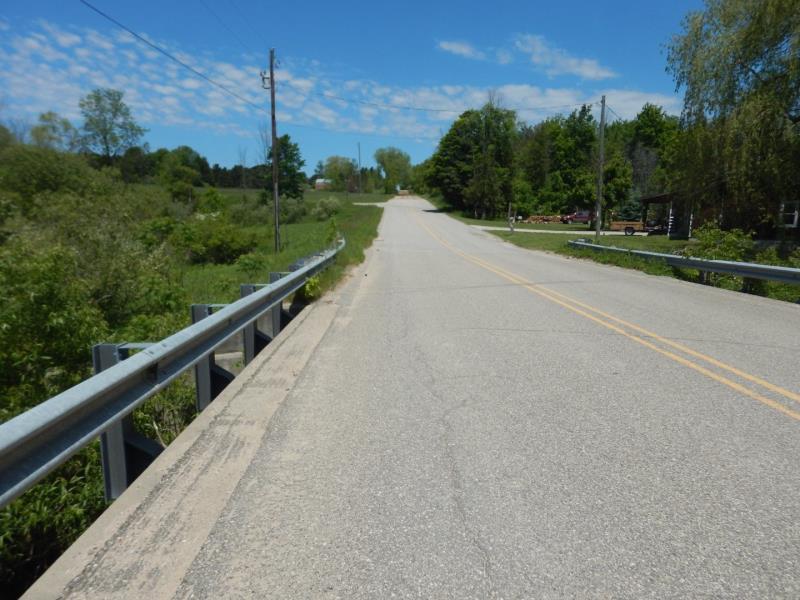

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 30 ft.
, Width 56 ft.
, Height 11.2 ft.
Structure Inlet
Water Depth: 2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1 ft./sec.
Structure Outlet
Water Depth: 3.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.5 ft./sec.
*Water Velocities were measured 1.8 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 2.4 ft.
Bankfull Width: 32 ft.
Wetted Width: 27 ft.
Water Velocity: 1.9 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 30 ft.
Location of Low Point: Other
Runoff Path: Roadway
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 400 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.48
Erosion: 0.1904 tons/year
Right Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.2479 tons/year
Erosion Information
Total Erosion at Crossing: 0.4383 tons/year
Summary Information
Fish Passability 0.9
These non-native species were observerd at this site: Autumn Olive
