Road Stream Crossing Site LIN_CRA045
Lincoln River Watershed, Lincoln River Tributary
N Dennis Rd
Amber Twp,
Mason County
Information collected by:
Site Location
GPS Coordinates: 43.96678
, -86.37038
T18N
R17W
Sec 8
Owned by Private
Fish Passability 0.9
Total Erosion: 0.004 tons/year
Severity: Minor
Year Inventoried: 2019

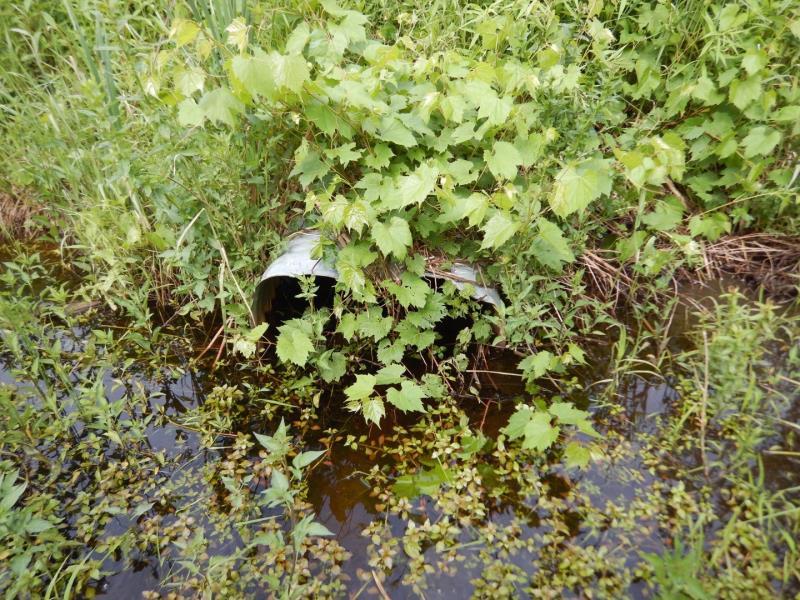

Inlet

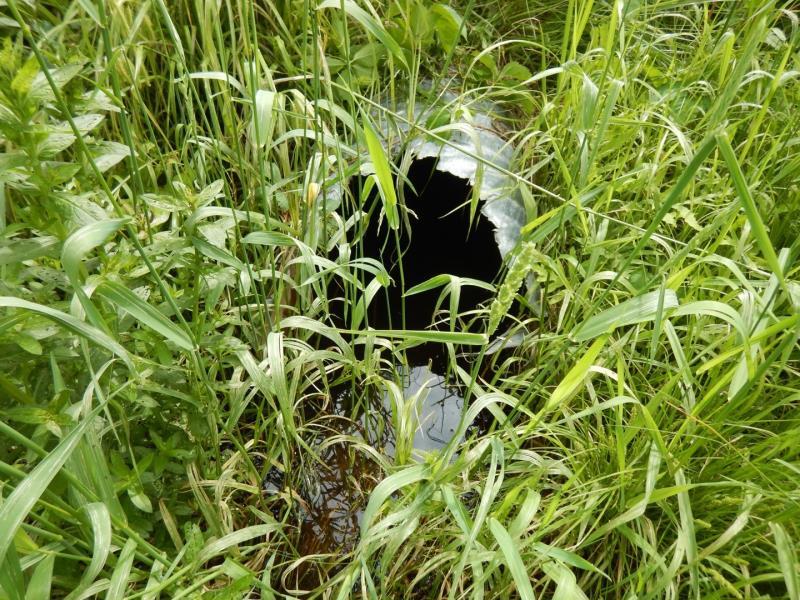

Outlet

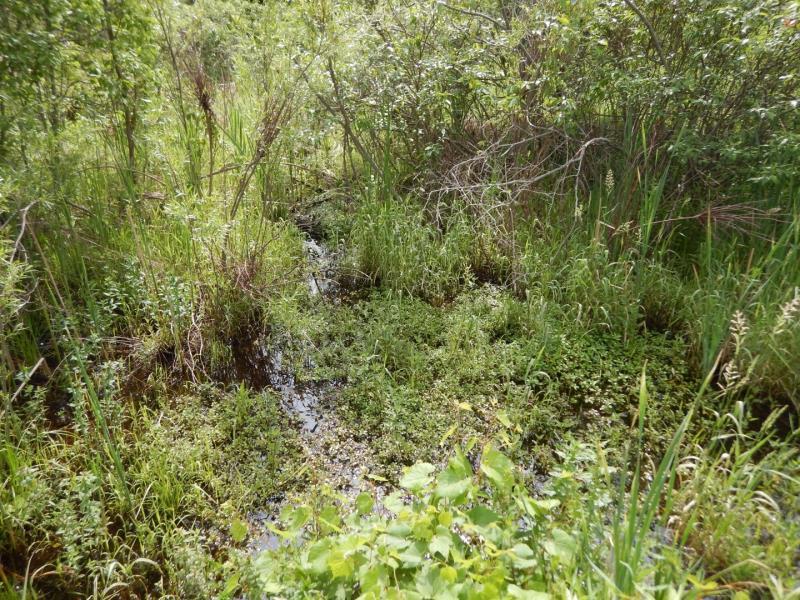

Upstream Conditions

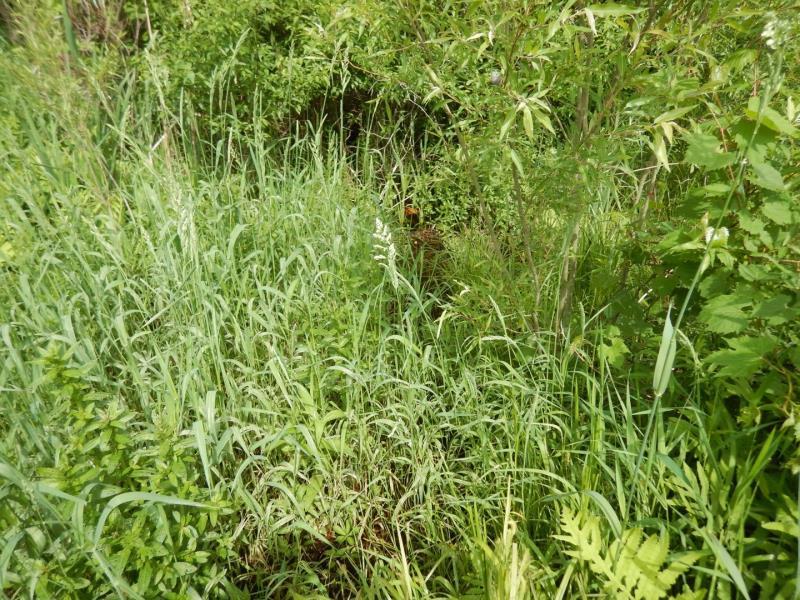

Downstream Conditions

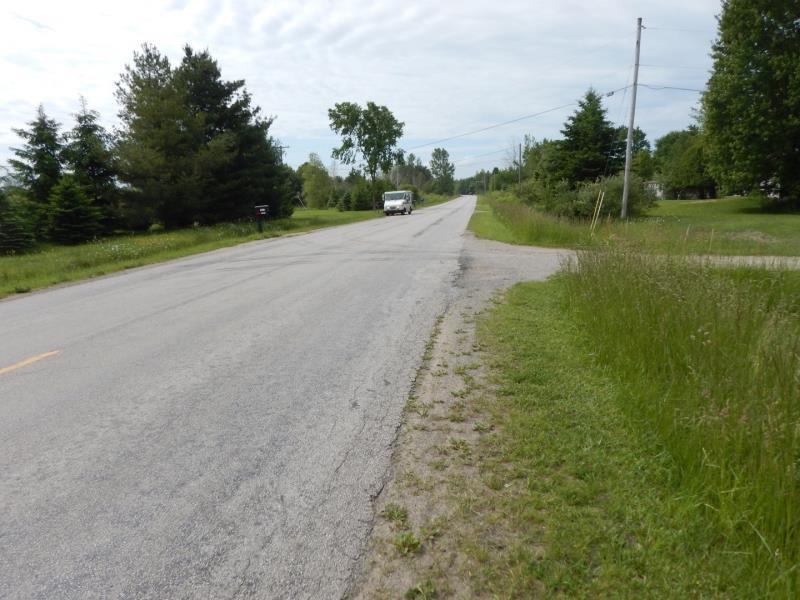

Road Approach - Left

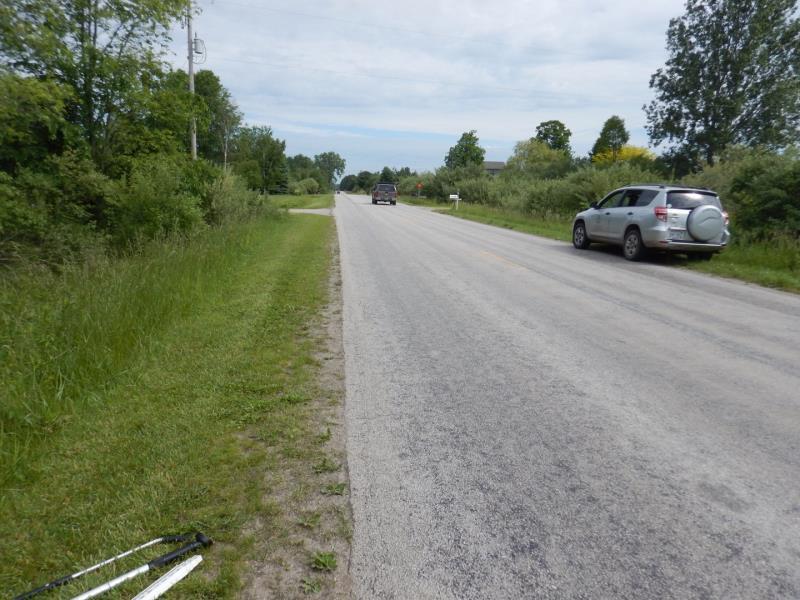

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Poor
Structure Interior: corrugated
Dimensions of Structure: Length 50 ft.
, Width 2 ft.
, Height 2 ft.
Percentage Crushed:
Inlet: 1% to 25%
Structure Inlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Additional Comments
Damaged inlet/outlet crushed and torn
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 12 ft.
Wetted Width: 6 ft.
Water Velocity: 0.3 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3 ft.
Slope: 1:2
Downstream
Fill Depth: 3 ft.
Slope: 1:2
Approaches
Left Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.002 tons/year
Right Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.002 tons/year
Erosion Information
Total Erosion at Crossing: 0.004 tons/year
Extent of Erosion: Stabilized
Summary Information
Fish Passability 0.9
A future visit to this site is recommended. Culvert integrity
These non-native species were observerd at this site: Autumn Olive
