Road Stream Crossing Site LIN_CRA054

Lincoln River Watershed, Lincoln River Tributary
Victory Corner Rd
Amber Twp, Mason County
Information collected by:
Site Location
GPS Coordinates: 43.980917 , -86.360288
T18N R17W Sec 5
Owned by Private
Fish Passability 0.9
Total Erosion: 0.115 tons/year
Severity: Minor
Year Inventoried: 2019

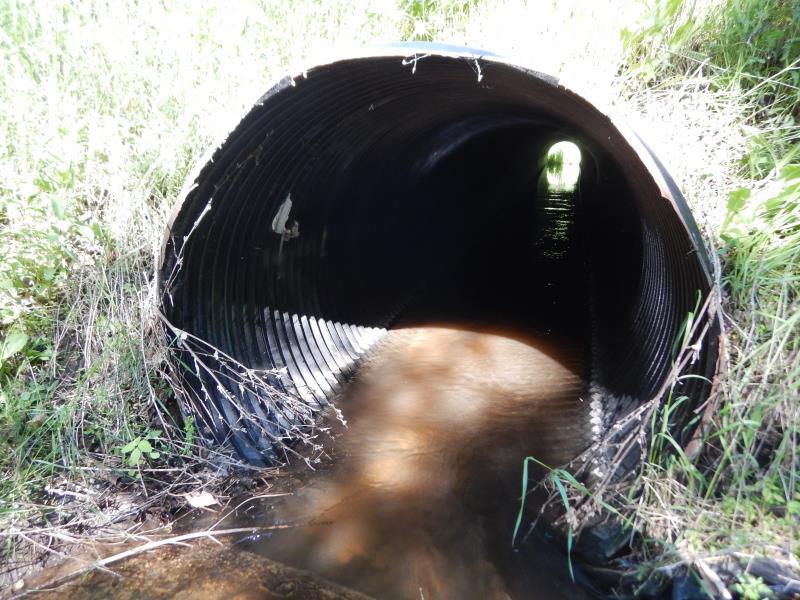

Inlet

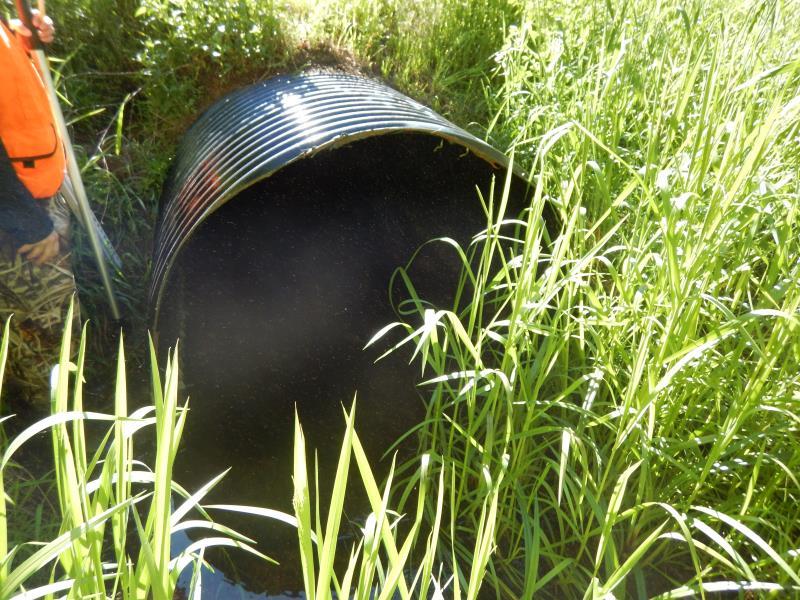

Outlet

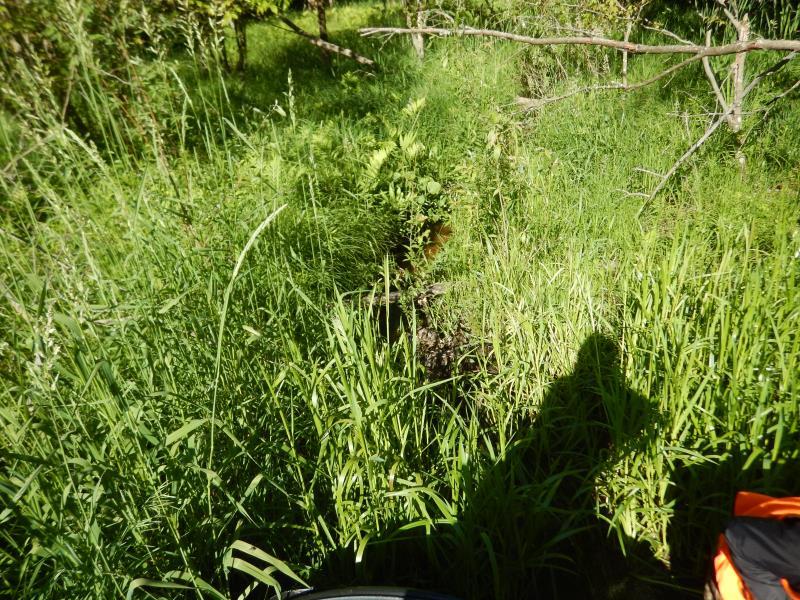

Downstream Conditions

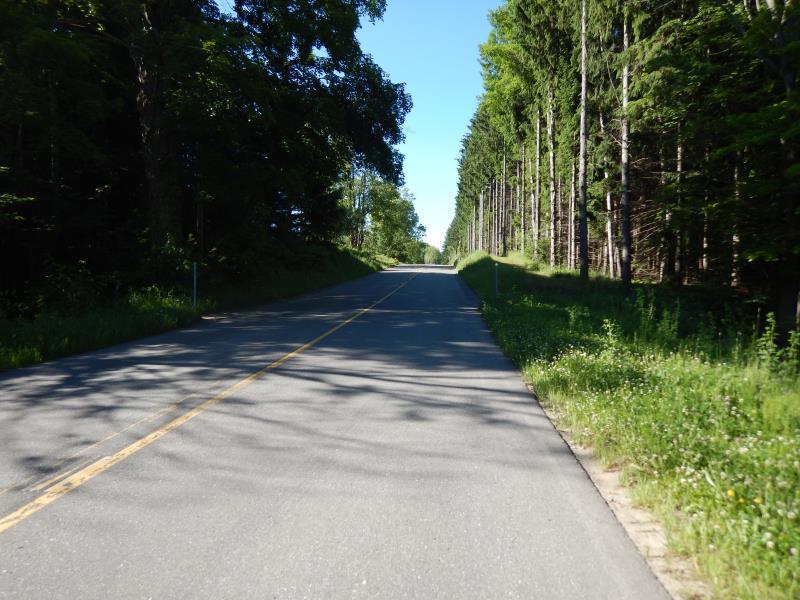

Road Approach - Left

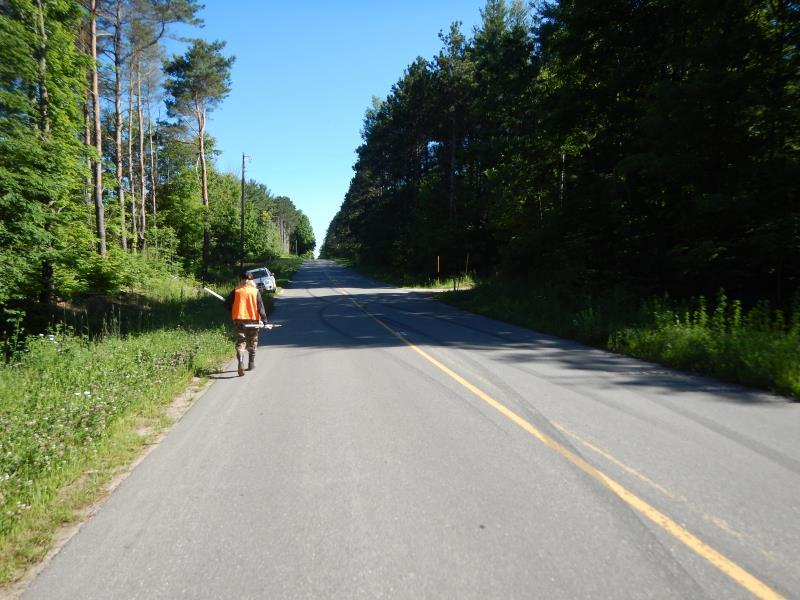

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Plastic
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 91 ft. , Width 5 ft. , Height 5 ft.
Structure Inlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.6 ft./sec.
Structure Outlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0.6 ft.
Water Velocity*: 0.5 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 6.5 ft.
Wetted Width: 3.5 ft.
Water Velocity: 2.5 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 24.5 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 7 ft.
Slope: More than 1:2
Downstream
Fill Depth: 7 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.1118 tons/year
Right Approach
Length: 80 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0032 tons/year
Erosion Information
Total Erosion at Crossing: 0.115 tons/year
Summary Information
Fish Passability 0.9
These non-native species were observerd at this site: Autumn Olive, Japanese Knotweed, Reed Canary Grass
