Road Stream Crossing Site LIN_CRA057

Lincoln River Watershed, North Branch Lincoln River Tributary
US-31
Sherman Twp, Mason County
Information collected by:
Site Location
GPS Coordinates: 44.037334 , -86.280213
T19N R16W Sec 18
Owned by Federal
Fish Passability 0.9
Total Erosion: 0.0491 tons/year
Severity: Moderate
Year Inventoried: 2019

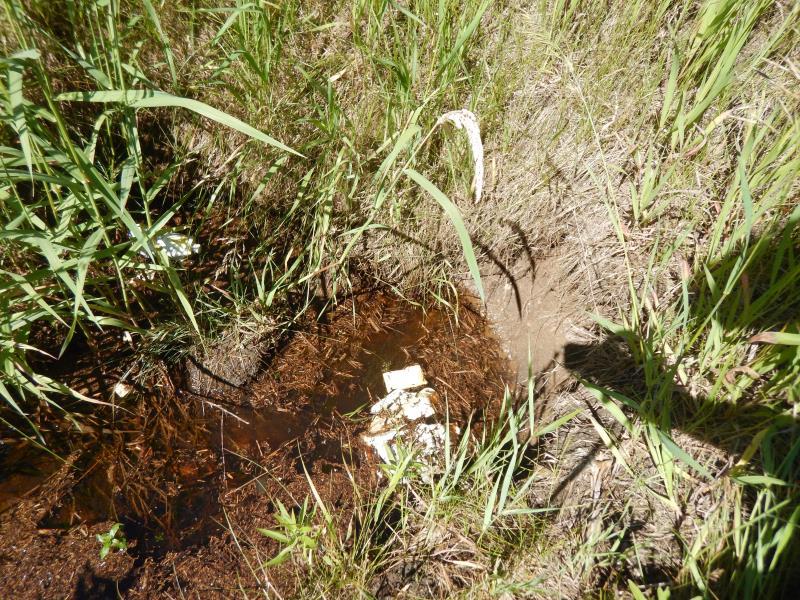

Inlet

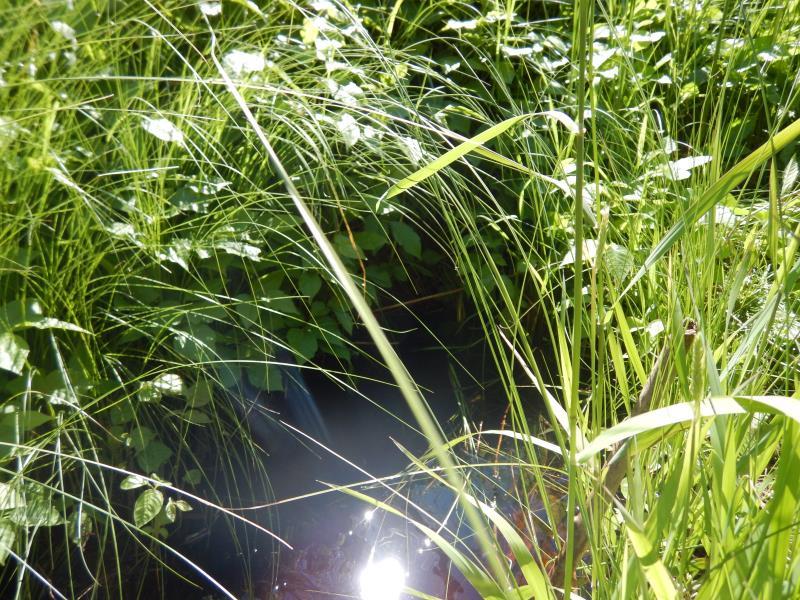

Outlet

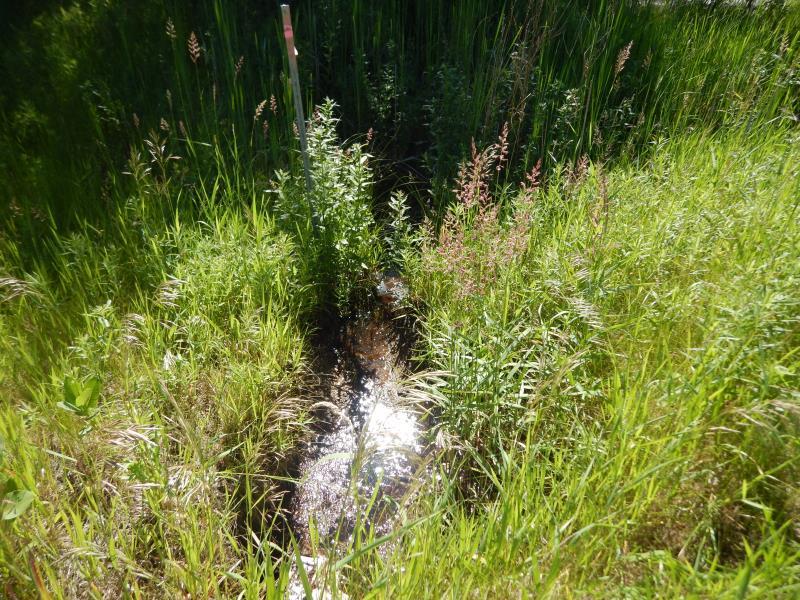

Upstream Conditions

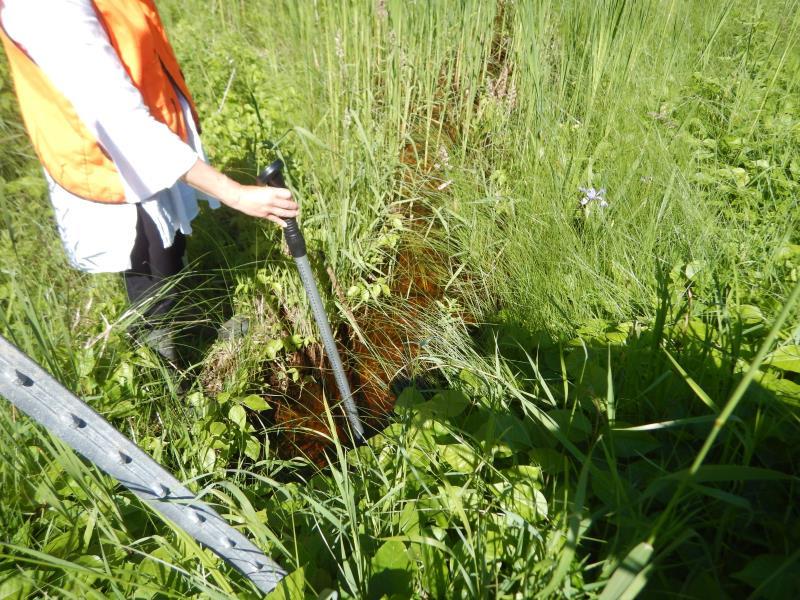

Downstream Conditions

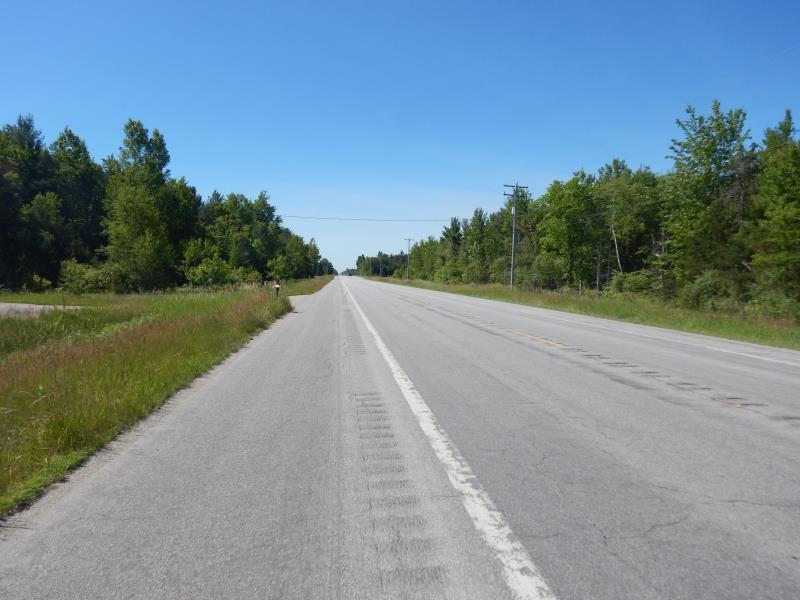

Road Approach - Left

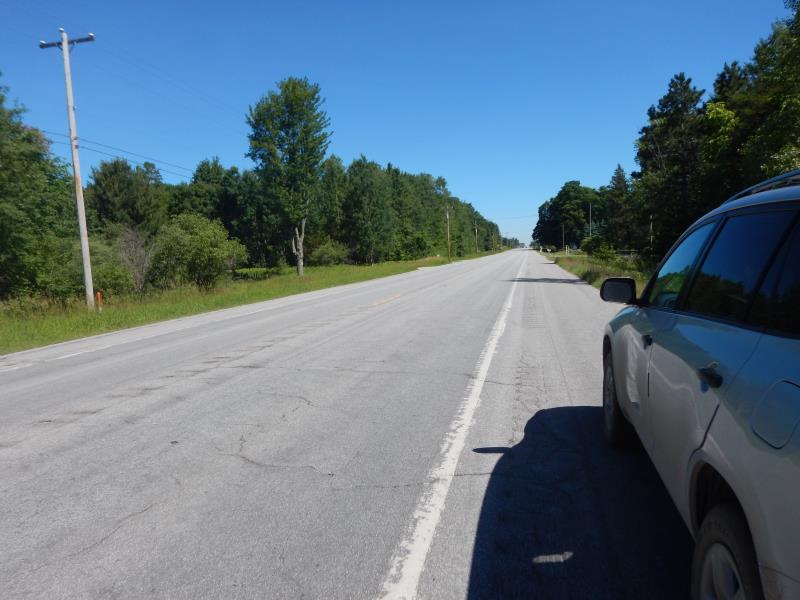

Road Approach - Right

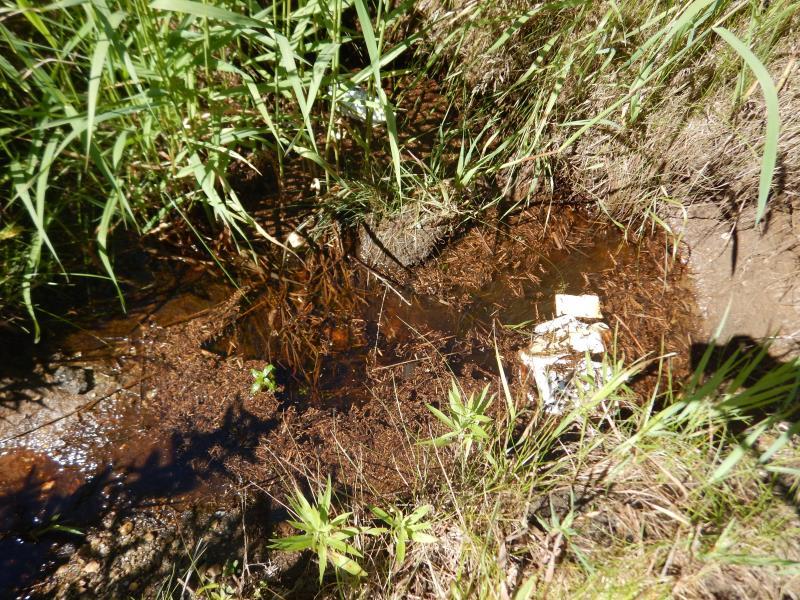

Erosion
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Poor
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 75 ft. , Width 1 ft. , Height 1 ft.
Percentage Plugged: Inlet: 26% to 50%
Percentage Crushed: Inlet: 26% to 50%
Structure Inlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.6 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 4 ft.
Wetted Width: 2 ft.
Water Velocity: 0.9 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved Federal Road
Road Condition: Good
Road Width at Culvert: 43 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0036 tons/year
Right Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0036 tons/year
Erosion Information
Total Erosion at Crossing: 0.0491 tons/year
Extent of Erosion: Moderate
Notes: Erosion and state of inlet causing flow constraints.
Location of Erosion
Erosion Dimensions
Eroded Material
Material Eroded
Total Erosion
facing downstream
Length
Width
Depth
Reaching Stream?
(tons/year)
Right Upstream Embankment
3 ft.
4 ft.
2 ft.
yes
Gravelly Loam
0.042
Summary Information
Fish Passability 0.9
Erosion is an area of concern for this site. Erosion and state of inlet causing flow constraints.
A future visit to this site is recommended. Culvert Condition
These non-native species were observerd at this site: Autumn Olive, Reed Canary Grass
