Road Stream Crossing Site LIN_CRA061
Lincoln River Watershed, North Branch Lincoln River Tributary
Budzynski Rd
Sheridan Twp,
Mason County
Information collected by:
Site Location
GPS Coordinates: 44.061925
, -86.1503
T19N
R15W
Sec 7
Owned by Private
Fish Passability 0.9
Total Erosion: 1.4876 tons/year
Severity: Moderate
Year Inventoried: 2019

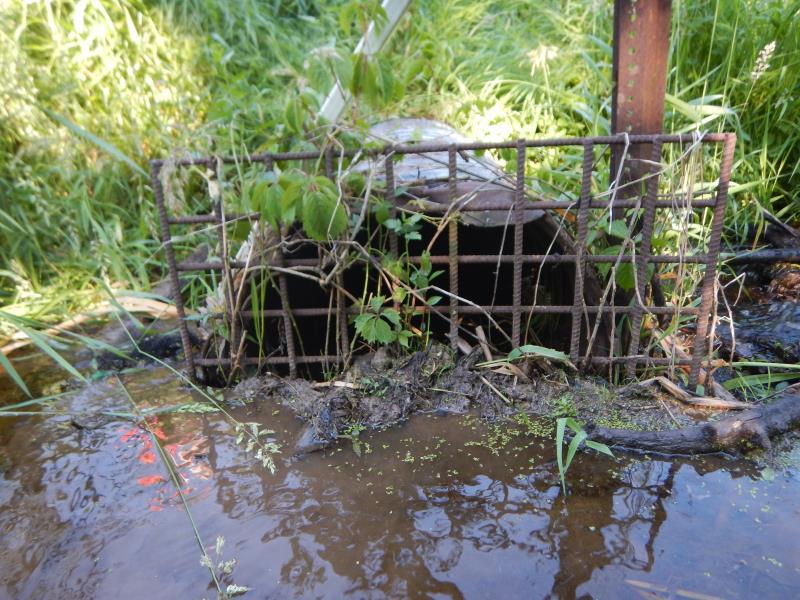

Inlet

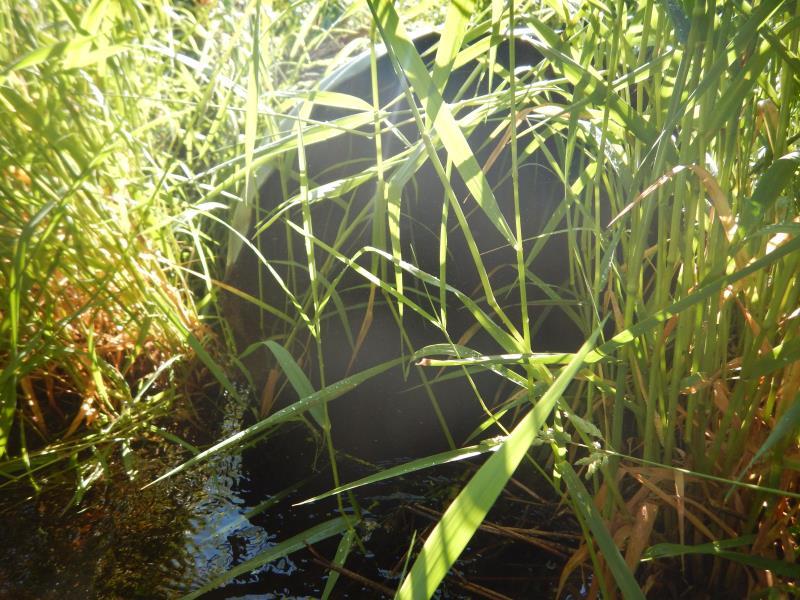

Outlet

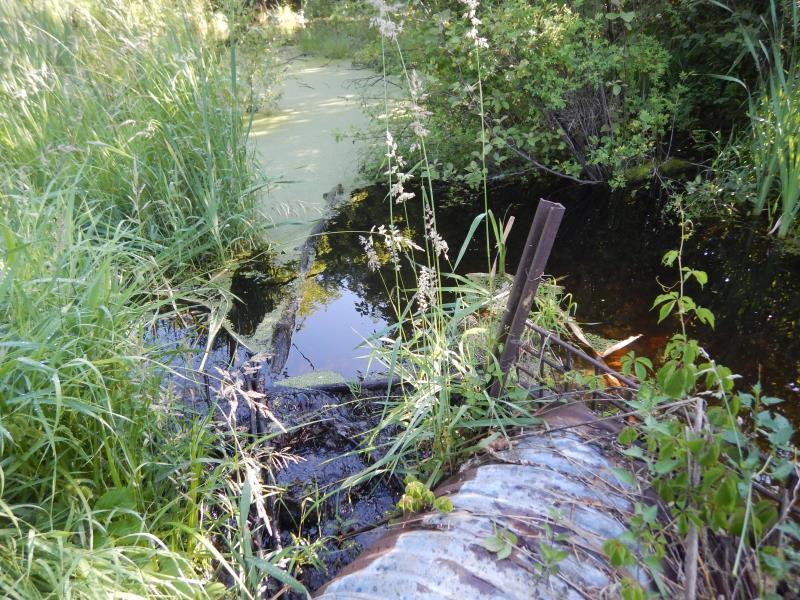

Upstream Conditions

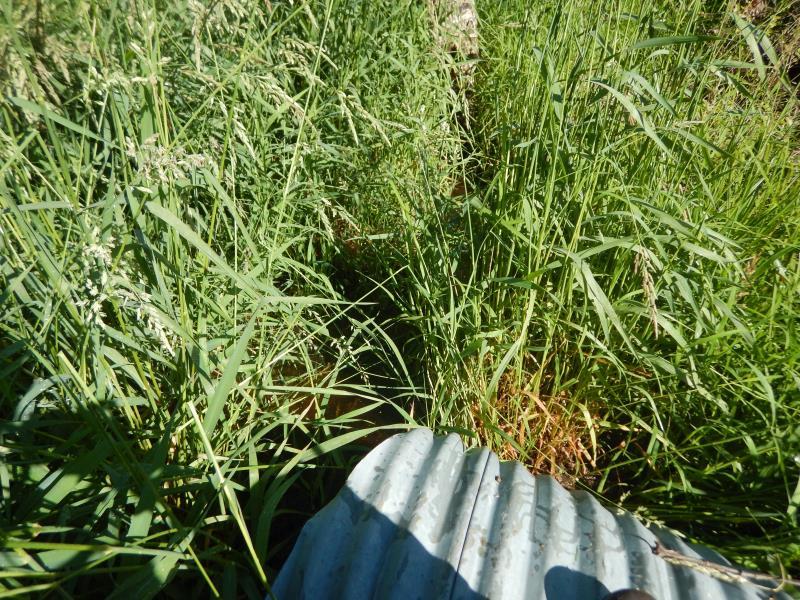

Downstream Conditions

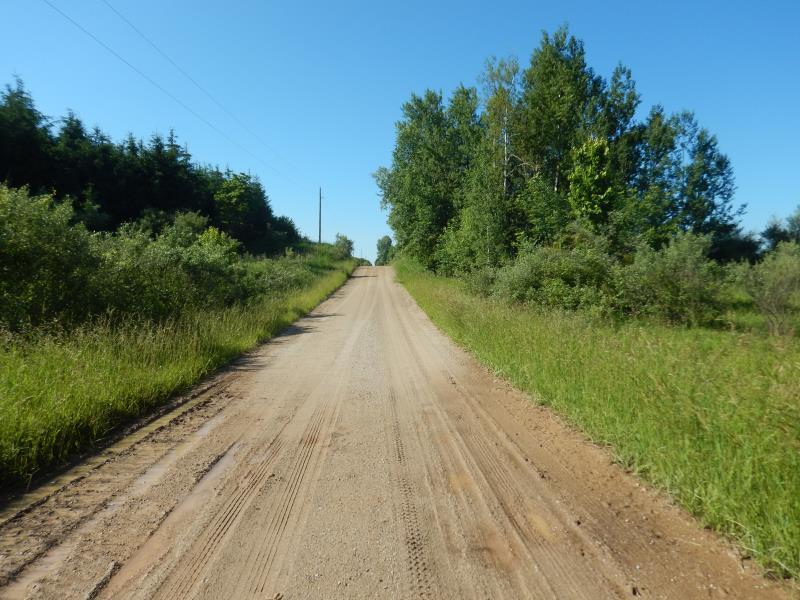

Road Approach - Left

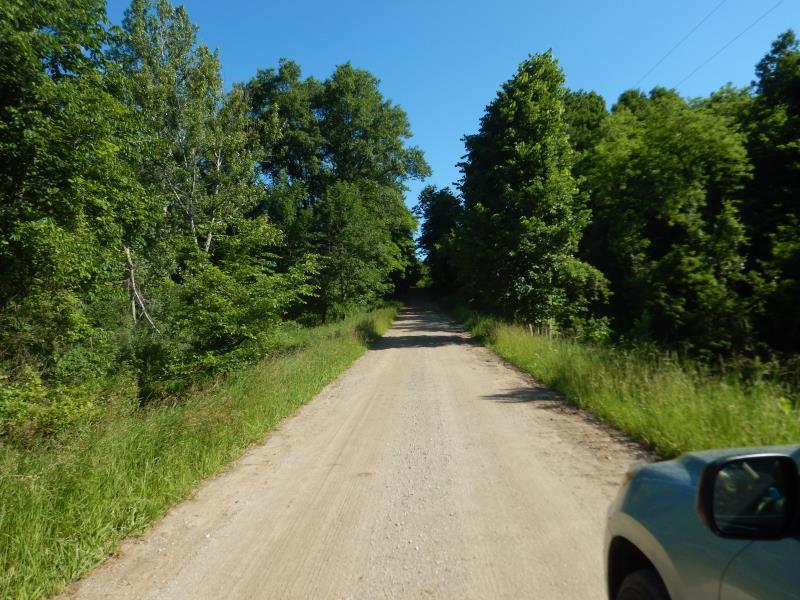

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Trash Rack
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Poor
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 50 ft.
, Width 2.5 ft.
, Height 2.5 ft.
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 1.1 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.6 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
, Width 20 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 4.5 ft.
Wetted Width: 2.5 ft.
Water Velocity: 1.3 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Sand
County Road
Road Condition: Fair
Road Width at Culvert: 15 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 4 ft.
Slope: 1:1.5
Downstream
Fill Depth: 4 ft.
Slope: 1:2
Approaches
Left Approach
Length: 250 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.44
Erosion: 0.4545 tons/year
Right Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 1.0331 tons/year
Erosion Information
Total Erosion at Crossing: 1.4876 tons/year
Summary Information
Fish Passability 0.9
These non-native species were observerd at this site: Reed Canary Grass, Autumn Olive
