Road Stream Crossing Site LIN_CRA065

Lincoln River Watershed, North Branch Lincoln River Tributary
E Dewey Rd
Sherman Twp, Mason County
Information collected by:
Site Location
GPS Coordinates: 44.018925 , -86.172
T19N R16W Sec 24
Owned by Private
Fish Passability 0.5
Total Erosion: 2.4961 tons/year
Severity: Moderate
Year Inventoried: 2019

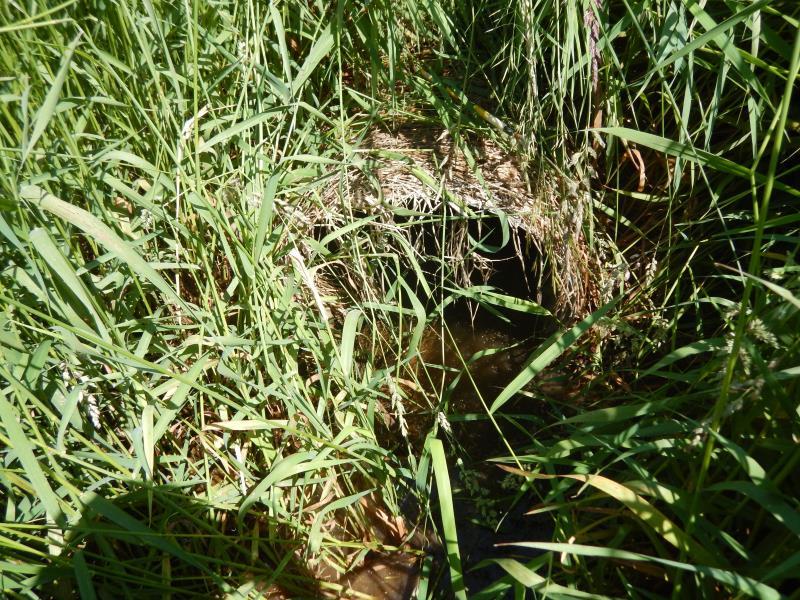

Inlet

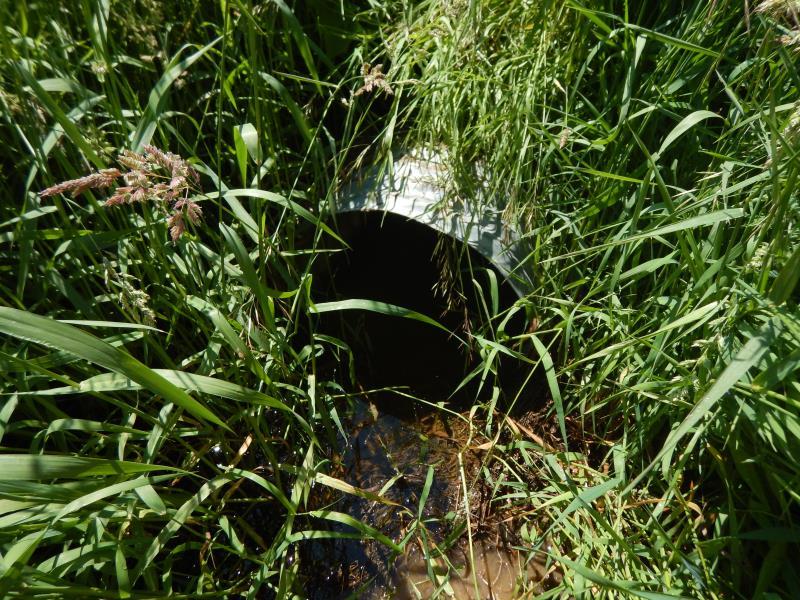

Outlet

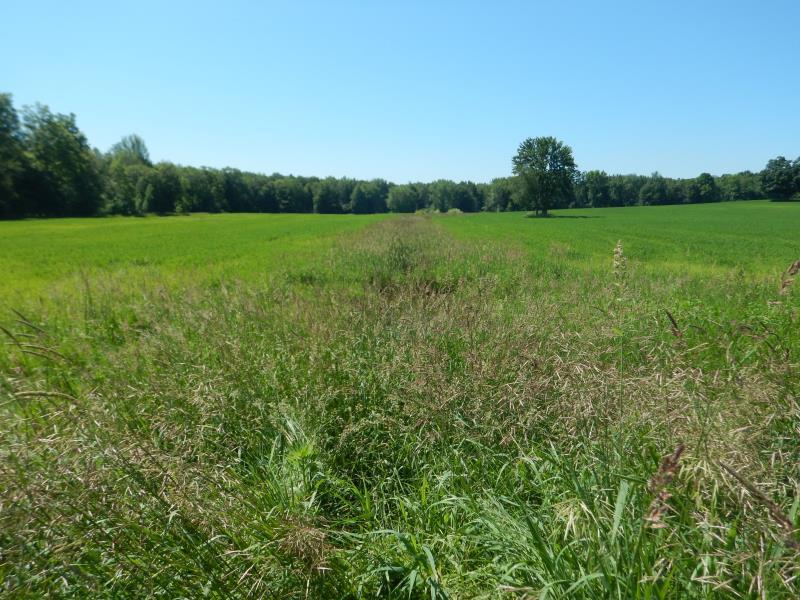

Upstream Conditions

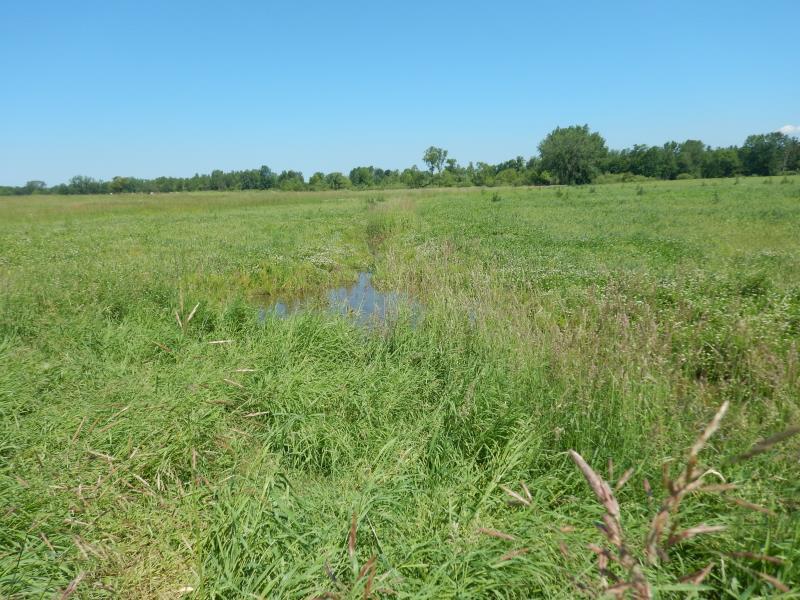

Downstream Conditions

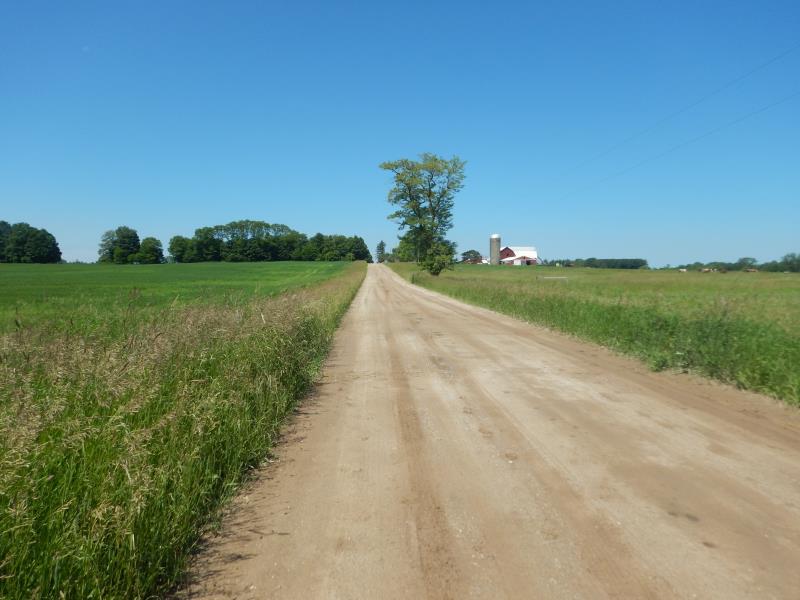

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 40 ft. , Width 2 ft. , Height 2 ft.
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.1 ft.
Bankfull Width: 12 ft.
Wetted Width: 6 ft.
Water Velocity: 0.7 ft./sec. (Measured with Meter)
Dominant Substrate: Organics
Road Information
Gravel County Road
Road Condition: Fair
Road Width at Culvert: 20.5 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 1.4118 tons/year
Right Approach
Length: 400 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.48
Erosion: 1.0843 tons/year
Erosion Information
Total Erosion at Crossing: 2.4961 tons/year
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Reed Canary Grass
