Road Stream Crossing Site LIN_MLCD002

Lincoln River Watershed, South Branch of Lincoln River
Stiles Rd
Victory Twp, Mason County
Information collected by:
Mason-Lake Conservation District
Site Location
GPS Coordinates: 44.01073 , -86.34028
T19N R17W Sec 27
Owned by Private
Fish Passability 0.5
Severity: Moderate
Year Inventoried: 2019

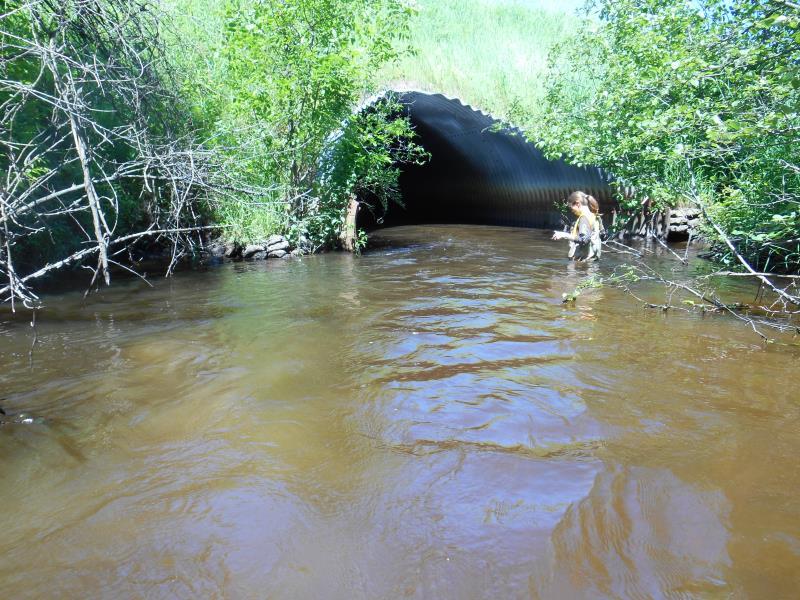

Inlet

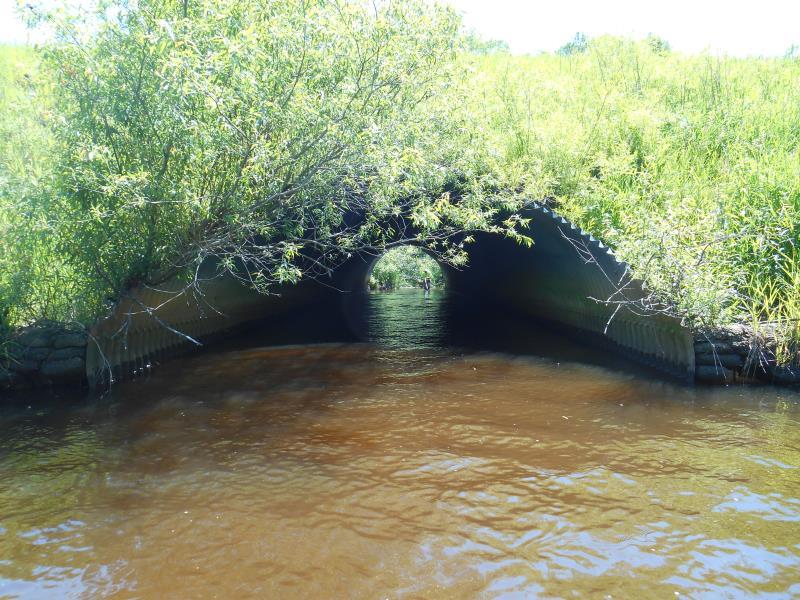

Outlet

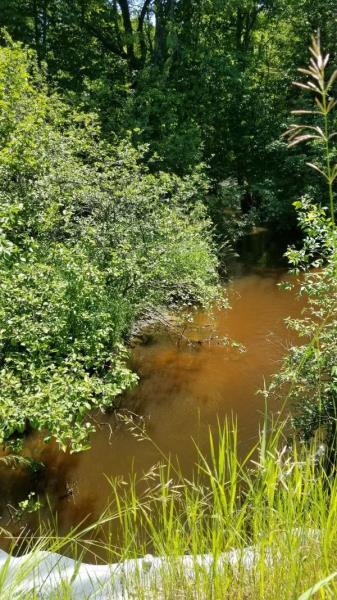

Upstream Conditions

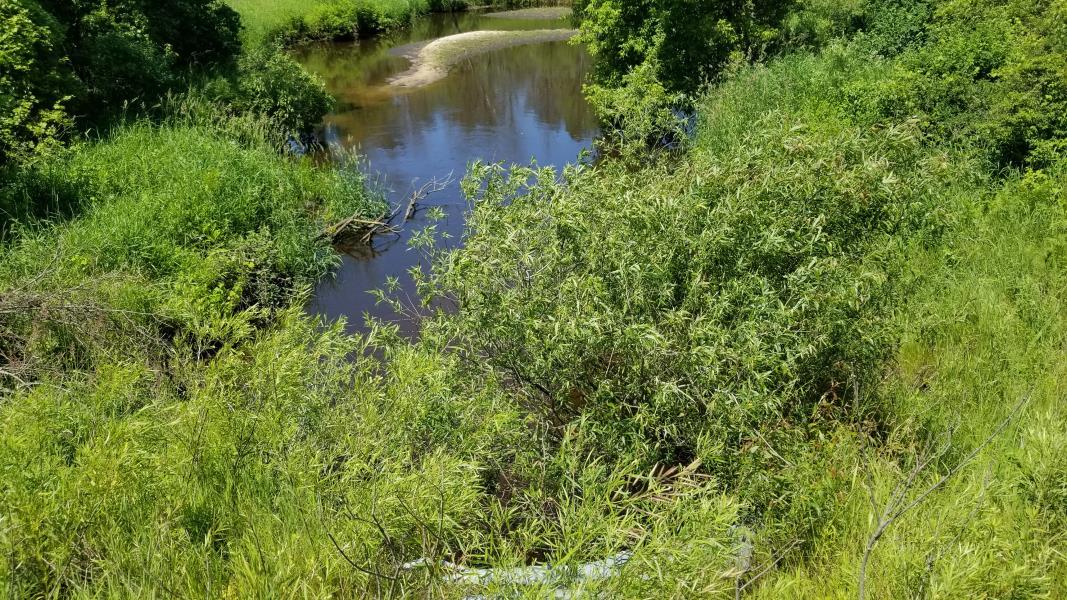

Downstream Conditions

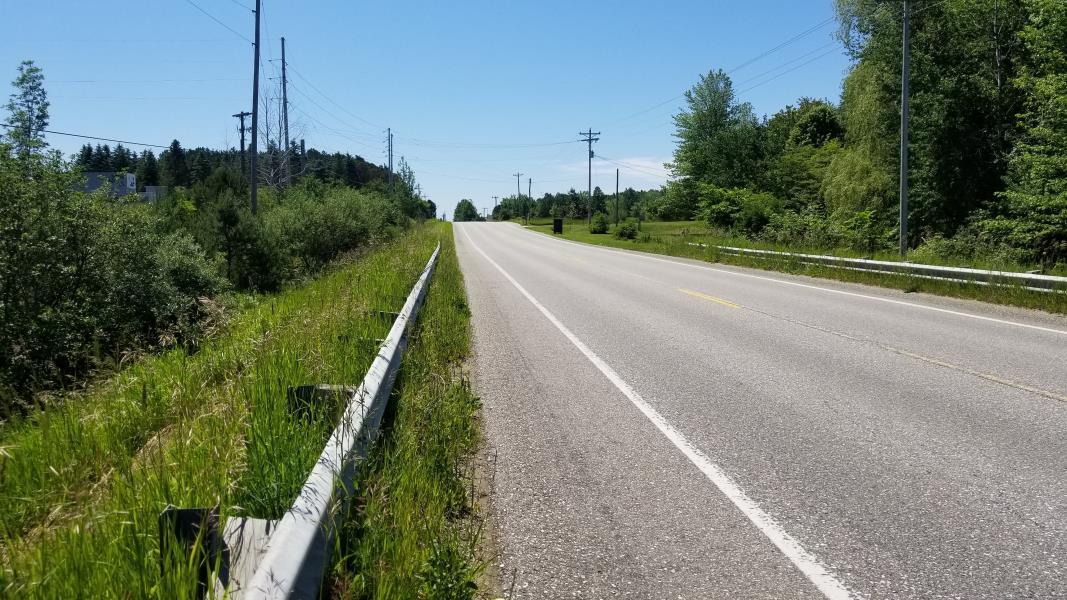

Road Approach - Left

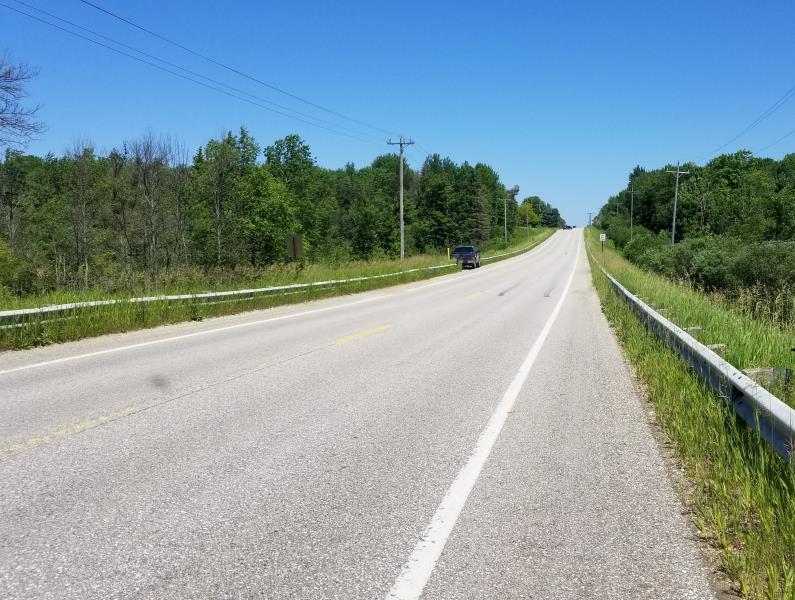

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 104 ft. , Width 14.5 ft. , Height 10.3 ft.
Structure Inlet
Water Depth: 2.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.5 ft./sec.
Structure Outlet
Water Depth: 1.7 ft.
Embedded Depth of Structure: 1.1 ft.
Water Velocity*: 1.7 ft./sec.
*Water Velocities were measured 0.8 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Upstream Pond: Length 20 ft. , Width 28 ft.
Riffle Information
Water Depth: 1.6 ft.
Bankfull Width: 29 ft.
Wetted Width: 26.3 ft.
Water Velocity: 1.9 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 31.8 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 11 ft.
Slope: 1:1.5
Downstream
Fill Depth: 12 ft.
Slope: 1:1.5
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
Slope: 1% to 5%
Vegetation: Heavy
Erosion Information
Summary Information
Fish Passability 0.5
