Road Stream Crossing Site LIN_MLCD003

Lincoln River Watershed, South Branch of Lincoln River
Victory Corner Rd
Victory Twp, Mason County
Information collected by:
Mason-Lake Conservation District
Site Location
GPS Coordinates: 44.00709 , -86.36044
T19N R17W Sec 29
Owned by Private
Fish Passability 0.5
Severity: Moderate
Year Inventoried: 2019

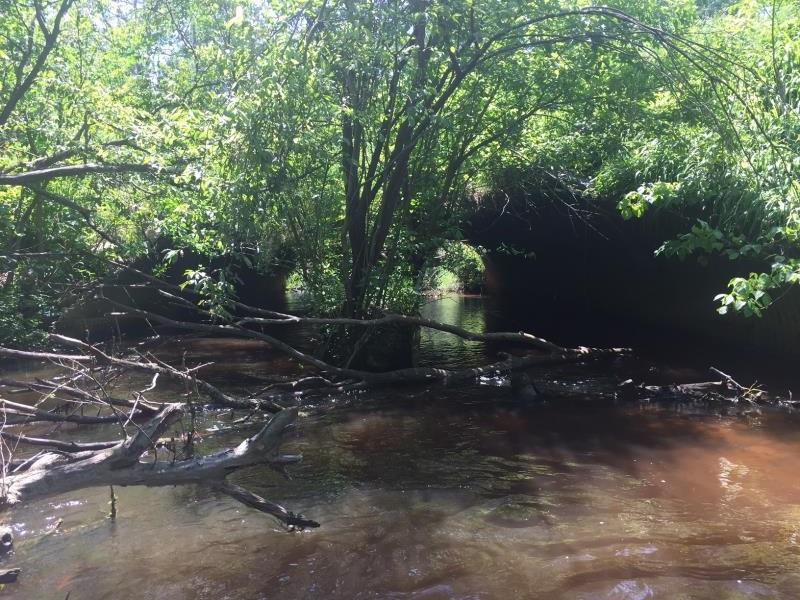

Inlet

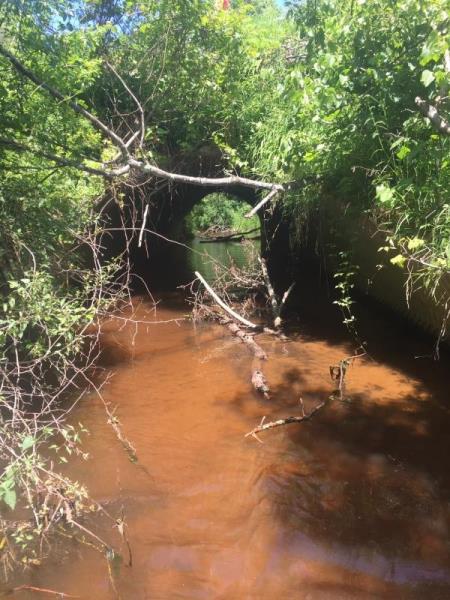

Outlet

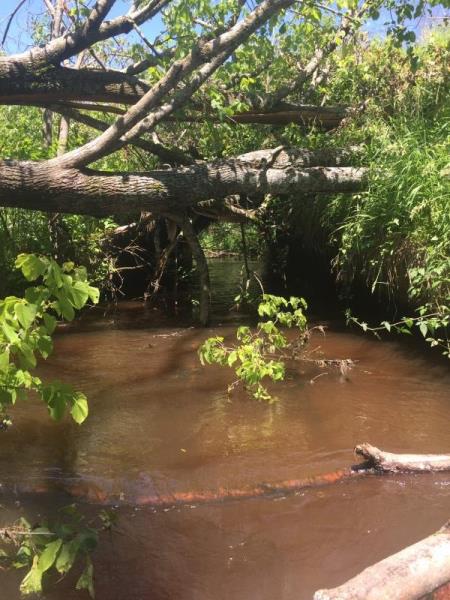

Outlet

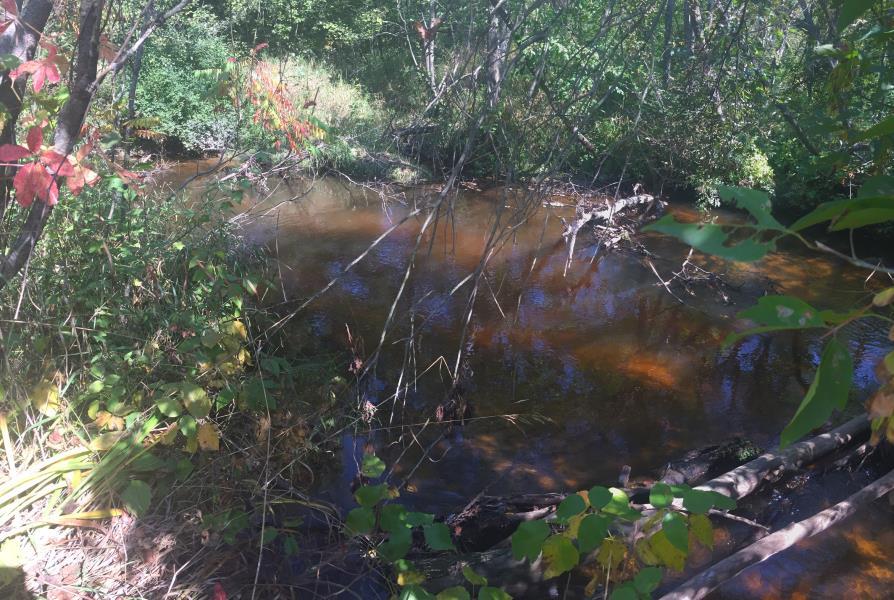

Upstream Conditions

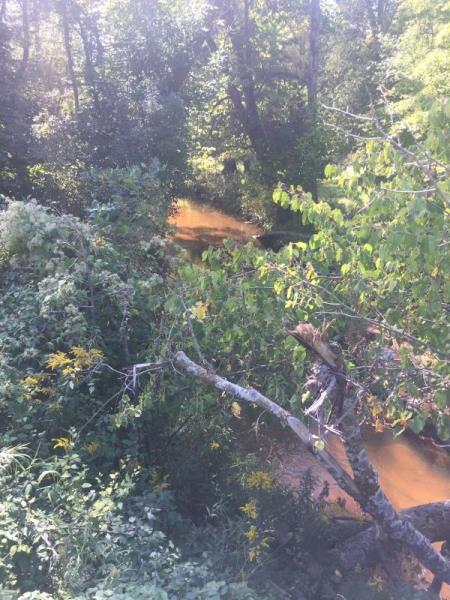

Downstream Conditions

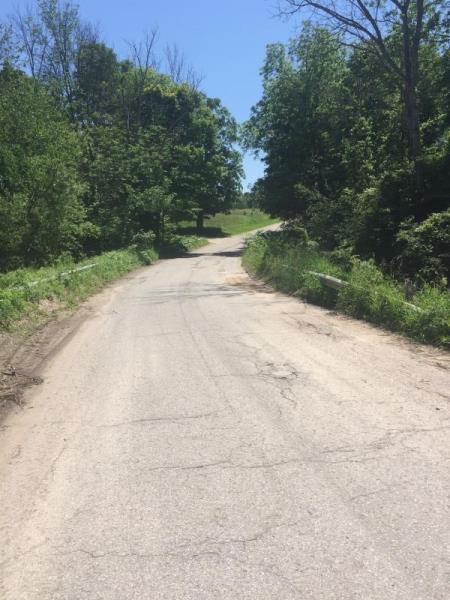

Road Approach - Left

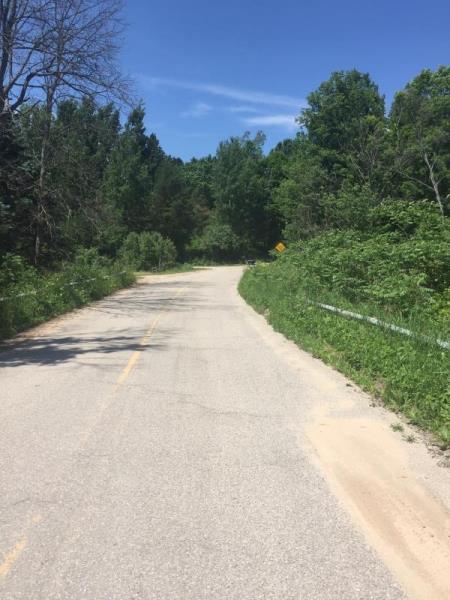

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Multiple Culverts/Spans
Culvert/Span
Width
Length
Height
Material
1
13.8 ft.
85 ft.
8.8 ft.
Metal
2
14 ft.
85 ft.
8.6 ft.
Metal
Structure Interior: corrugated
Dimensions of Structure: Length 85 ft. , Width 14 ft. , Height 8.6 ft.
Percentage Plugged: Inlet: 1% to 25%
Structure Inlet
Water Depth: 1.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.5 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 1.5 ft.
Water Velocity*: 1.3 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Additional Comments
Culvert #2 data used
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 1.7 ft.
Bankfull Width: 33 ft.
Wetted Width: 29 ft.
Water Velocity: 1.5 ft./sec. (Measured with Meter)
Road Information
Paved County Road
Road Condition: Fair
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 6 ft.
Slope: Vertical
Downstream
Fill Depth: 6 ft.
Slope: 1:1.5
Length: 450 ft.
Slope: 6% to 10%
Vegetation: Heavy
Length: 500 ft.
Slope: 6% to 10%
Vegetation: Heavy
Erosion Information
Extent of Erosion: Minor
Notes: Only with high rain events on upstream side from road drainage
Summary Information
Fish Passability 0.5
