Road Stream Crossing Site LIN_MLCD005

Lincoln River Watershed, Stiles Creek
Stiles Rd
Victory Twp, Mason County
Information collected by:
Mason-Lake Conservation District
Site Location
GPS Coordinates: 44.00645 , -86.34005
T19N R17W Sec 28
Owned by Private
State
Fish Passability 0.9
Total Erosion: 0.5451 tons/year
Severity: Moderate
Year Inventoried: 2019

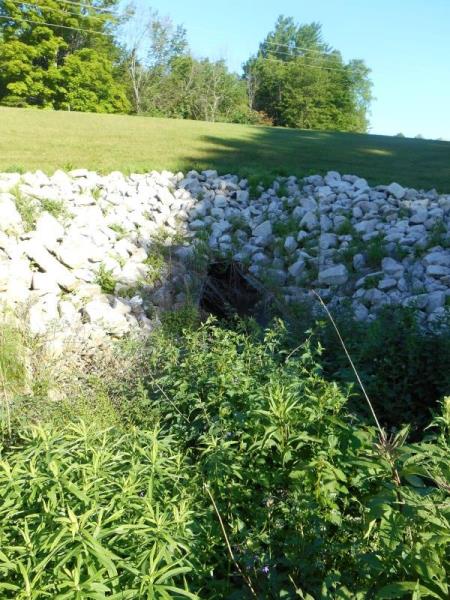

Inlet

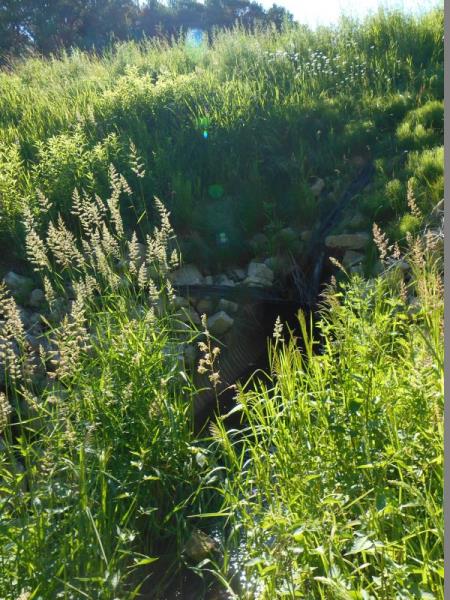

Outlet

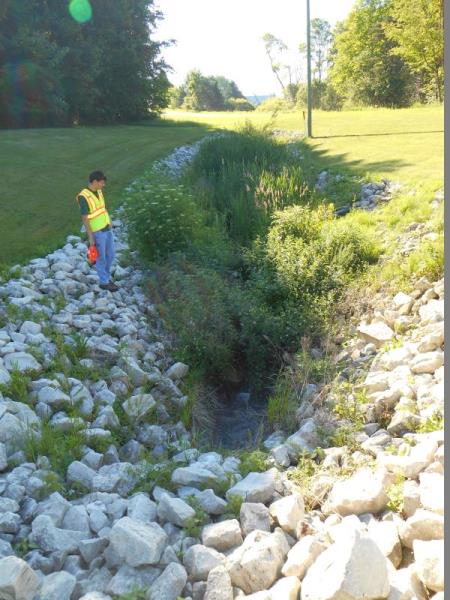

Upstream Conditions
Downstream Conditions

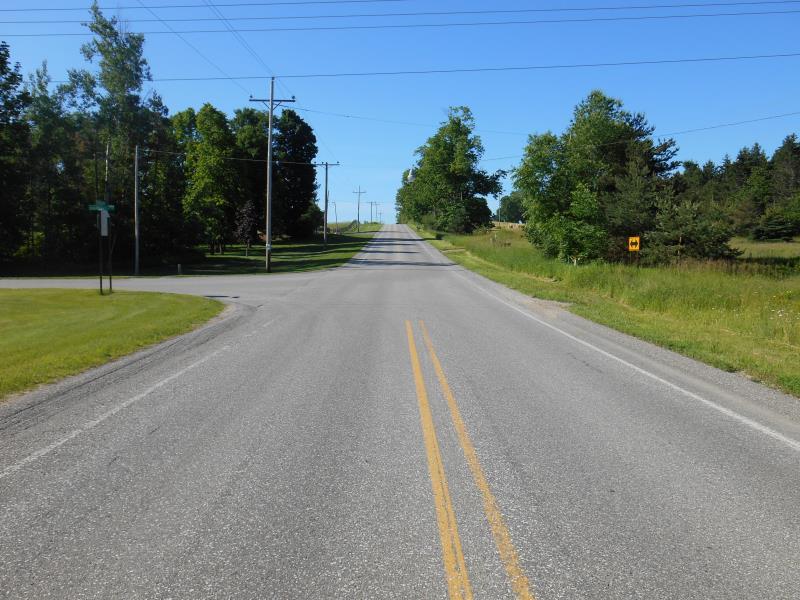

Road Approach - Left

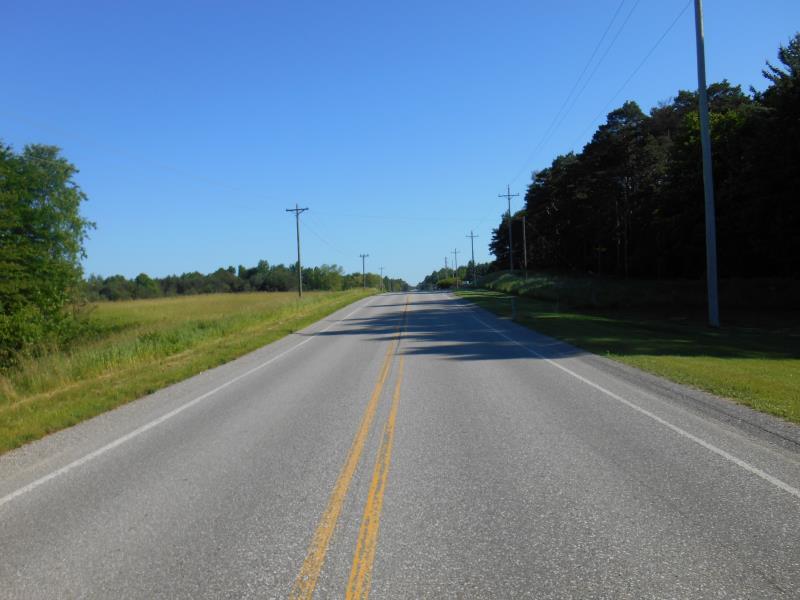

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 105 ft. , Width 4.5 ft. , Height 3.5 ft.
Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 0.5 ft./sec.
*Water Velocities were measured 0.4 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 7 ft.
Wetted Width: 4 ft.
Water Velocity: 0.8 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 34 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 7 ft.
Slope: More than 1:2
Downstream
Fill Depth: 11 ft.
Slope: 1:2
Approaches
Left Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.64
Erosion: 0.3597 tons/year
Right Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.55
Erosion: 0.1855 tons/year
Erosion Information
Total Erosion at Crossing: 0.5451 tons/year
Extent of Erosion: Stabilized
Summary Information
Fish Passability 0.9
