Road Stream Crossing Site GTBAY_BRD014
Boardman River Watershed, Boardman River
E River Rd
East Bay Twp,
Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.646968
, -85.547748
T26N
R10W
Sec 17
Owned by Private
Fish Passability 1
Total Erosion: 0.3078 tons/year
Severity: Minor
Year Inventoried: 2020

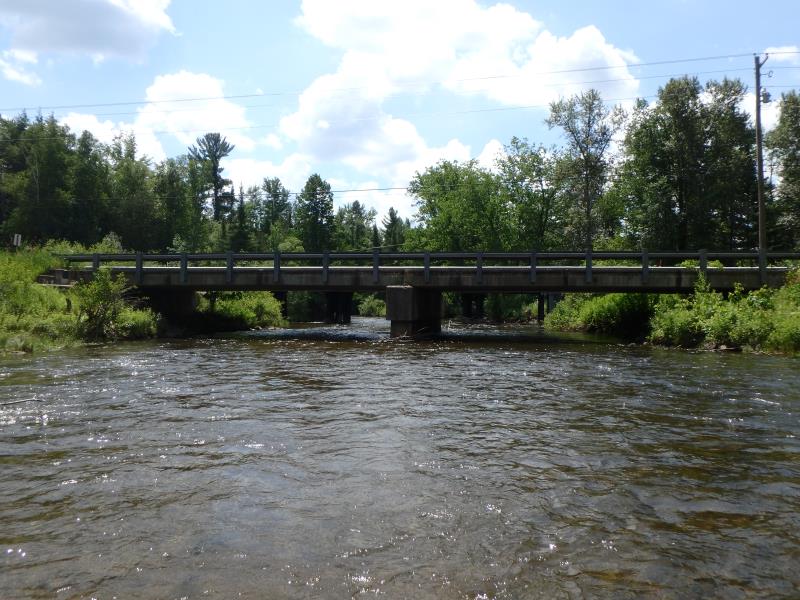

Inlet

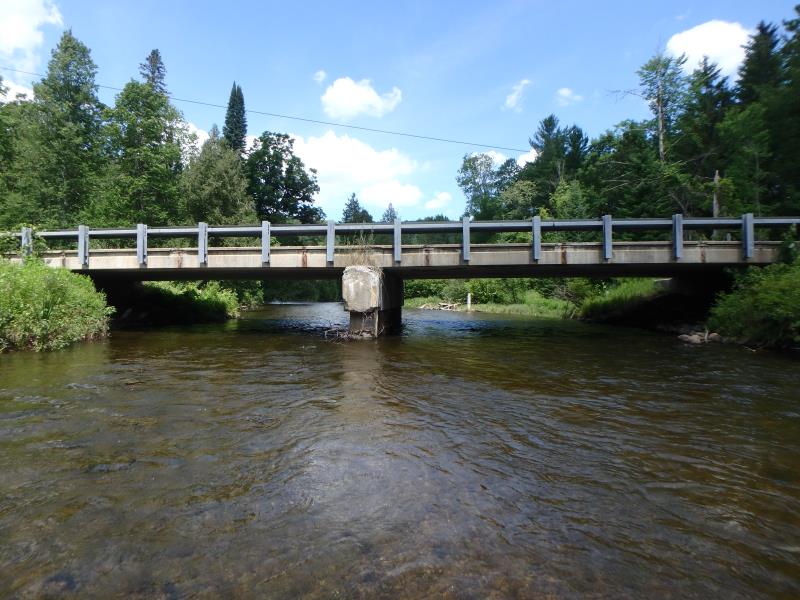

Outlet

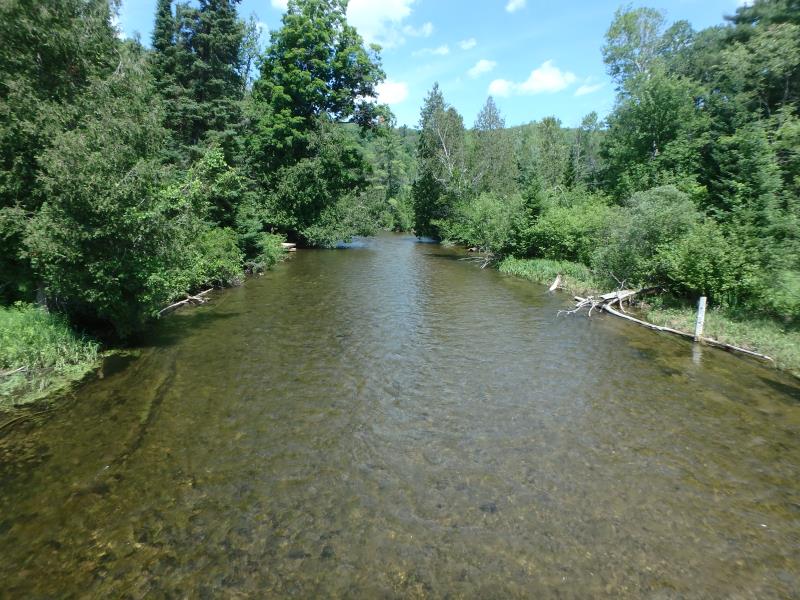

Upstream Conditions
Downstream Conditions
Road Approach - Left

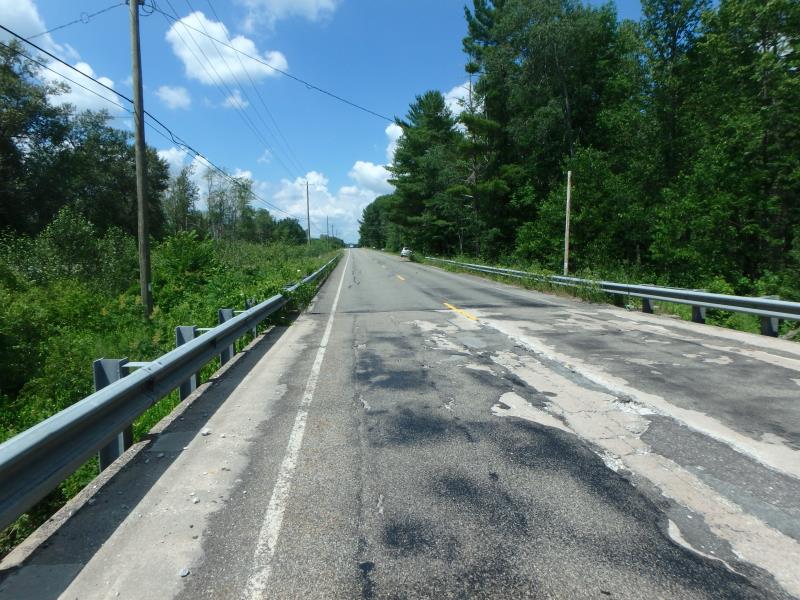

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Mixture
General Conditions: Poor
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
41 ft. |
31 ft. |
8.5 ft. |
Concrete |
2 |
41 ft. |
31 ft. |
8.6 ft. |
Concrete |
Structure Interior: smooth
Dimensions of Structure: Length 31 ft.
, Width 41 ft.
, Height 8.5 ft.
Structure Inlet
Water Depth: 2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.5 ft./sec.
Structure Outlet
Water Depth: 1.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.4 ft./sec.
*Water Velocities were measured 1.2 ft. below Surface
(with Meter)
Additional Comments
Water depth and velocity measurements recorded for span #1. Structure width greater than bank full and structure water velocity in line with riffle water velocity. Severity score equals 15 so considered moderate.
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 1.5 ft.
Bankfull Width: 75 ft.
Wetted Width: 59 ft.
Water Velocity: 3.8 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved
County Road
Road Condition: Poor
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.1095 tons/year
Right Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.1983 tons/year
Erosion Information
Total Erosion at Crossing: 0.3078 tons/year
Summary Information
Fish Passability 1
These non-native species were observerd at this site: Sweet White Clover
