Road Stream Crossing Site GTBAY_BRD026

Boardman River Watershed, East Creek
Garfield Rd
Paradise Twp, Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.635957 , -85.518481
T26N R10W Sec 21
Owned by Private
Fish Passability 1
Total Erosion: 0.2613 tons/year
Severity: Minor
Year Inventoried: 2020
Inlet

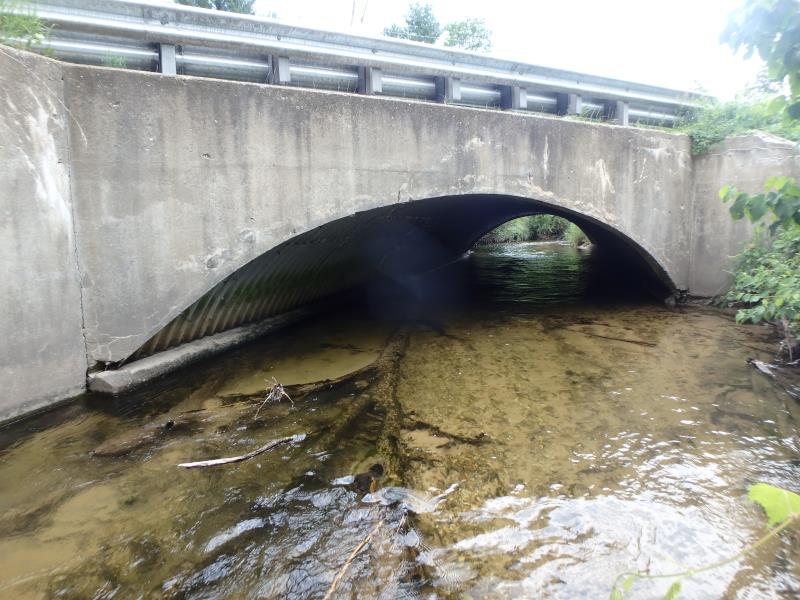

Outlet

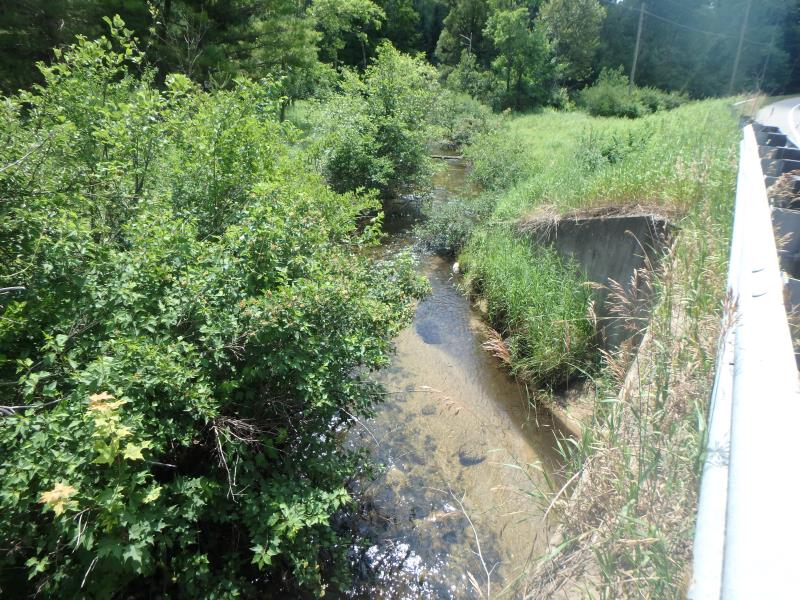

Upstream Conditions

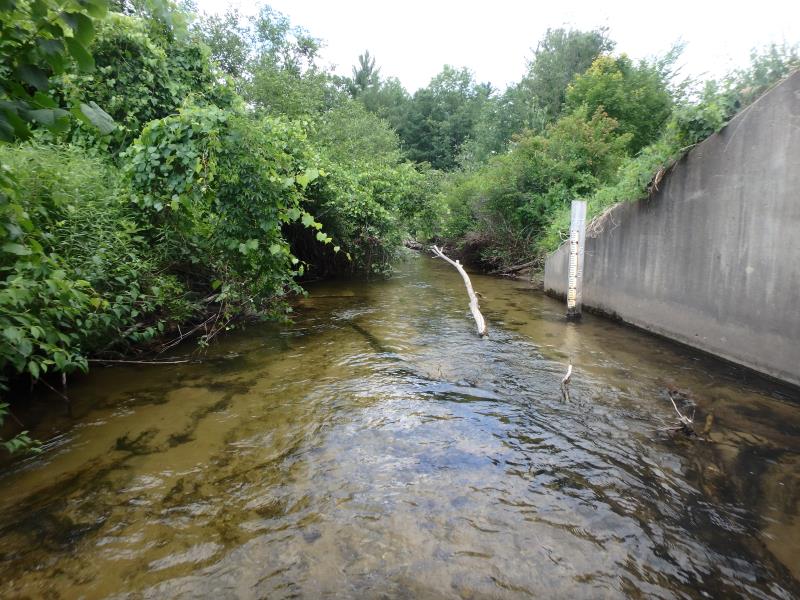

Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Open Bottom Arch
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 50 ft. , Width 16 ft. , Height 6 ft.
Structure Inlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.1 ft./sec.
Structure Outlet
Water Depth: 1.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.7 ft./sec.
*Water Velocities were measured 0.7 ft. below Surface (with Meter)
Additional Comments
Structure wide and structure water velocity in line with riffle water velocities in system.
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 1 ft.
Bankfull Width: 18.2 ft.
Wetted Width: 16.2 ft.
Water Velocity: 2.5 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 31 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 6 ft.
Slope: Vertical
Downstream
Fill Depth: 3 ft.
Slope: Vertical
Approaches

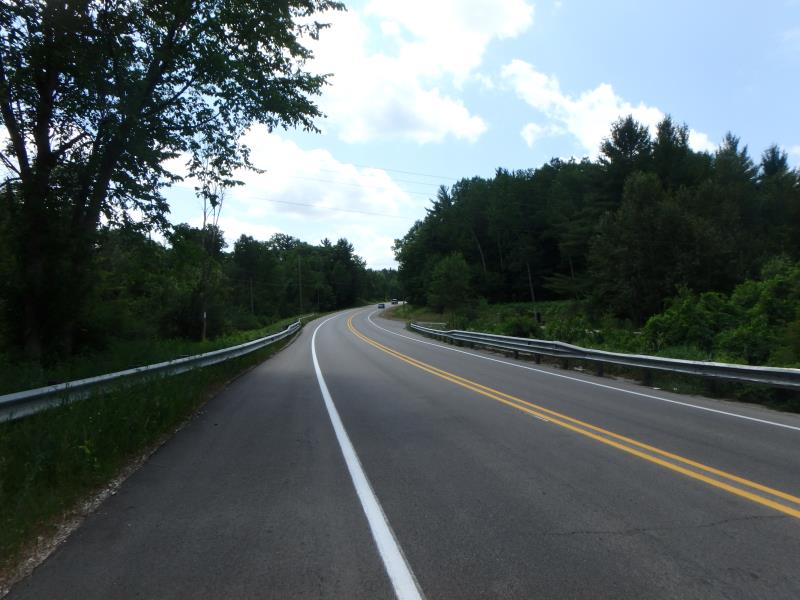

Left Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.2562 tons/year

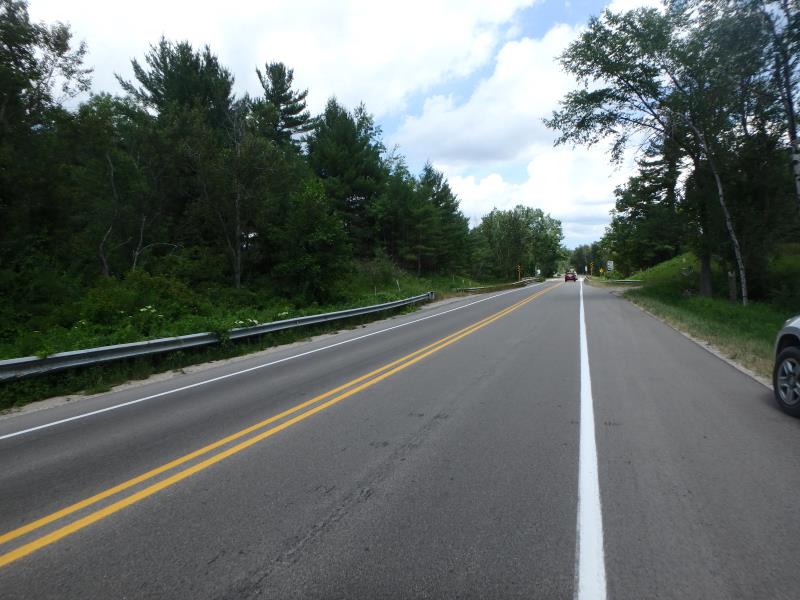

Right Approach
Length: 100 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0051 tons/year
Erosion Information
Total Erosion at Crossing: 0.2613 tons/year
Summary Information
Fish Passability 1
