Road Stream Crossing Site GTBAY_GC009
East Bay Shoreline & Tributaries Watershed, Guyer Creek
Old Dixie Hwy
Banks Twp,
Antrim County
Information collected by:
Site Location
GPS Coordinates: 45.167241
, -85.372528
T32N
R9W
Sec 14
Owned by Private
Perch Height: 1.1 ft.
Total Erosion: 0.1744 tons/year
Severity: Minor
Year Inventoried: 2020

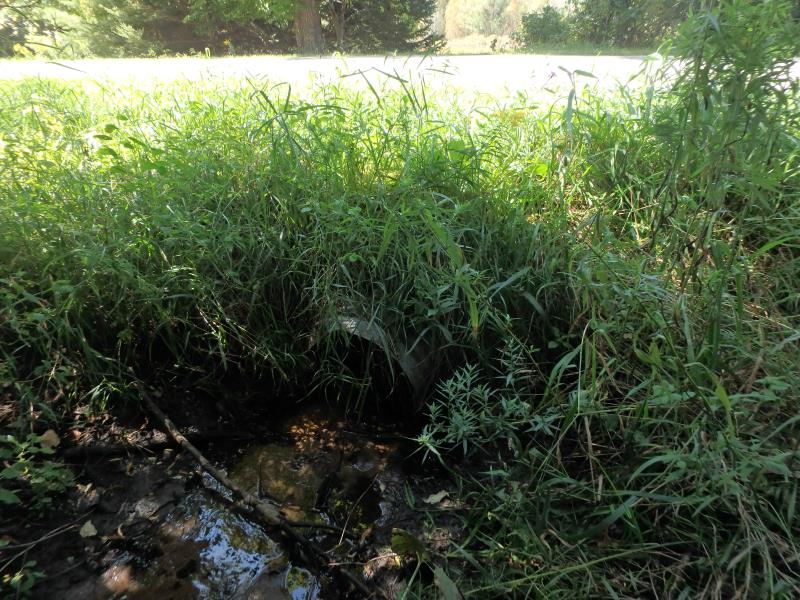

Inlet

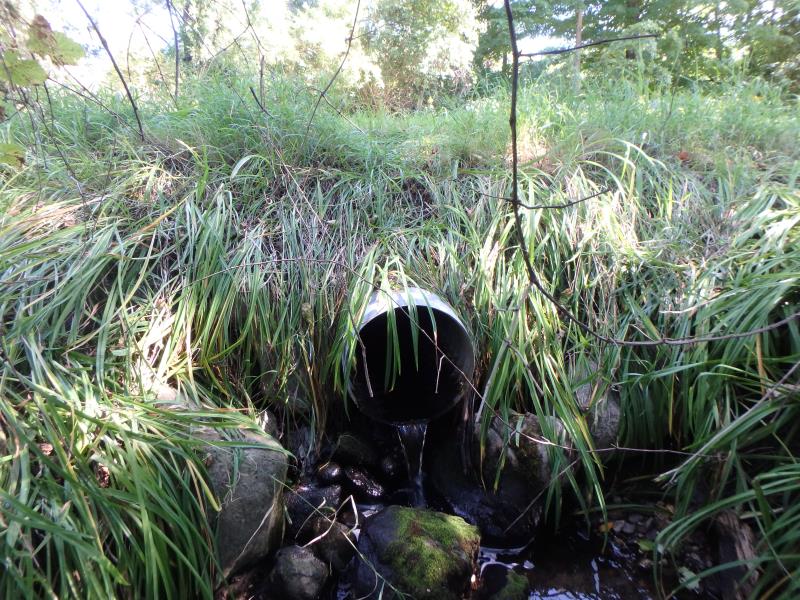

Outlet

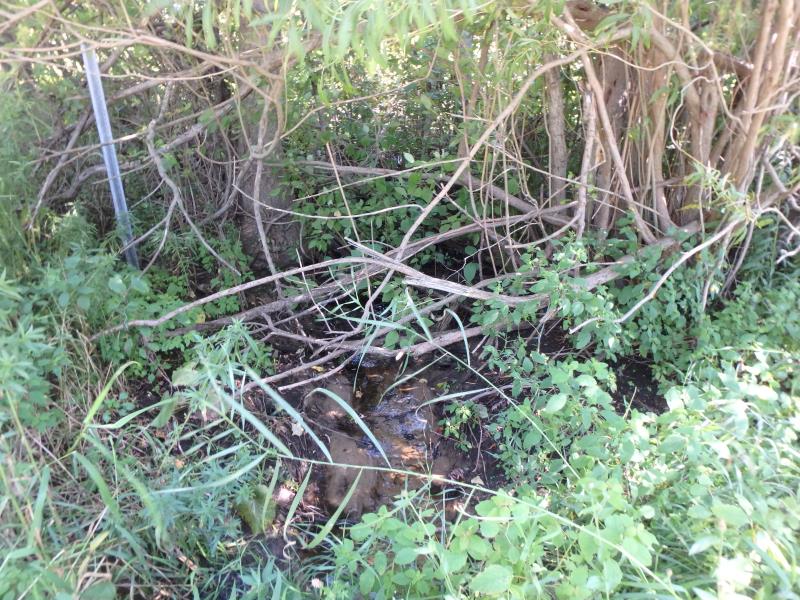

Upstream Conditions

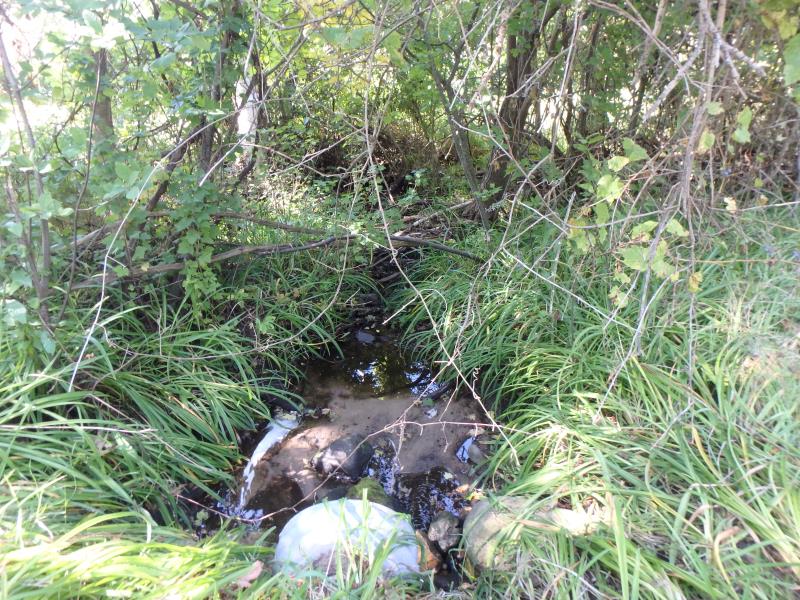

Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall onto Riprap
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 50 ft.
, Width 1.5 ft.
, Height 1.5 ft.
Percentage Crushed:
Inlet: 1% to 25%
Perch Height: 1.1 ft.
Structure Inlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.8 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Road Information
Paved
County Road
Road Condition: Fair
Road Width at Culvert: 21 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.4 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.2 ft.
Slope: 1:2
Approaches

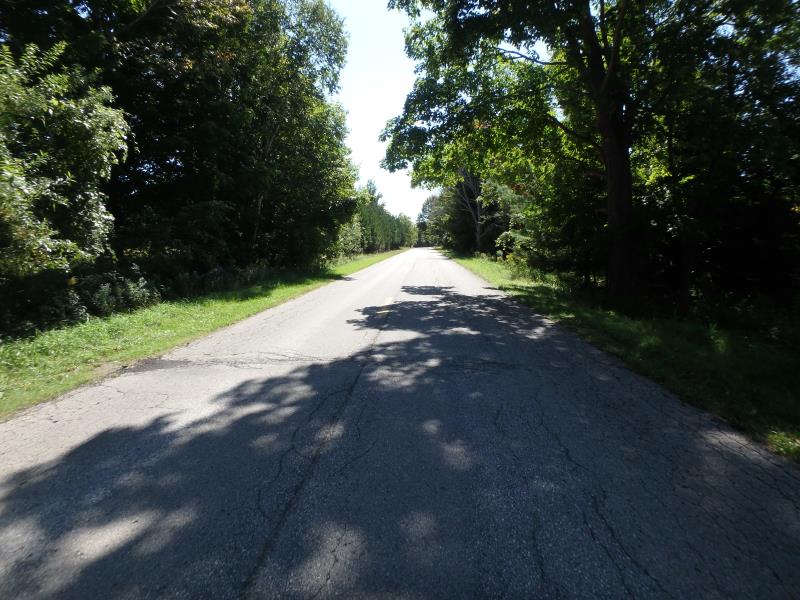

Left Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.1736 tons/year

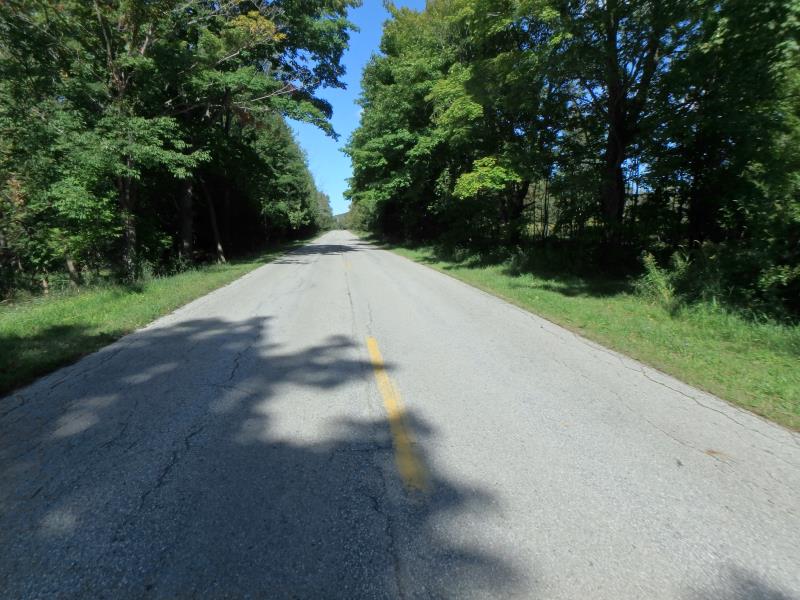

Right Approach
Length: 25 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0009 tons/year
Erosion Information
Total Erosion at Crossing: 0.1744 tons/year
Summary Information
These non-native species were observerd at this site: Spotted Knapweed
