Road Stream Crossing Site GTBAY_KC002
Boardman River Watershed, Kids Creek
Beaumont
Traverse City,
Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.763110233
, -85.641285041
T27N
R11W
Sec 04
Owned by Private
Fish Passability 0.9
Total Erosion: 0.0027 tons/year
Severity: Restored
Year Inventoried: 2020

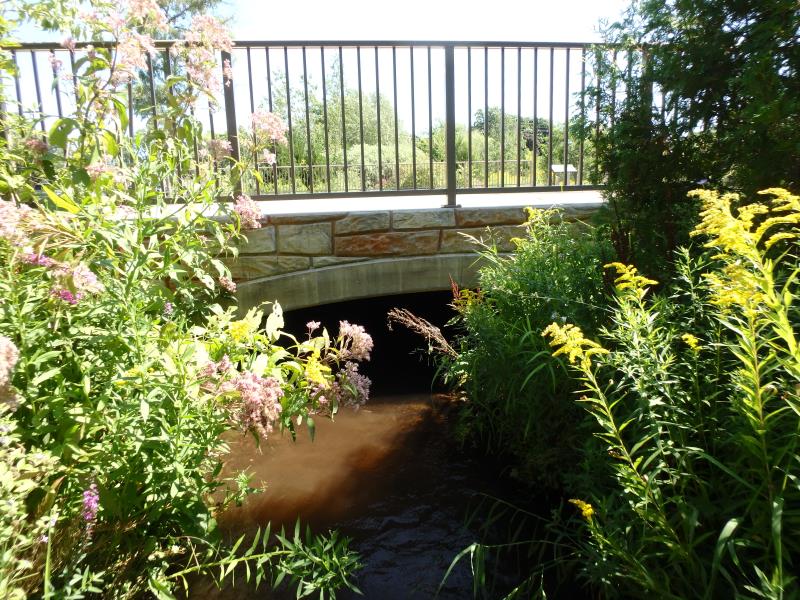

Inlet

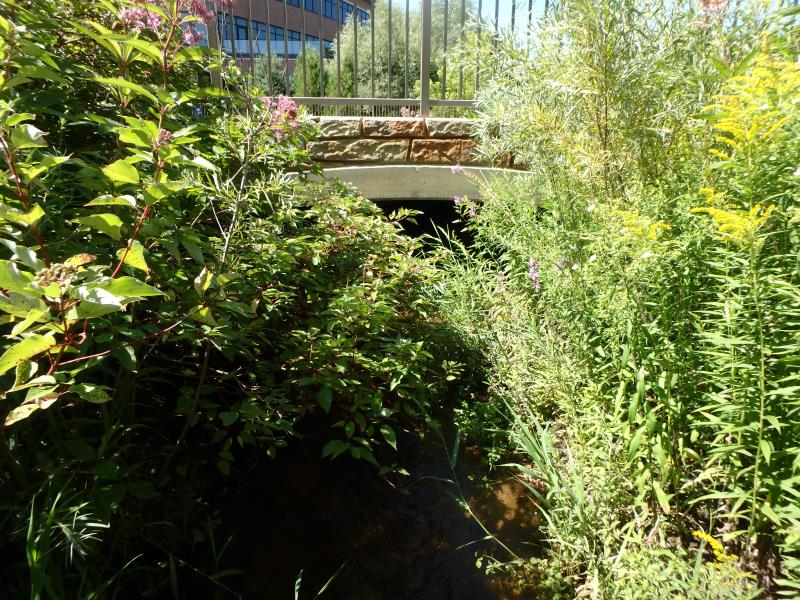

Outlet

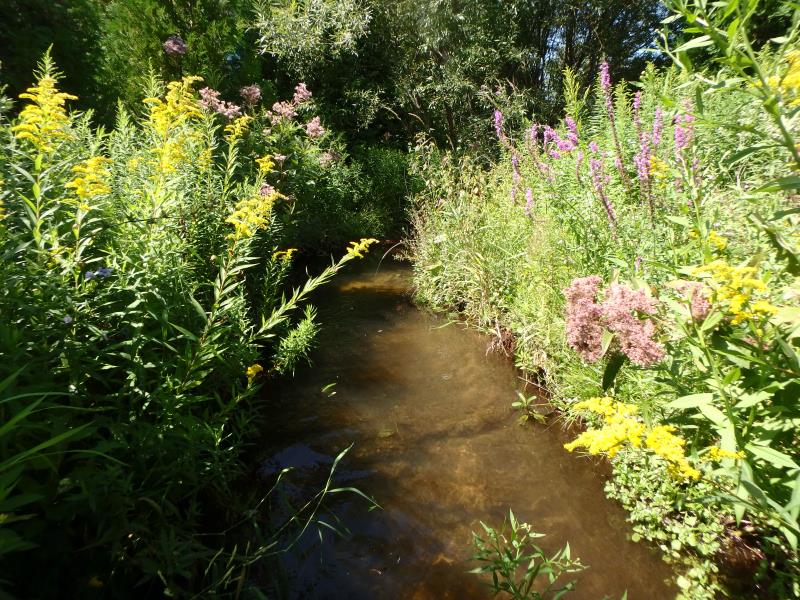

Upstream Conditions

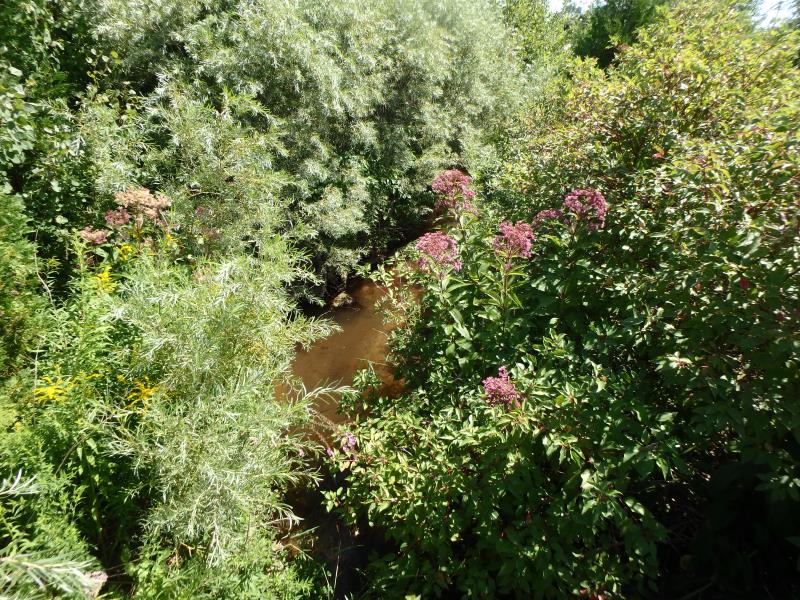

Downstream Conditions

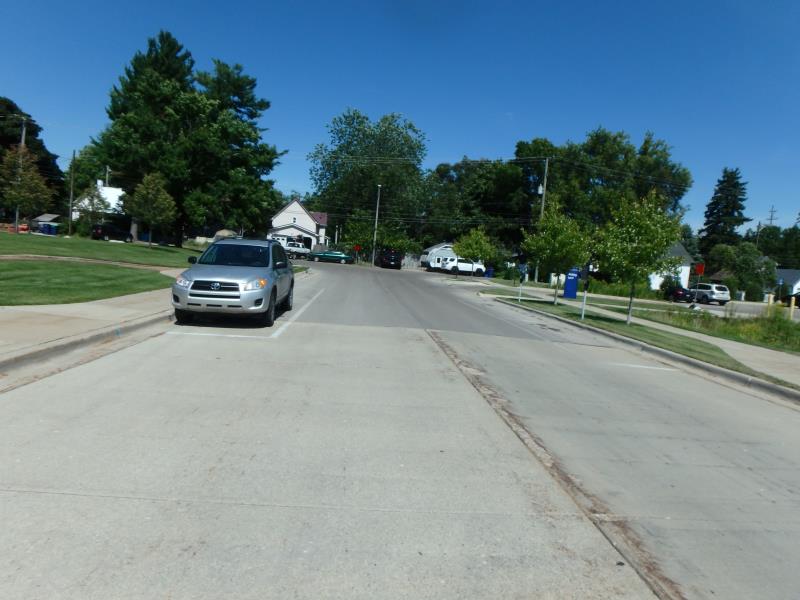

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: New
Structure Interior: smooth
Dimensions of Structure: Length 55.5 ft.
, Width 15.1 ft.
, Height 3.3 ft.
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.4 ft./sec.
*Water Velocities were measured 0.15 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 6.7 ft.
Wetted Width: 6.3 ft.
Water Velocity: 2.5 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved
Town Road
Road Condition: Good
Road Width at Culvert: 32.8 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 1.9 ft.
Slope: Vertical
Downstream
Fill Depth: 1.9 ft.
Slope: Vertical
Approaches
Left Approach
Length: 25 ft.
Slope: Less Than 1%
Vegetation: None
LS Factor: 0.05
Erosion: 0.0014 tons/year
Right Approach
Length: 25 ft.
Slope: Less Than 1%
Vegetation: None
LS Factor: 0.05
Erosion: 0.0014 tons/year
Erosion Information
Total Erosion at Crossing: 0.0027 tons/year
Summary Information
Fish Passability 0.9
These non-native species were observerd at this site: Purple Loosestrife, Spotted Knapweed, burdock, thistles, forget-me-nots, yellow sweet clover, black locust, white sweet cloveralfalfa, bladder campion, curly dock, red clover
