Road Stream Crossing Site GTBAY_KC019
Boardman River Watershed, Kids Creek
Cedar Street
Traverse City,
Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.76207373
, -85.63667365
T27N
R11W
Sec 04
Owned by Private
Fish Passability 0.9
Total Erosion: 0.0035 tons/year
Severity: Minor
Year Inventoried: 2020

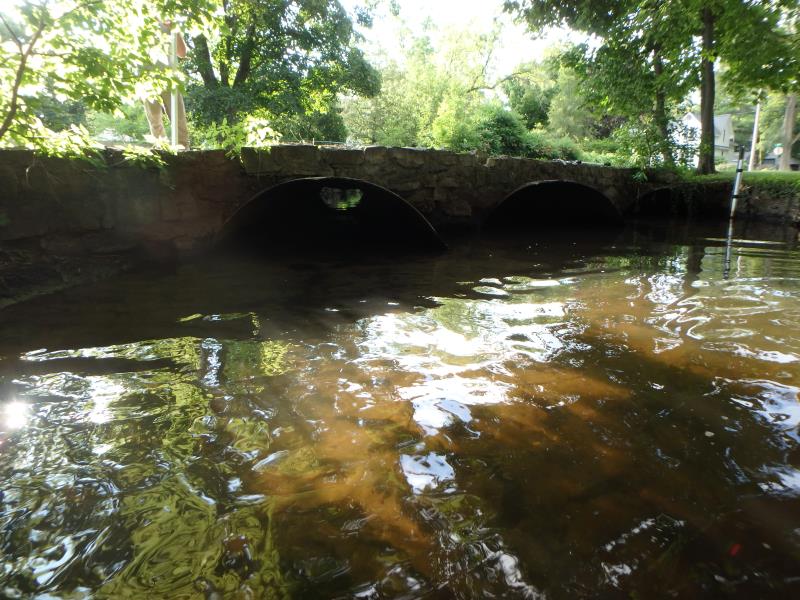

Inlet

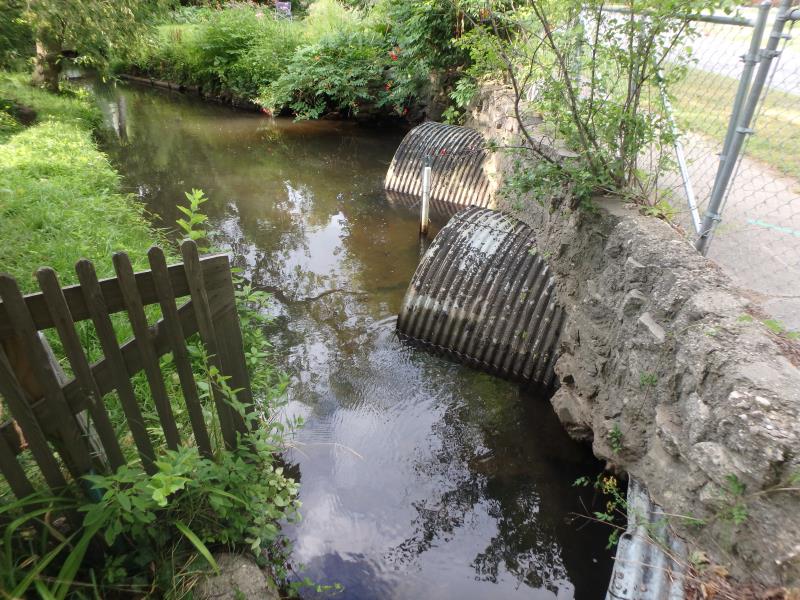

Outlet

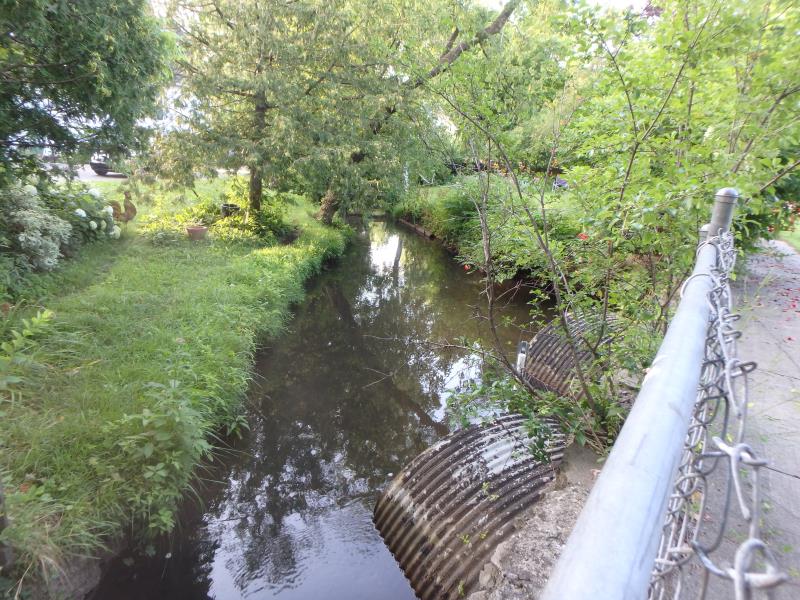

Upstream Conditions

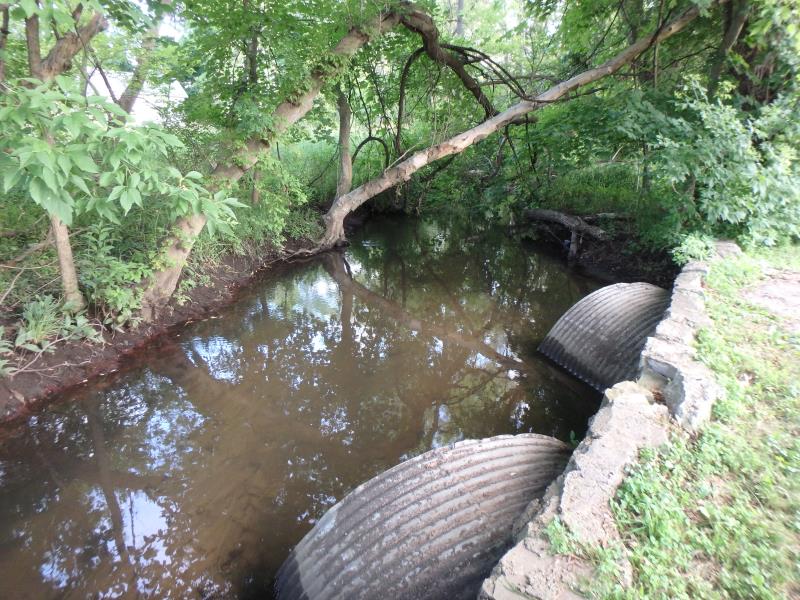

Downstream Conditions

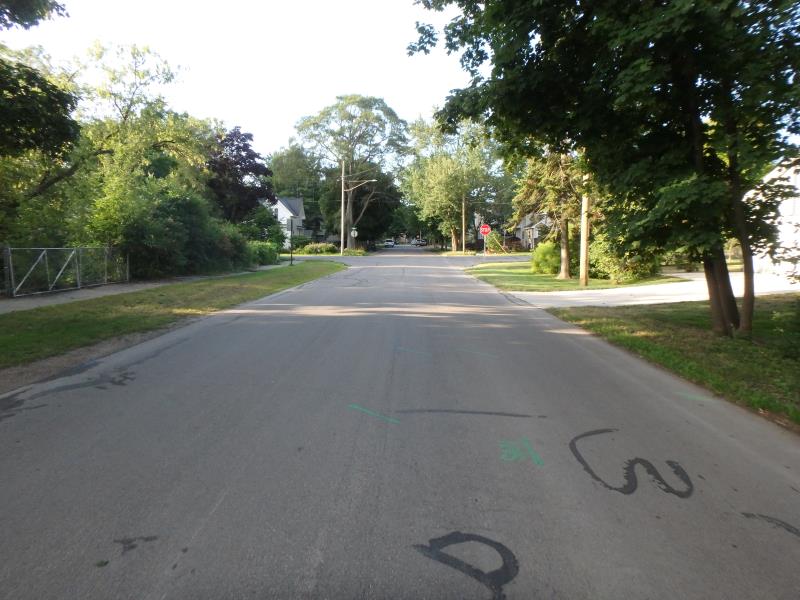

Road Approach - Left

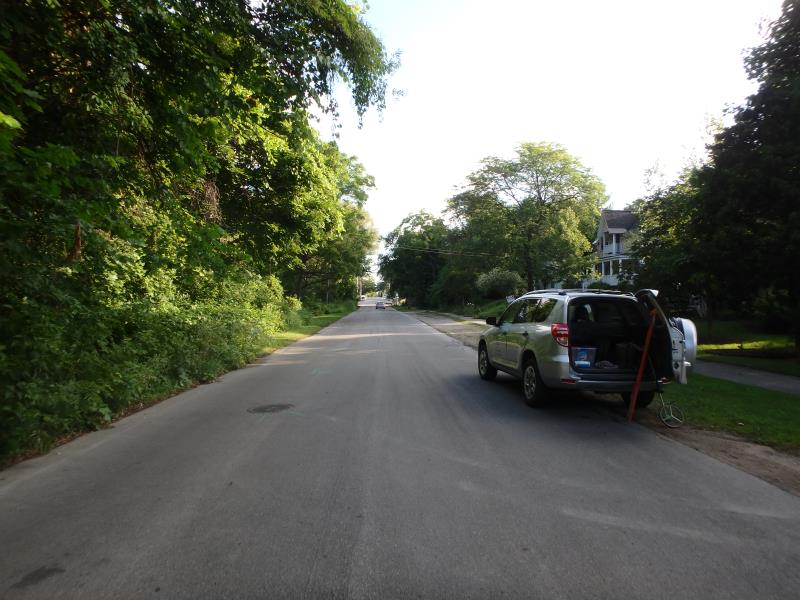

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 3
Structure Shape: Ellipse
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Fair
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
6.7 ft. |
60.5 ft. |
4.9 ft. |
Metal |
2 |
6.5 ft. |
60.5 ft. |
4.6 ft. |
Metal |
3 |
6.7 ft. |
60.5 ft. |
4.9 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 60.5 ft.
, Width 6.5 ft.
, Height 4.6 ft.
Percentage Plugged:
Inlet: 26% to 50%
Outlet: 26% to 50%
In Pipe: 26% to 50%
Structure Inlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 1.5 ft.
Water Velocity*: 0.6 ft./sec.
Structure Outlet
Water Depth: 1.1 ft.
Embedded Depth of Structure: 2.3 ft.
Water Velocity*: 0.6 ft./sec.
*Water Velocities were measured 0.7 ft. below Surface
(with Meter)
Additional Comments
Water depth and velocity measurements recorded for culvert #1
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 1.5 ft.
Bankfull Width: 15.1 ft.
Wetted Width: 13.2 ft.
Water Velocity: 0.8 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
Town Road
Road Condition: Good
Road Width at Culvert: 21 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1 ft.
Slope: Vertical
Downstream
Fill Depth: 1 ft.
Slope: Vertical
Approaches
Left Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.0017 tons/year
Right Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.0017 tons/year
Erosion Information
Total Erosion at Crossing: 0.0035 tons/year
Summary Information
Fish Passability 0.9
