Road Stream Crossing Site GTBAY_LEE019
West Bay Shoreline & Tributaries Watershed, Belanger's Creek
Peshawbestown Rd
Leelanau Twp,
Leelanau County
Information collected by:
Site Location
GPS Coordinates: 45.03050971
, -85.62706405
T31N
R11W
Sec 35
Owned by Private
Fish Passability 0.5
Total Erosion: 0.0854 tons/year
Severity: Moderate
Year Inventoried: 2020

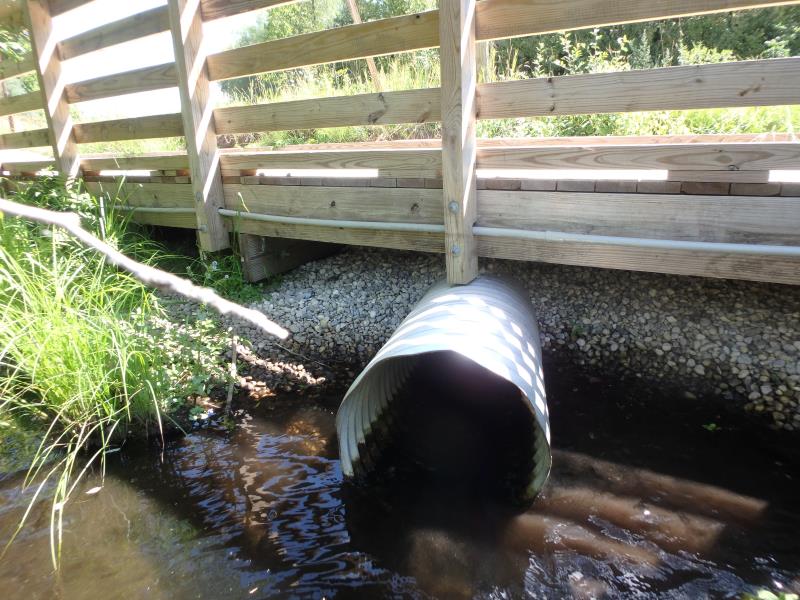

Inlet

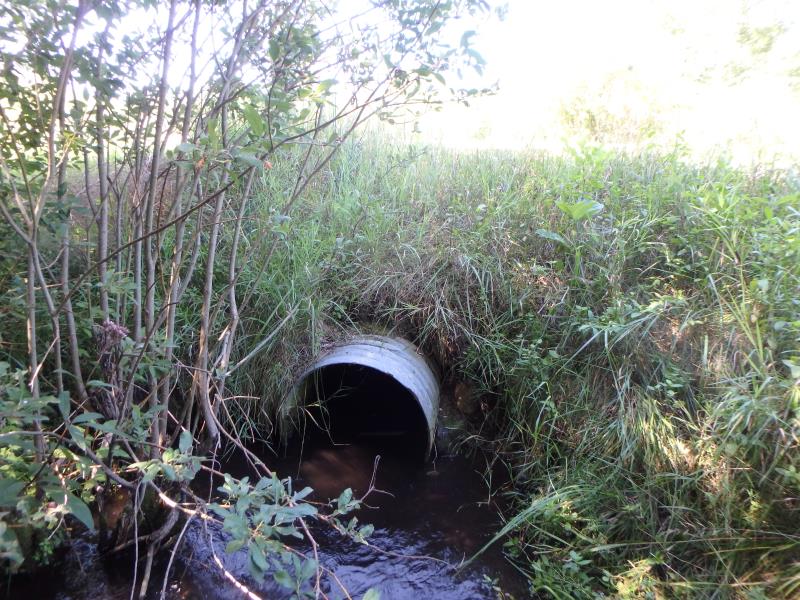

Outlet

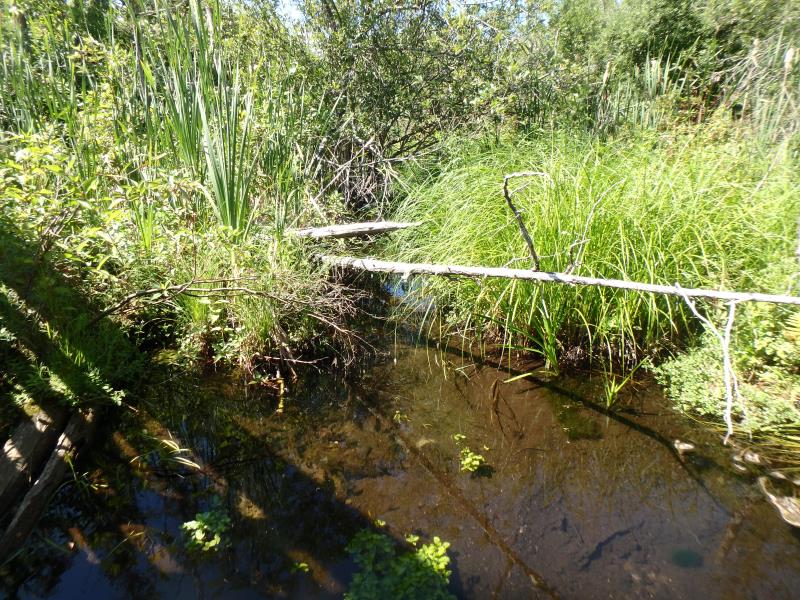

Upstream Conditions

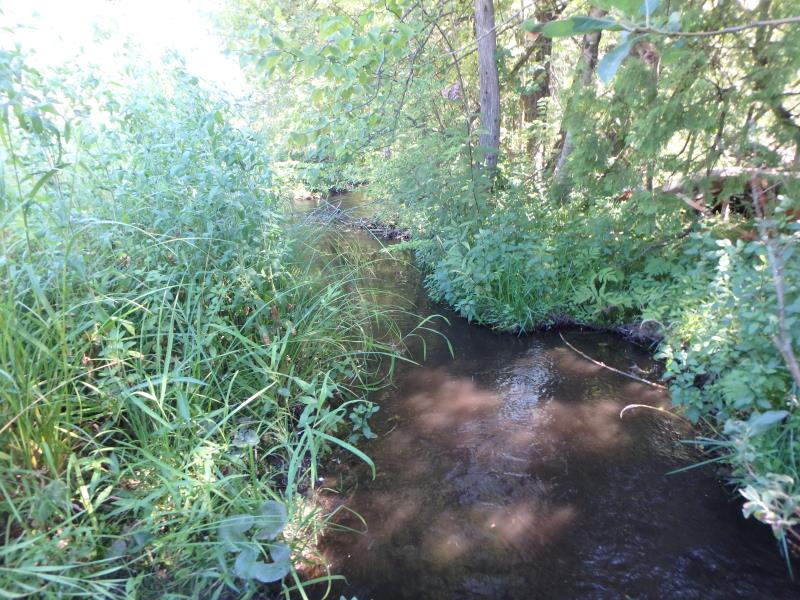

Downstream Conditions

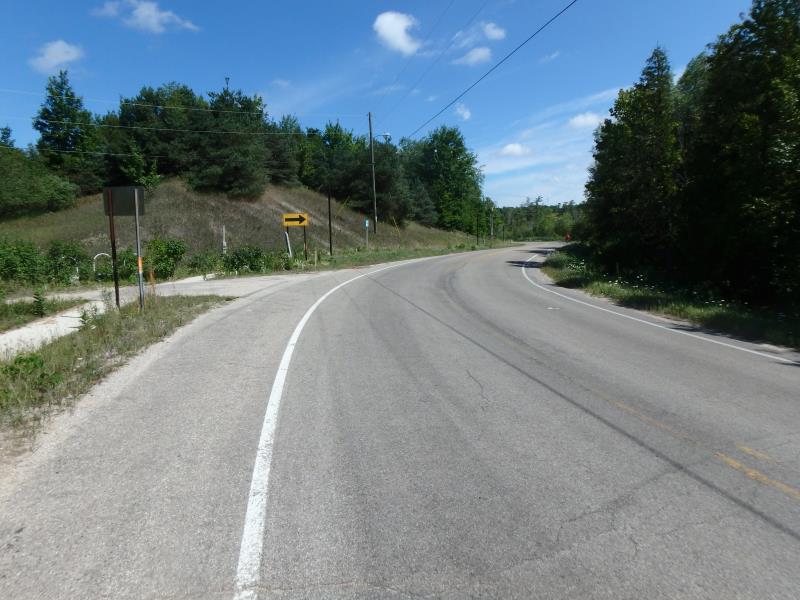

Road Approach - Left

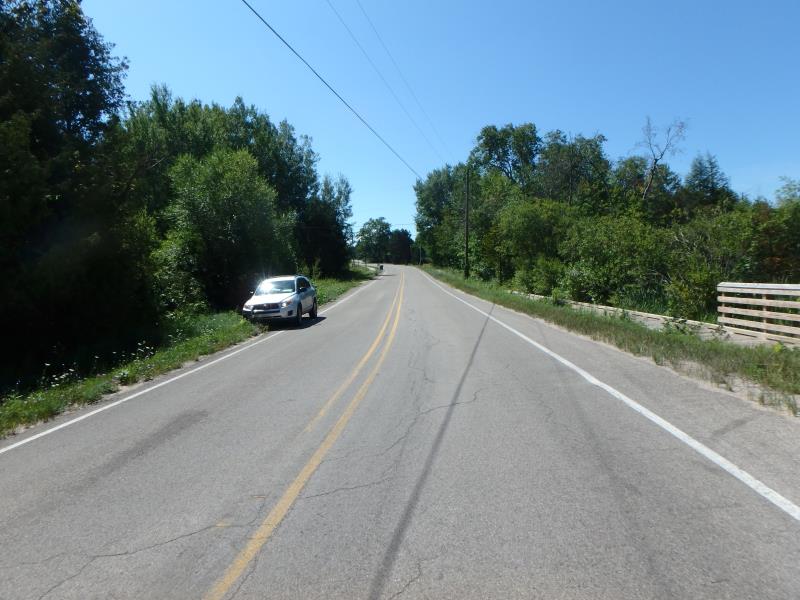

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 54.9 ft.
, Width 2.4 ft.
, Height 2.4 ft.
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 2.9 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.9 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 12.4 ft.
Wetted Width: 9.4 ft.
Water Velocity: 2.6 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved
Town Road
Road Condition: Fair
Road Width at Culvert: 28.3 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3.4 ft.
Slope: 1:1
Downstream
Fill Depth: 2.2 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 201.3 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.081 tons/year
Right Approach
Length: 25 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0012 tons/year
Erosion Information
Total Erosion at Crossing: 0.0854 tons/year
Extent of Erosion: Minor
Erosion is occurring and corrective actions can be installed to address the problem.
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Total Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | |
Right Downstream Embankment |
1.8 ft. |
2 ft. |
1.6 ft. |
yes |
Sand |
0.0032 |
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Bladder Campion, Spotted Knapweed, Queen Anne's Lace, Autumn Olive
